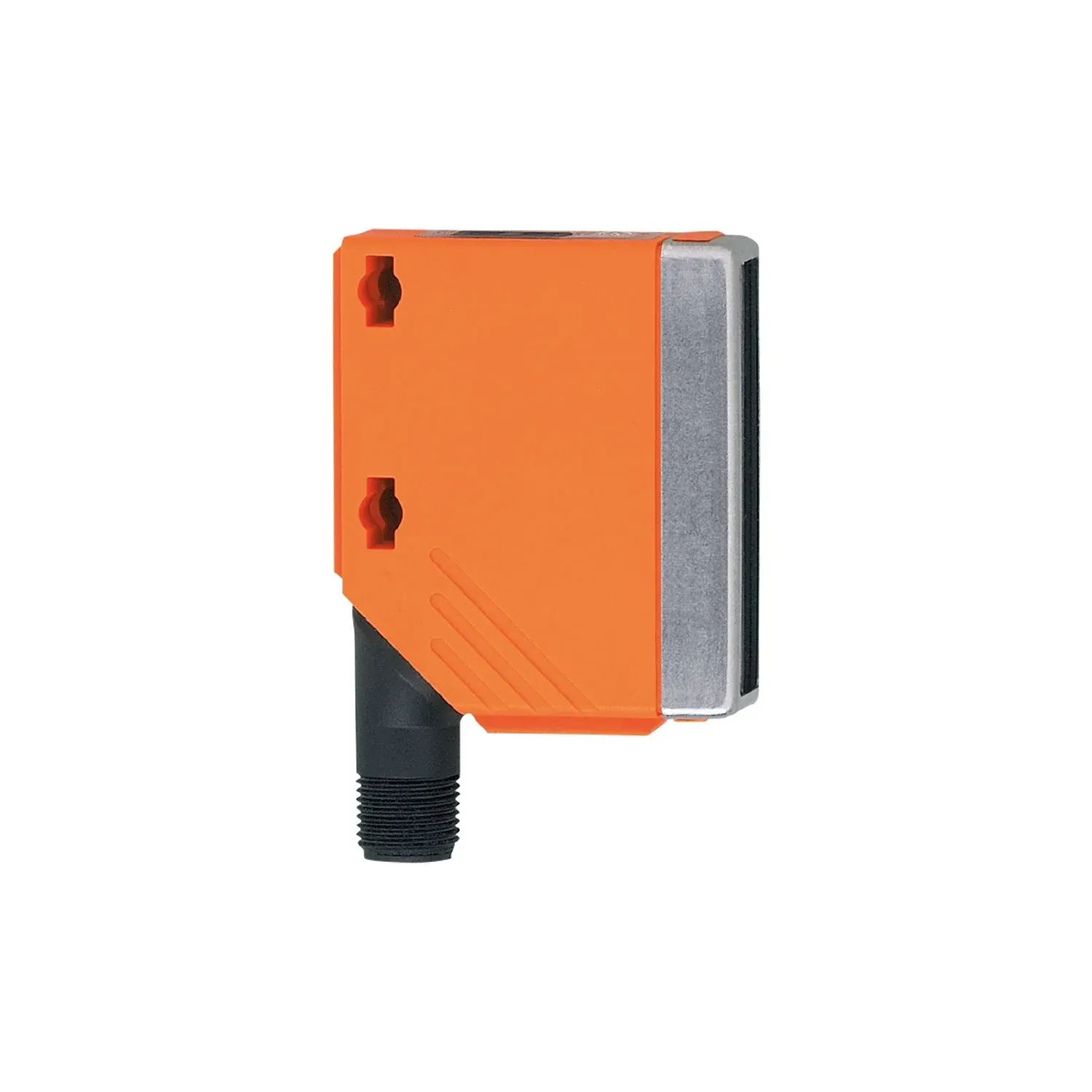

IFM O5K500
O5K500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable detection of print marks and particularly flat objects
Automatic selection of the ideal colour of the transmitted light
Easy adjustment of the device function via teach
Very high switching frequency of 10,000 Hz for fast processes
Extensive range of fixing components
Specification
Product characteristics
| Type of light | red light; green light; blue light |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | 50; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light; green light; blue light |
| Wave length[nm] [nm] | 625; 525; 465 |
Outputs
| Electrical design | PNP/NPN; (automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 10000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | 18...22 |
|---|---|
| Max. light spot width[mm] [mm] | 1.5 |
| Max. light spot height[mm] [mm] | 5 |
Response times
| Response time[ms] [ms] | < 0.05 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 568 |
Mechanical data
| Weight[g] [g] | 79.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 56 x 18.2 x 46.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU / PC |
| Lens material | front pane:PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
| Teach function | yes |
| Electronic lock | yes |
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
