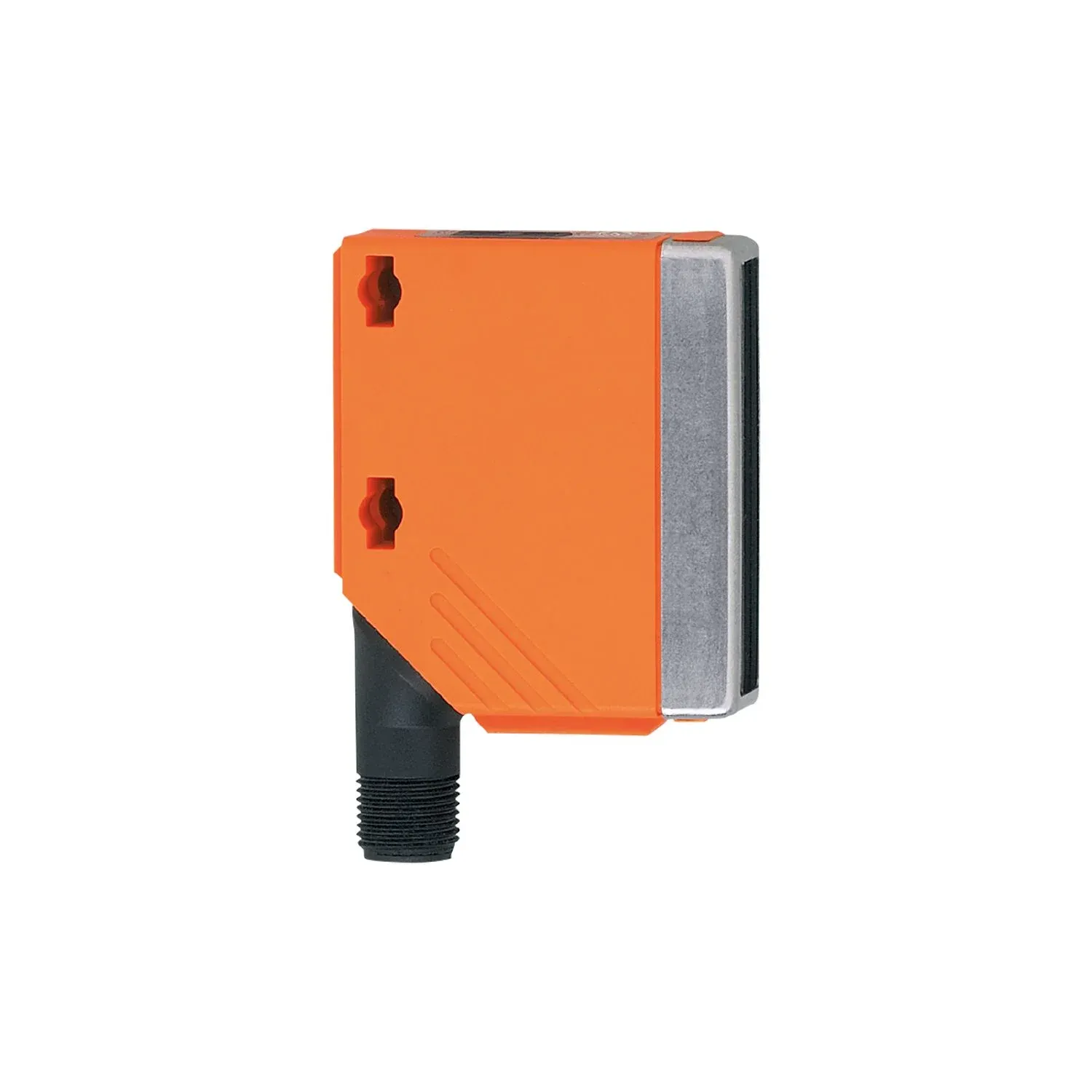

IFM O5H505
O5H505
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Precise background suppression
Sensitivity adjustable via teach buttons
Robust housing for use in harsh industrial environments
With green LED (readiness for operation)
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
Electrical data
| Operating voltage[V] [V] | 10...36 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 624 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (complementary) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range[mm] [mm] | 50...1800; (white paper 200 x 200 mm 90% remission) |
|---|---|
| Range on white object (90 % remission)[mm] [mm] | 50...1800 |
| Range on grey object (18 % remission)[mm] [mm] | 50...900 |
| Range on black object (6 % remission)[mm] [mm] | 50...600 |
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 50 |
| Light spot dimensions refer to | Range |
| Background suppression available | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| UL approval | Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191 |
| Ta | -25...60 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 58.1 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 56 x 18.2 x 46.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU |
| Lens material | PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 1 LED, yellow Operating voltage 1 LED, green |
|---|---|
| switching status | 1 LED, yellow |
| Operating voltage | 1 LED, green |
| Teach function | yes |
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
