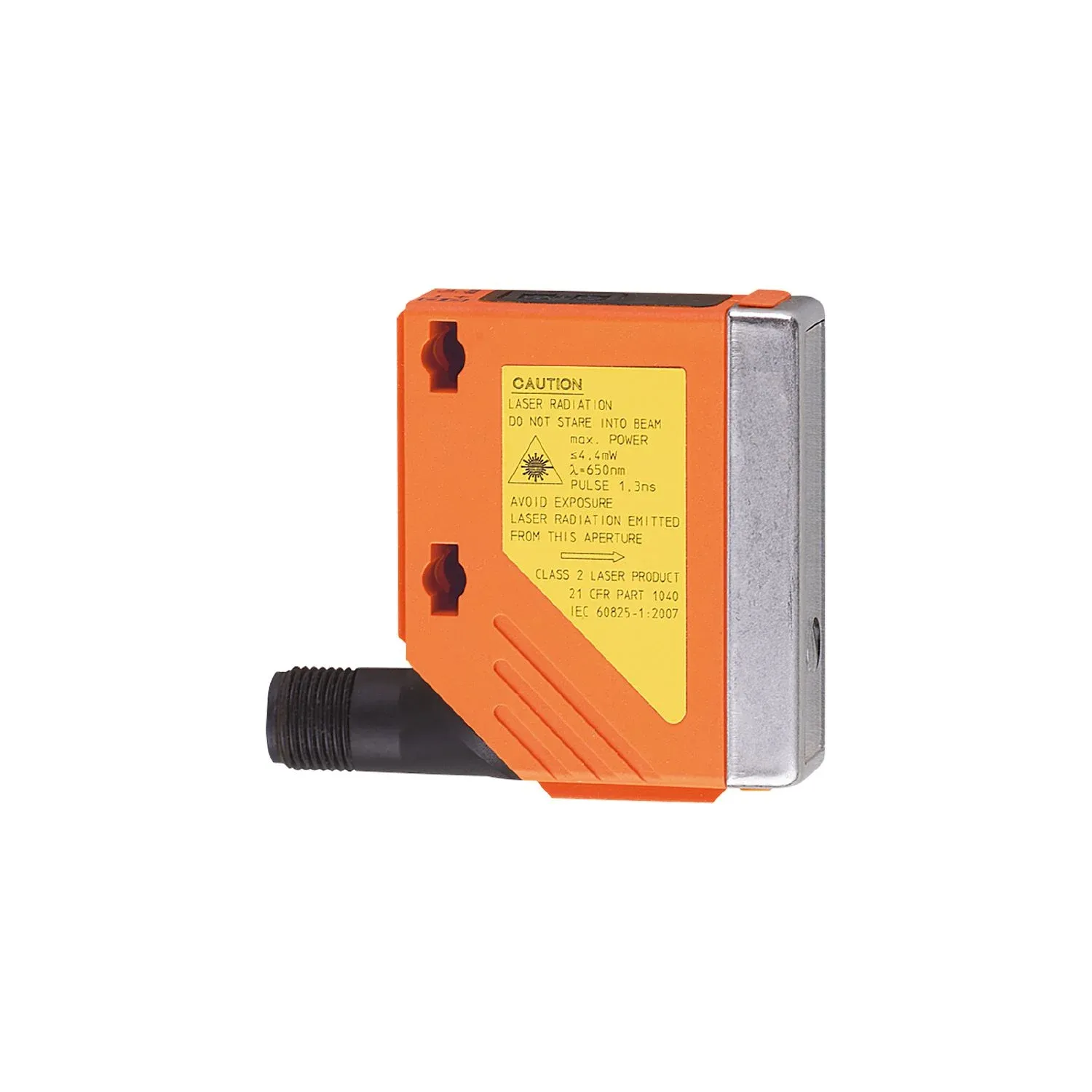

IFM O5D100
O5D100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range due to time-of-flight measurement
Reliable background suppression and colour-independent detection
With display and pushbuttons for precise switch point setting
Oblique angle to the object possible
Reliable detection of glossy surfaces
User-friendly communication via IO-Link
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 2 |
| Housing | rectangular |
Application
| Special feature | Background suppression |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 75; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 650 |
| Typ. lifetime[h] [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (complementary) |
| Max. current load per output[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 11 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot diameter[mm] [mm] | 5 |
|---|---|
| Light spot dimensions refer to | 2 m |
| Detection range hysteresis[%] [%] | < 2.5 |
| Note on monitoring range hysteresis | black 6% remission |
| Background suppression available | yes |
| Background suppression[m] [m] | < 20 |
Measuring/setting range
| Measuring range[m] [m] | 0.03...2 |
|---|---|
| Sampling rate[Hz] [Hz] | 33 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Multiple switching signal Function Process data variable |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Process data variable |
| SIO mode | yes |
| Process data analogue | 1 |
| Process data binary | 1 |
| Min. process cycle time[ms] [ms] | 6.4 |
| Supported DeviceIDs | default 372 |
| default | 372 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Note on ambient temperature | at ta < -10 °C warm-up is necessary, laser is off |
| Protection | IP 65; IP 67 |
| Max. immunity to extraneous light[klx] [klx] | 10; (on the object) |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| Vibration resistance | DIN EN 60068-2-6 10 g (10...55 Hz) / 120 min. per axis (x, y, z) |
| DIN EN 60068-2-6 | 10 g (10...55 Hz) / 120 min. per axis (x, y, z) |
| Shock resistance | DIN EN 60068-2-27 50 g 6 shocks / 11 ms half-sine (x, y, z) |
| DIN EN 60068-2-27 | 50 g 6 shocks / 11 ms half-sine (x, y, z) |
| Laser protection class | 2 |
| Notes on laser protection | Caution: laser light Power: <= 4,0 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | laser light |
| Power: | <= 4,0 mW |
| Wave length: | 650 nm |
| pulse: | 1,3 ns |
| laser class: | 2 |
| MTTF[years] [years] | 151 |
Mechanical data
| Weight[g] [g] | 61.6 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 56 x 18.2 x 46.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU; lens: PMMA |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status LED, yellow switching output PIN 4 operation LED, green display alphanumeric display, 3-digit |
|---|---|
| switching status | LED, yellow switching output PIN 4 |
| operation | LED, green |
| display | alphanumeric display, 3-digit |
| Display unit | cm |
Remarks
| Pack quantity | 1 pcs. |
|---|
