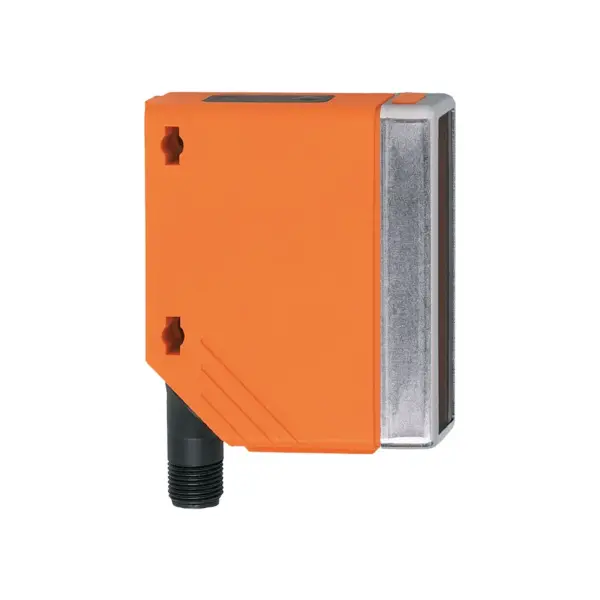

IFM O4P500
O4P500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Very long range
Sensitivity adjustable via teach buttons
Programmable light-on/dark-on mode
Robust housing for use in harsh industrial environments
With connector that can be rotated by 270°
Specification
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | polarisation filter |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage[V] [V] | 10...36 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 624 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector[m] [m] | 0.3...22; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter[mm] [mm] | 660 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 434 |
Mechanical data
| Weight[g] [g] | 124.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 74.4 x 27 x 63.8 |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPE |
| Lens material | PMMA |
| Lens alignment | side lens |
| Tightening torque[Nm] [Nm] | < 2; (when using a mounting screw M5) |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
| Teach function | yes |
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
