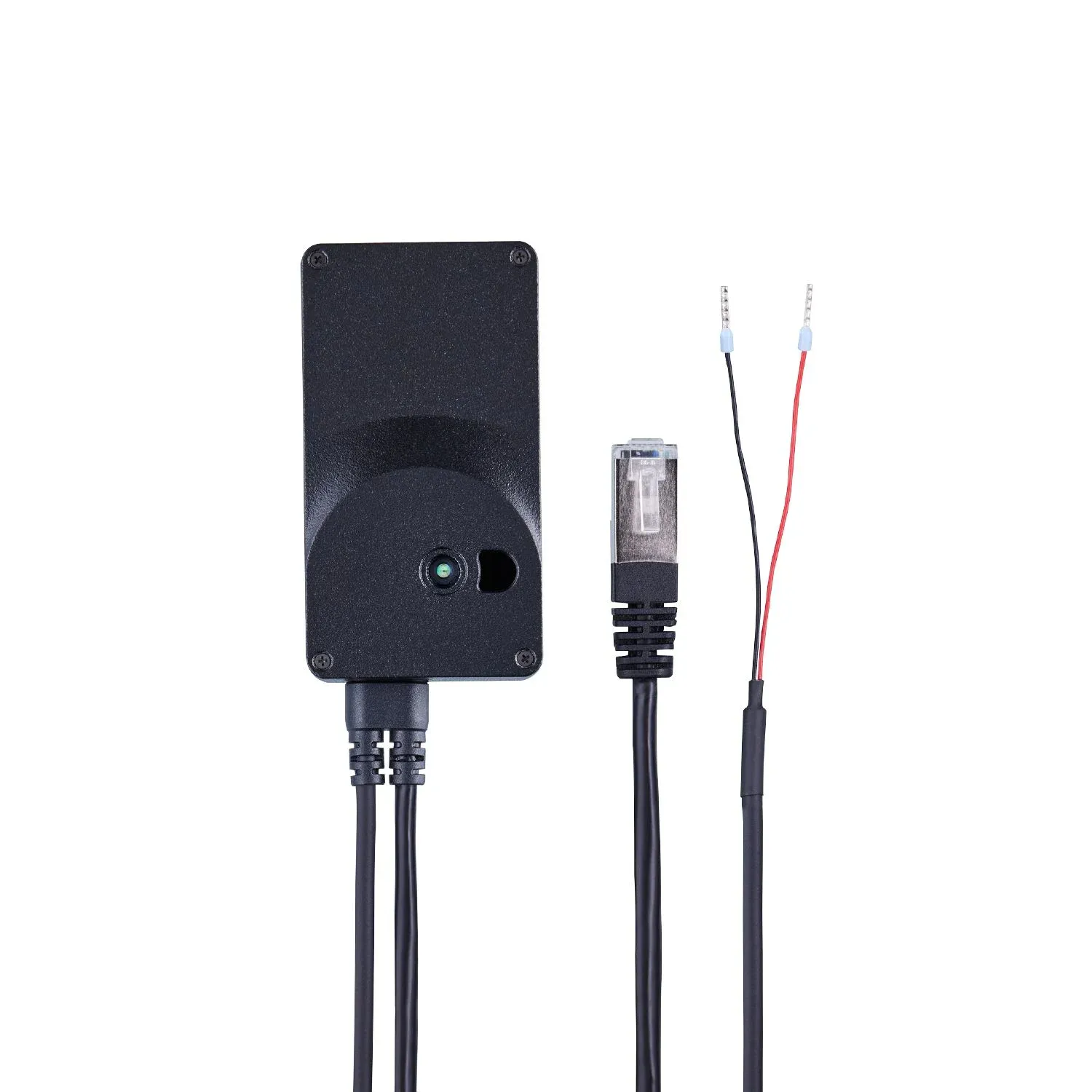

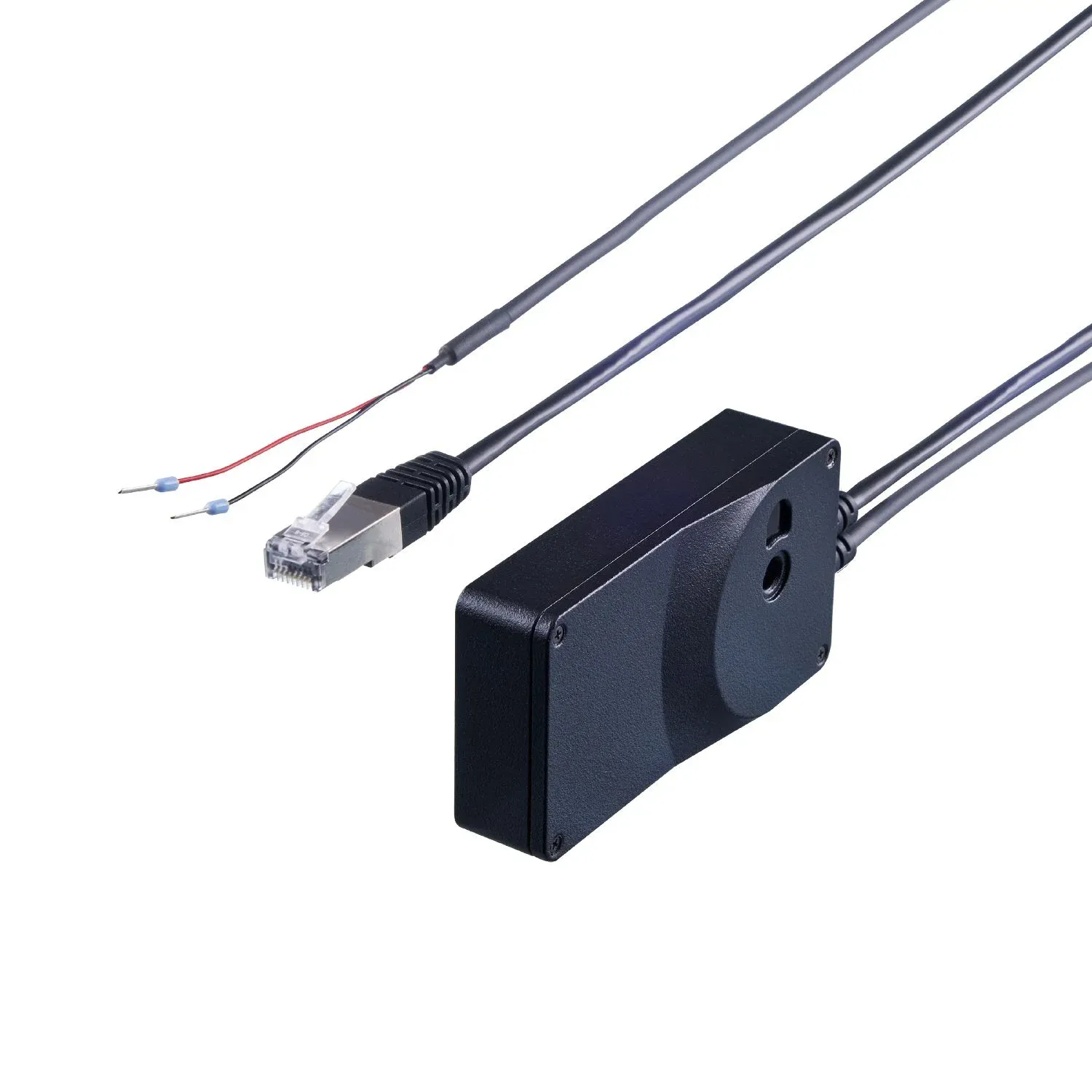

IFM O3X120
O3X120
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Image resolution 3D[px] [px] | 224 x 172 |
| Angle of aperture 3D[°] [°] | 58 x 44 |
| Max. reading rate [Hz] [Hz] | 20 |
Application
| Application | output of 3D image data |
|---|
Electrical data
| Operating voltage tolerance[%] [%] | -15...20 |
|---|---|
| Operating voltage[V] [V] | 24 DC |
| Current consumption[mA] [mA] | < 170; (mean value at 24 VDC; peak current pulsed: <350) |
| Power consumption[W] [W] | 4 |
| Protection class | III |
| Overvoltage category | II |
| Type of light | infrared light |
| Wave length[nm] [nm] | 850 |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm invisible radiation) |
Detection zone
| Operating distance[mm] [mm] | 50...3000 |
|---|---|
| Note on operating distance | object size: 200 x 200 mm reflectivity: 18 % |
| Image resolution 3D[px] [px] | 224 x 172 |
| Angle of aperture 3D[°] [°] | 58 x 44 |
| Max. reading rate [Hz] [Hz] | 20 |
Measuring/setting range
| Measuring range[m] [m] | < 30; (depending on settings, object size, and reflectivity) |
|---|
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant or XML-RPC |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Usage type | parameter setting; data transmission |
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10; 100 |
| Protocol | TCP/IP |
| Factory settings | IP address: 192.168.0.69 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.201 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...40 |
|---|---|
| Note on ambient temperature | Housing: < 45° C see operating instructions |
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 50 |
| Max. immunity to extraneous light[klx] [klx] | 8 |
Tests / approvals
| EMC | DIN EN IEC 61000-6-4 radiation of interference DIN EN IEC 61000-6-2 immunity / industrial environments |
|---|---|
| DIN EN IEC 61000-6-4 | radiation of interference |
| DIN EN IEC 61000-6-2 | immunity / industrial environments |
| Shock resistance | DIN EN 60068-2-27 50 g / (11 ms) not repetitive DIN EN 60068-2-27 40 g / (6 ms) repetitive |
| DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
| Vibration resistance | DIN EN 60068-2-6 2 g / (10...150 Hz) DIN EN 60068-2-64 2.3 g RMS / (10...500 Hz) |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) |
| DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
| Laser protection class | 1 |
| Notes on laser protection | Caution: invisible laser radiation laser class: 1 IEC 60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | invisible laser radiation |
| laser class: | 1 |
| Electrical safety | DIN EN IEC 61010-2-201 electrical supply only via PELV circuits |
| DIN EN IEC 61010-2-201 | electrical supply only via PELV circuits |
| MTTF[years] [years] | 59 |
Mechanical data
| Weight[g] [g] | 241.1 |
|---|---|
| Dimensions[mm] [mm] | 80 x 43.5 x 21 |
| Materials | housing: diecast zinc; front pane Illu: PMMA |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 1 m, PVC |
|---|
Electrical connection - Ethernet RJ45 connector
| Connector | 1 x RJ45 |
|---|
