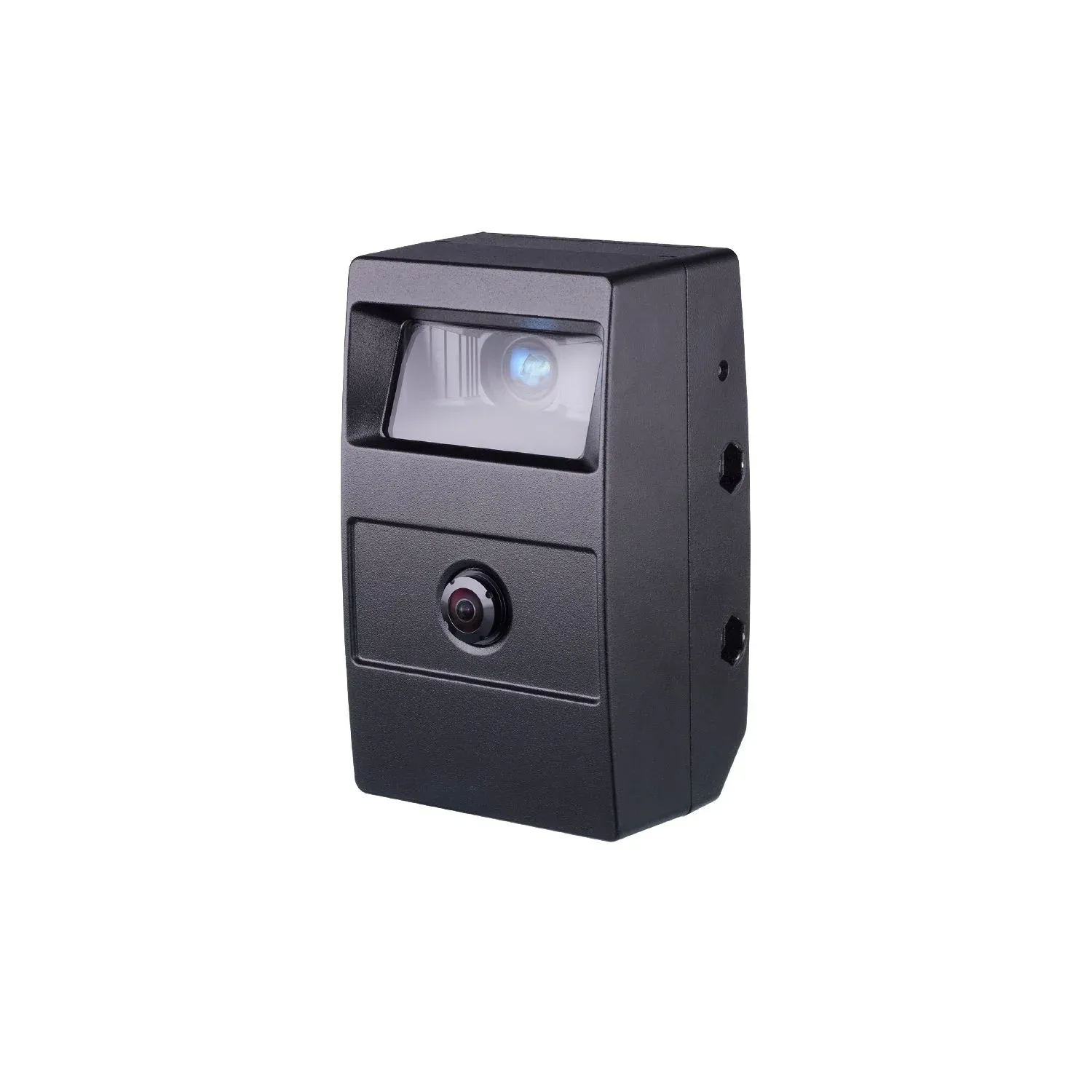

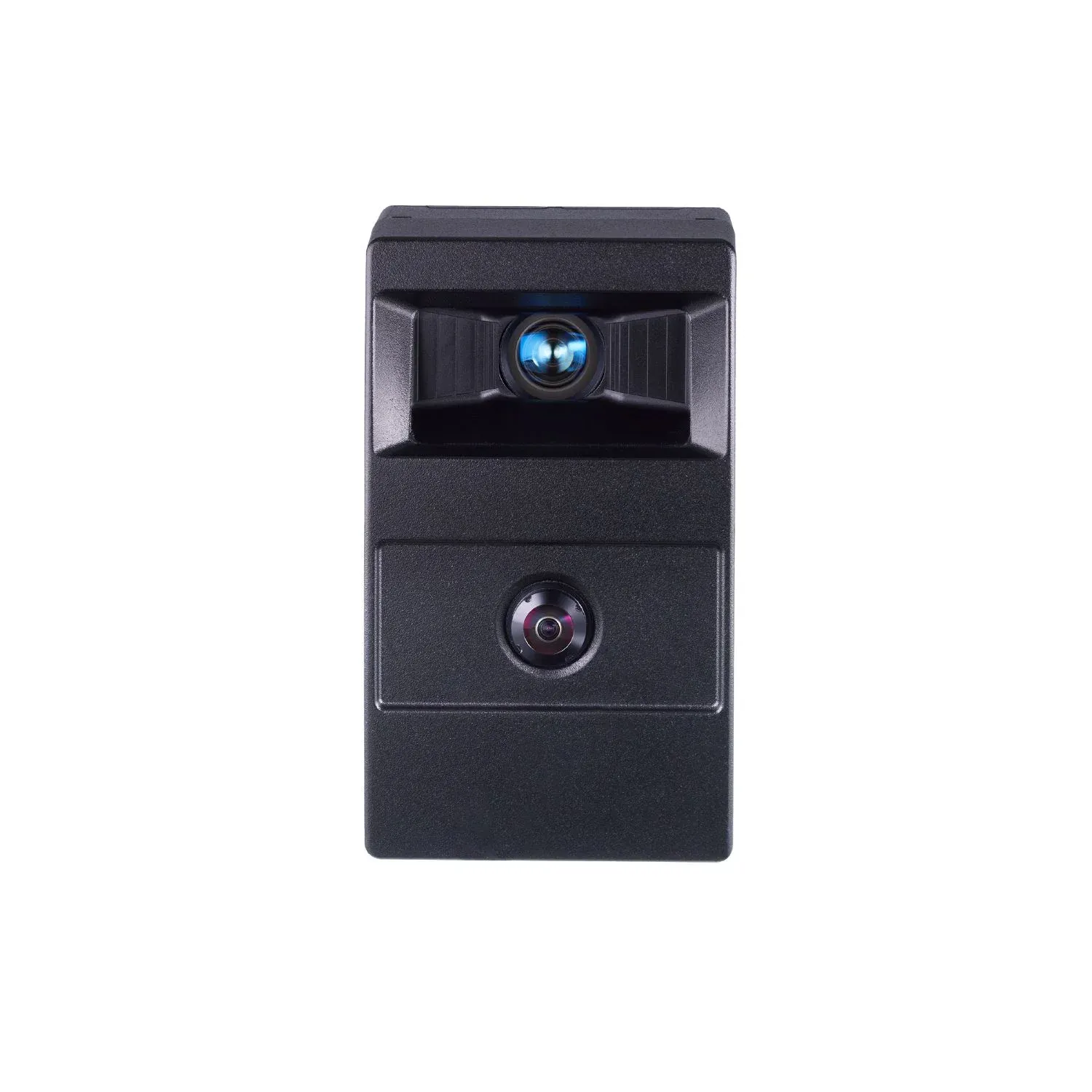

IFM O3M372
O3M372
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable person and obstacle detection, optimised for off-highway applications
Integrated person and object detection, based on ifm deep learning
2D/3D sensor fusion and plausibility check avoid false alarms
Robust functionality even in bright sunlight or twilight
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Image resolution[px] [px] | 1280 x 960 |
| Image resolution 3D[px] [px] | 64 x 16 |
| Angle of aperture[°] [°] | 143 x 112 |
| Angle of aperture 3D[°] [°] | 97 x 44 |
| Image repetition frequency[Hz] [Hz] | 30 |
| Image repetition frequency 3D[Hz] [Hz] | 30 |
Application
| Application | AI person detection; output of 3D image data; output of 2D image data; output of object recognition and collision prediction data |
|---|
Electrical data
| Operating voltage[V] [V] | 9...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 950 |
| Power consumption[W] [W] | 9.5 |
| Protection class | III |
| Type of light | infrared light |
| Image sensor | PMD 3D ToF chip / 2D CMOS chip (HDR) |
Outputs
| Video output | Ethernet, RTP, RTSP, H.264, H.265, MJPEG (max. 1280 x 960) |
|---|
Detection zone
| Image resolution[px] [px] | 1280 x 960 |
|---|---|
| Image resolution 3D[px] [px] | 64 x 16 |
| Angle of aperture[°] [°] | 143 x 112 |
| Angle of aperture 3D[°] [°] | 97 x 44 |
| Image repetition frequency[Hz] [Hz] | 30 |
| Image repetition frequency 3D[Hz] [Hz] | 30 |
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | CAN; Ethernet |
|---|---|
| Number of CAN interfaces | 1 |
| Number of Ethernet interfaces | 1 |
| Transmission rate | 250 (125...1000) kBaud |
| Protocol | UDP/IP; TCP/IP |
| Factory settings | 3D IP address: 192.168.1.1 2D IP address: 192.168.1.3 subnet mask: 255.255.255.0 3D target IP address: 255.255.255.255 target port 42000 |
| Usage type | data transmission; RTP/RTSP video stream (H.264, H.265, MJPEG) |
| Note on interfaces | preprocessed data output and video output via Ethernet |
Operating conditions
| Ambient temperature[°C] [°C] | -40...75 |
|---|---|
| Storage temperature[°C] [°C] | -40...90 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 67; IP 69K; (with mounted connectors or protective caps) |
| Max. immunity to extraneous light[klx] [klx] | 120 |
Tests / approvals
| EMC | DIN EN 61000-6-4 industrial environments DIN EN 61000-6-2 industrial environments |
|---|---|
| DIN EN 61000-6-4 | industrial environments |
| DIN EN 61000-6-2 | industrial environments |
| Shock resistance | DIN EN 60068-2-27 30 g / 6 ms bump |
| DIN EN 60068-2-27 | 30 g / 6 ms bump |
| Vibration resistance | DIN EN 60068-2-6 10 g / 10...500 Hz swept sine DIN EN 60068-2-64 10...1000 Hz noise |
| DIN EN 60068-2-6 | 10 g / 10...500 Hz swept sine |
| DIN EN 60068-2-64 | 10...1000 Hz noise |
| Electrical safety | DIN EN 61010-2-201 electric shock / electrical supply only via PELV circuits |
| DIN EN 61010-2-201 | electric shock / electrical supply only via PELV circuits |
| MTTF[years] [years] | 47 |
Mechanical data
| Weight[g] [g] | 1119.3 |
|---|---|
| Dimensions[mm] [mm] | 143.4 x 85 x 73.1 |
| Materials | housing: diecast aluminium; disc: gorilla glass |
Remarks
| Remarks | The illumination unit is required for the operation of the sensor. Only use original ifm cables to connect sensor and illumination unit. The function-specific performance values can be found in the applicable documentation. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - CAN
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Ethernet
| Connector | 1 x M12; coding: D |
|---|
