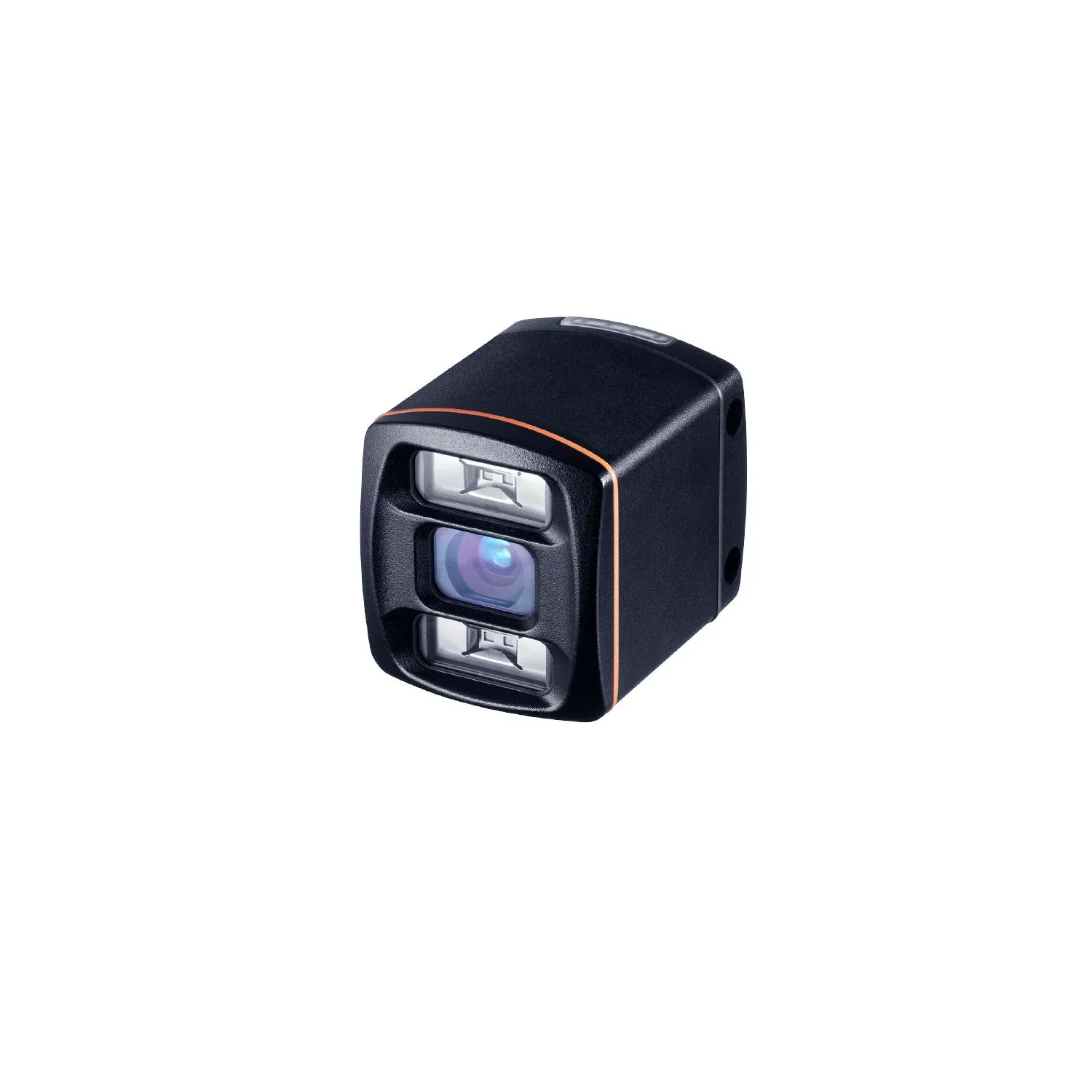

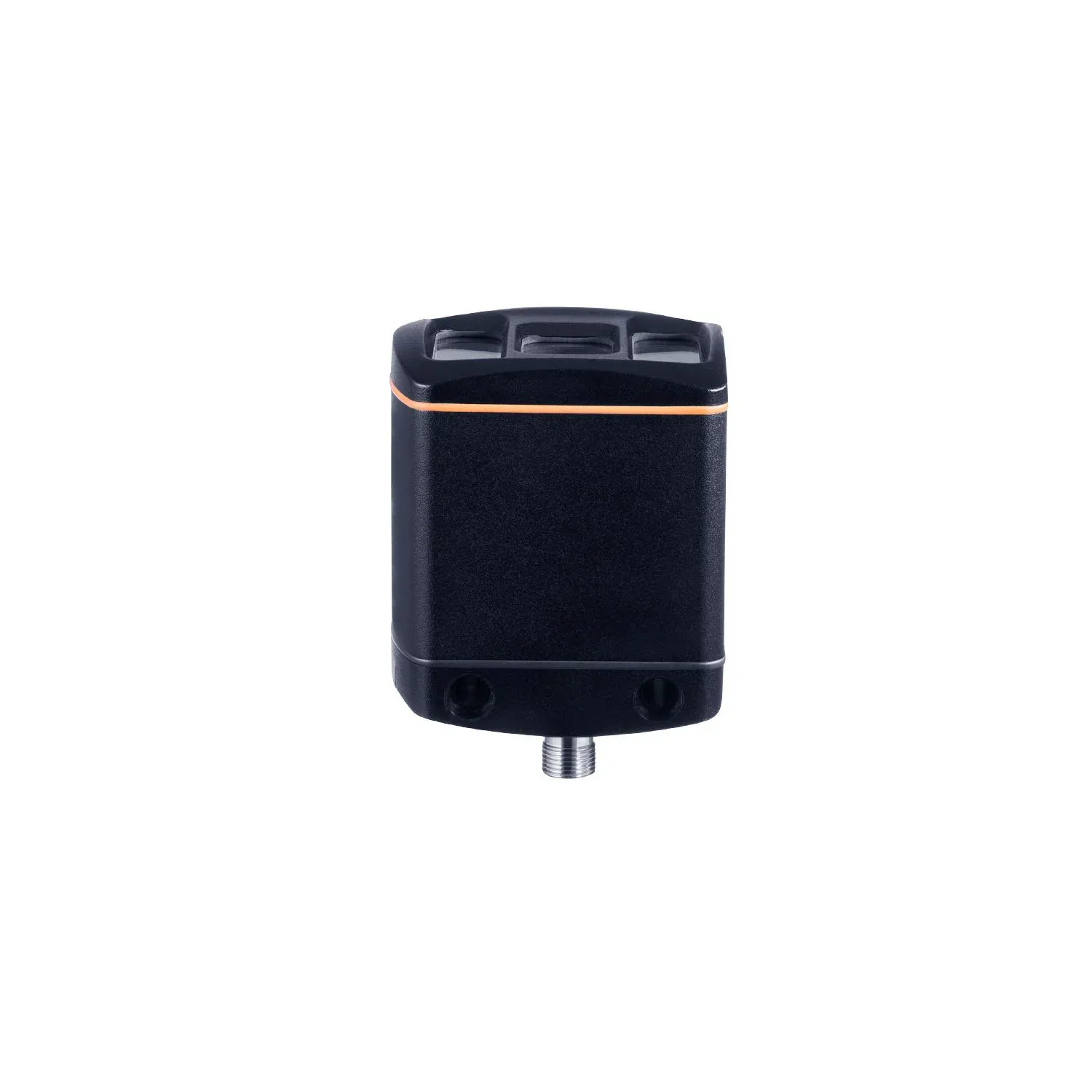

IFM O3DC02
O3DC02
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Image resolution 3D[px] [px] | 176 x 132 |
| Angle of aperture 3D[°] [°] | 60 x 45; (nominal value without lens distortion correction) |
| Image repetition frequency 3D[Hz] [Hz] | 10 |
| Housing | rectangular |
Application
| Application | obstacle detection |
|---|
Electrical data
| Operating voltage[V] [V] | 20.4...28.8 DC; (EN 61131-2) |
|---|---|
| Current consumption[mA] [mA] | 420; (maximum mean value: < 1600 mA) |
| Max. current consumption[mA] [mA] | 2400; (peak current pulsed) |
| Power consumption[W] [W] | 10 |
| Protection class | III |
| Type of light | infrared light |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm invisible radiation LED) |
| Switch-on peak current[mA] [mA] | 2400 |
Detection zone
| Operating distance[mm] [mm] | 200...4000 |
|---|---|
| Image resolution 3D[px] [px] | 176 x 132 |
| Angle of aperture 3D[°] [°] | 60 x 45; (nominal value without lens distortion correction) |
| Image repetition frequency 3D[Hz] [Hz] | 10 |
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10; 100 |
| Protocol | TCP/IP |
| Factory settings | IP address: 192.168.0.69 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.201 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 65; IP 67 |
| Max. immunity to extraneous light[klx] [klx] | 8 |
Tests / approvals
| EMC | DIN EN 61000-6-4 radiation of interference / industrial environments DIN EN 61000-6-2 immunity / industrial environments |
|---|---|
| DIN EN 61000-6-4 | radiation of interference / industrial environments |
| DIN EN 61000-6-2 | immunity / industrial environments |
| Shock resistance | DIN EN 60068-2-27 50 g / (11 ms) not repetitive DIN EN 60068-2-27 40 g / (6 ms) repetitive |
| DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
| Vibration resistance | DIN EN 60068-2-6 2 g / (10...150 Hz) DIN EN 60068-2-64 2.3 g RMS / (10...500 Hz) |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) |
| DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
| Photobiological safety | exempt group; (DIN EN 62471) |
| Electrical safety | DIN EN 61010-2-201 electrical supply only via PELV circuits |
| DIN EN 61010-2-201 | electrical supply only via PELV circuits |
Mechanical data
| Weight[g] [g] | 770 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 72 x 65 x 82.6 |
| Materials | housing: diecast aluminium; front pane: gorilla glass; function display: PA |
Displays / operating elements
| Display | function 2 x LED, green Ethernet operation |
|---|---|
| function | 2 x LED, green Ethernet operation |
Accessories
| Items supplied | spring washers |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|

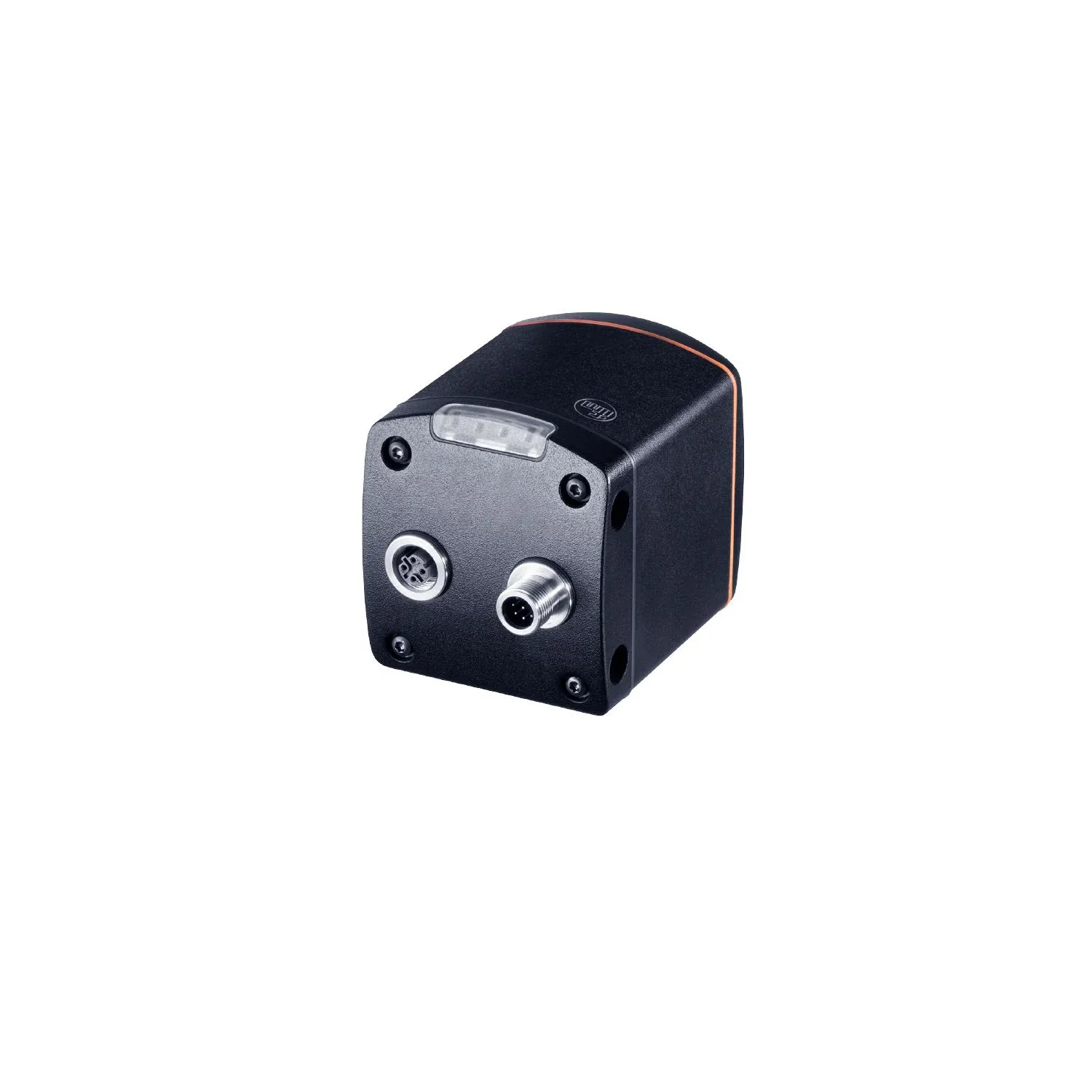

Electrical connection - Ethernet
| Connector | 1 x M12; coding: D |
|---|
Electrical connection - Process connection
| Connector | 1 x M12; coding: A |
|---|
