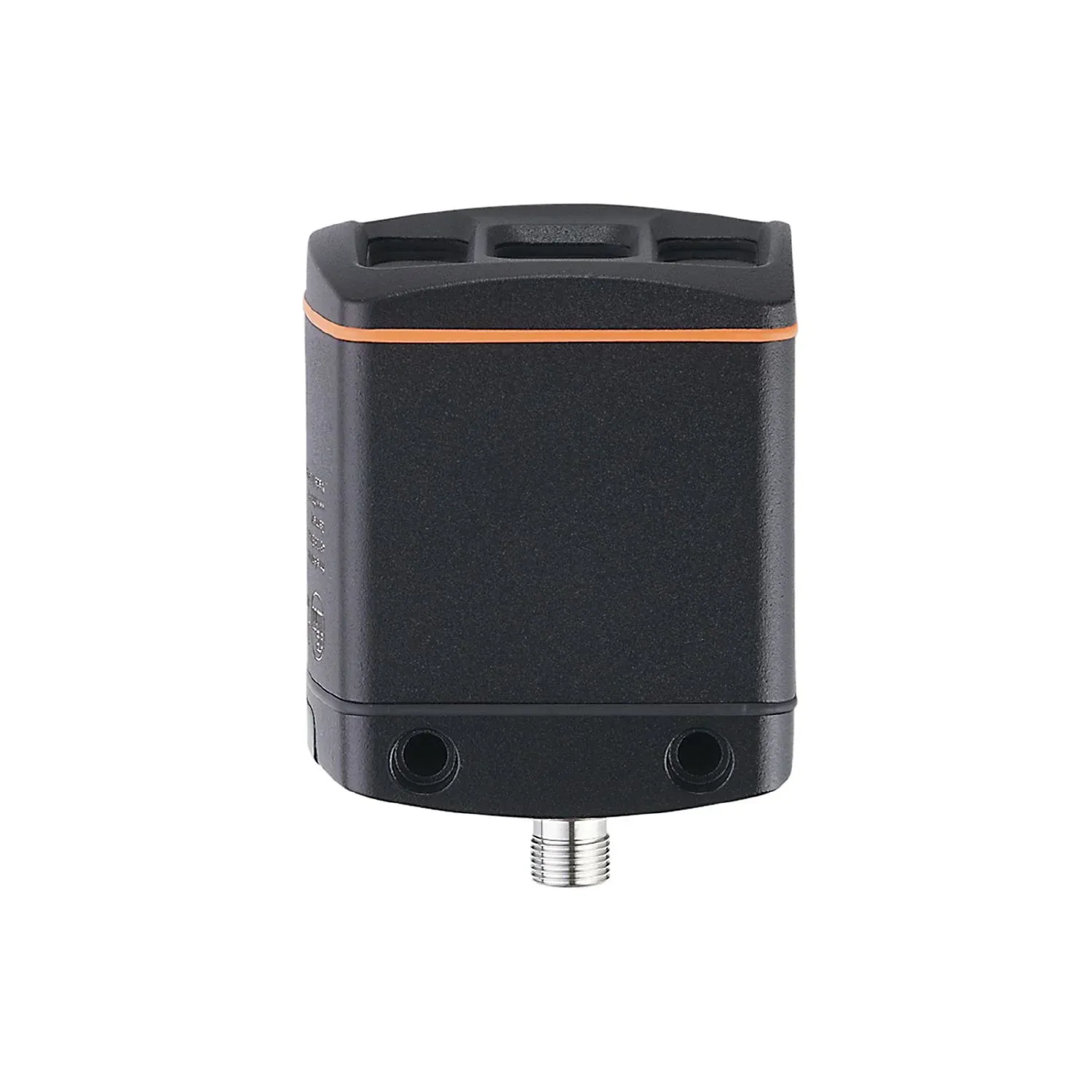

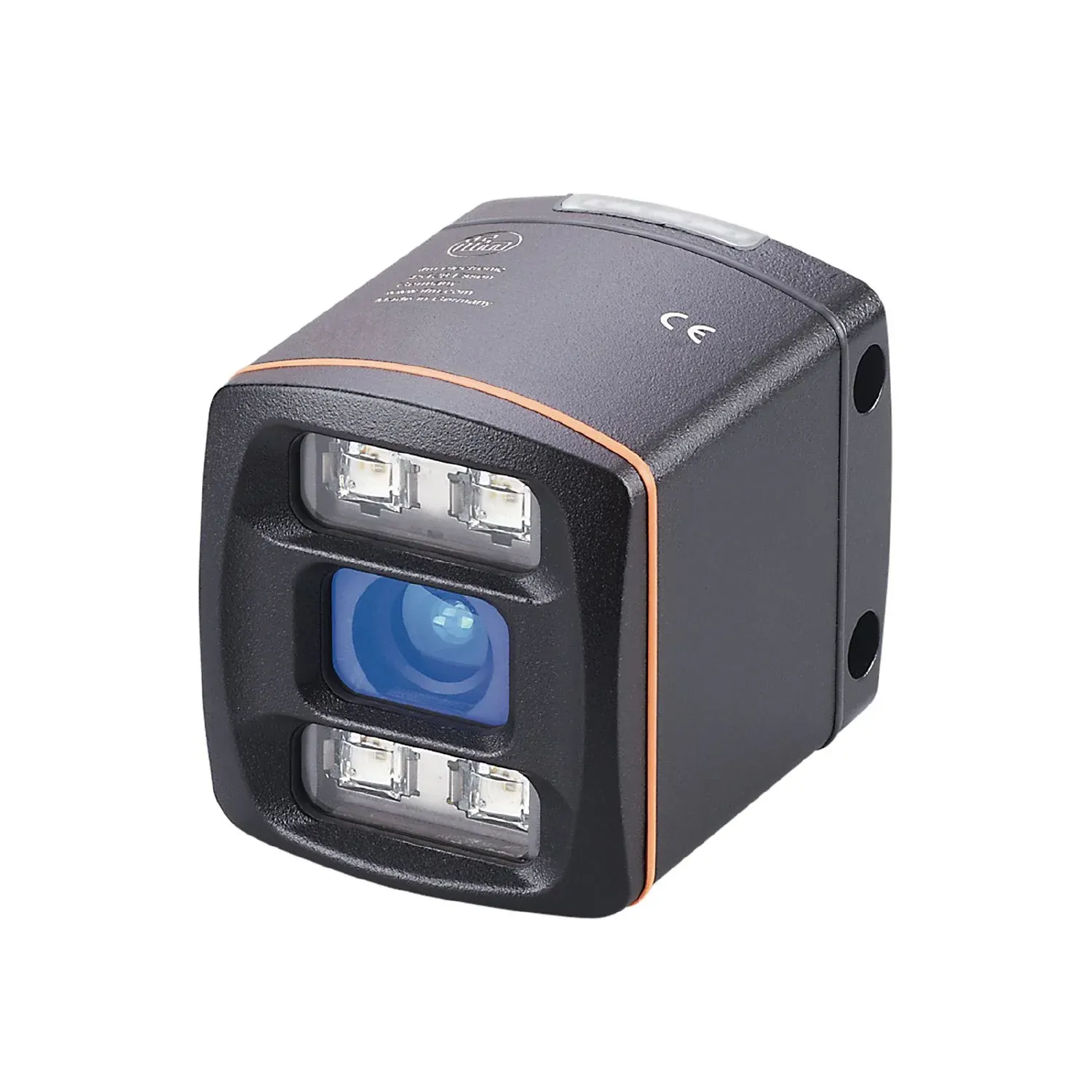

IFM O3D303
O3D303
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Visual assessment of distance, level or volume
Reliable distance measurement due to time-of-flight measurement (ToF / Time-of-Flight)
Illumination, measurement and evaluation in one unit
Output of 93,000 distance and grey values per measurement for a detailed evaluation of the application
Integration by means of intuitive parameter setting software
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Image resolution 3D[px] [px] | 352 x 264 |
| Angle of aperture 3D[°] [°] | 60 x 45; (nominal value without lens distortion correction) |
| Max. reading rate [Hz] [Hz] | 25 |
| Housing | rectangular |
Application
| Application | Camera for the output of 3D image data |
|---|
Electrical data
| Operating voltage tolerance[%] [%] | -15...20 |
|---|---|
| Operating voltage[V] [V] | 24 DC; (EN 61131-2) |
| Current consumption[mA] [mA] | 350; (typical) |
| Max. current consumption[mA] [mA] | 830; (mean value at 24 VDC ; with switched outputs ; <1600 peak current pulsed) |
| Protection class | III |
| Overvoltage category | II |
| Type of light | infrared light |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 1; Number of digital outputs: 2 |
|---|
Inputs
| Trigger | 24 V PNP/NPN (IEC 61131-2 Typ 3) |
|---|---|
| Number of digital inputs | 1; (including trigger input) |
| Input circuit of digital inputs | 24 V PNP/NPN; (configurable; IEC 61131-2 Typ 3) |
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | 24 V PNP/NPN; (EN 61131-2) |
| Number of digital outputs | 2; (configurable) |
| Max. voltage drop switching output DC[V] [V] | 1 |
| Max. current load per output[mA] [mA] | 100 |
| Min. load[Ω] [Ω] | 230 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Operating distance[mm] [mm] | 300...8000 |
|---|---|
| Note on operating distance | object size: 200 x 200 mm reflectivity: 18 % |
| Image resolution 3D[px] [px] | 352 x 264 |
| Angle of aperture 3D[°] [°] | 60 x 45; (nominal value without lens distortion correction) |
| Max. reading rate [Hz] [Hz] | 25 |
Measuring/setting range
| Measuring range[m] [m] | < 30 |
|---|
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant or XML-RPC; software API for C, C++ and Halcon |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Protocol | TCP/IP |
| Factory settings | IP address: 192.168.0.69 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.201 |
| Usage type | parameter setting; data transmission |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65; IP 67 |
| Pollution degree | 3 |
| Max. immunity to extraneous light[klx] [klx] | 8; (with reduced measuring accuracy and repeatability: < 100) |
Tests / approvals
| EMC | DIN EN IEC 61000-6-4 radiation of interference / industrial environments DIN EN IEC 61000-6-2 immunity / industrial environments |
|---|---|
| DIN EN IEC 61000-6-4 | radiation of interference / industrial environments |
| DIN EN IEC 61000-6-2 | immunity / industrial environments |
| Shock resistance | DIN EN 60068-2-27 50 g / (11 ms) not repetitive DIN EN 60068-2-27 40 g / (6 ms) repetitive |
| DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
| Vibration resistance | DIN EN 60068-2-6 2 g / (10...150 Hz) DIN EN 60068-2-64 2.3 g RMS / (10...500 Hz) |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) |
| DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
| Laser protection class | 1 |
| Notes on laser protection | Caution invisible laser radiation EN 60825-1:2014 +A11:2021 IEC 60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Electrical safety | DIN EN IEC 61010-2-201 electrical supply only via PELV circuits |
| DIN EN IEC 61010-2-201 | electrical supply only via PELV circuits |
| MTTF[years] [years] | 37 |
Mechanical data
| Weight[g] [g] | 766.95 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 72 x 65 x 82.6 |
| Materials | housing: diecast aluminium; front pane: gorilla glass; function display: PA |
| Tightening torque[Nm] [Nm] | < 0.8 |
Displays / operating elements
| Display | function 2 x LED, green Ethernet operation switching status 2 x LED, yellow OUT 1 OUT 2 |
|---|---|
| function | 2 x LED, green Ethernet operation |
| switching status | 2 x LED, yellow OUT 1 OUT 2 |
Accessories
| Items supplied | Protective covers spring washers |
|---|
Remarks
| Remarks | Repeatability and accuracy depend on the image settings and the environmental conditions. The data sheet values apply to typical settings and conditions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 1 x M12; coding: D |
|---|
Electrical connection - Process connection
| Connector | 1 x M12; coding: A |
|---|
