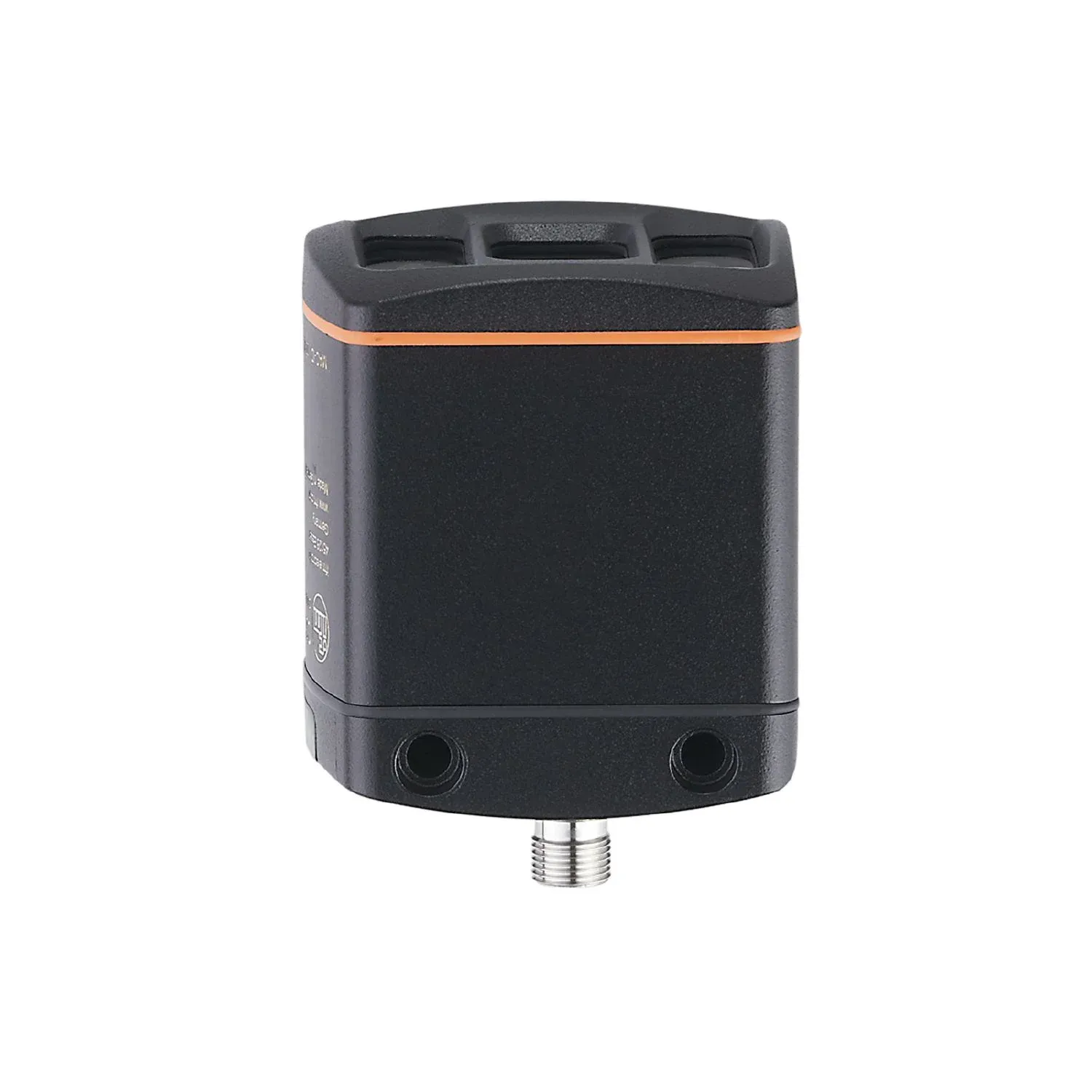

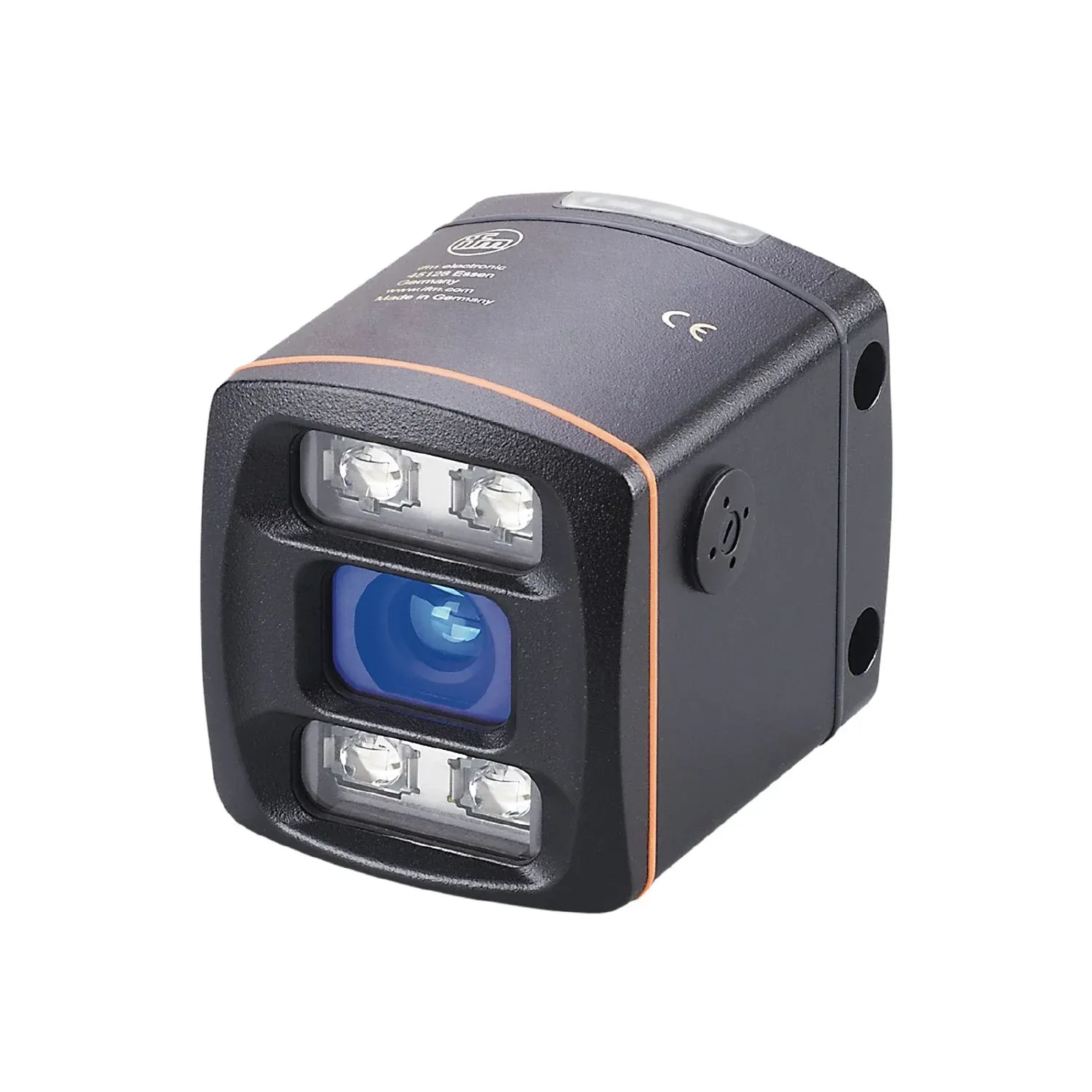

IFM O3D301
O3D301
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Visual assessment of distance, level or volume
Reliable distance measurement due to time-of-flight measurement (ToF / Time-of-Flight)
Illumination, measurement and evaluation in one unit
Output of 93,000 distance and grey values per measurement for a detailed evaluation of the application
Integration by means of intuitive parameter setting software
Specification
Product characteristics
| Image resolution 3D[px] [px] | 352 x 264 |
|---|---|
| Angle of aperture 3D[°] [°] | 40 x 30; (nominal value without lens distortion correction) |
| Max. reading rate [Hz] [Hz] | 25 |
| Housing | rectangular |
Application
| Application | output of 3D image data |
|---|
Electrical data
| Operating voltage[V] [V] | 20.4...28.8 DC; (EN 61131-2) |
|---|---|
| Current consumption[mA] [mA] | < 2400; (peak current pulsed; typical value: 420; maximum value: 1600) |
| Power consumption[W] [W] | 10; (typical value) |
| Protection class | III |
| Overvoltage category | II |
| Image sensor | PMD 3D ToF-Chip |
| Internal lighting | yes; (infrared: 850 nm invisible radiation LED) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Inputs
| Trigger | 24 V PNP/NPN (IEC 61131-2 Typ 3) |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Number of digital outputs | 2; (configurable) |
| Output function | 24 V PNP/NPN; (EN 61131-2) |
| Max. current load per output[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Operating distance[mm] [mm] | 300...10000 |
|---|---|
| Note on operating distance | object size: 200 x 200 mm reflectivity: 18 % |
| Image resolution 3D[px] [px] | 352 x 264 |
| Angle of aperture 3D[°] [°] | 40 x 30; (nominal value without lens distortion correction) |
| Max. reading rate [Hz] [Hz] | 25 |
Measuring/setting range
| Measuring range[m] [m] | < 30 |
|---|
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant or XML-RPC |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10; 100 |
| Protocol | TCP/IP |
| Factory settings | IP address: 192.168.0.69 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.201 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 65; IP 67 |
| Max. immunity to extraneous light[klx] [klx] | 8; (with reduced measuring accuracy and repeatability: < 100) |
Tests / approvals
| EMC | DIN EN 61000-6-4 radiation of interference / industrial environments DIN EN 61000-6-2 immunity / industrial environments |
|---|---|
| DIN EN 61000-6-4 | radiation of interference / industrial environments |
| DIN EN 61000-6-2 | immunity / industrial environments |
| Shock resistance | DIN EN 60068-2-27 50 g / (11 ms) not repetitive DIN EN 60068-2-27 40 g / (6 ms) repetitive |
| DIN EN 60068-2-27 | 40 g / (6 ms) repetitive |
| Vibration resistance | DIN EN 60068-2-6 2 g / (10...150 Hz) DIN EN 60068-2-64 2.3 g RMS / (10...500 Hz) |
| DIN EN 60068-2-6 | 2 g / (10...150 Hz) |
| DIN EN 60068-2-64 | 2.3 g RMS / (10...500 Hz) |
| Photobiological safety | exempt group; (DIN EN 62471) |
| Electrical safety | DIN EN 61010-2-201 electrical supply only via PELV circuits |
| DIN EN 61010-2-201 | electrical supply only via PELV circuits |
| MTTF[years] [years] | 45.02 |
Mechanical data
| Weight[g] [g] | 785 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 72 x 67.1 x 82.6 |
| Materials | housing: diecast aluminium; front pane: gorilla glass; function display: PA |
Displays / operating elements
| Display | function 2 x LED, green Ethernet operation switching status 2 x LED, yellow OUT 1 OUT 2 |
|---|---|
| function | 2 x LED, green Ethernet operation |
| switching status | 2 x LED, yellow OUT 1 OUT 2 |
Accessories
| Items supplied | Protective covers |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|

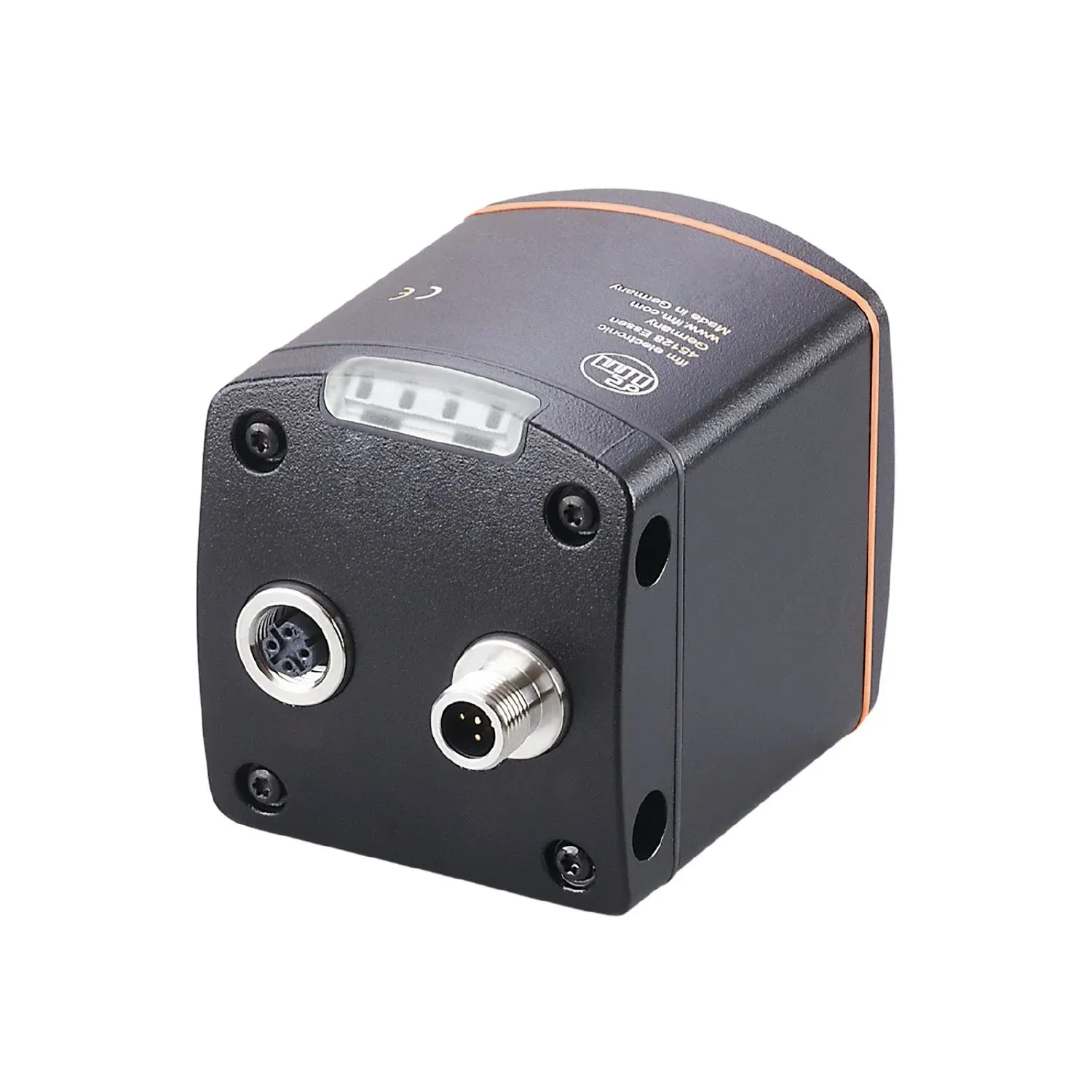

Electrical connection - Ethernet
| Connector | 1 x M12; coding: D |
|---|
Electrical connection - Process connection
| Connector | 1 x M12; coding: A |
|---|
