IFM O2M211
O2M211
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Analogue video output for rear area monitoring in mobile machines
Encapsulated, weather-proof housing
High shock and vibration resistance
Temperature-controlled lens heating
EU type approval E4
Specification
Product characteristics
| Image resolution[px] [px] | 640 x 480 |
|---|---|
| Angle of aperture[°] [°] | 170 x 117 |
Application
| Special feature | Screened cable |
|---|---|
| Application | Integrated mirror function |
Electrical data
| Operating voltage[V] [V] | 12...32 DC |
|---|---|
| Current consumption[mA] [mA] | < 280; (with lens heating) |
| Overvoltage protection | yes |
| Image sensor | ¼'' 4:3 VGA CMOS image sensor Color |
| Switch-on peak current[mA] [mA] | 1000 |
| Switch-on peak current duration[ms] [ms] | 2 |
Outputs
| Video output | PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω |
|---|
Detection zone
| Field of view size[mm] [mm] | Operating distance [m] field of view [m] 1 22,86 x 3,26 2 45,72 x 6,53 3 68,58 x 9,79 4 91,44 x 13,05 5 114,30 x 16,32 |
|---|---|
| Operating distance [m] | field of view [m] |
| 1 | 22,86 x 3,26 |
| 2 | 45,72 x 6,53 |
| 3 | 68,58 x 9,79 |
| 4 | 91,44 x 13,05 |
| 5 | 114,30 x 16,32 |
| Image resolution[px] [px] | 640 x 480 |
| Angle of aperture[°] [°] | 170 x 117 |
| Light sensitivity[LUX] [LUX] | < 0.05 |
| Dynamic range[dB] [dB] | > 80 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-4 industrial environments DIN EN 61000-6-2 industrial environments UN-ECE R10 |
|---|---|
| DIN EN 61000-6-4 | industrial environments |
| DIN EN 61000-6-2 | industrial environments |
| Shock resistance | 50 g |
| Vibration resistance | Frequency range 24...2000 Hz (15.3 x 9.81 m/s²)rms PSD (g²/Hz) 0.04...0.1 |
| Frequency range 24...2000 Hz | (15.3 x 9.81 m/s²)rms |
| PSD (g²/Hz) | 0.04...0.1 |
| Salt spray test | IEC 60068-5-52 |
Mechanical data
| Weight[g] [g] | 301.7 |
|---|---|
| Dimensions[mm] [mm] | Ø 55 / L = 52 |
| Materials | housing: PC/ABS; front lens: polyamide glass fibre reinforced |
Accessories

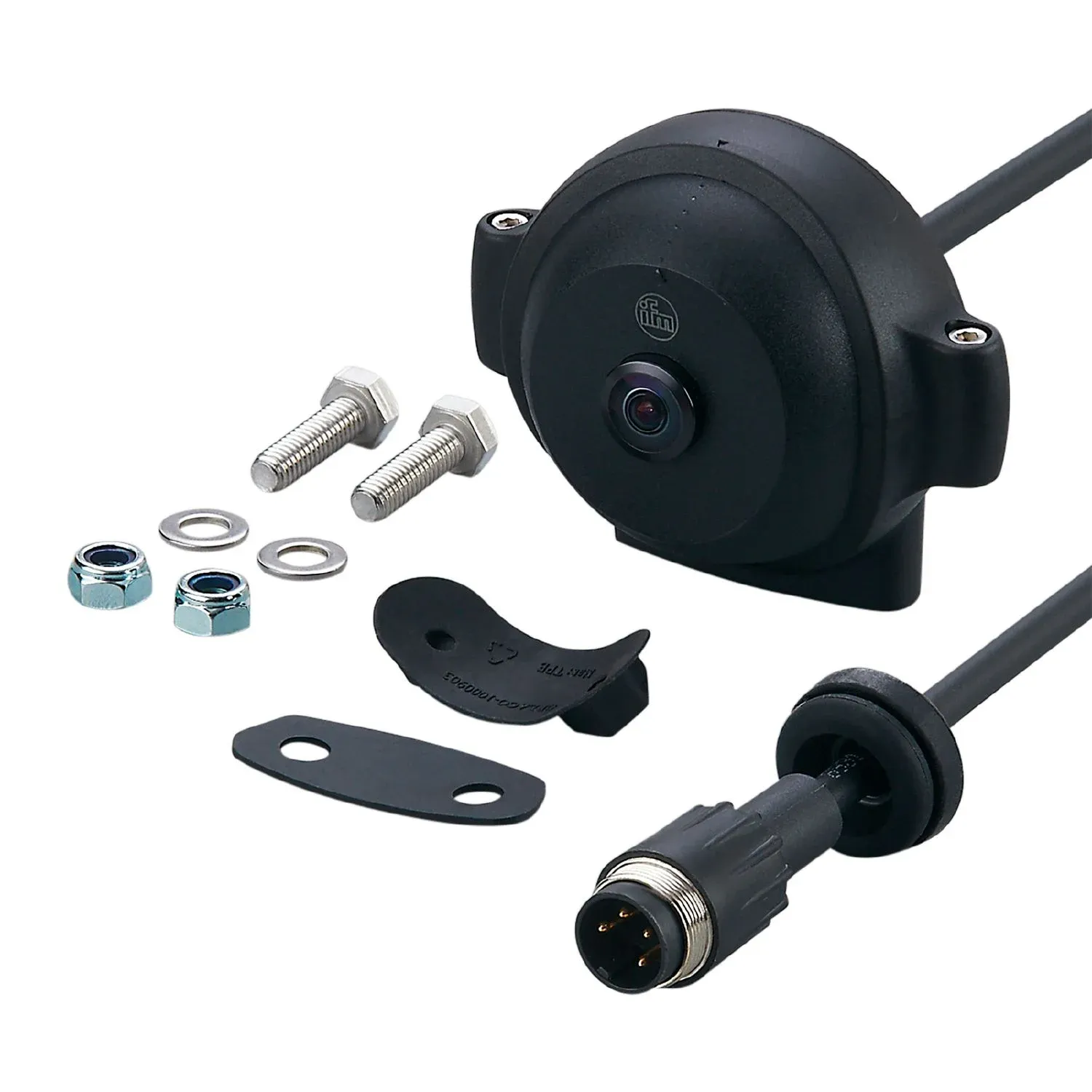

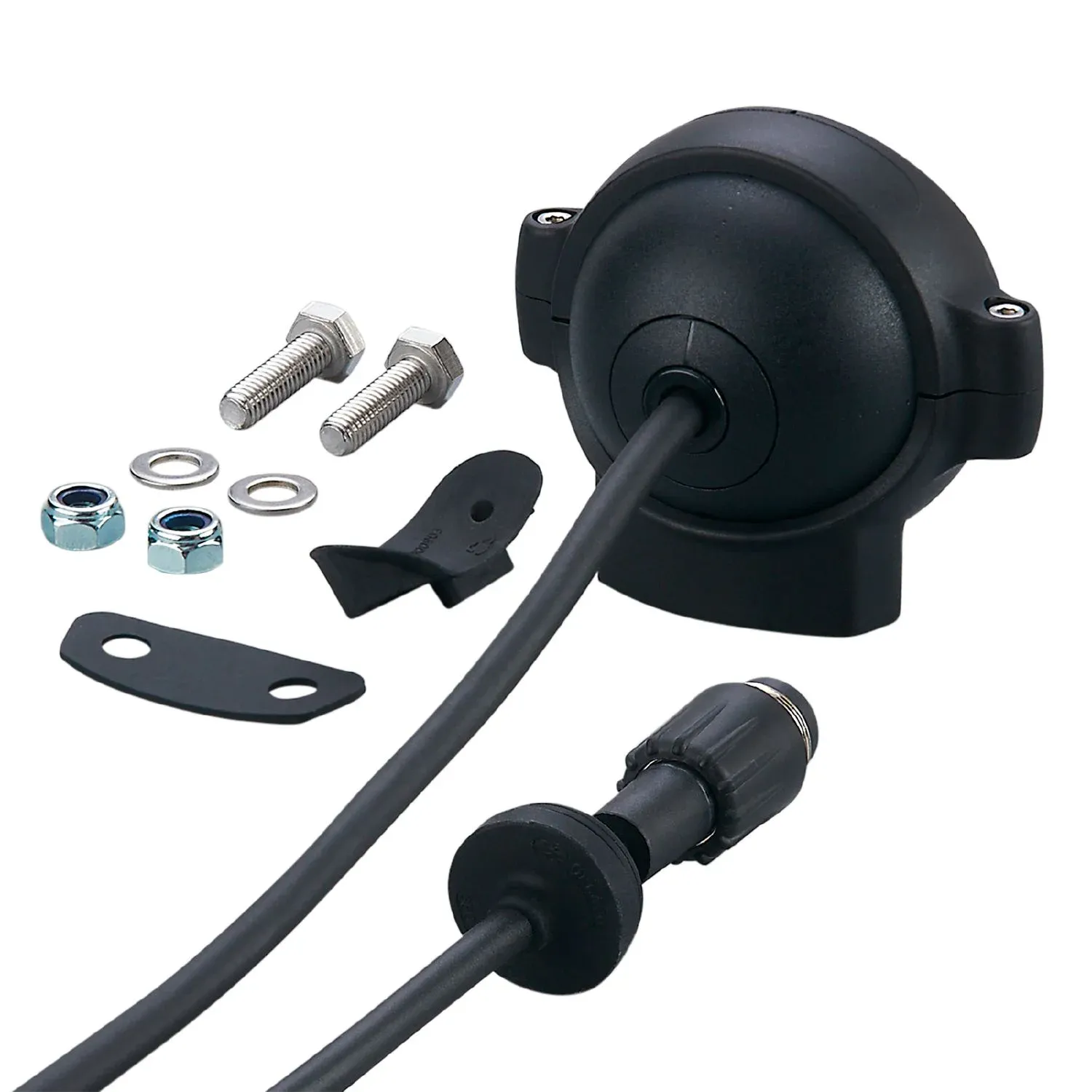

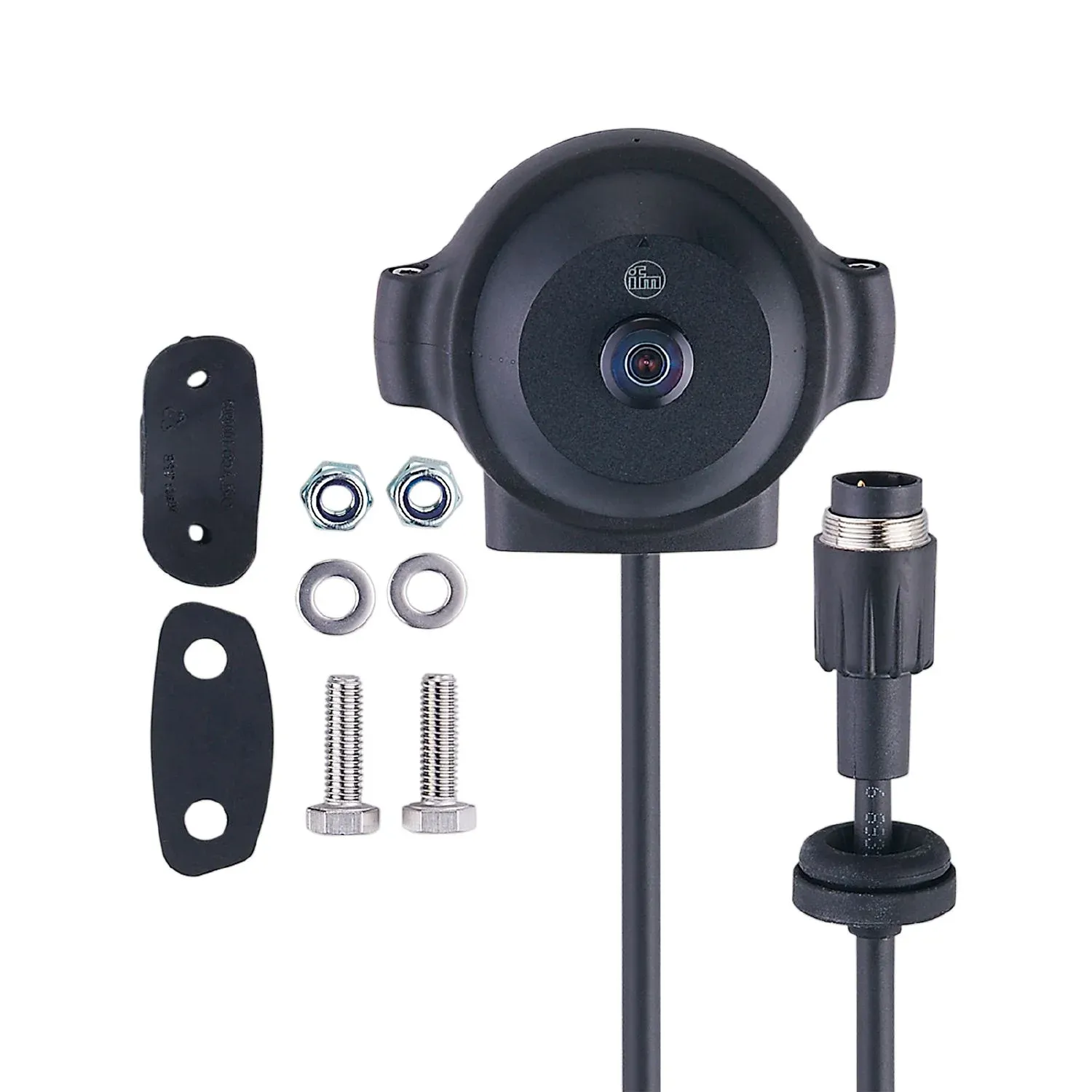

| Items supplied | Mounting set:, E2M210 screws: 2 x (M6 x 20 mm) washers: 2 Nuts: 2 x M6, self-locking anti-slide pad |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.5 m, shielded; screen connected |
|---|---|
| Connector | 1 x M16; coding: A; Shielded connection cable: true |
