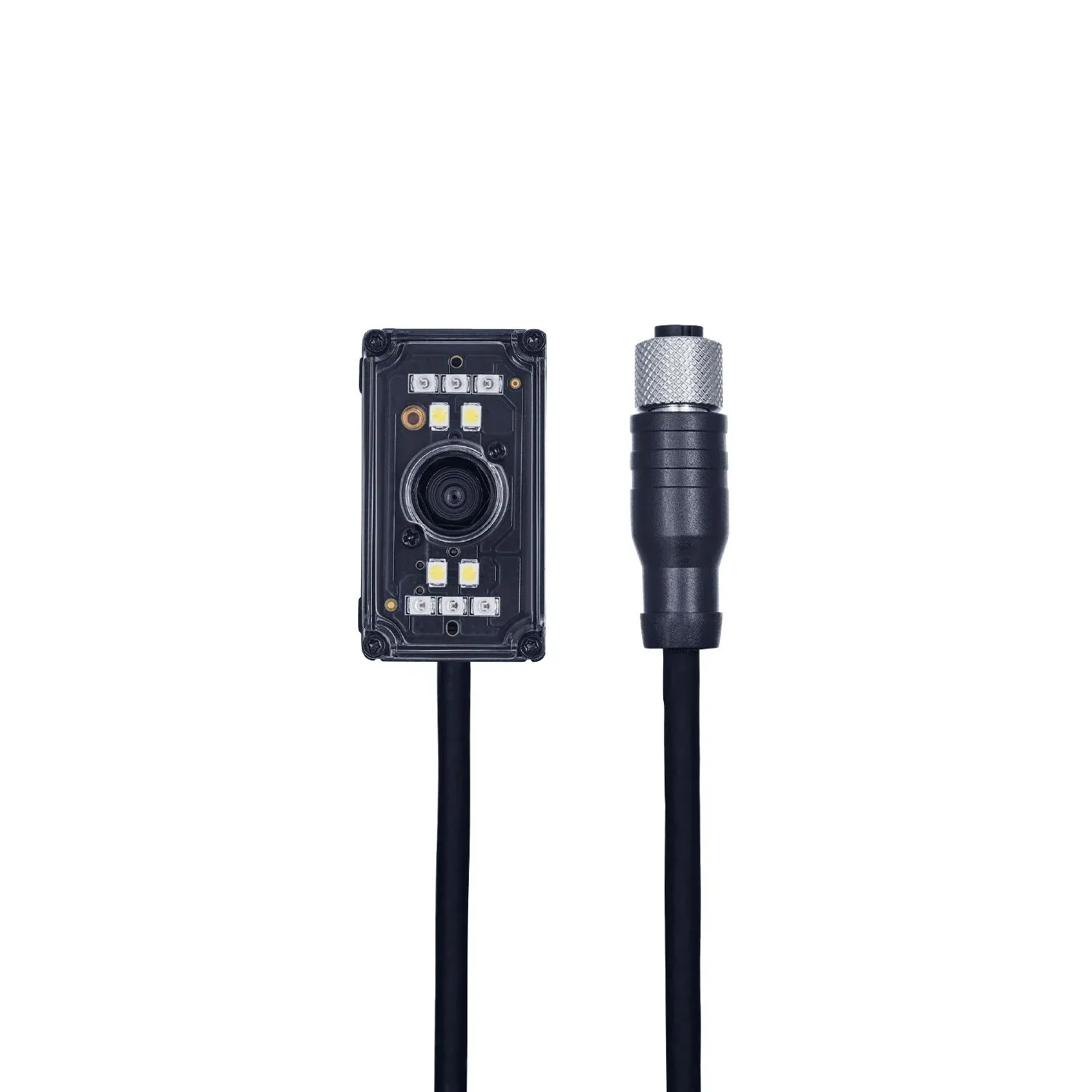

IFM O2I221
O2I221
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy setting via ifm Vision Assistant
Detection of different codes in one image
Detects codes on various backgrounds without any difficulty
Specification
Product characteristics
| Type of light | white light |
|---|---|
| Image resolution[px] [px] | 1280 x 1024 |
| Image repetition frequency[Hz] [Hz] | 60 |
| Max. reading rate [Hz] [Hz] | 31 |
Electrical data
| Operating voltage[V] [V] | 9...26 DC |
|---|---|
| Power consumption[W] [W] | 4.5 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | white light |
| Image sensor | CMOS image sensor black/white |
| Laser marking | yes; (red light) |
Inputs / outputs
| Total number of inputs and outputs | 3 |
|---|---|
| Number of inputs and outputs | Number of digital outputs: 2 |
Inputs
| Total number of inputs | 2 |
|---|---|
| Trigger | external; 24 V PNP/NPN; internal |
Outputs
| Total number of outputs | 2 |
|---|---|
| Number of digital outputs | 2; (configurable) |
| Max. voltage drop switching output DC[V] [V] | Pin 3 2.4; (electrically isolated) Pin 6 0.4; (GPIO) |
| Pin 3 | 2.4; (electrically isolated) |
| Pin 6 | 0.4; (GPIO) |
| Max. current load per output[mA] [mA] | 100 |
| Short-circuit protection | no |
Detection zone
| Field of view size[mm] [mm] | Operating distance field of view 40 32 x 26 70 54 x 43 110 83 x 66 130 97 x 78 150 112 x 89 |
|---|---|
| Operating distance | field of view |
| 40 | 32 x 26 |
| 70 | 54 x 43 |
| 110 | 83 x 66 |
| 130 | 97 x 78 |
| 150 | 112 x 89 |
| Operating distance[mm] [mm] | 40...150 |
| Image resolution[px] [px] | 1280 x 1024 |
| Lens type | Wide angle |
| Image repetition frequency[Hz] [Hz] | 60 |
| Readable codes | Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Codabar; EAN8; EAN13; UPC-A; UPC-E; DataMatrix; PDF-417; QR; Micro-QR |
| Code quality based on | ISO / IEC 15415 ISO / IEC 15416 ISO/IEC TR 29158 (AIM DPM) |
| Omnidirectional reading | yes |
| Max. inclination to the image plane[°] [°] | 45 |
| Max. reading rate [Hz] [Hz] | 31 |
Software / programming
| Parameter setting options | teach button; via PC with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | Ethernet; RS232 |
|---|---|
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 100 MBit/s |
| Protocol | TCP/IP Client; TCP Server; FTP; Modbus TCP |
| Factory settings | IP address: DHCP auto detect |
| Usage type | parameter setting; data transmission |
Operating conditions
| Ambient temperature[°C] [°C] | -15...50 |
|---|---|
| Storage temperature[°C] [°C] | -30...70 |
| Max. relative air humidity[%] [%] | 95; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 40 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN IEC 61000-6-4 radiation of interference industrial environments EN IEC 61000-6-2 immunity industrial environments |
|---|---|
| EN IEC 61000-6-4 radiation of interference | industrial environments |
| EN IEC 61000-6-2 immunity | industrial environments |
| Notes on laser protection | Caution: laser light Do not stare into beam. Power: <= 1 mW Wave length: 650 nm laser class: 2 EN / IEC60825-1:2014 + A11:2021 EN / IEC60825-1:2014 |
| Caution: | laser light |
| Power: | <= 1 mW |
| Wave length: | 650 nm |
| laser class: | 2 |
| Photobiological safety | exempt group; (EN 62471) |
| Electrical safety | EN 62368-1 ES1; PS2 |
| EN 62368-1 | ES1; PS2 |
Mechanical data
| Weight[g] [g] | 204 |
|---|---|
| Type of mounting | screw mounting; (bore hole M3 x 5 mm) |
| Dimensions[mm] [mm] | 50 x 28.5 x 52 |
| Materials | housing: aluminium; front pane: glass |
Displays / operating elements
| Display | decoding 1 LED, red/green decoding status operation 1 LED, green connection 1 LED, green Ethernet |
|---|---|
| decoding | 1 LED, red/green decoding status |
| operation | 1 LED, green |
| connection | 1 LED, green Ethernet |
| Operating elements | AUTO Teach-Taste TRIG trigger |
| AUTO | Teach-Taste |
| TRIG | trigger |
Accessories
| Items supplied | screw 4 x M6 x 6 mm focus adjustment screw 1 |
|---|---|
| Accessories (optional) | Operating software Mounting accessories Adapter cable |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Cable | 0.5 m, TPU |
|---|
Electrical connection - socket
| Connector | 1 x M12, straight; Moulded body: stainless steel |
|---|
