Description

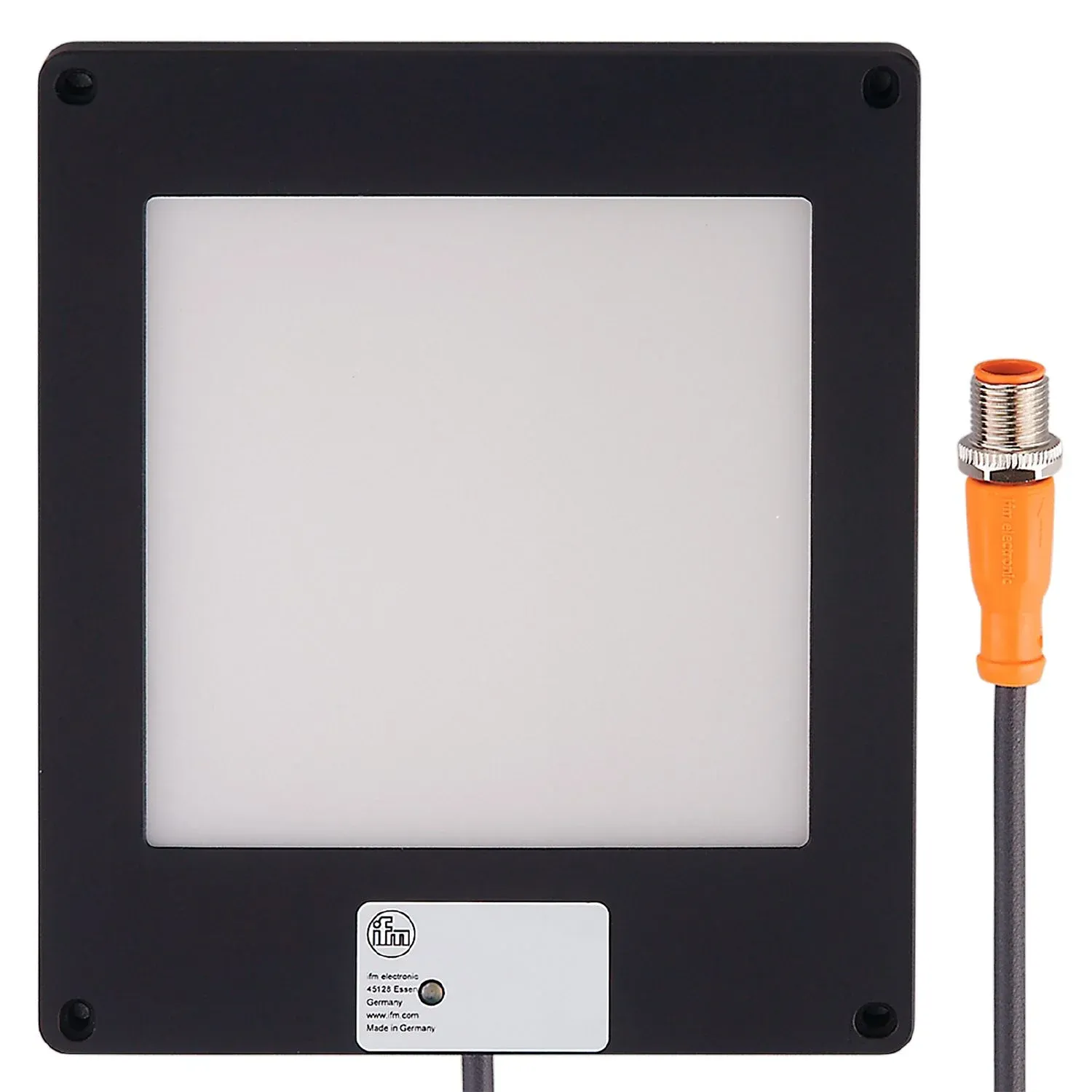

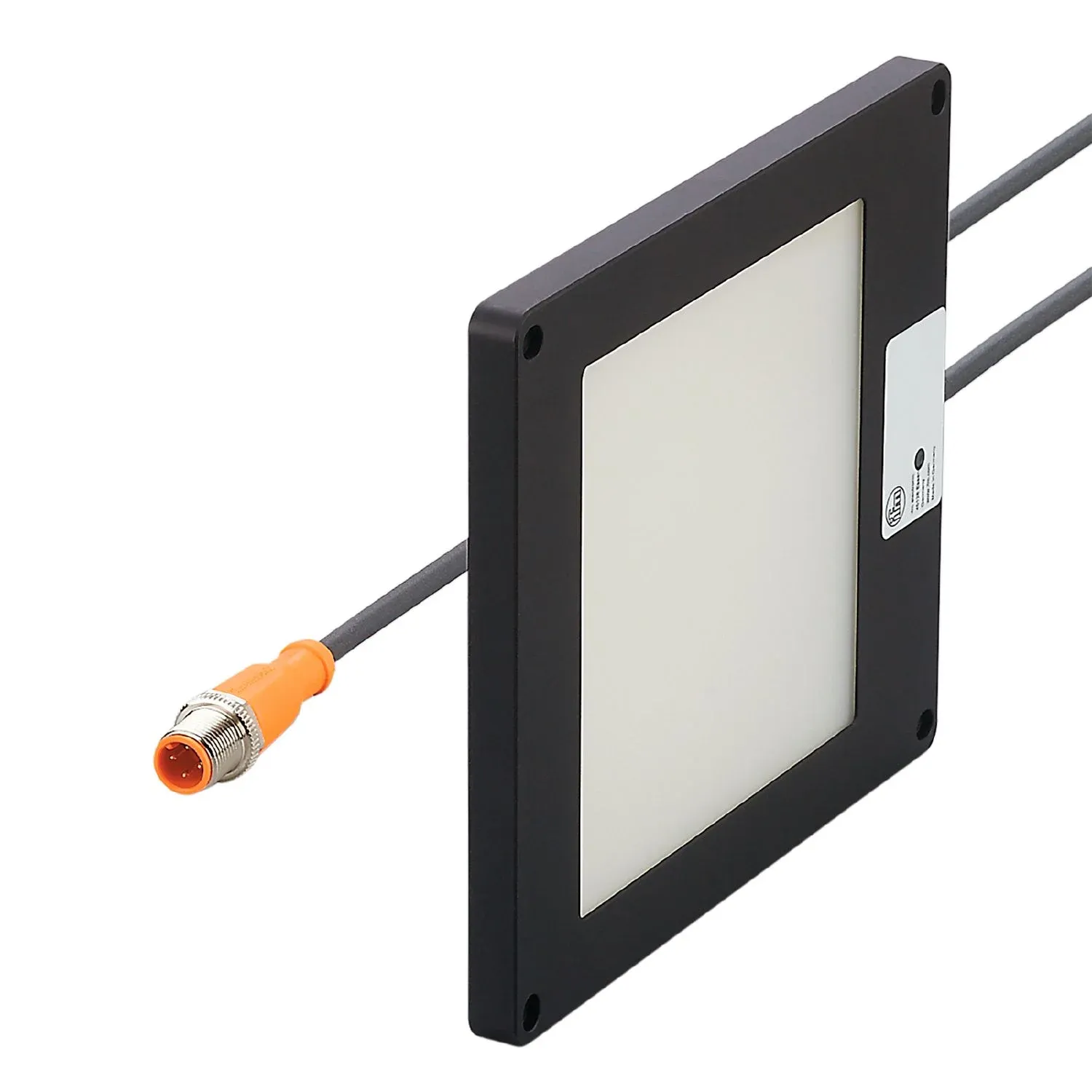

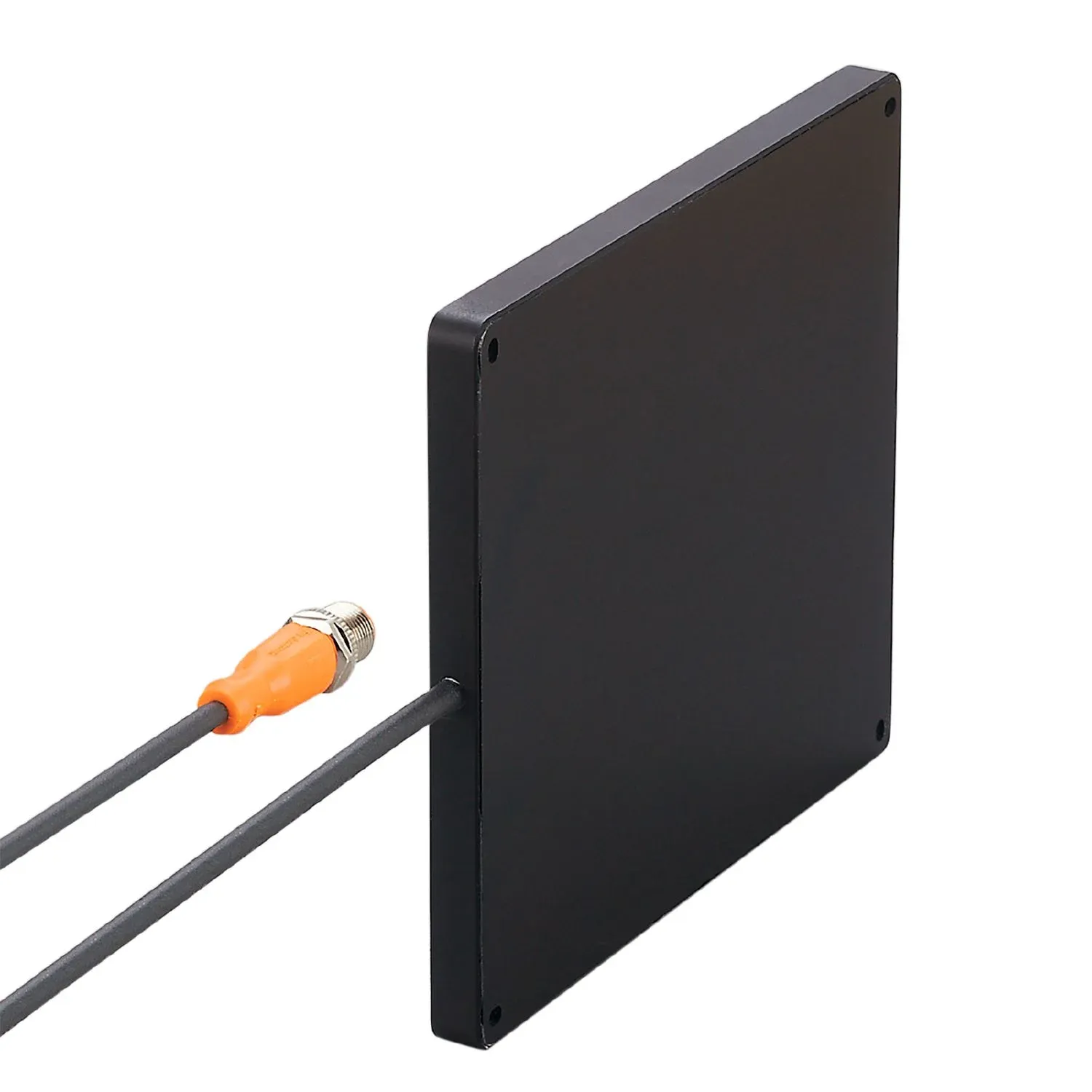

Powerful permanent light for contour and position verification
Longer life through pulse operation
Homogeneous illumination with red or infrared light
Versions with three different illuminated area sizes
Space-saving design thanks to ultra-flat housing
Specification
Product characteristics
| Type of light | infrared light |
|---|
Application
| Special feature | Gold-plated contacts |
|---|---|
| Illuminated field[mm] [mm] | 100 x 100 |
| Design | backlight |
| Type of operation | Permanent light or pulse operation |
Electrical data
| Operating voltage tolerance[%] [%] | -10...10 |
|---|---|
| Operating voltage[V] [V] | 24 DC |
| Current consumption[mA] [mA] | < 620 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length[nm] [nm] | 875 |
Inputs
| Trigger | 5...24 V |
|---|
Outputs
| Overload protection | yes |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Protection | IP 54 |
| Overheat protection | yes; (> 50 °C) |
Tests / approvals
| Photobiological safety | exempt group; (EN 62471) |
|---|---|
| MTTF[years] [years] | 293 |
Mechanical data
| Weight[g] [g] | 448.4 |
|---|---|
| Dimensions[mm] [mm] | 155 x 133 x 9.8 |
| Materials | aluminium |
| Lens material | glass |
Displays / operating elements
| Display | illumination status 1 x LED, yellow operation 1 x LED, green excess temperature / overload 1 x LED, red |
|---|---|
| illumination status | 1 x LED, yellow |
| operation | 1 x LED, green |
| excess temperature / overload | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m, PUR |
|---|---|
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
