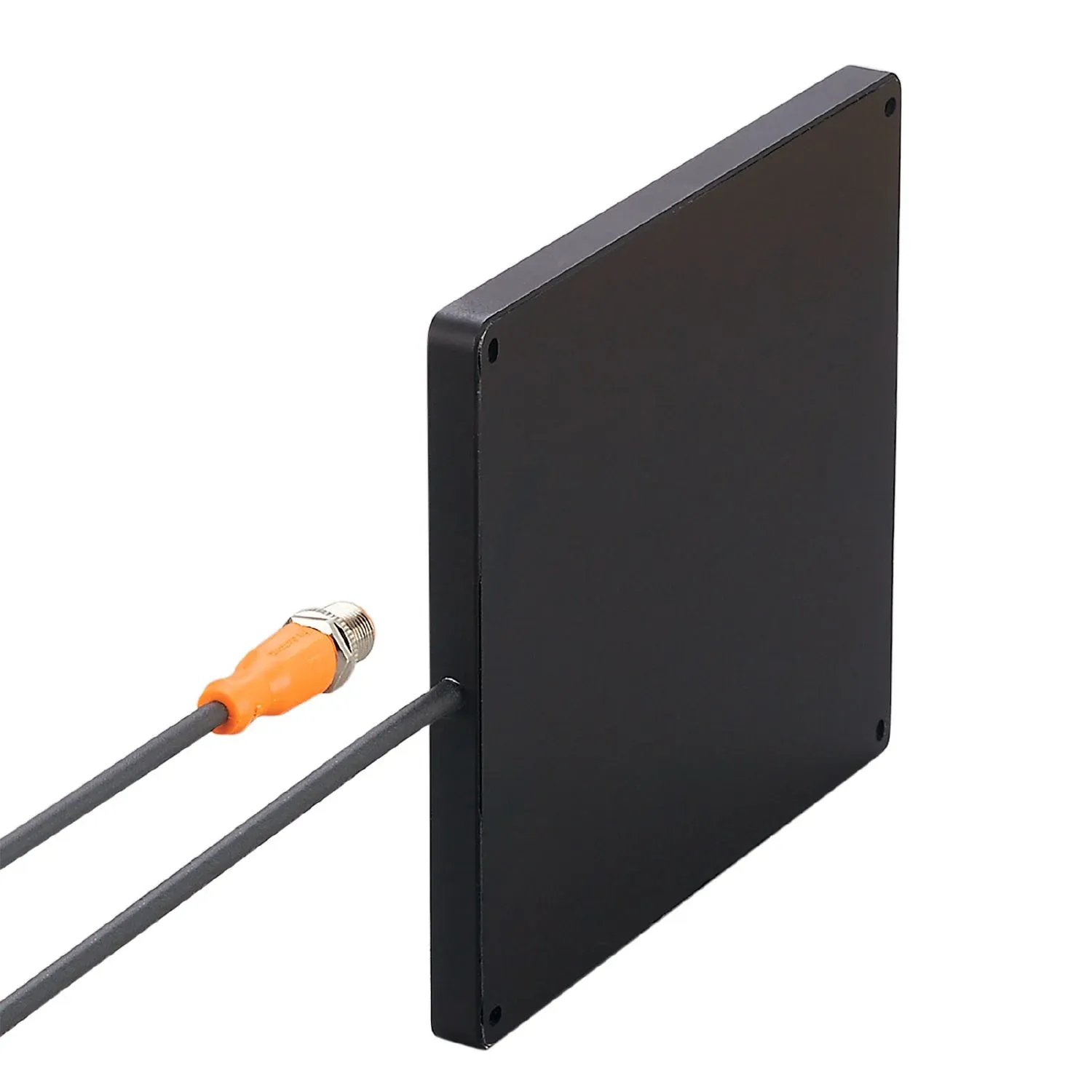

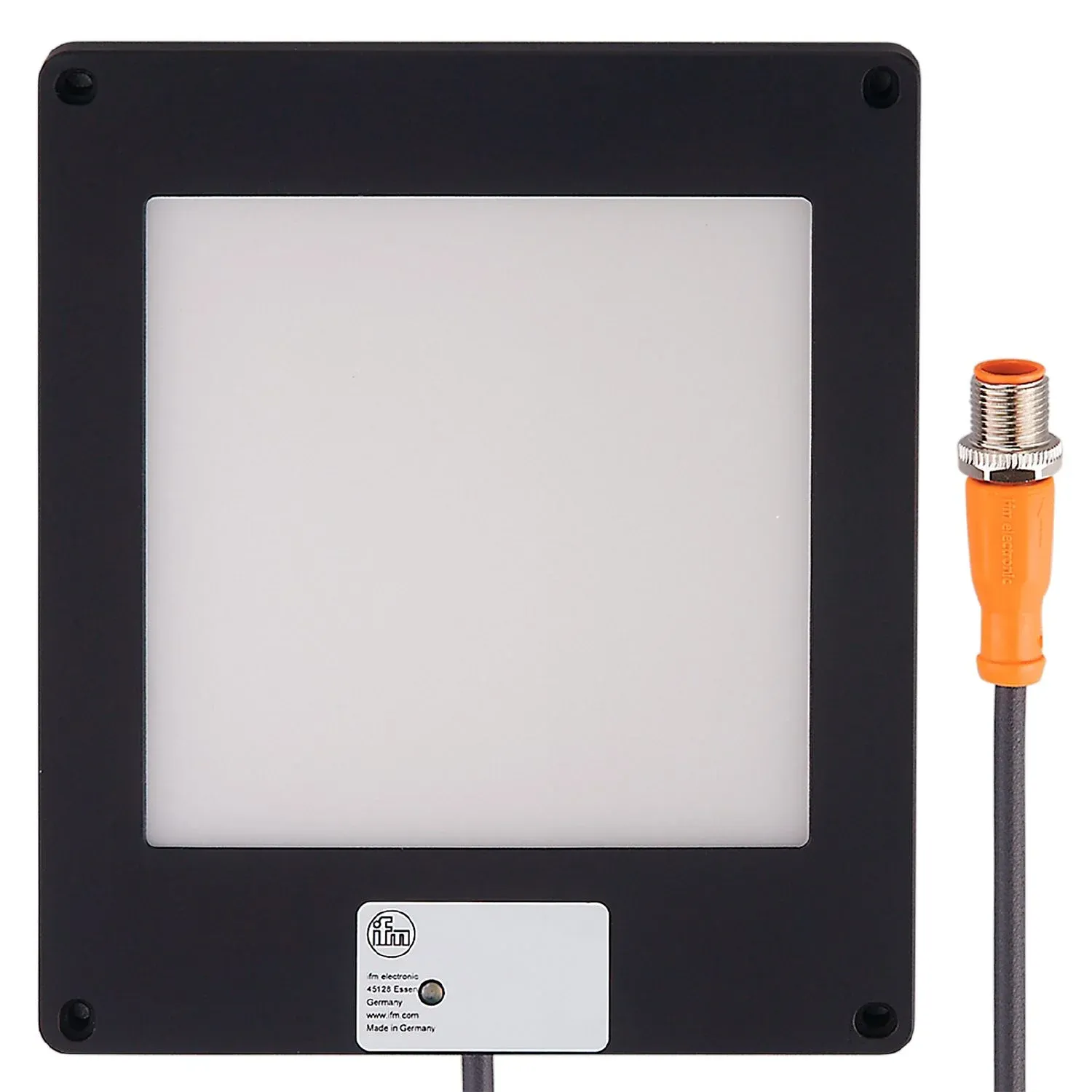

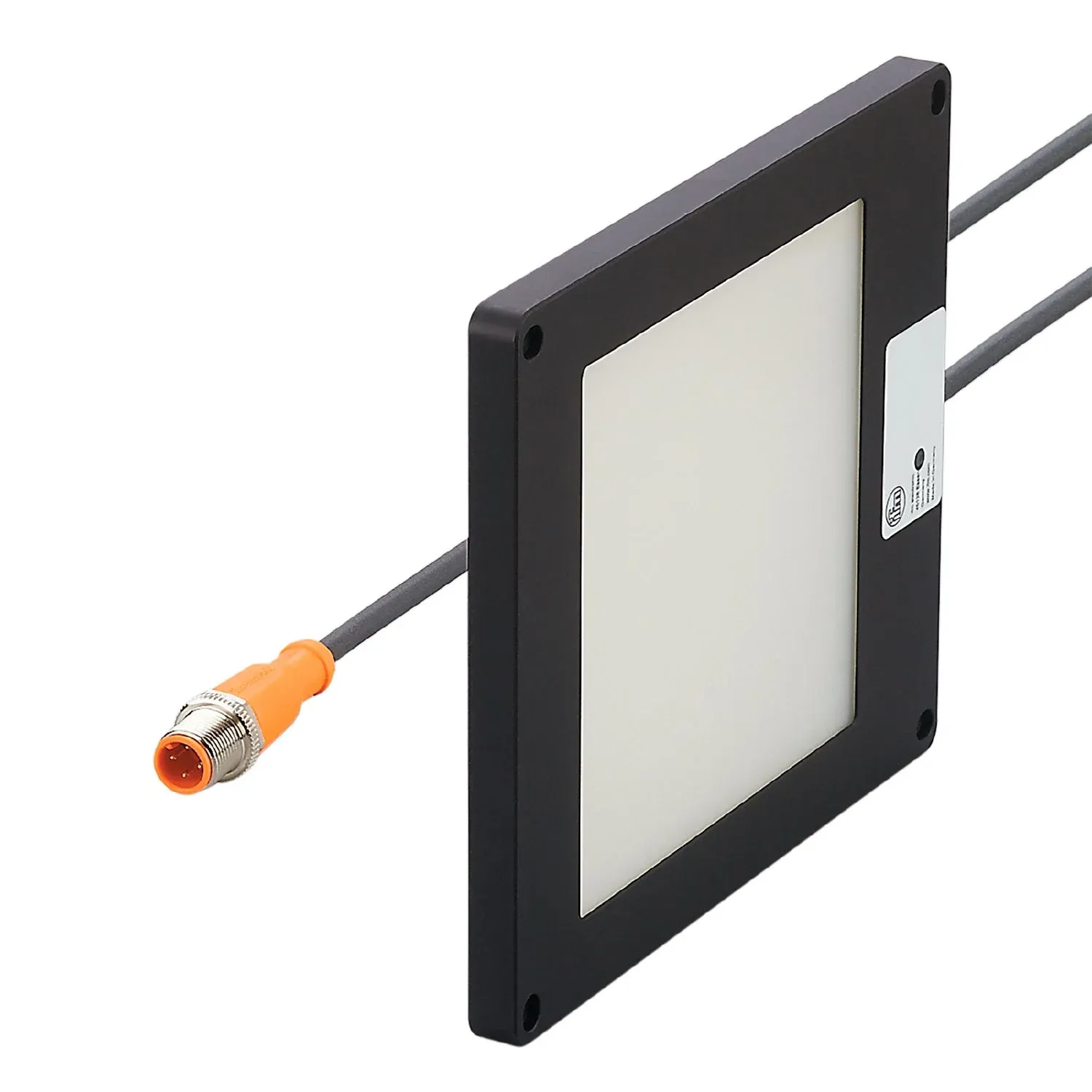

IFM O2D944
O2D944
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Powerful permanent light for contour and position verification
Longer life through pulse operation
Homogeneous illumination with red or infrared light
Versions with three different illuminated area sizes
Space-saving design thanks to ultra-flat housing
Specification
Product characteristics
| Type of light | red light |
|---|
Application
| Special feature | Gold-plated contacts |
|---|---|
| Illuminated field[mm] [mm] | 100 x 100 |
| Design | backlight |
| Type of operation | Permanent light or pulse operation |
Electrical data
| Operating voltage tolerance[%] [%] | -10...10 |
|---|---|
| Operating voltage[V] [V] | 24 DC |
| Current consumption[mA] [mA] | < 410 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length[nm] [nm] | 617 |
Inputs
| Trigger | 5...24 V |
|---|
Outputs
| Overload protection | yes |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Protection | IP 54 |
| Overheat protection | yes; (> 50 °C) |
Tests / approvals
| Photobiological safety | exempt group; (EN 62471) |
|---|---|
| MTTF[years] [years] | 292 |
Mechanical data
| Weight[g] [g] | 450.1 |
|---|---|
| Dimensions[mm] [mm] | 155 x 133 x 9.8 |
| Materials | aluminium |
| Lens material | glass |
Displays / operating elements
| Display | illumination status 1 x LED, yellow operation 1 x LED, green excess temperature / overload 1 x LED, red |
|---|---|
| illumination status | 1 x LED, yellow |
| operation | 1 x LED, green |
| excess temperature / overload | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m, PUR |
|---|---|
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
