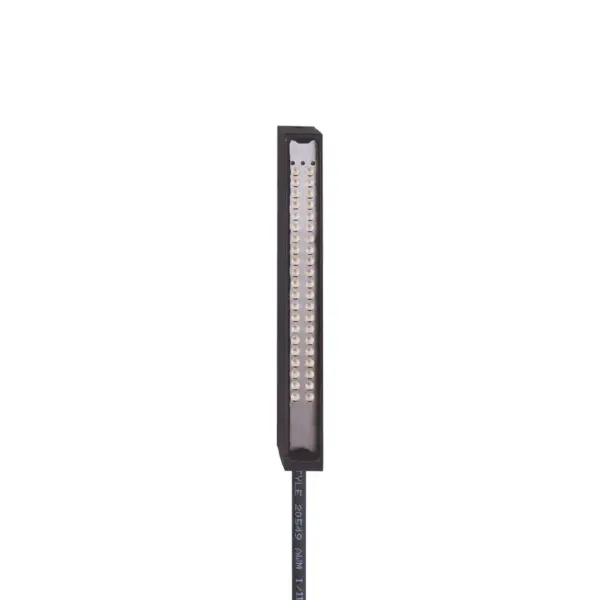

IFM O2D922
O2D922
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Homogeneous and virtually shadow-free illumination of the object
Permanent light or pulse operation
Pulse operation with higher light intensity to reduce the exposure time
Emission of invisible infrared light
Compact and robust housing
Specification
Product characteristics
| Type of light | infrared light |
|---|
Application
| Illuminated field[mm] [mm] | 10 x 75 |
|---|---|
| Design | bars |
| Type of operation | high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible) |
Electrical data
| Operating voltage[V] [V] | 24 DC |
|---|---|
| Current consumption[mA] [mA] | operating mode "permanent operation": 185; operating mode "high light intensity": 325 |
| Type of light | infrared light |
| Wave length[nm] [nm] | 875 |
Inputs
| Trigger | 24 V PNP |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -10...55 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Protection | IP 65 |
| Overheat protection | yes; (deactivation at 65...75 °C) |
Tests / approvals
| Photobiological safety | risk group 1; (DIN EN 62471:2008; Do not stare into light source.; danger of glare and irritations; Align the device to prevent eye exposure to the light source.) |
|---|
Mechanical data
| Weight[g] [g] | 181 |
|---|---|
| Dimensions[mm] [mm] | 116 x 13 x 18 |
| Materials | aluminium black anodised |
| Lens material | glass |
Displays / operating elements
| Display | illumination status 1 x LED, yellow operation 1 x LED, green excess temperature 1 x LED, red |
|---|---|
| illumination status | 1 x LED, yellow |
| operation | 1 x LED, green |
| excess temperature | 1 x LED, red |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.3 m, PUR, black; 4 x 0.34 mm² |
|---|---|
| Connector | 1 x M12; coding: A |
