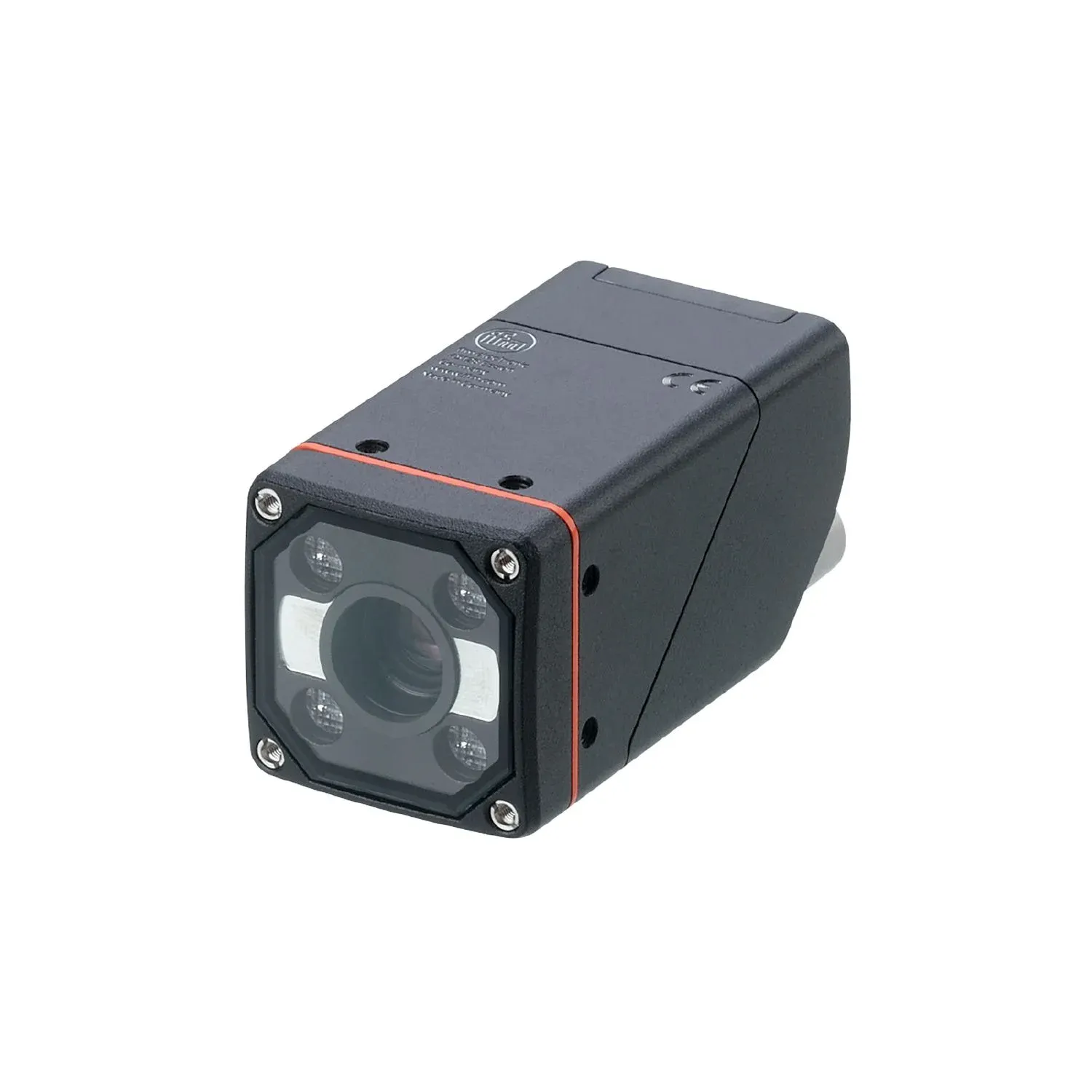

Description

Combinable 2D inspection of contours and surfaces for maximum quality assurance
User-friendly software simplifies inspection task set-up
Powerful algorithms master even demanding requirements
Reliable functioning in changing light conditions
Electric focus on details

Specification

Product characteristics

Type of lightRGBW
Image resolution[px] [px]1280 x 960
Max. reading rate [Hz] [Hz]40

Application

Special featurepolarisation filter

Electrical data

Operating voltage[V] [V]18...30 DC
Current consumption[mA] [mA]< 320; (24V DC typical)
Max. current consumption[mA] [mA]800; (18V DC, with switched outputs, memory stick active)
Protection classIII
Reverse polarity protectionyes
Overvoltage categoryII
Type of lightRGBW
Wave length[nm] [nm]625; 525; 453
Image sensorCMOS image sensor black/white

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Inputs

Triggerexternal; 24 V PNP/NPN (IEC 61131-2 Typ 3); TCP/IP; PROFINET; internal

Outputs

Electrical designPNP/NPN; (parameterisable)
Number of digital outputs2; (configurable)
Output functionconfigurable
Max. voltage drop switching output DC[V] [V]1
Max. current load per output[mA] [mA]100
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Detection zone

Field of view size[mm] [mm]Operating distance
field of view
35
25 x 19
300
184 x 138
500
304 x 228
1000
604 x 453
1500
904 x 678
2000
1204 x 903
2500
1504 x 1128
Operating distancefield of view
3525 x 19
300184 x 138
500304 x 228
1000604 x 453
1500904 x 678
20001204 x 903
25001504 x 1128
Operating distance[mm] [mm]> 35
Image resolution[px] [px]1280 x 960
Lens typeWide angle
Polarisation filter availableyes
Max. reading rate [Hz] [Hz]40

Software / programming

Parameter setting optionsvia PC with ifm Vision Assistant

Interfaces

Communication interfaceEthernet
Number of Ethernet interfaces1
Transmission standard10Base-T; 100Base-TX
Transmission rate10 MBit/s; 100 MBit/s
ProtocolTCP/IP; PROFINET
Factory settingsIP address: 192.168.0.69
subnet mask: 255.255.255.0 (Class C)
gateway IP address: 192.168.0.201
MAC address: see type label
Usage typeparameter setting; data transmission

Operating conditions

Ambient temperature[°C] [°C]-10...50
Storage temperature[°C] [°C]-40...70
Max. relative air humidity[%] [%]90; (non condensing)
Max. height above sea level[m] [m]4000
ProtectionIP 65
Pollution degree3

Tests / approvals

EMCEN IEC 61000-6-4 radiation of interference
industrial environments
EN IEC 61000-6-2 immunity
industrial environments
EN IEC 61000-6-4 radiation of interferenceindustrial environments
EN IEC 61000-6-2 immunityindustrial environments
Shock resistanceEN 60068-2-27
50 g 11 ms / not repetitive
EN 60068-2-27
40 g 6 ms / repetitive
EN 60068-2-2740 g 6 ms / repetitive
Vibration resistanceEN 60068-2-6
2 g (10 ... 150 Hz)
EN 60068-2-62 g (10 ... 150 Hz)
Photobiological safetyrisk group 1; (EN 62471)
Electrical safetyEN IEC 61010-2-201
electrical supply only via PELV circuits
EN IEC 61010-2-201electrical supply only via PELV circuits
MTTF[years] [years]59
UL approvalTa
-10...50 °C
Enclosure type
1
power supply
Limited Energy
File number UL
E364788
Ta-10...50 °C
Enclosure type1
power supplyLimited Energy
File number ULE364788

Mechanical data

Weight[g] [g]616.2
Type of mountingscrew mounting; (bore hole M4 x 7mm)
Dimensions[mm] [mm]45 x 45 x 86
Materialshousing: diecast zinc powder-coated; front pane: gorilla glass; LED window: PC; pushbutton: POM
Sealing materialFKM
Tightening torque[Nm] [Nm]2.1

Displays / operating elements

Displayfunction
2 x LED, green
function
2 x LED, yellow
Multi-function button
2 x LED, green/yellow
function2 x LED, yellow
Multi-function button2 x LED, green/yellow
Operating elements1
Multi-function button
1Multi-function button

Accessories

Accessories (optional)Mounting accessories
Protective panes

Remarks

Pack quantity1 pcs.

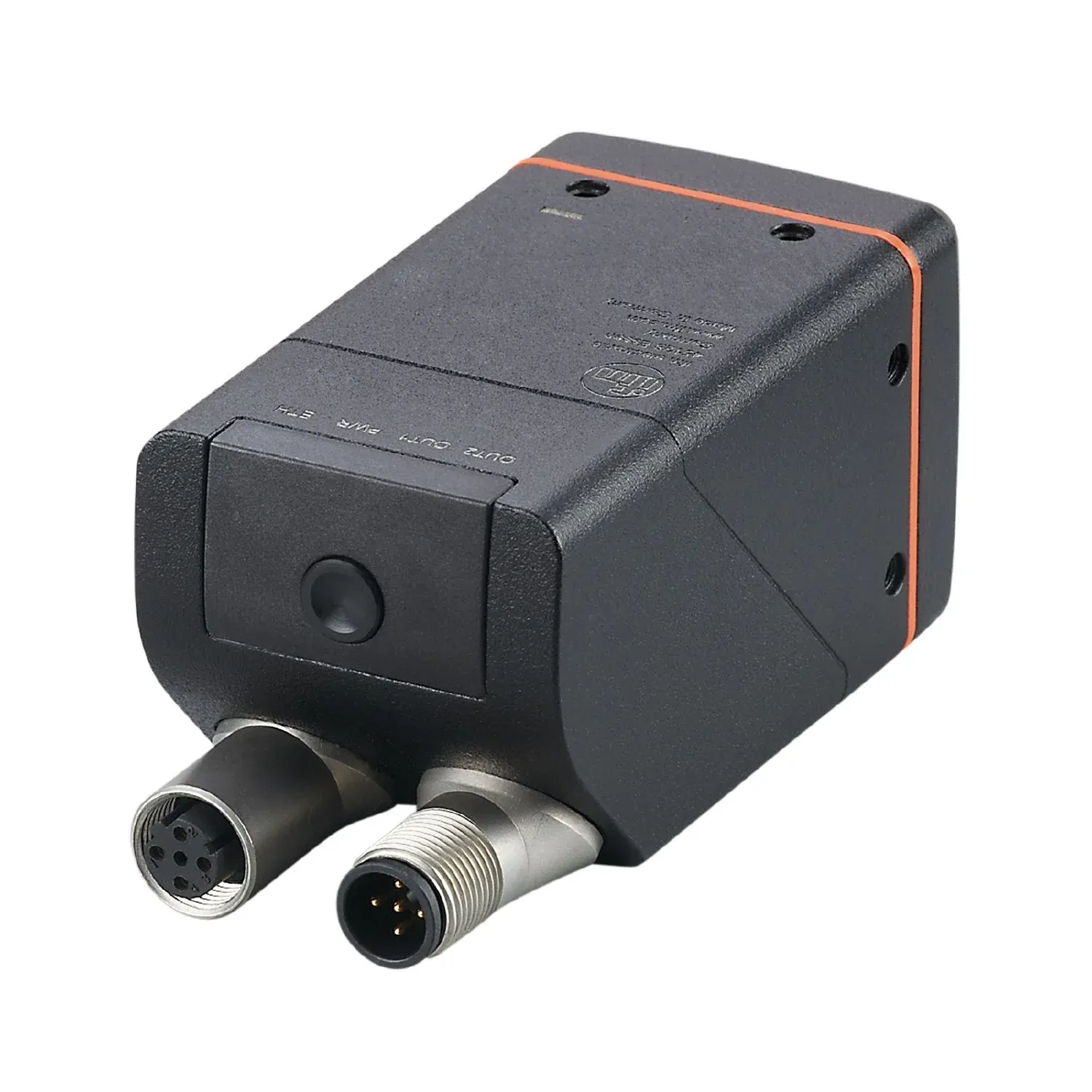

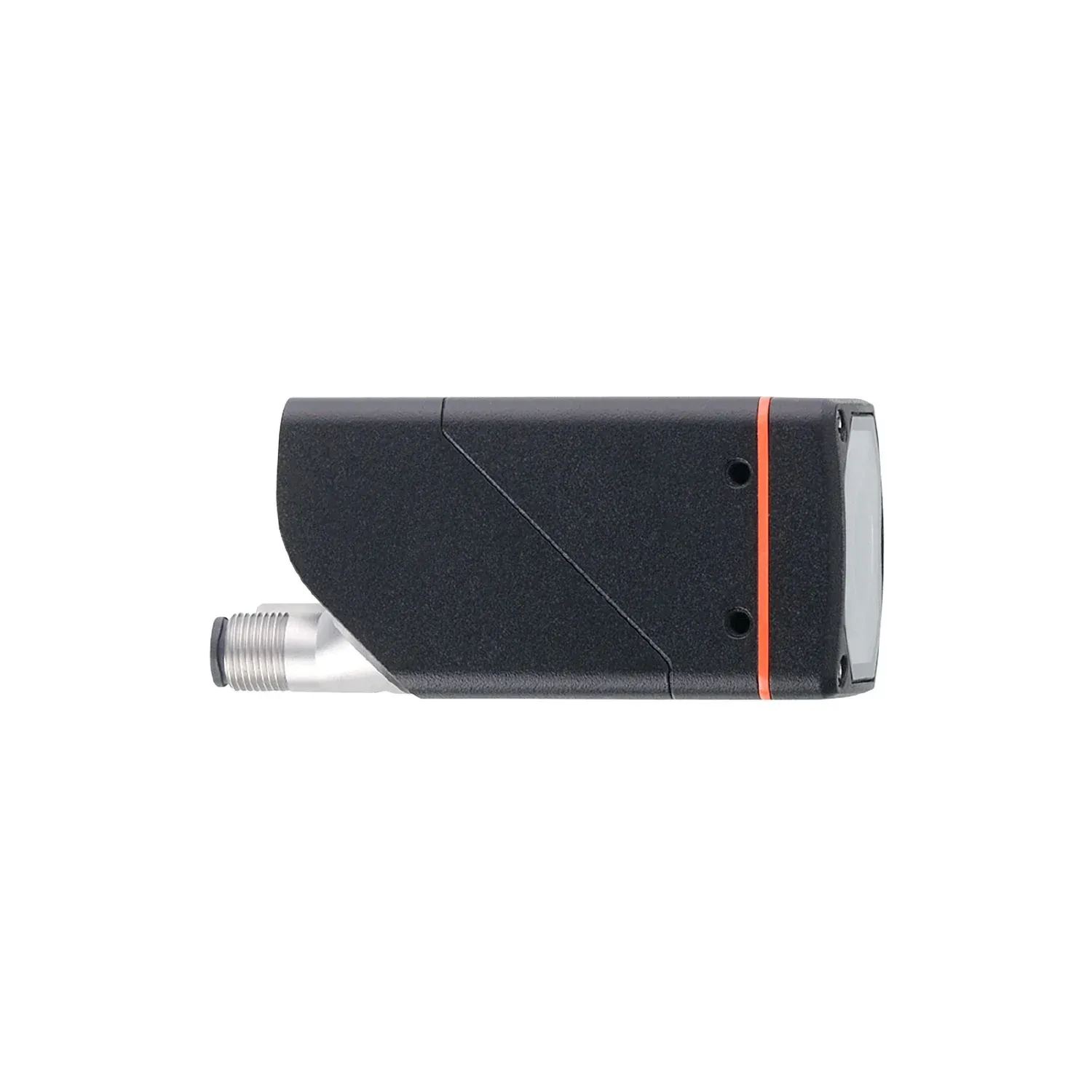

Electrical connection - Ethernet

Connector1 x M12; coding: D; Moulded body: stainless steel; Sealing: FKM

Electrical connection - supply

Connector1 x M12; coding: A; Moulded body: stainless steel
