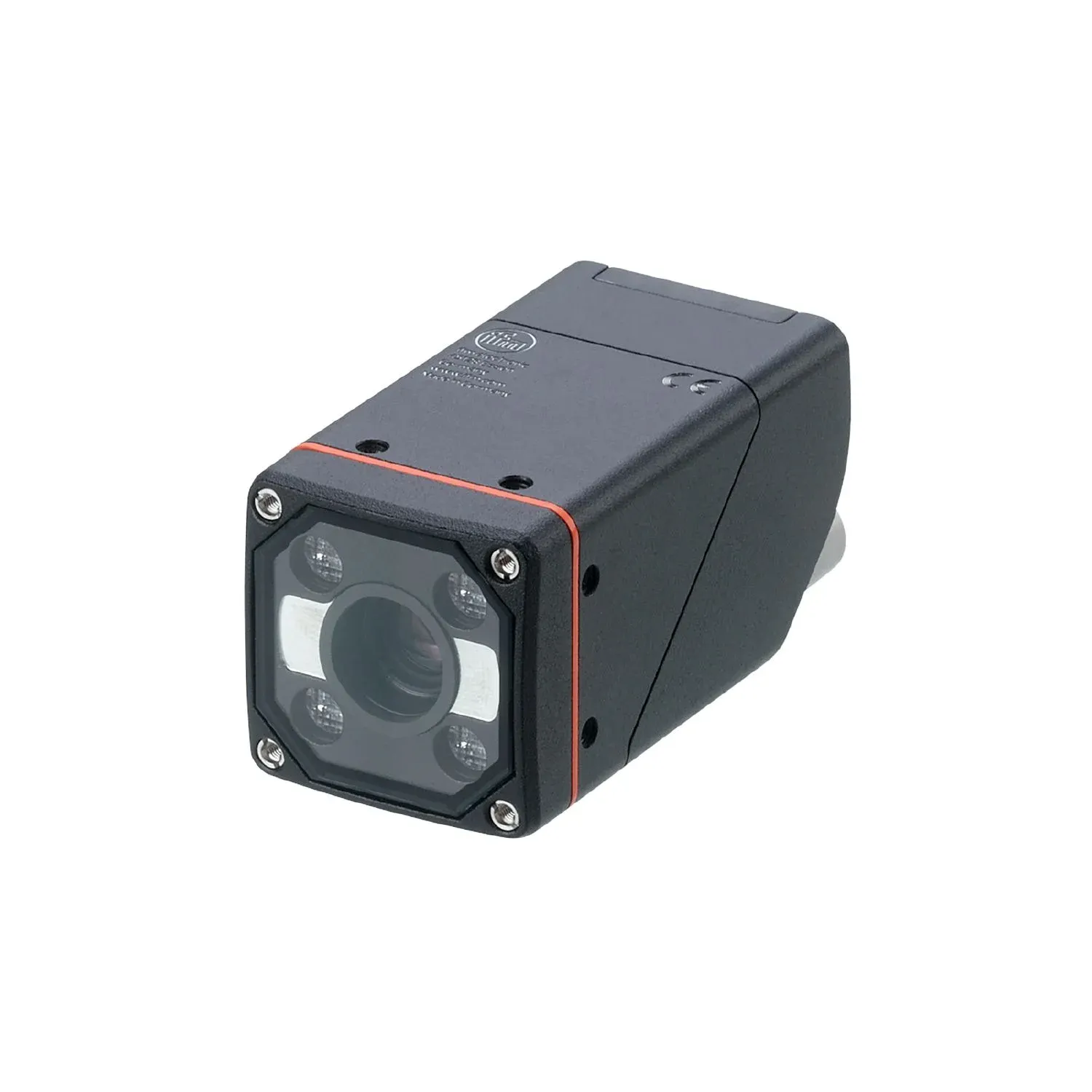

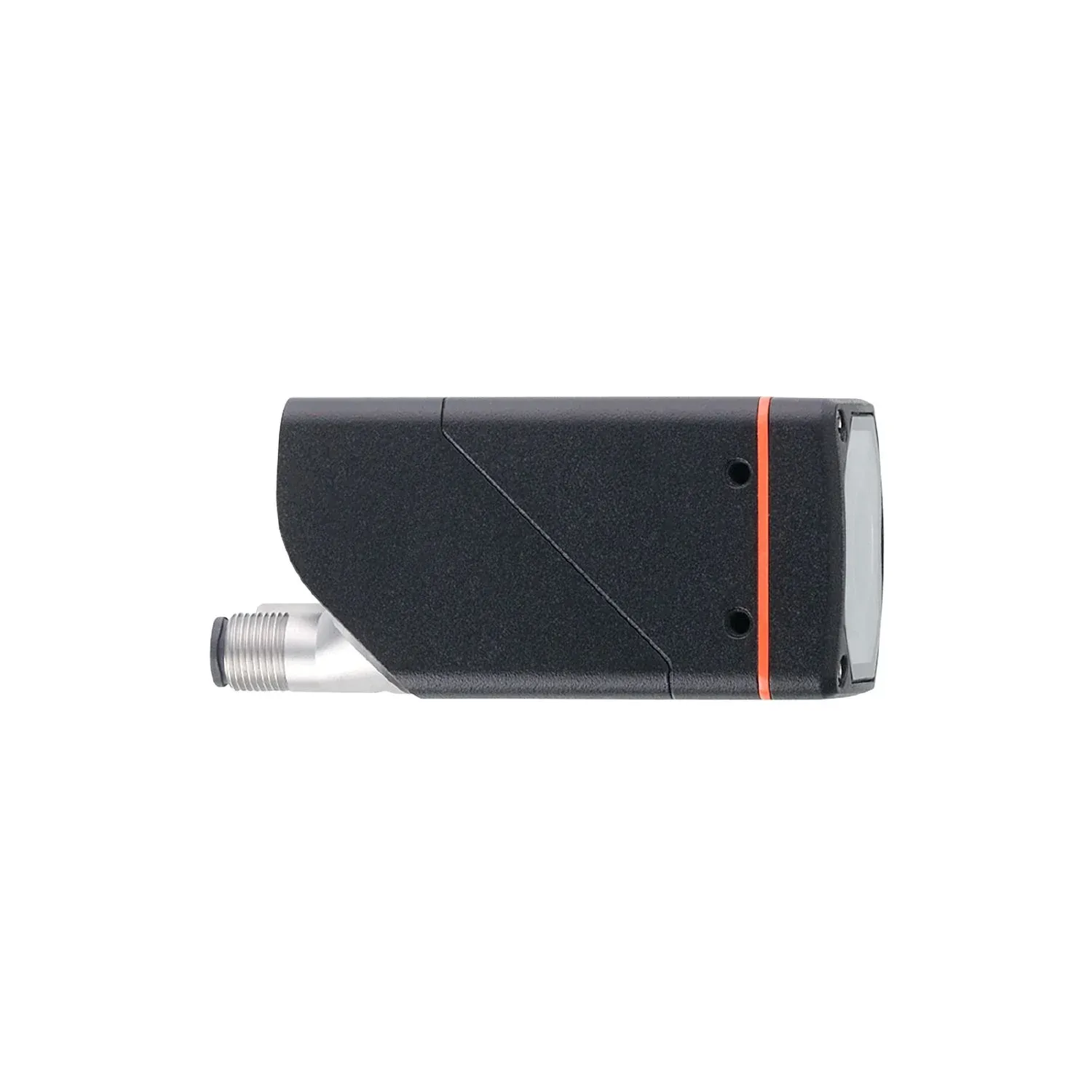

IFM O2D520
O2D520
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Combinable 2D inspection of contours and surfaces for maximum quality assurance
Powerful algorithms master even demanding requirements
User-friendly software simplifies inspection task set-up
Reliable functioning in changing light conditions
Electric focus on details
Specification
Product characteristics
| Type of light | infrared light |
|---|---|
| Image resolution[px] [px] | 1280 x 960 |
| Max. reading rate [Hz] [Hz] | 40 |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 300; (24V DC typical) |
| Max. current consumption[mA] [mA] | 950; (18V DC, with switched outputs, memory stick active) |
| Protection class | III |
| Reverse polarity protection | yes |
| Overvoltage category | II |
| Type of light | infrared light |
| Wave length[nm] [nm] | 850 |
| Image sensor | CMOS image sensor black/white |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 3; Number of digital outputs: 5 |
|---|
Inputs
| Trigger | external; 24 V PNP/NPN (IEC 61131-2 Typ 3); TCP/IP; EtherNet/IP; internal |
|---|---|
| Number of digital inputs | 3 |
| Input circuit of digital inputs | 24 V PNP/NPN; (type 3 (IEC 61131-2)) |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Number of digital outputs | 5; (configurable) |
| Output function | configurable |
| Max. voltage drop switching output DC[V] [V] | 1 |
| Max. current load per output[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Field of view size[mm] [mm] | Operating distance field of view 85 28 x 21 300 92 x 69 500 152 x 114 1000 302 x 227 1500 453 x 340 2000 603 x 452 2500 753 x 564 |
|---|---|
| Operating distance | field of view |
| 85 | 28 x 21 |
| 300 | 92 x 69 |
| 500 | 152 x 114 |
| 1000 | 302 x 227 |
| 1500 | 453 x 340 |
| 2000 | 603 x 452 |
| 2500 | 753 x 564 |
| Operating distance[mm] [mm] | > 85 |
| Image resolution[px] [px] | 1280 x 960 |
| Lens type | standard |
| Max. reading rate [Hz] [Hz] | 40 |
Software / programming
| Parameter setting options | via PC with ifm Vision Assistant |
|---|
Interfaces
| Communication interface | Ethernet |
|---|---|
| Number of Ethernet interfaces | 1 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Protocol | TCP/IP; EtherNet/IP |
| Factory settings | IP address: 192.168.0.69 subnet mask: 255.255.255.0 (Class C) gateway IP address: 192.168.0.201 MAC address: see type label |
| Usage type | parameter setting; data transmission |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Storage temperature[°C] [°C] | -40...70 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65 |
| Pollution degree | 3 |
Tests / approvals
| EMC | EN IEC 61000-6-4 radiation of interference industrial environments EN IEC 61000-6-2 immunity industrial environments |
|---|---|
| EN IEC 61000-6-4 radiation of interference | industrial environments |
| EN IEC 61000-6-2 immunity | industrial environments |
| Shock resistance | EN 60068-2-27 50 g 11 ms / not repetitive EN 60068-2-27 40 g 6 ms / repetitive |
| EN 60068-2-27 | 40 g 6 ms / repetitive |
| Vibration resistance | EN 60068-2-6 2 g (10 ... 150 Hz) |
| EN 60068-2-6 | 2 g (10 ... 150 Hz) |
| Photobiological safety | exempt group; (EN 62471) |
| Electrical safety | EN IEC 61010-2-201 electrical supply only via PELV circuits |
| EN IEC 61010-2-201 | electrical supply only via PELV circuits |
| MTTF[years] [years] | 54 |
| UL approval | Ta -10...50 °C Enclosure type 1 power supply Limited Energy File number UL E364788 |
| Ta | -10...50 °C |
| Enclosure type | 1 |
| power supply | Limited Energy |
| File number UL | E364788 |
Mechanical data
| Weight[g] [g] | 588.2 |
|---|---|
| Type of mounting | screw mounting; (bore hole M4 x 7mm) |
| Dimensions[mm] [mm] | 45 x 45 x 86 |
| Materials | housing: diecast zinc powder-coated; front pane: gorilla glass; LED window: PC; pushbutton: POM |
| Sealing material | FKM |
| Tightening torque[Nm] [Nm] | 2.1 |
Displays / operating elements
| Display | function 2 x LED, green function 2 x LED, yellow Multi-function button 2 x LED, green/yellow |
|---|---|
| function | 2 x LED, yellow |
| Multi-function button | 2 x LED, green/yellow |
| Operating elements | 1 Multi-function button |
| 1 | Multi-function button |
Accessories
| Accessories (optional) | Mounting accessories Protective panes |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Ethernet
| Connector | 1 x M12; coding: D; Moulded body: stainless steel; Sealing: FKM |
|---|
Electrical connection - supply
| Connector | 1 x M12; coding: A; Moulded body: stainless steel |
|---|
