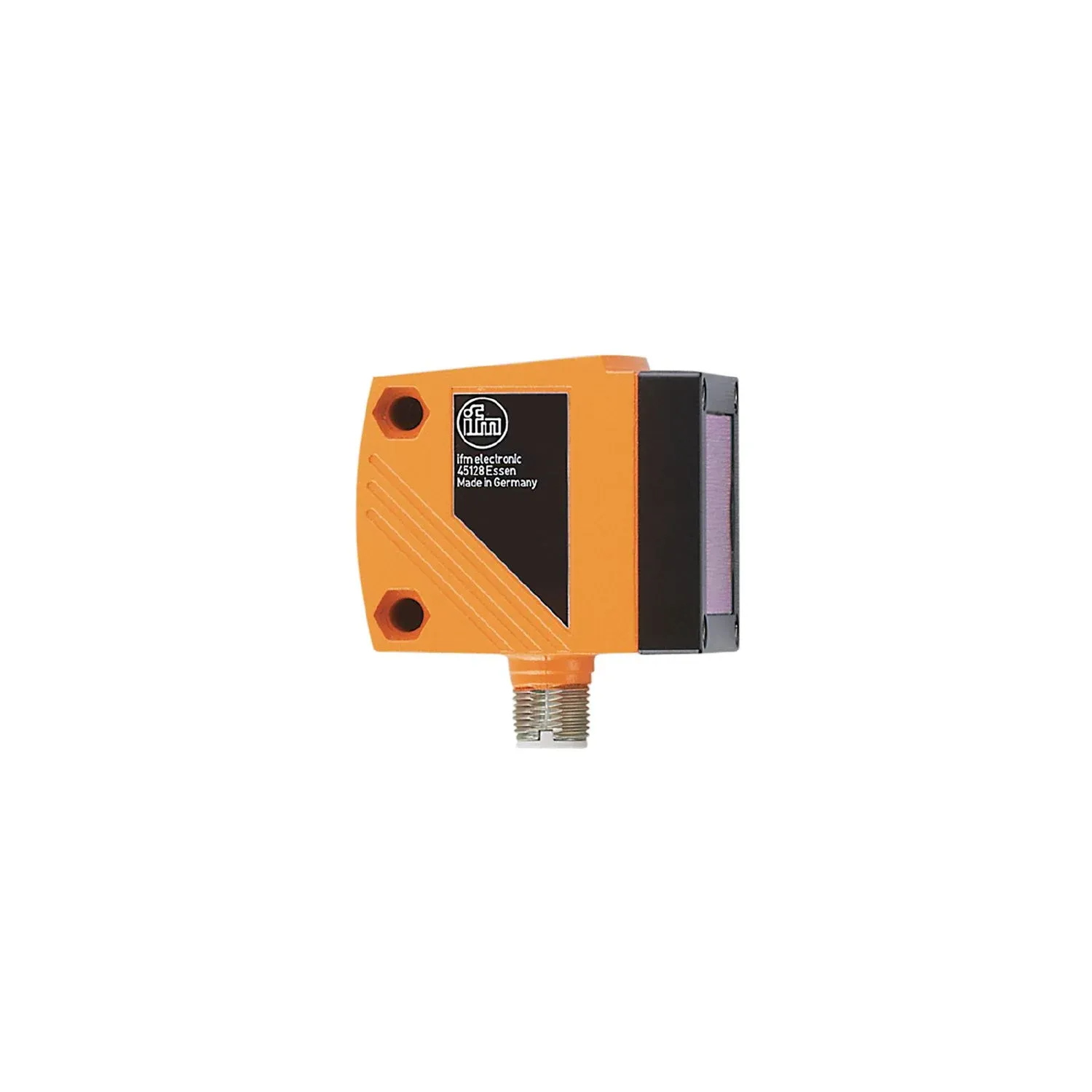

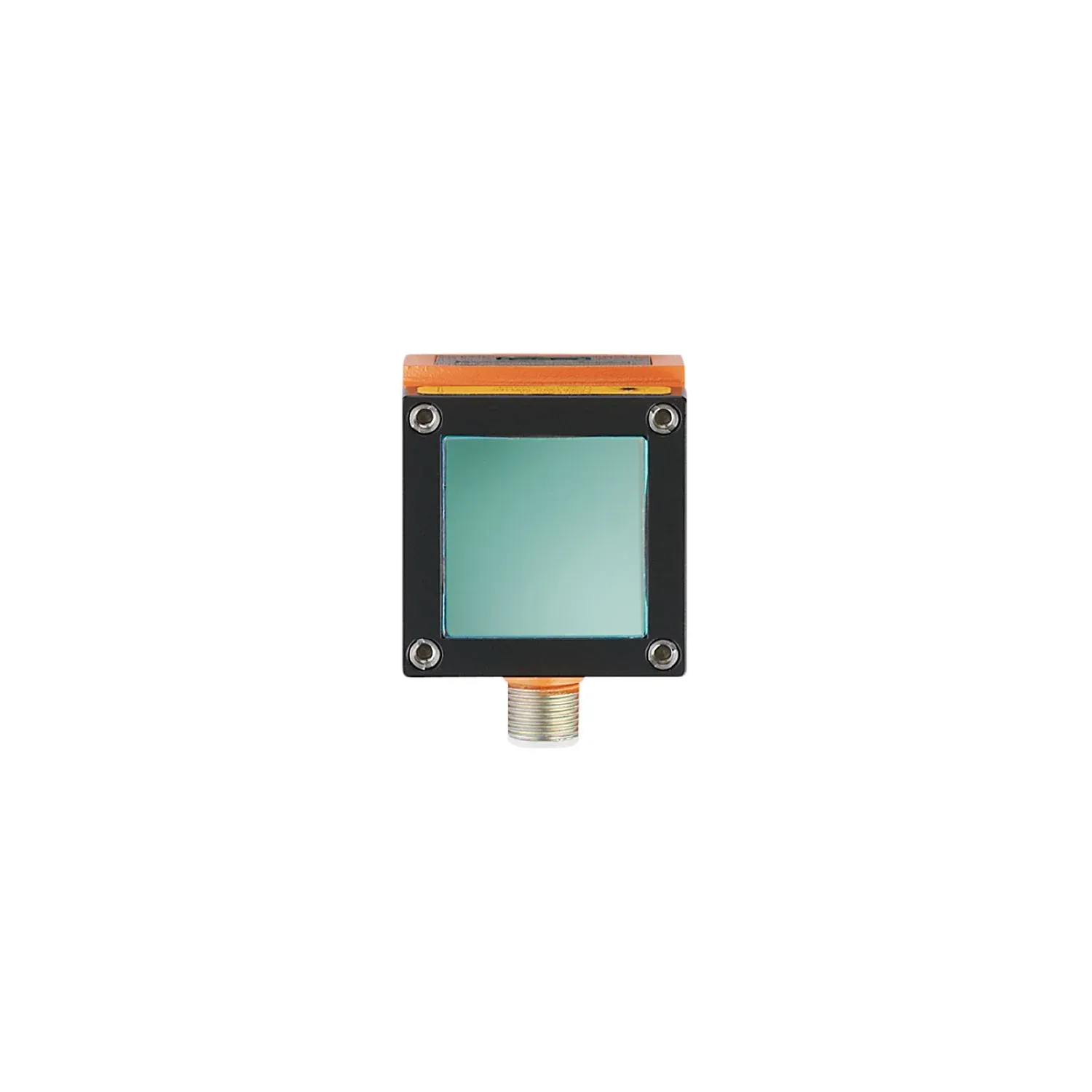

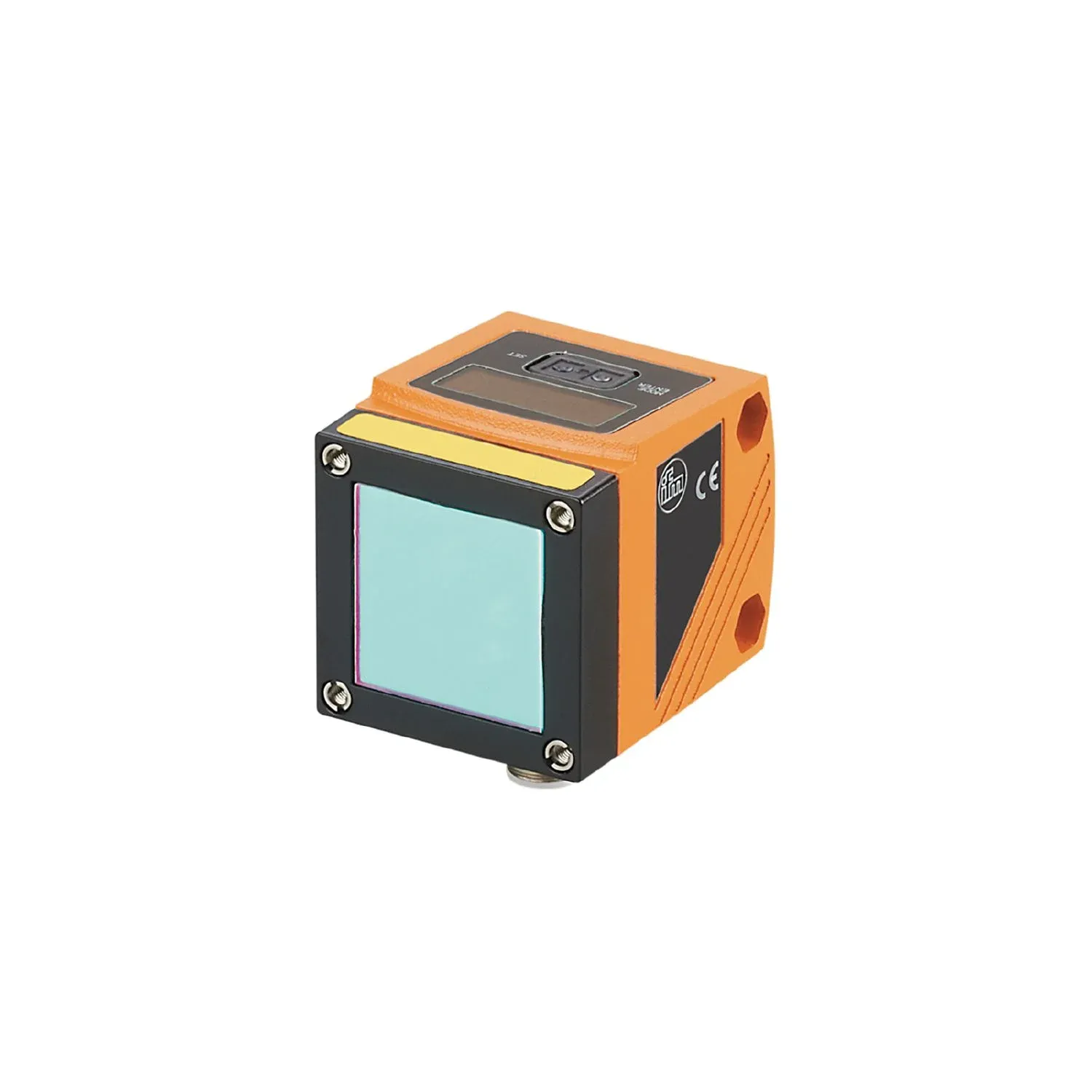

IFM O1D102
O1D102
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable optical distance measurement
Two switching outputs, one of them programmable as analogue output
Scalable measuring range and window function
Use in applications with background suppression
Excellent price/performance ratio
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Laser protection class | 2 |
|---|---|
| Housing | rectangular |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Typ. lifetime[h] [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (programmable) |
| Max. current load per output[mA] [mA] | 200 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20; (IEC 61131-2) |
| Max. load[Ω] [Ω] | 250 |
| Analogue voltage output[V] [V] | 0...10; (IEC 61131-2) |
| Min. load resistance[Ω] [Ω] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot width[mm] [mm] | 6 |
|---|---|
| Max. light spot height[mm] [mm] | 6 |
| Light spot dimensions refer to | 3,5 m |
| Background suppression[m] [m] | 0...4 |
Measuring/setting range
| Measuring range[m] [m] | 0.2...3.5; (black glossy surfaces) |
|---|---|
| Sampling rate[Hz] [Hz] | 1...50; (preset: 5) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 2 |
| Process data binary | 3 |
| Min. process cycle time[ms] [ms] | 5 |
| Supported DeviceIDs | default 808 |
| default | 808 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| Laser protection class | 2 |
| Notes on laser protection | Caution: laser light Power: <= 4,0 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040.10 except for conformance with IEC 60825-1 Ed. 3, as described in Laser Notice No. 56, dated May 8, 2019. |
| Caution: | laser light |
| Power: | <= 4,0 mW |
| Wave length: | 650 nm |
| pulse: | 1,3 ns |
| laser class: | 2 |
| MTTF[years] [years] | 173 |
Mechanical data
| Weight[g] [g] | 241.7 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 59 x 42 x 52 |
| Materials | housing: diecast zinc; front pane: glass; LED window: PC |
| Lens alignment | side lens |
Displays / operating elements
| Display | switching status 2 x LED, yellow operation LED, green distance value, programming alphanumeric display, 4-digit |
|---|---|
| switching status | 2 x LED, yellow |
| operation | LED, green |
| distance value, programming | alphanumeric display, 4-digit |
Accessories
| Accessories (optional) | Protective cover, E21133 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
