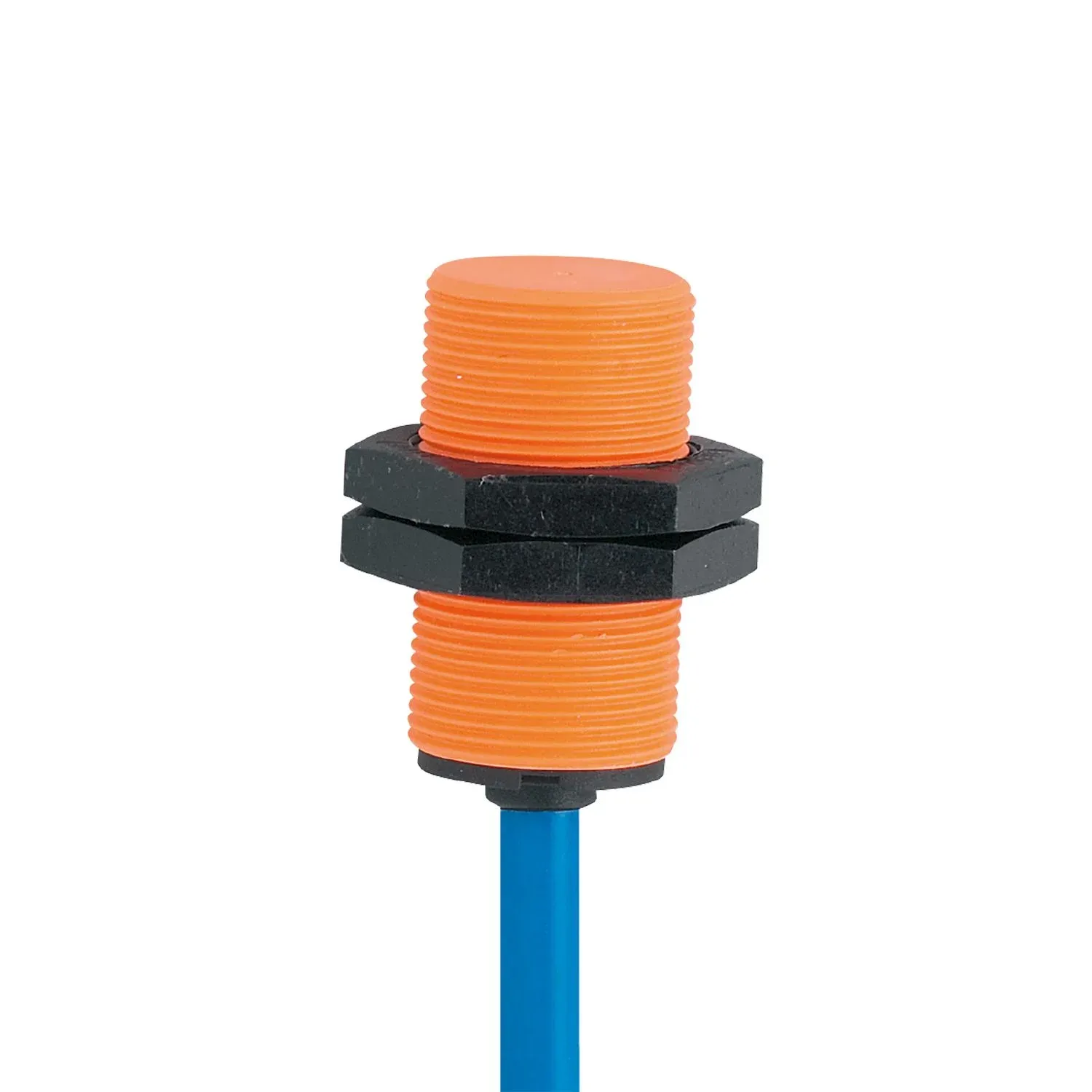

IFM NG5019
NG5019
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
For connection to intrinsically safe circuits
Particularly short housing for use where space is restricted
Wide operating temperature range
High protection rating for the requirements of harsh industrial environments
Specification
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Sensing range[mm] [mm] | 5 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 33 |
Electrical data
| Connection to switching amplifiers | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC[V] [V] | 8.2; (1kΩ) |
| Supply voltage DC[V] [V] | 7.5...30; (when used outside the hazardous area) |
| Current consumption[mA] [mA] | < 1; (disabled; conductive: > 2,1) |
| Protection class | II |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Permanent current rating of switching output DC[mA] [mA] | 30; (when used outside the hazardous area) |
| Switching frequency DC[Hz] [Hz] | 720 |
Detection zone
| Sensing range[mm] [mm] | 5 |
|---|---|
| Real sensing range Sr[mm] [mm] | 5 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | PTB 01 ATEX 2191; BVS 04 ATEX E 153 X; IECEX BVS 06.0003X; TIIS TC16108 |
|---|---|
| ATEX marking | II 1G Ex ia IIB T6 Ga Ta -20...70°C |
| EMC | EN 60947-5-6 |
| Shock/vibration resistance | 30 g (11 ms) / 10-55 Hz (1 mm) |
| MTTF[years] [years] | 4697 |
Safety classification
| Max. internal capacitance[nF] [nF] | 146 |
|---|---|
| Max. internal inductance[µH] [µH] | 49 |
Mechanical data
| Weight[g] [g] | 313.5 |
|---|---|
| Housing | threaded type |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 33 |
| Thread designation | M18 x 1 |
| Materials | PBT |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 6 m, PVC; 2 x 0.5 mm² |
|---|
