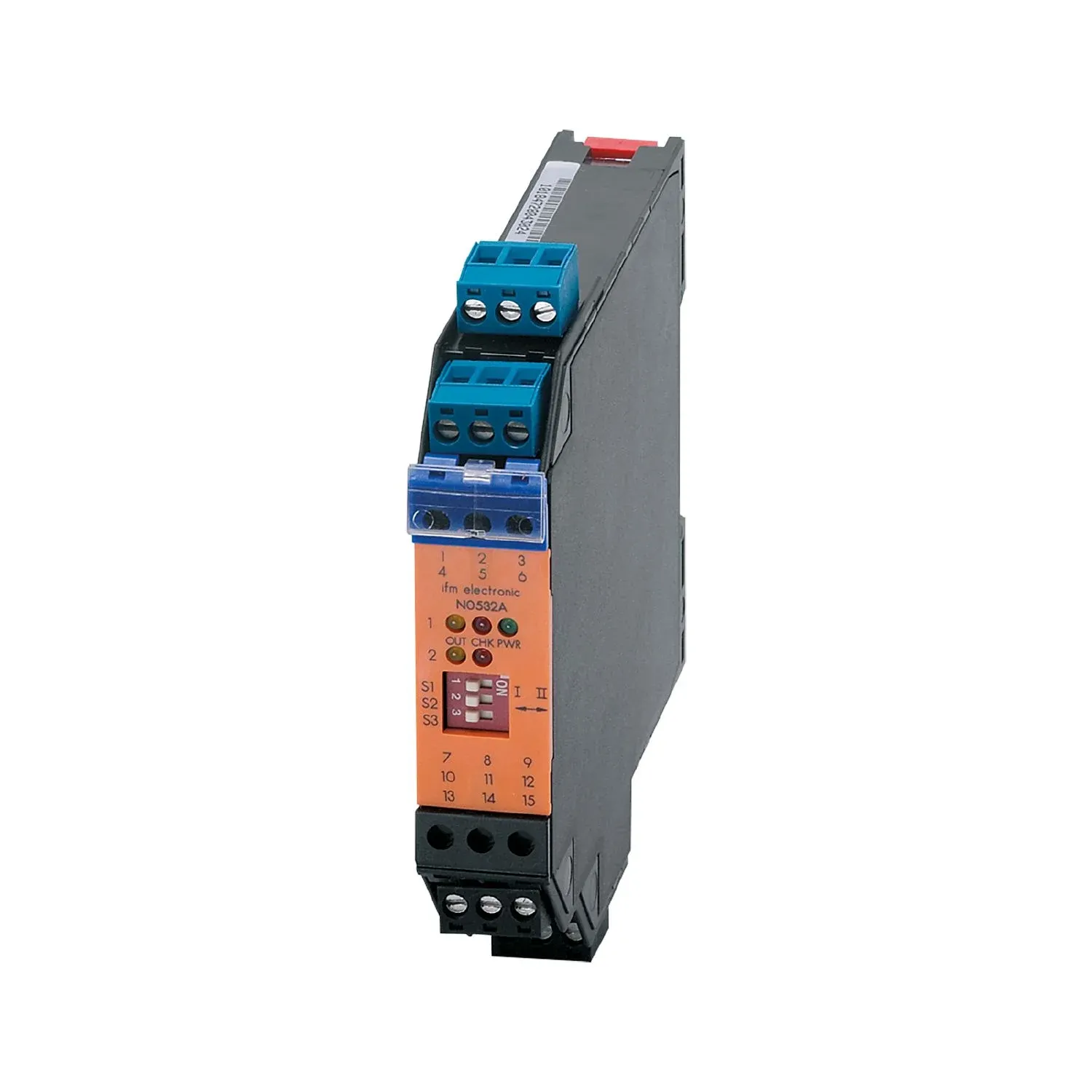

IFM N0532A
N0532A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the operation of intrinsically safe sensors in hazardous areas
Reliable short-circuit and wire-break monitoring
Easy programming of the output function
LED display to check operation, switching status and function
Quick and easy mounting on DIN rail
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | short-circuit monitoring; Wire monitoring |
Electrical data
| Operating voltage tolerance[%] [%] | -15...25 |
|---|---|
| Operating voltage[V] [V] | 24 DC |
| Current consumption[mA] [mA] | < 50 |
| Number of channels | 2 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Electrical design | opto coupler; (bipolar; Voltage: max. 40 V DC) |
|---|---|
| Number of digital outputs | 2 |
| Max. voltage drop switching output DC[V] [V] | 3 |
| Max. current load per output[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 5000 |
| Short-circuit proof | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| Approval | PTB 02 ATEX 2037; TIIS TC16049; IECEx PTB 06.0038 |
|---|---|
| ATEX marking | II (1) G [Ex ia] IIC |
| EMC | EN 50081-2 (1993) EN 61326-1 (2006) |
| EN 50081-2 | (1993) |
| EN 61326-1 | (2006) |
| MTTF[years] [years] | 426 |
Mechanical data
| Weight[g] [g] | 172 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 120 x 20 x 112 |
Displays / operating elements
| Display | switching status 2 x LED, yellow operation LED, green function 2 x LED, red |
|---|---|
| switching status | 2 x LED, yellow |
| operation | LED, green |
| function | 2 x LED, red |
Remarks
| Remarks | Caution The control monitor must be mounted outside the hazardous area. Free terminals must not be used. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | ...2.5 mm² |
|---|
