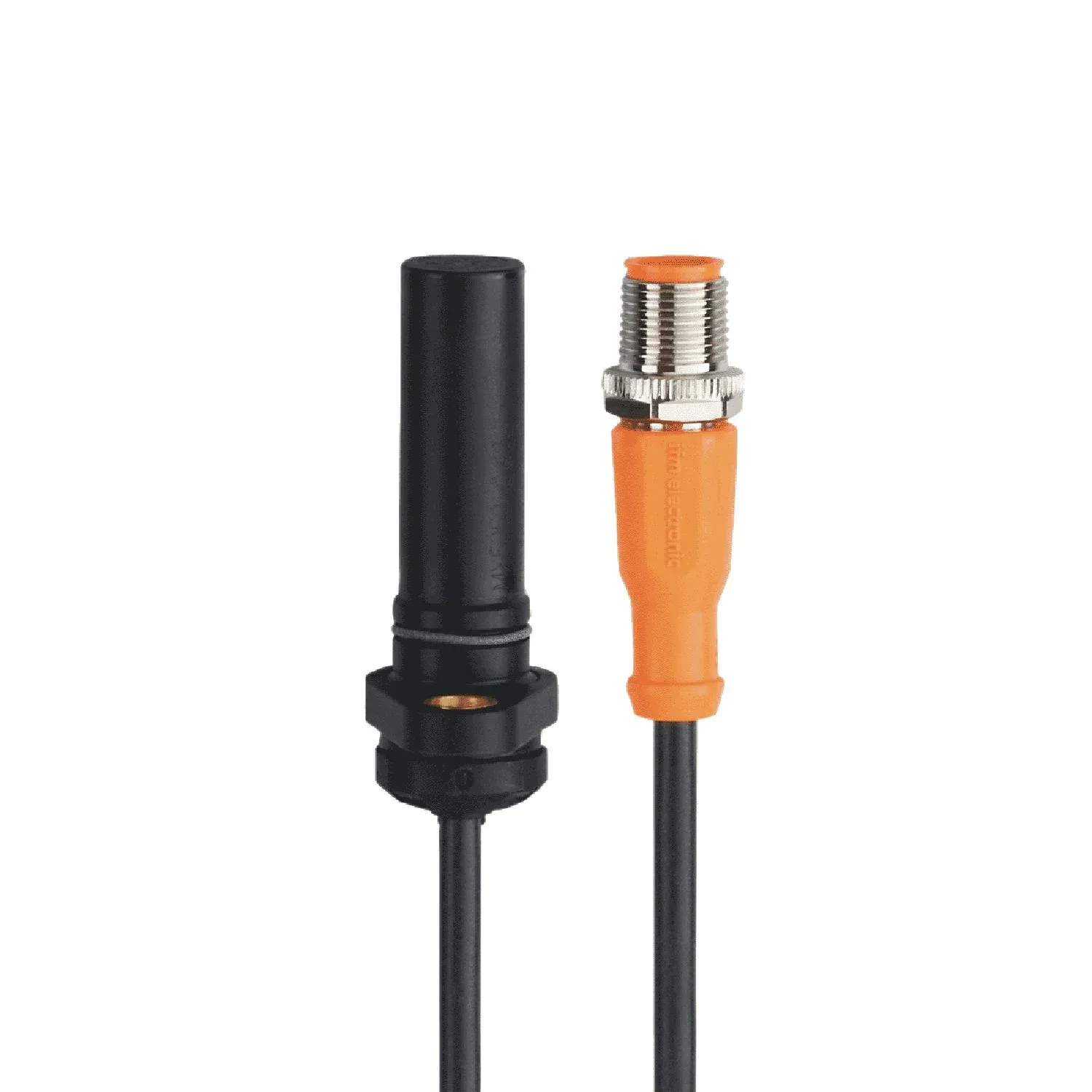

IFM MX5050
MX5050
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Non-contact detection of metal toothed wheels
For very high switching frequencies up to 15,000 Hz
Precise detection of the toothed wheel
Wide operating temperature range

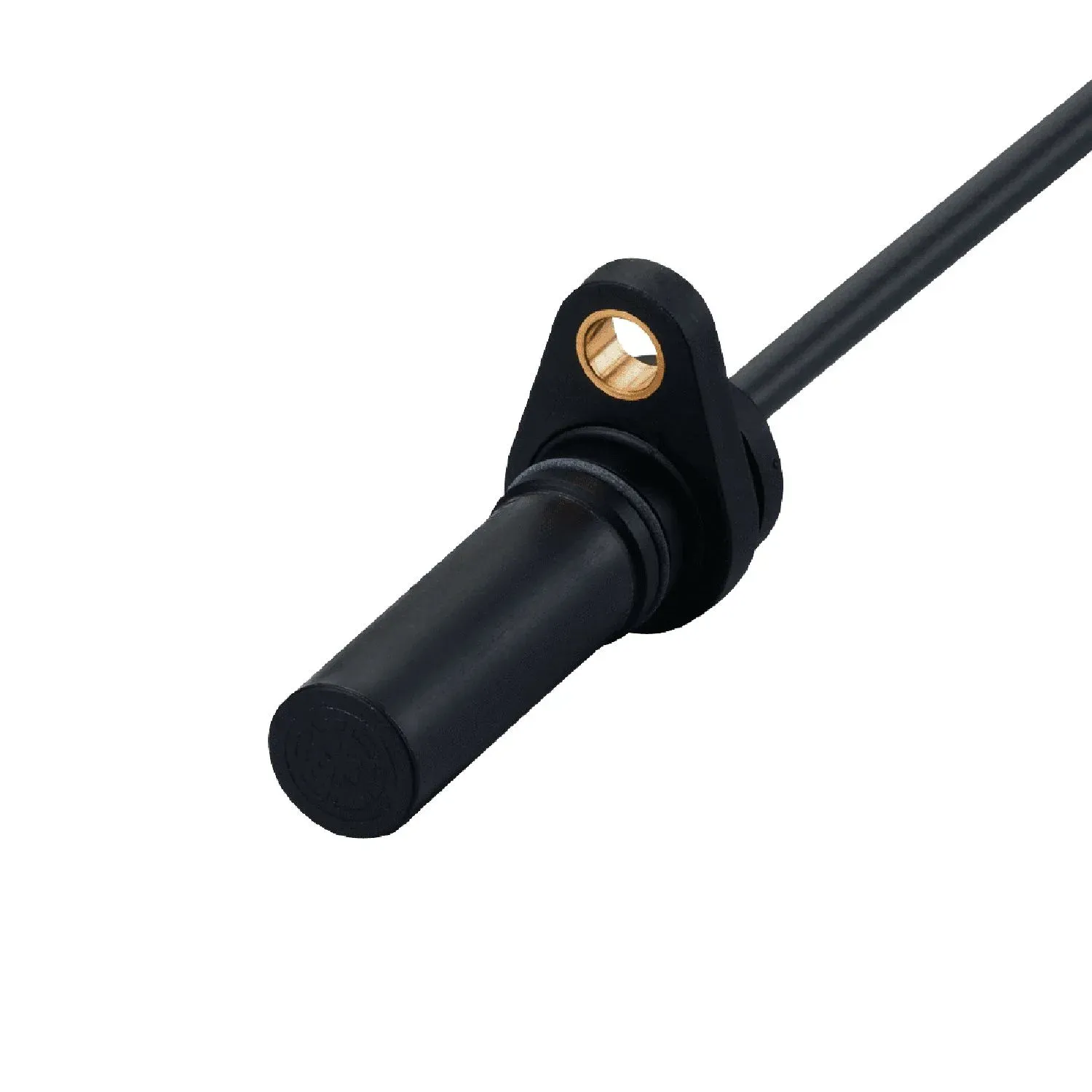

Quick installation with flange adapters
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.) |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 15 / L = 60 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 40 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 1 |
| Max. leakage current[mA] [mA] | 0.1 |
| Permanent current rating of switching output DC[mA] [mA] | 50 |
| Short-time current rating of switching output[mA] [mA] | 50 |
| Switching frequency DC[Hz] [Hz] | 1...15000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 1.7; (Using toothed wheels with a different modulus has an influence on the sensing range and the phase position.) |
|---|---|
| Real sensing range Sr[mm] [mm] | 1.7 ± 10 % |
| Operating distance[mm] [mm] | 1.38 |
Operating conditions
| Ambient temperature[°C] [°C] | -32...85 |
|---|---|
| Protection | IP 65; IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V/m EN 61000-4-8 30 A/m EN 55011 0 class B |
|---|---|
| EN 61000-4-2 | 4 kV CD / 8 kV AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 10 V/m |
| EN 61000-4-8 | 30 A/m |
| EN 55011 | 0 class B |
| Shock resistance | DIN EN 60068-2-27 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| DIN EN 60068-2-27 | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Fast temperature change | EN 60068-2-14 Na TA = -10 °C; TB = 70°C; t1 = 60 min; t2 = < 10 s; 20 cycles |
| EN 60068-2-14 Na | TA = -10 °C; TB = 70°C; t1 = 60 min; t2 = < 10 s; 20 cycles |
| Salt spray test | EN 60068-2-52 Kb severity level 5 (4 test cycles) |
| EN 60068-2-52 Kb | severity level 5 (4 test cycles) |
| MTTF[years] [years] | 3659 |
Mechanical data
| Weight[g] [g] | 49.8 |
|---|---|
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 15 / L = 60 |
| Materials | brass; PA; O-ring: FKM |
| Tightening torque[Nm] [Nm] | 7 |
| Toothed wheel module[mm] [mm] | 1.25 |
| Installation length[mm] [mm] | 45 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Cable | 0.5 m, PUR |
|---|---|

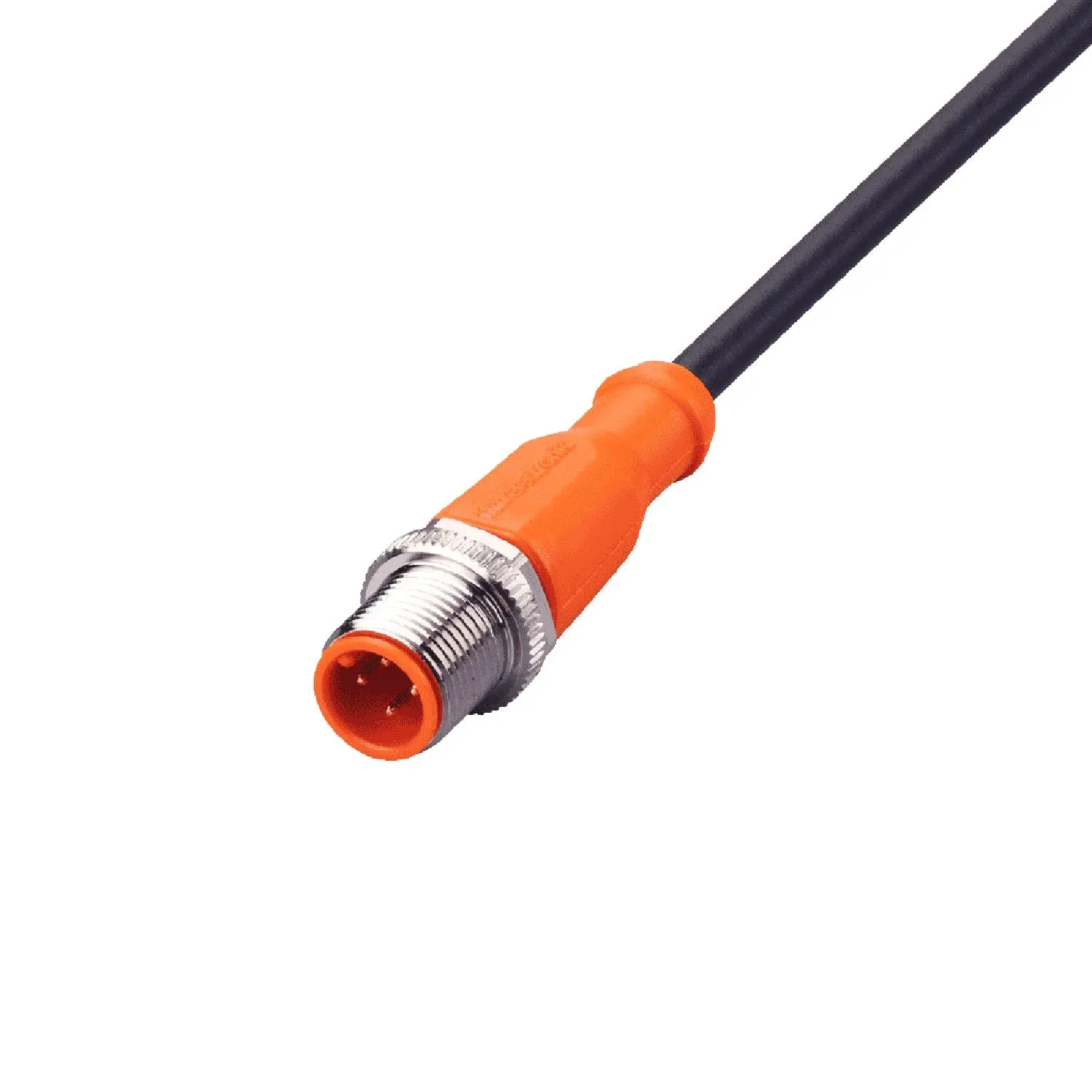

| Connector | 1 x M12; coding: A |
