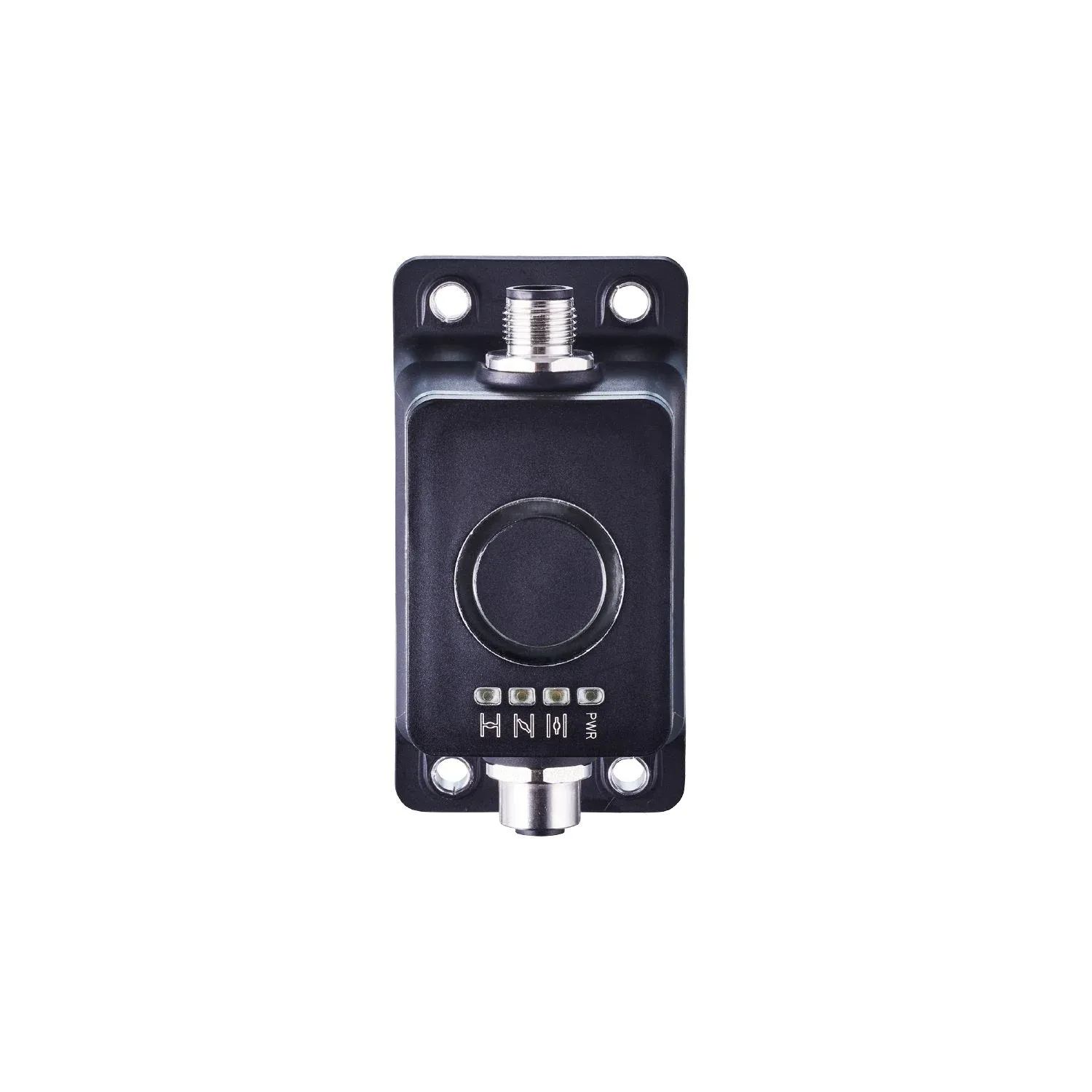

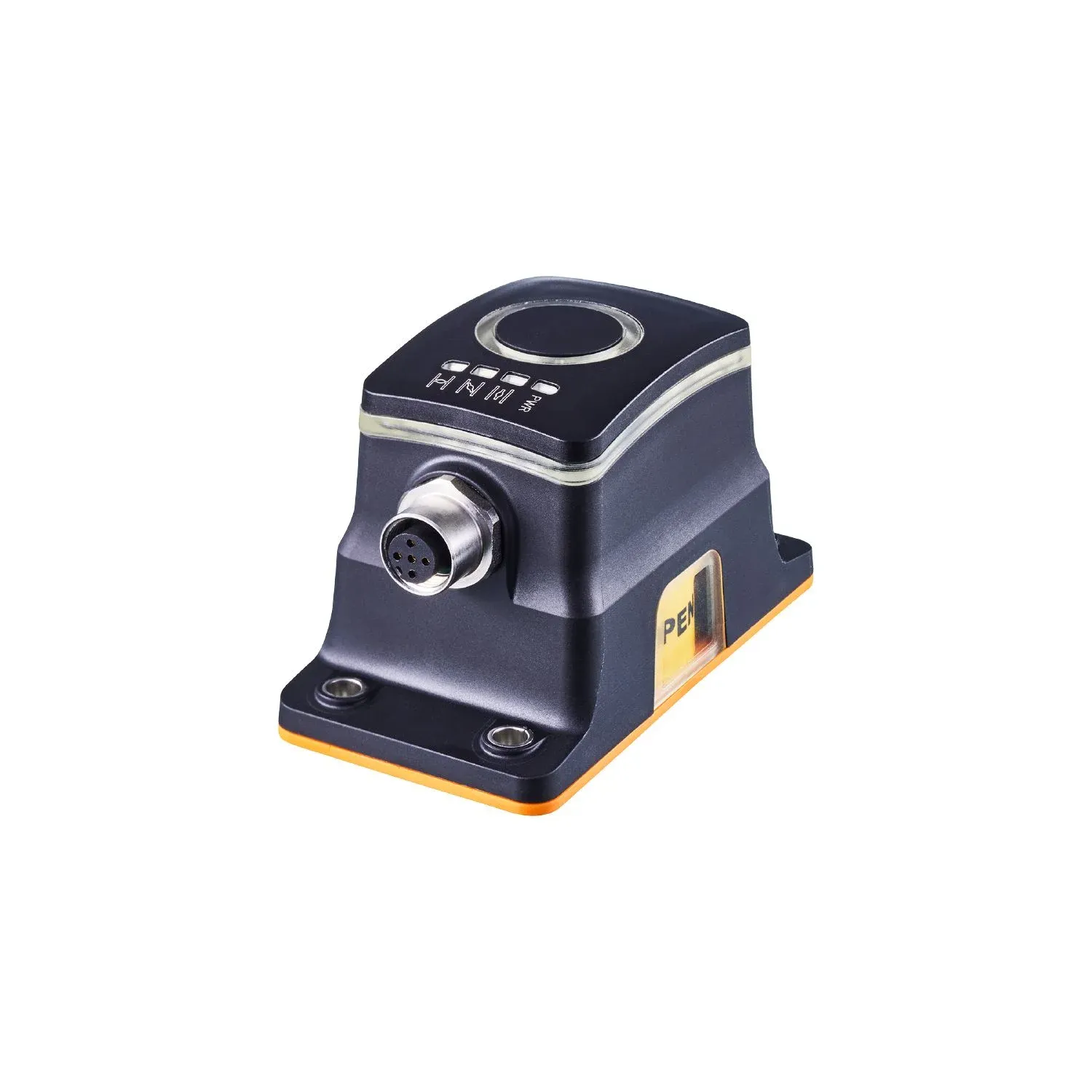

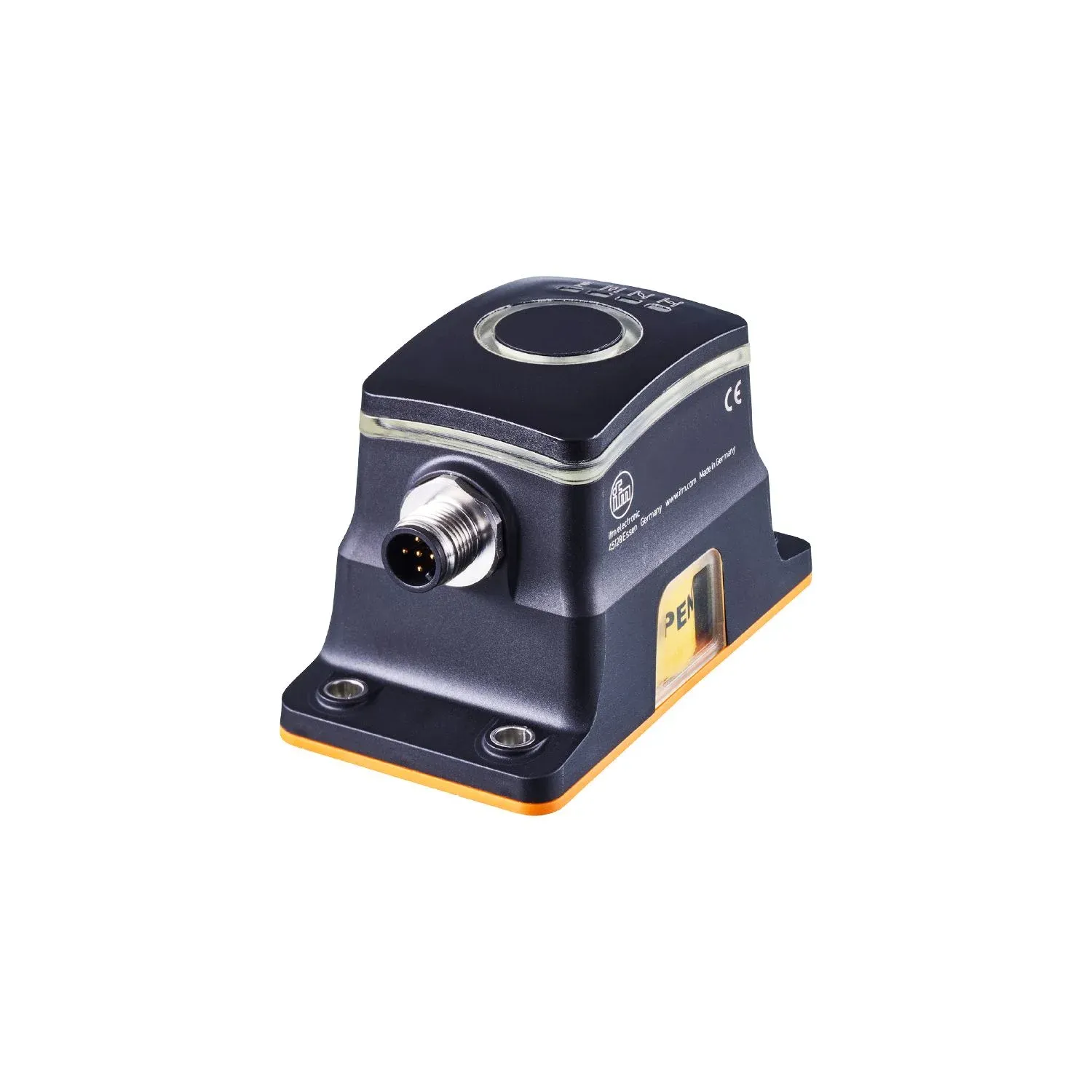

IFM MVQ301
MVQ301
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Integrated adjustment algorithm with self-optimisation for positioning of industrial valves accurate to a percentage
Automatic Teach-In function for fast set-up
Reduced wiring due to direct control of the control valve
Self-diagnostics regarding wear, blockages or deposits for preventive maintenance
Individually adjustable RGB LED with flashing mode for easy visual localisation in challenging environments
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Communication interface | IO-Link |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 95 x 50 x 57 |
| Electrical design | PNP |
| Output function | 2 x normally open |
Application
| Operating principle | magnetic |
|---|---|
| Application | angle of rotation detection absolute; position control |
Electrical data
| Protection class | III |
|---|---|
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 300 |
| Operating voltage[V] [V] | 20...30 DC |
| Current consumption[mA] [mA] | < 40 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | 2 x normally open |
| Max. current load per output[mA] [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Detection zone[°] [°] | 360 |
|---|
Accuracy / deviations
| Accuracy[°] [°] | ± 1 |
|---|---|
| Temperature drift[°/K] [°/K] | 0,02 |
| Repeatability[°] [°] | 0,1 |
| Deadband | 0,5...25 % (Factory setting: 2 %) |
| Resolution[%] [%] | 0,1; (preset value) |
| Hysteresis[%] [%] | 0.4...10; (Factory setting: 1 %) |
| Open | 1...100 % (Factory setting: 95 %) |
| Closed | 0,0...99,0 % (Factory setting: 5 %) |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | BLOB Binary Large Object transfer Common - I&D Identification and Diagnosis Function Locator Function ProductURI |
| BLOB | Binary Large Object transfer |
| Common - I&D | Identification and Diagnosis |
| Function | ProductURI |
| SIO mode | no |
| Required master port type | B |
| Min. process cycle time[ms] [ms] | 6 |
| Supported DeviceIDs | default 1775 |
| default | 1775 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 65; IP 67; (Target puck area dust-protected) |
Tests / approvals
| EMC | EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 | 4 kV CD / 8 kV AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 10 V |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc 1 mm (10...55 Hz) / 1 octave per minute in 3 axes |
| EN 60068-2-6 Fc | 1 mm (10...55 Hz) / 1 octave per minute in 3 axes |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes |
| MTTF[years] [years] | 421 |
| Embedded software included | yes |
| UL approval | Ta -25...70 °C Enclosure type Type 1 power supply Limited Voltage/Current UL approval no. S003 File number UL E174191 |
| Ta | -25...70 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
| UL approval no. | S003 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 188.8 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 95 x 50 x 57 |
| Materials | housing, target puck: PA; plug: stainless steel (316L / 1.4404); socket: stainless steel (316L / 1.4404) |
| Tightening torque[Nm] [Nm] | target puck: 1,2; housing: 3,0; housing on plastic mounting plate: 1,5 |
Displays / operating elements
| Display | operation 1 x LED, green switching status 3 x LED, white switching status 1 x LED, RGB |
|---|---|
| operation | 1 x LED, green |
| switching status | 1 x LED, RGB |
Accessories
| Items supplied | socket head screws: 4 x (M5 x 16 mm), stainless steel |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
