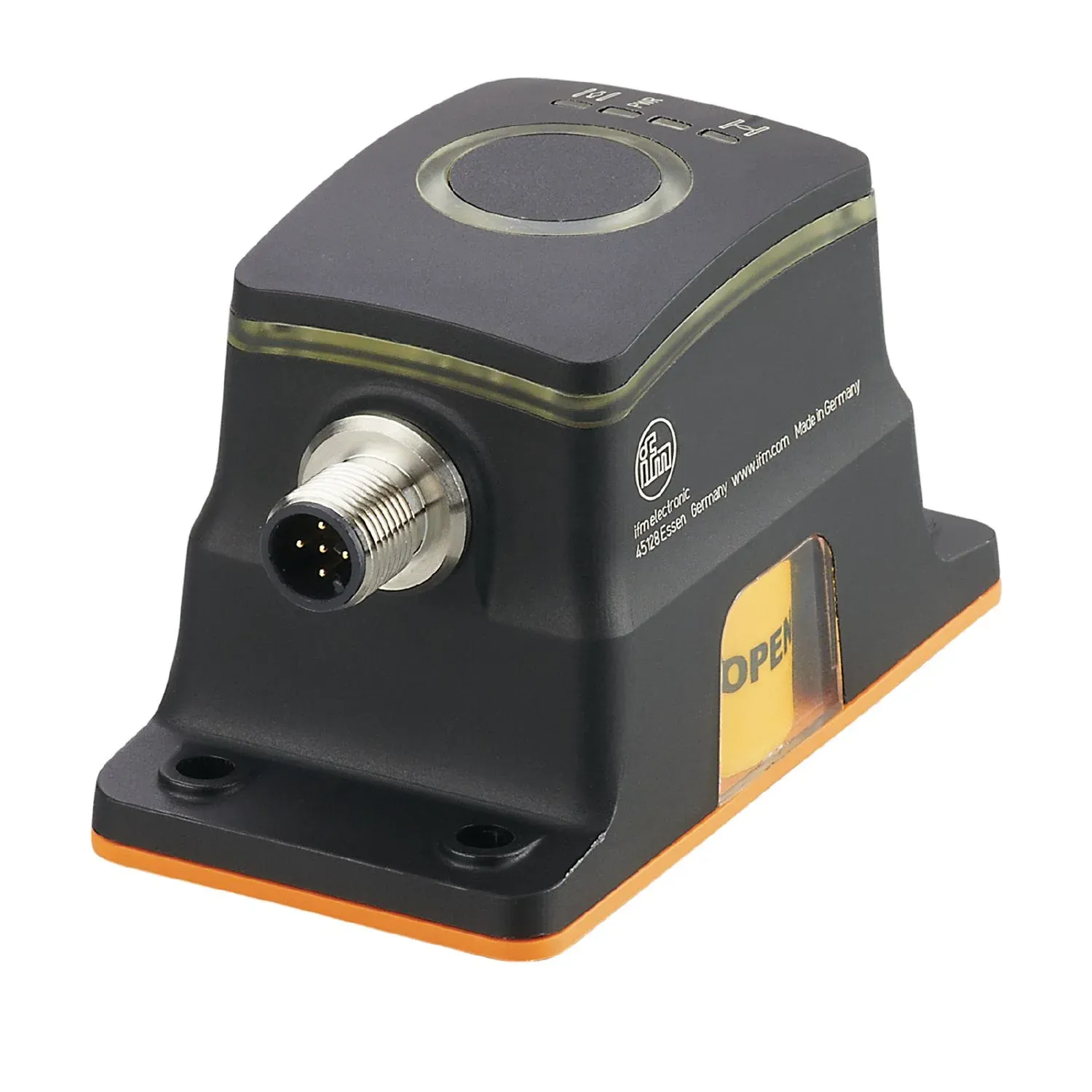

IFM MVQ101

MVQ101

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

configurable RGB LED for a fast visual localisation of the sensor
End position setting with just one click for quick set-up
Self-diagnostics regarding wear, blockages or deposits for preventive maintenance
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Communication interfaceIO-Link
Housingrectangular
Dimensions[mm] [mm]95 x 50 x 57
Electrical designPNP
Output function3 x normally open / normally closed; (selectable)

Application

Operating principlemagnetic
Applicationangle of rotation detection absolute

Electrical data

Operating voltage[V] [V]10...30 DC
Current consumption[mA] [mA]< 40
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms] [ms]300

Outputs

Electrical designPNP
Output function3 x normally open / normally closed; (selectable)
Max. voltage drop switching output DC[V] [V]2.5
Permanent current rating of switching output DC[mA] [mA]100
Short-circuit protectionyes
Overload protectionyes

Detection zone

Detection zone[°] [°]360

Accuracy / deviations

Accuracy[°] [°]± 1
Resolution[°] [°]0.1
Temperature drift[°/K] [°/K]0,02
Repeatability[°] [°]0,1
Tolerance[°] [°]0.1...15; (Factory setting: 10)
Hysteresis[°] [°]0.1...5; (Factory setting: 3)

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9 CDV
ProfilesSmart Sensor - SSP 3.1
Measuring Sensor
BLOB
Binary Large Object transfer
Common - I&D
Identification and Diagnosis
Function
Multiple switching signal
Function
Teach channel
Smart Sensor - SSP 3.1Measuring Sensor
BLOBBinary Large Object transfer
Common - I&DIdentification and Diagnosis
FunctionTeach channel
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]4
Supported DeviceIDsdefault
595
default595

Operating conditions

Ambient temperature[°C] [°C]-25...70
ProtectionIP 65; IP 67; (Target puck area dust-protected)

Tests / approvals

EMCEN 61000-4-2
4 kV CD / 8 kV AD
EN 61000-4-3
10 V/m
EN 61000-4-4
2 kV
EN 61000-4-6
10 V
EN 55011
class B
EN 61000-4-24 kV CD / 8 kV AD
EN 61000-4-310 V/m
EN 61000-4-42 kV
EN 61000-4-610 V
EN 55011class B
Vibration resistanceEN 60068-2-6 Fc
1 mm (10...55 Hz) / 1 octave per minute in 3 axes
EN 60068-2-6 Fc1 mm (10...55 Hz) / 1 octave per minute in 3 axes
Shock resistanceEN 60068-2-27 Ea
30 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes
EN 60068-2-27 Ea30 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes
MTTF[years] [years]410
Embedded software includedyes
UL approvalUL approval no.
S001
UL approval no.S001

Mechanical data

Weight[g] [g]175
Housingrectangular
Dimensions[mm] [mm]95 x 50 x 57
Materialshousing, target puck: PA; plug: stainless steel (316L / 1.4404)
Tightening torque[Nm] [Nm]target puck: 1,2; housing: 3,0; housing on plastic mounting plate: 0,9

Displays / operating elements

Displayoperation
1 x LED, green
switching status
2 x LED, white
switching status
1 x LED, RGB
operation1 x LED, green
switching status1 x LED, RGB

Accessories

Items suppliedsocket head screws: 4 x (M5 x 16 mm), stainless steel

Remarks

Pack quantity1 pcs.

Electrical connection - plug

Connector1 x M12; coding: A; Moulded body: stainless steel
