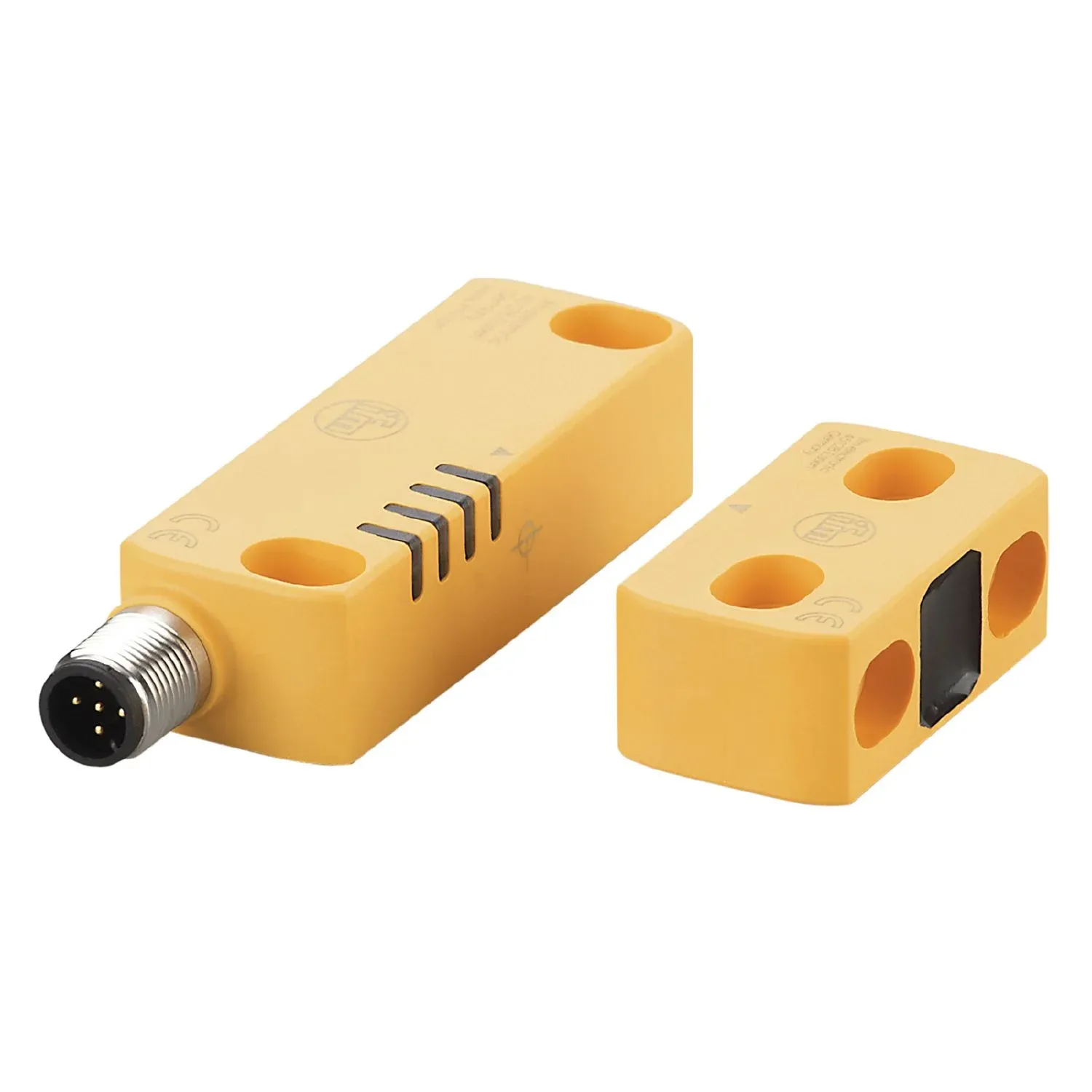

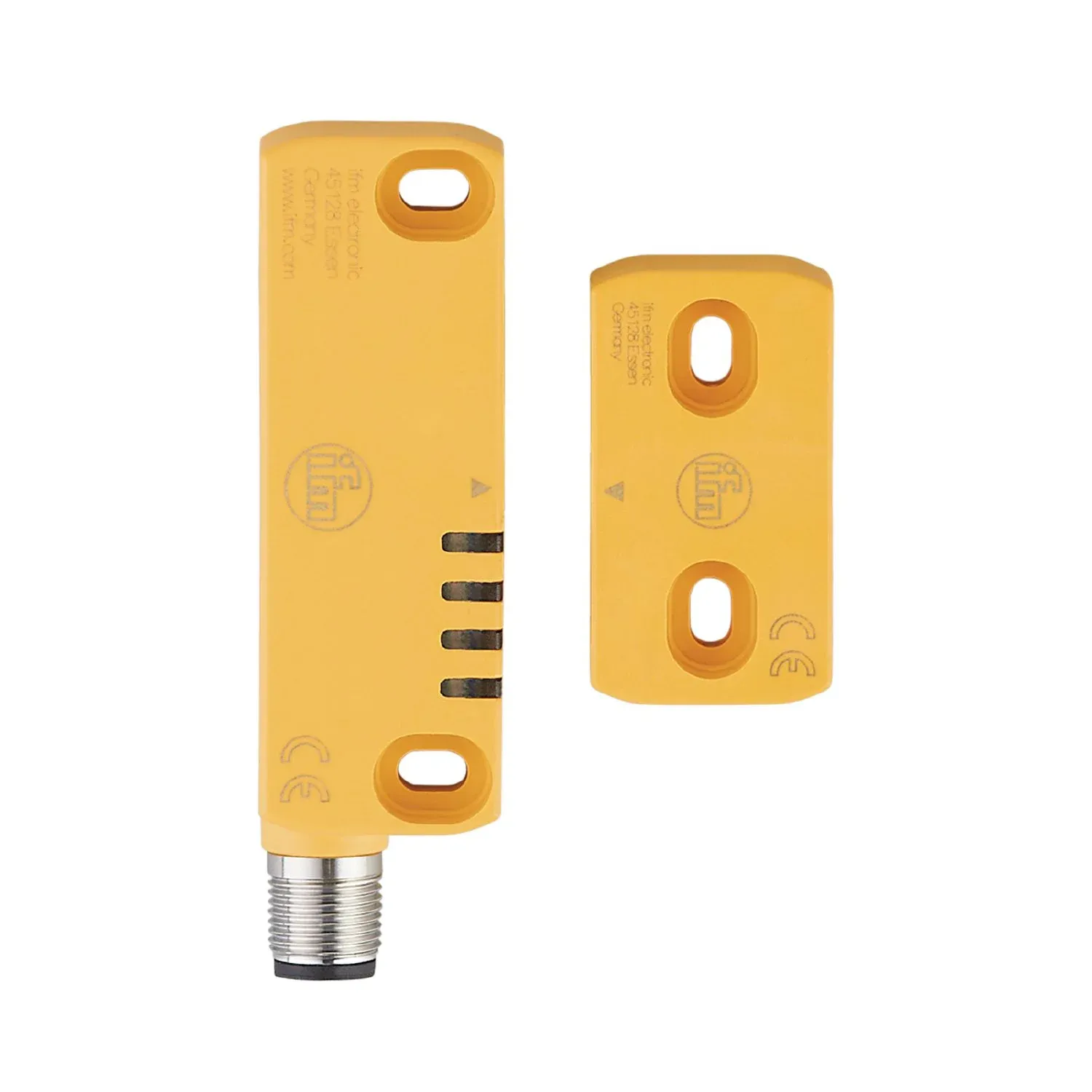

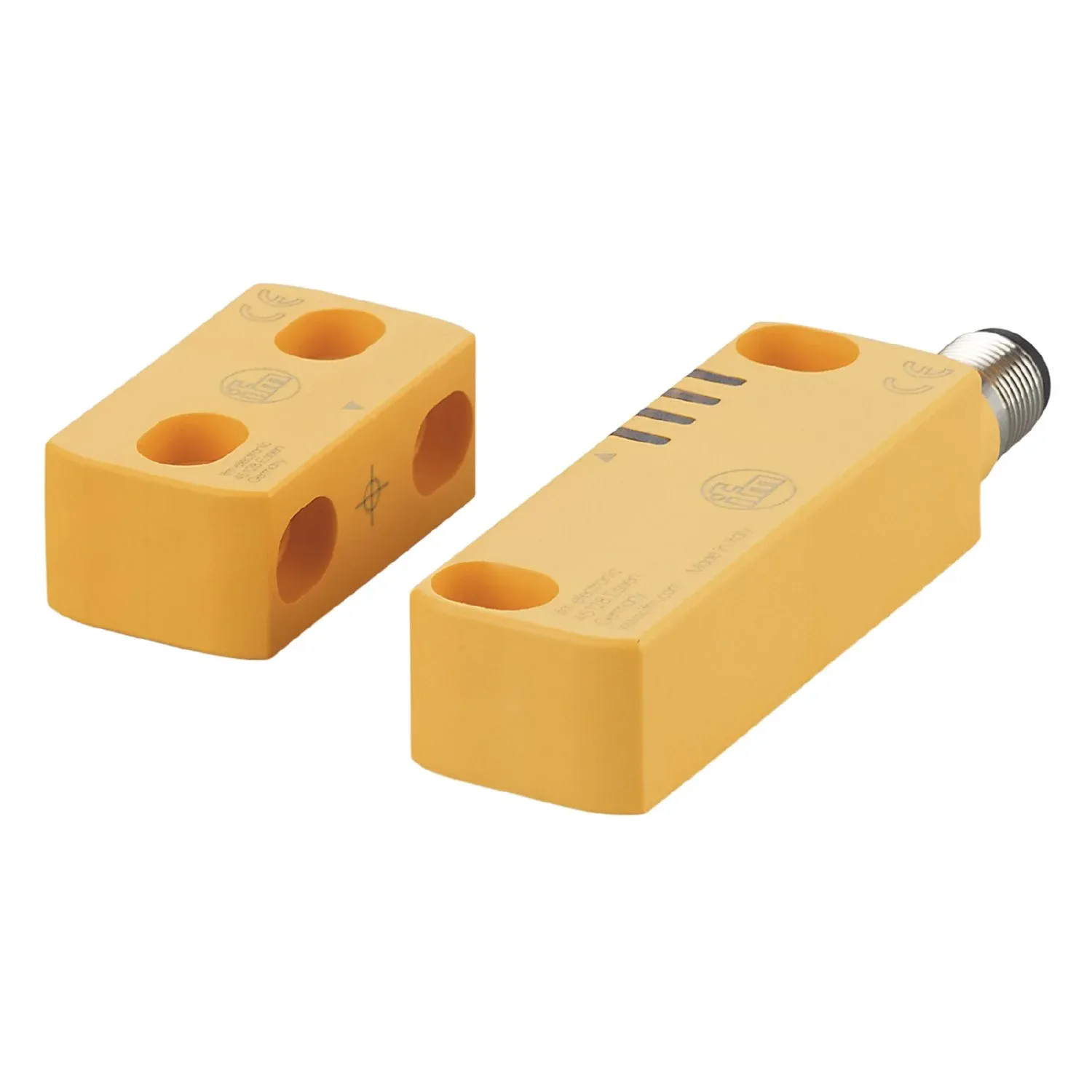

IFM MN700S
MN700S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Unique actuator coding prevents tampering on doors
High safety level even in case of series connection of up to 32 sensors
LED display facilitates visual checking of the sensing range setting
Programmable any number of times for easy set-up
Specification
Product characteristics
| Sensing range[mm] [mm] | 12; (with defined actuator) |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 72 x 18 x 25 |
| Electrical design | PNP |
Application
| Design | coded target |
|---|---|
| Type of operation | permanent operation |
| Radio approval for | USA; Canada; Australia; EU/RED; China; Singapore; New Zealand |
| Note on radio approval | The list of countries applying the European Radio Equipment Directive 2014/53/EU (RED) can be found under “Downloads”. |
Electrical data
| Operating voltage[V] [V] | 20.4...26.4 DC |
|---|---|
| Rated insulation voltage[V] [V] | 32 |
| Operating current[mA] [mA] | 40...700 |
| No-load current[mA] [mA] | 30 |
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 1500 |
| Operating frequency[MHz] [MHz] | 0,125 |
| Transmission power ERP[mW] [mW] | 0.0002245 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 3 |
|---|
Outputs
| Number of digital outputs | 3; (2 x safety output; 1 x signal output) |
|---|---|
| Electrical design | PNP |
| Max. voltage drop switching output DC[V] [V] | 3.5 |
| Max. leakage current[mA] [mA] | 0.5 |
| Max. current load per output[mA] [mA] | 250; (utilisation category DC-12) |
| Switching frequency DC[Hz] [Hz] | 1 |
| Output data | interface type C class 2 |
| Short-circuit protection | yes |
| Overload protection | yes |
| Max. capacitive load CL_max[nF] [nF] | 200 |
Detection zone
| Sensing range[mm] [mm] | 12; (with defined actuator) |
|---|---|
| Safe switch-off distance s(ar)[mm] [mm] | 16 |
Accuracy / deviations
| Hysteresis[%] [%] | 20 |
|---|---|
| Repeatability analogue output[%] [%] | ≤ 10; (% Sn) |
Response times
| Response time to safety request[ms] [ms] | 160 |
|---|---|
| Response time when approaching the enable zone[ms] [ms] | 600 |
Operating conditions
| Applications | class C to EN 60654-1 sheltered locations |
|---|---|
| Ambient temperature[°C] [°C] | 10...40 |
| Note on ambient temperature | operational life ≤ 175200 h |
| Max. relative air humidity[%] [%] | briefly: 5...95 %; permanent: 5...70 % |
| Air pressure[kPa] [kPa] | 80...106 |
| Max. height above sea level[m] [m] | 2000 |
| Ionising radiation | not permissible |
| Salt spray | no |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | IEC 60947-5-3 |
|---|---|
| Shock resistance | EN 60068-2-27 30 g (11 ms) |
| EN 60068-2-27 | 30 g (11 ms) |
| Vibration resistance | IEC 60068-2-6 10 g (10...55 Hz) |
| IEC 60068-2-6 | 10 g (10...55 Hz) |
Safety classification
| Complies with the requirements | ISO 13849-1: 2015 category 4, PL e IEC 62061 SIL 3 |
|---|---|
| Mission time TM[h] [h] | ≤ 175200 |
| Mission time TM (additional indication) | 20 years |
| PFH[1/h] [1/h] | 1,5E-09 |
Mechanical data
| Weight[g] [g] | 175.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Type of mounting | door hinge on right side |
| Dimensions[mm] [mm] | 72 x 18 x 25 |
| Materials | PA |
| Tightening torque[Nm] [Nm] | 0.8...2 |
Displays / operating elements
| Display | function 1 x LED, (ACT) input 1 x LED, (IN) Output 1 x LED, (OUT) operation 1 x LED, (PWR) |
|---|---|
| function | 1 x LED, (ACT) |
| input | 1 x LED, (IN) |
| Output | 1 x LED, (OUT) |
| operation | 1 x LED, (PWR) |
Accessories
| Items supplied | coded target washers: 4 cover caps: 8 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: stainless steel (304/1.4301) |
|---|
