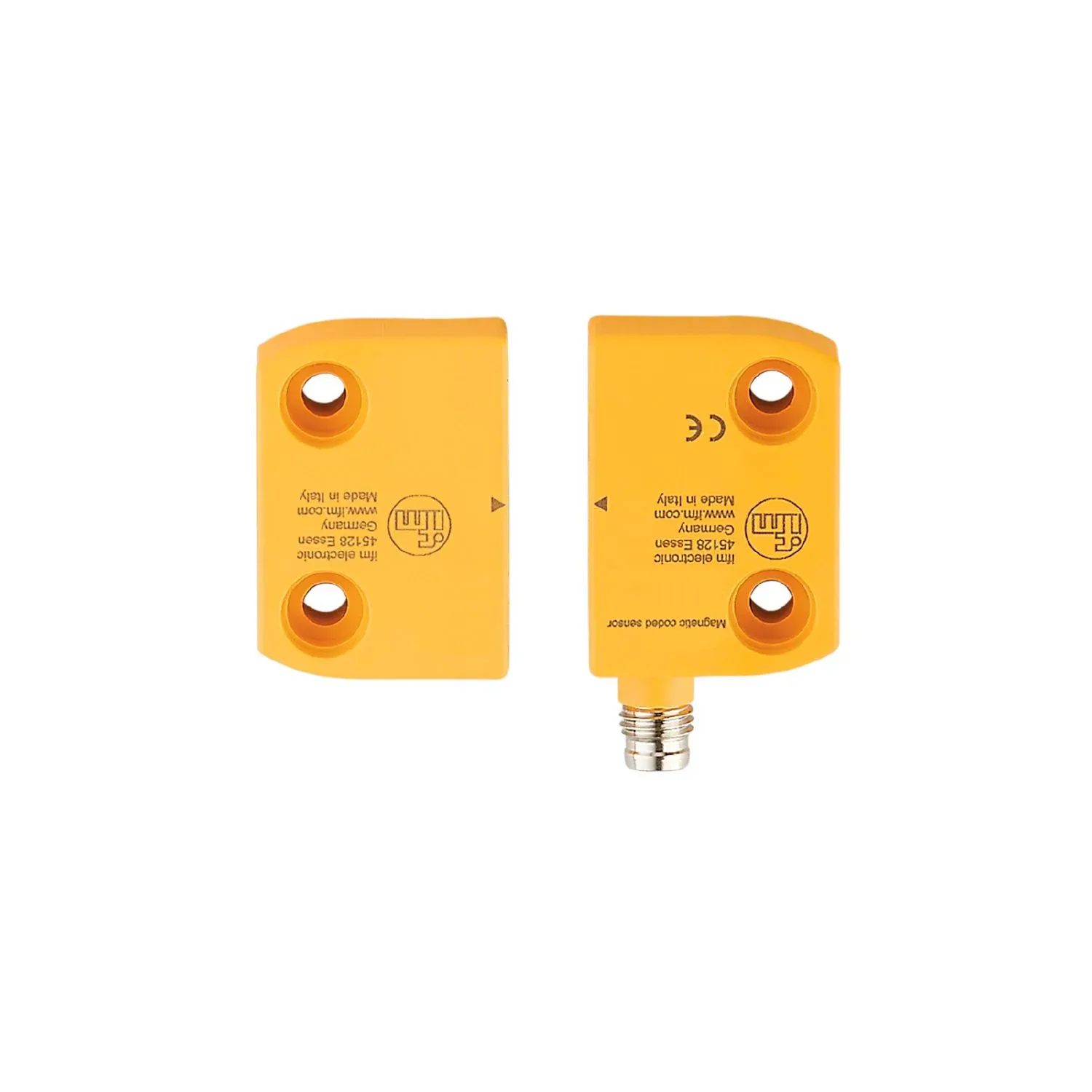

IFM MN206S
MN206S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Actuation possible from different directions
Conceal behind stainless steel for enhanced tamper prevention
Meets the new interface description CB24I from ZVEI
Highest security level according to ISO 13849-1 up to PL e in connection with an evaluation unit type G150xS / AC4x2S
Specification
Product characteristics
| Output function | 2 x normally open; (potential-free) |
|---|---|
| Sensing range[mm] [mm] | 5; (with defined actuator) |
| Housing | rectangular |
| Dimensions[mm] [mm] | 36 x 13 x 26 |
Application
| Design | coded target |
|---|---|
| Type of operation | permanent operation |
Electrical data
| Operating voltage[V] [V] | 24 DC; ("supply class 2" to cULus) |
|---|---|
| Rated insulation voltage[V] [V] | 60 |
| Protection class | III |
| Reverse polarity protection | no |
| Internal resistance (Ri)[Ω] [Ω] | 10; (1 W) |
Outputs
| Output function | 2 x normally open; (potential-free) |
|---|---|
| Permanent current rating of switching output DC[mA] [mA] | 50 |
| Switching frequency DC[Hz] [Hz] | 150 |
| Output data | Interface type A |
| Short-circuit proof | no |
| Max. capacitive load CL_max[nF] [nF] | 20 |
Detection zone
| Sensing range[mm] [mm] | 5; (with defined actuator) |
|---|---|
| Safe switch-off distance s(ar)[mm] [mm] | 15 |
Response times
| Response time to safety request[ms] [ms] | 10 |
|---|---|
| Max. fall time[ms] [ms] | 0.1 |
| Max. make time incl. bounce[ms] [ms] | 0.6 |
Operating conditions
| Applications | class C to EN 60654-1 sheltered locations |
|---|---|
| Ambient temperature[°C] [°C] | 10...40 |
| Note on ambient temperature | operational life ≤ 175200 h |
| Max. relative air humidity[%] [%] | briefly: 5...95 %; permanent: 5...70 % |
| Air pressure[kPa] [kPa] | 80...106 |
| Max. height above sea level[m] [m] | 2000 |
| Salt spray | no |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC | IEC 60947-5-1 |
|---|---|
| Shock resistance | EN 60068-2-27 30 g (11 ms) |
| EN 60068-2-27 | 30 g (11 ms) |
| Vibration resistance | IEC 60068-2-6 10 g (10...55 Hz) |
| IEC 60068-2-6 | 10 g (10...55 Hz) |
Safety classification
| Mission time TM[h] [h] | ≤ 175200 |
|---|---|
| Mission time TM (additional indication) | 20 years |
| B10D | 20.000.000; (without load; at max. load DC 12, 24 V, 50 mA: 400.000) |
Mechanical data
| Weight[g] [g] | 115.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 36 x 13 x 26 |
| Materials | PA |
| Tightening torque[Nm] [Nm] | 0.8...2 |
Accessories
| Items supplied | coded target |
|---|
Remarks
| Remarks | In connection with a G150xS / AC4x2S type evaluation unit, it is possible to reach up to PL e (ISO 13849-1) or SIL cl 3 (IEC 62061) |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x M8; coding: A |
|---|
