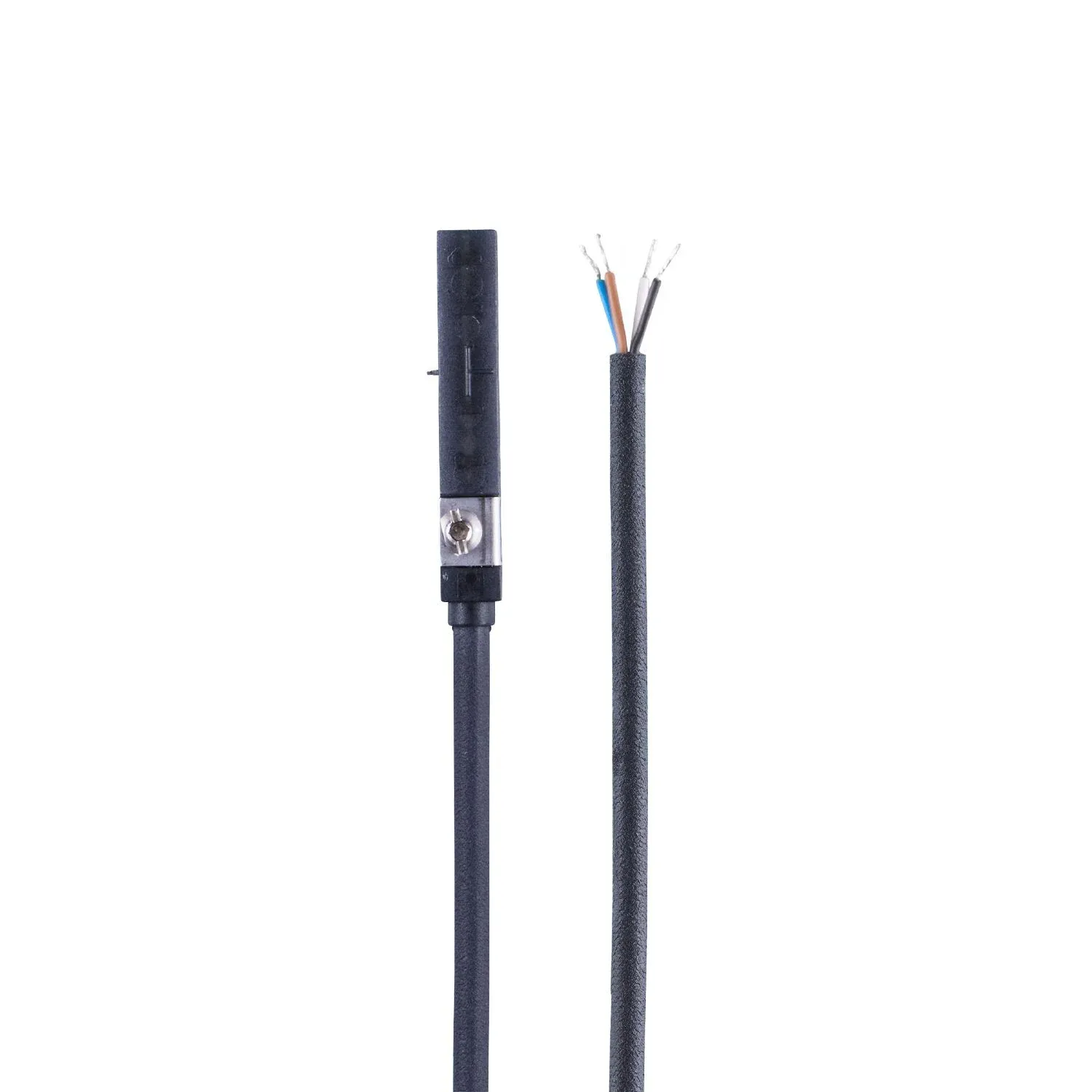

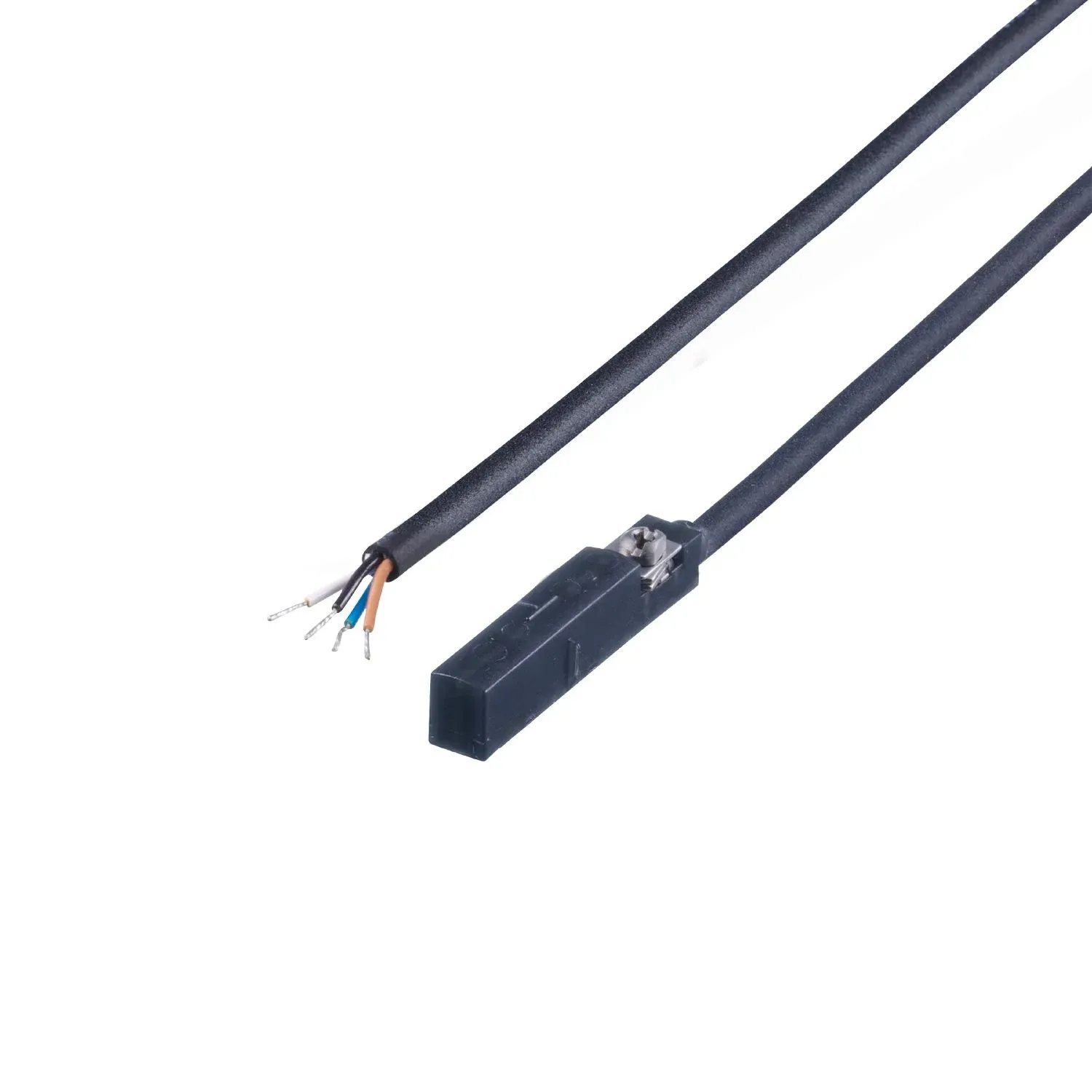

IFM MK5909
MK5909
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Only 1 sensor for 2 end positions for short-stroke cylinders
End position setting aid with second LED
Inline quality monitoring with 50 mm detection range
User-friendly communication and parameterisation via IO-Link
Monitoring of critical pneumatic cylinders via switching cycles counter
Fast fault localisation thanks to extensive diagnostic functions
Specification
Product characteristics
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Communication interface | IO-Link |
Application
| Operating principle | Hall sensor; (3D function) |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 300 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Output signal | switching signal; IO-Link |
|---|---|
| Electrical design | PNP/NPN; (parameterisable) |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Max. leakage current[mA] [mA] | 0.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 200 |
| Type of short-circuit protection | pulsed |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Measuring range[mm] [mm] | 50; (depending on the application) |
|---|---|
| Min. field strength[mT] [mT] | 1 |
Accuracy / deviations
| Hysteresis[mm] [mm] | 1.25; (parameterisable) |
|---|---|
| Repeatability[mm] [mm] | < 0.2 |
| Linearity error IO-Link[%] [%] | < 5 |
| Resolution[mm] [mm] | 0,01; (depending on the application) |
Software / programming
| Parameter setting options | switch points; counter function; diagnostic function |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1.3 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Smart Sensor - SSP 4.1.1 Measuring and Switching Sensor, 1 channel Common - I&D Identification and Diagnosis Extension Object detection, switches when value falls below the setpoint Function Locator Function ProductURI |
| Smart Sensor - SSP 4.1.1 | Measuring and Switching Sensor, 1 channel |
| Common - I&D | Identification and Diagnosis |
| Extension | Object detection, switches when value falls below the setpoint |
| Function | ProductURI |
| SIO mode | yes |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 5 |
| Supported DeviceIDs | default 1613 |
| default | 1613 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 - CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 | - CD / 8 kV AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 10 V |
| EN 55011 | class B |
| Impact resistance | EN 60068-2-75 Ehc 1 J |
| EN 60068-2-75 Ehc | 1 J |
| Vibration resistance | EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| Shock resistance | EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| MTTF[years] [years] | 1088 |
| UL approval | Ta -25...75 °C Enclosure type Type 1 power supply Class 2 UL approval no. C020 File number UL E174191 |
| Ta | -25...75 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| UL approval no. | C020 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 79.2 |
|---|---|
| Mounting | flush mountable |
| Type of mounting | fixing element with combined head slot / hexagon socket AF 1.5 |
| Cylinder type | T-slot cylinders |
| Materials | housing: PA; fastening clamp: stainless steel |
Displays / operating elements
| Display | switching status 2 x LED, yellow SSC1.1 SSC1.2 operation 1x LED, green |
|---|---|
| switching status | 2 x LED, yellow SSC1.1 SSC1.2 |
| operation | 1x LED, green |
Accessories
| Items supplied | Cable clip: 1x rubber placeholder: 1x |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 6 m, PUR, Ø 2.9 mm; 4 x 0.08 mm² |
|---|
