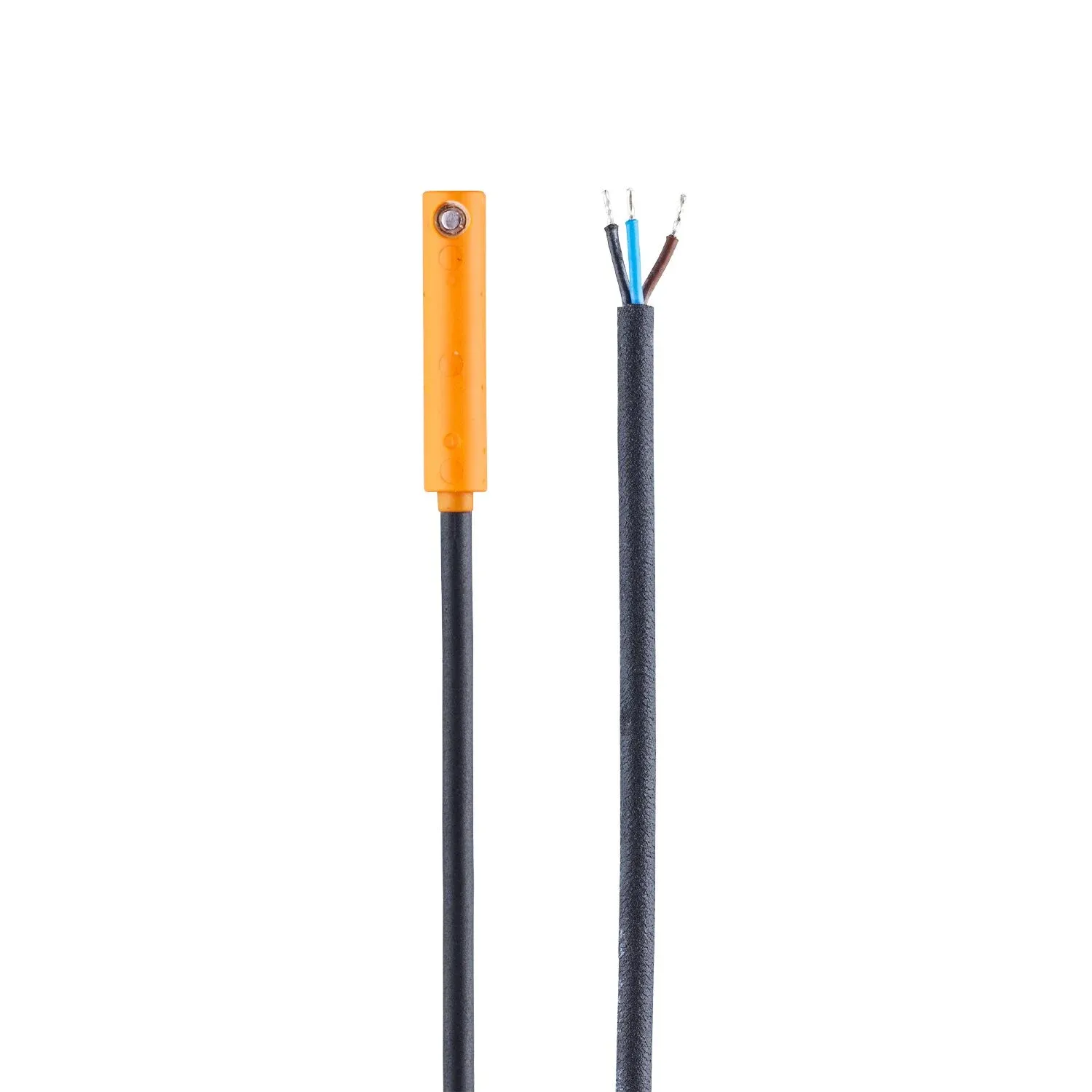

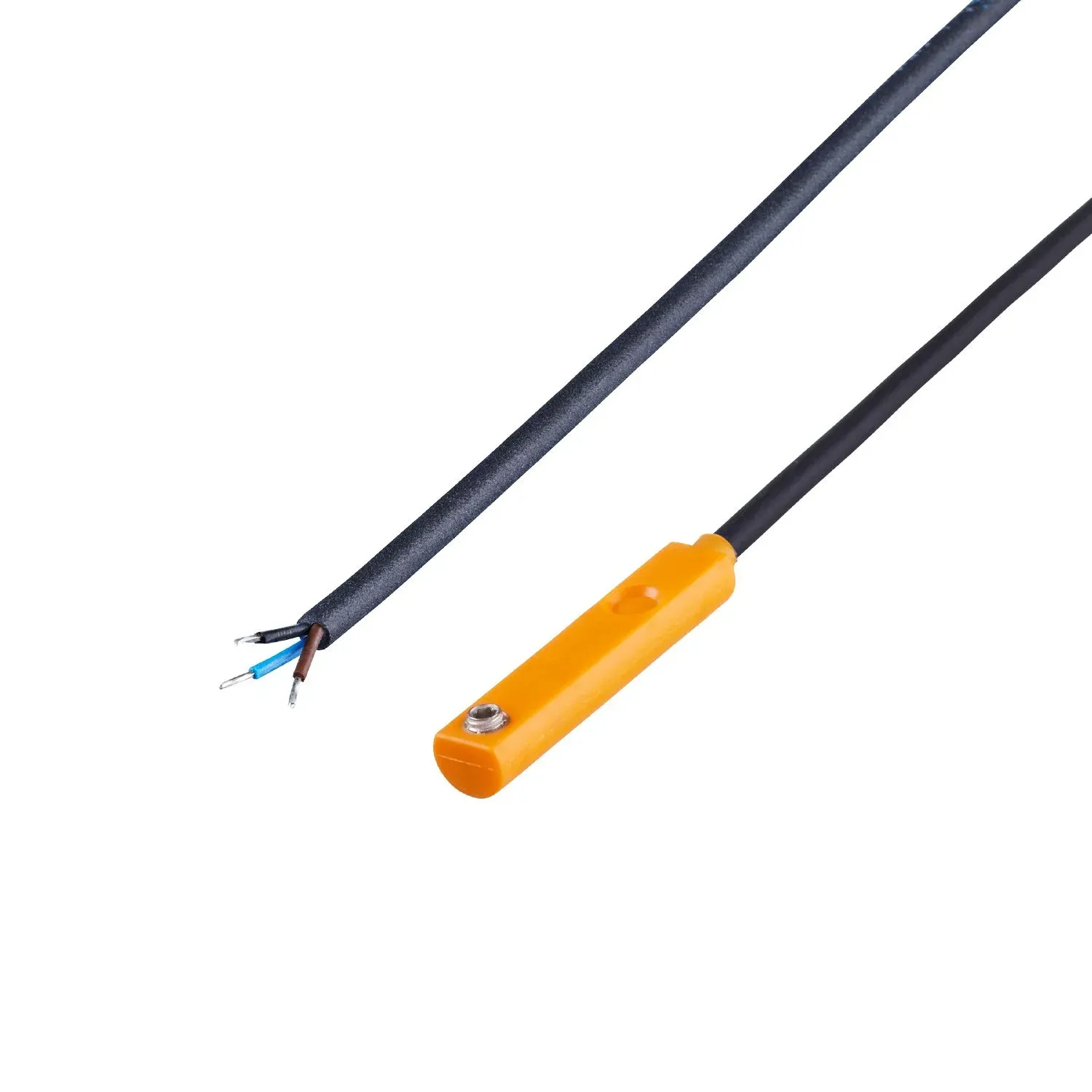

IFM MK5532
MK5532
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Suitable for IMI Norgren cylinders
Easy fit ‘drop from the top’ into a slot
Moulded cable ensuring very good strain relief
Clearly visible indication of the switching status
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions[mm] [mm] | 32 x 6.4 x 5.1 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.05 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | > 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Response sensitivity[mT] [mT] | 2.8 |
|---|
Accuracy / deviations
| Hysteresis[mm] [mm] | 0.5...1.5 |
|---|---|
| Repeatability[mm] [mm] | < 0.1 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68 |
Tests / approvals
| EMC | EN 61000-4-2 - CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 | - CD / 8 kV AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 10 V |
| EN 55011 | class B |
| Vibration resistance | DIN EN 60068-2-64 10 g / (20...2000 Hz) 100 minutes, in 3 axes |
| DIN EN 60068-2-6 | 15 g (10...55 Hz) / 10 frequency cycles, 1 octave/minute, in 3 axes |
| Shock resistance | DIN IEC 68-2-27 30 g 11 ms half-sine; 1000 shocks each in every direction of the 3 coordinate axes |
| DIN IEC 68-2-27 | 30 g 11 ms half-sine; 1000 shocks each in every direction of the 3 coordinate axes |
| DIN EN 60068-2-64 | 10 g / (20...2000 Hz) 100 minutes, in 3 axes |
| MTTF[years] [years] | 3523 |
| UL approval | Ta -25...55 °C Enclosure type Type 1 power supply Class 2 UL approval no. C013 File number UL E174191 |
| Ta | -25...55 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
| UL approval no. | C013 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 63.15 |
|---|---|
| Mounting | flush mountable |
| Cylinder type | C-slot cylinders |
| Dimensions[mm] [mm] | 32 x 6.4 x 5.1 |
| Materials | housing: PA glass fibre reinforced; threaded sleeve: brass; set screw: stainless steel |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 5 m, PUR; 3 x 0.14 mm² |
|---|
