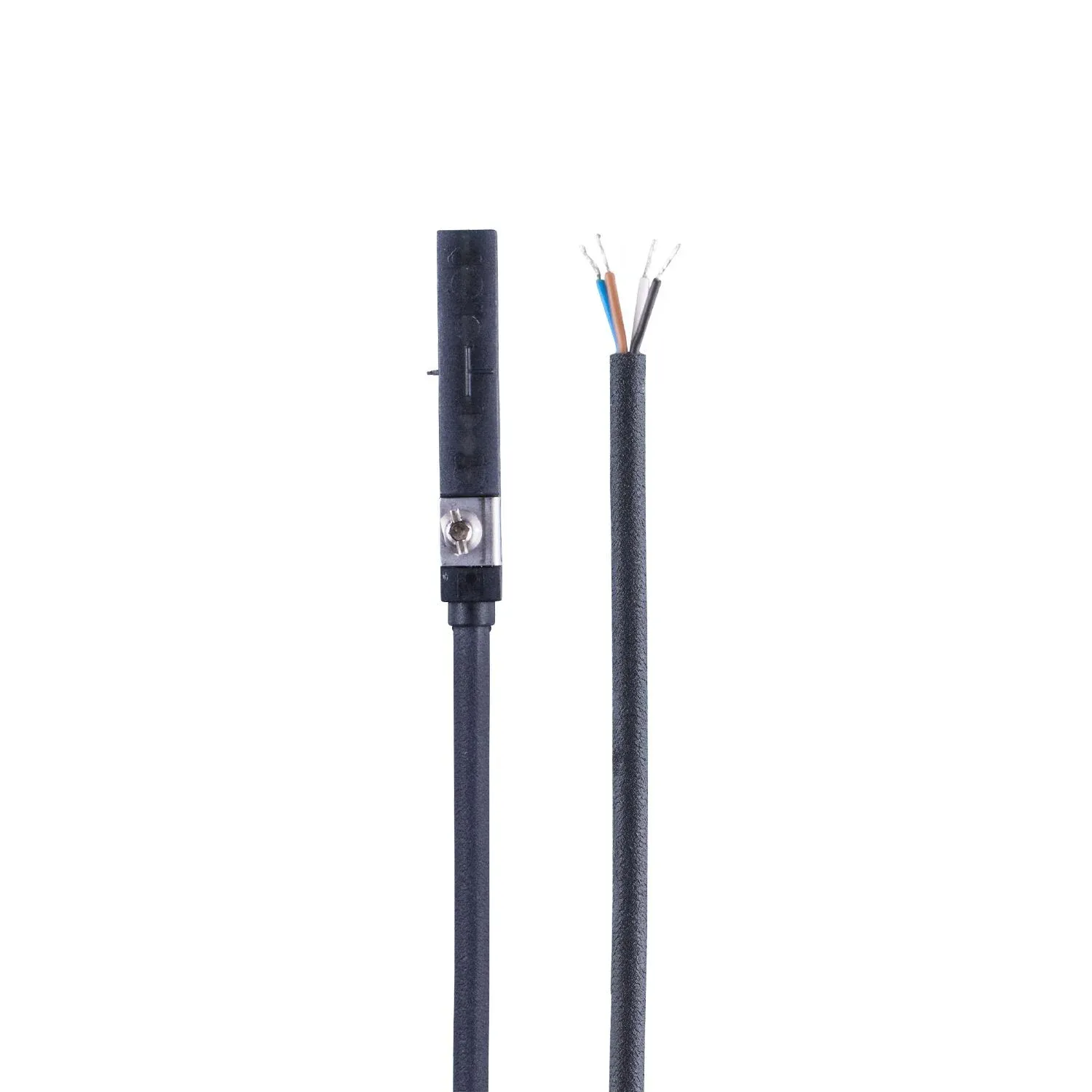

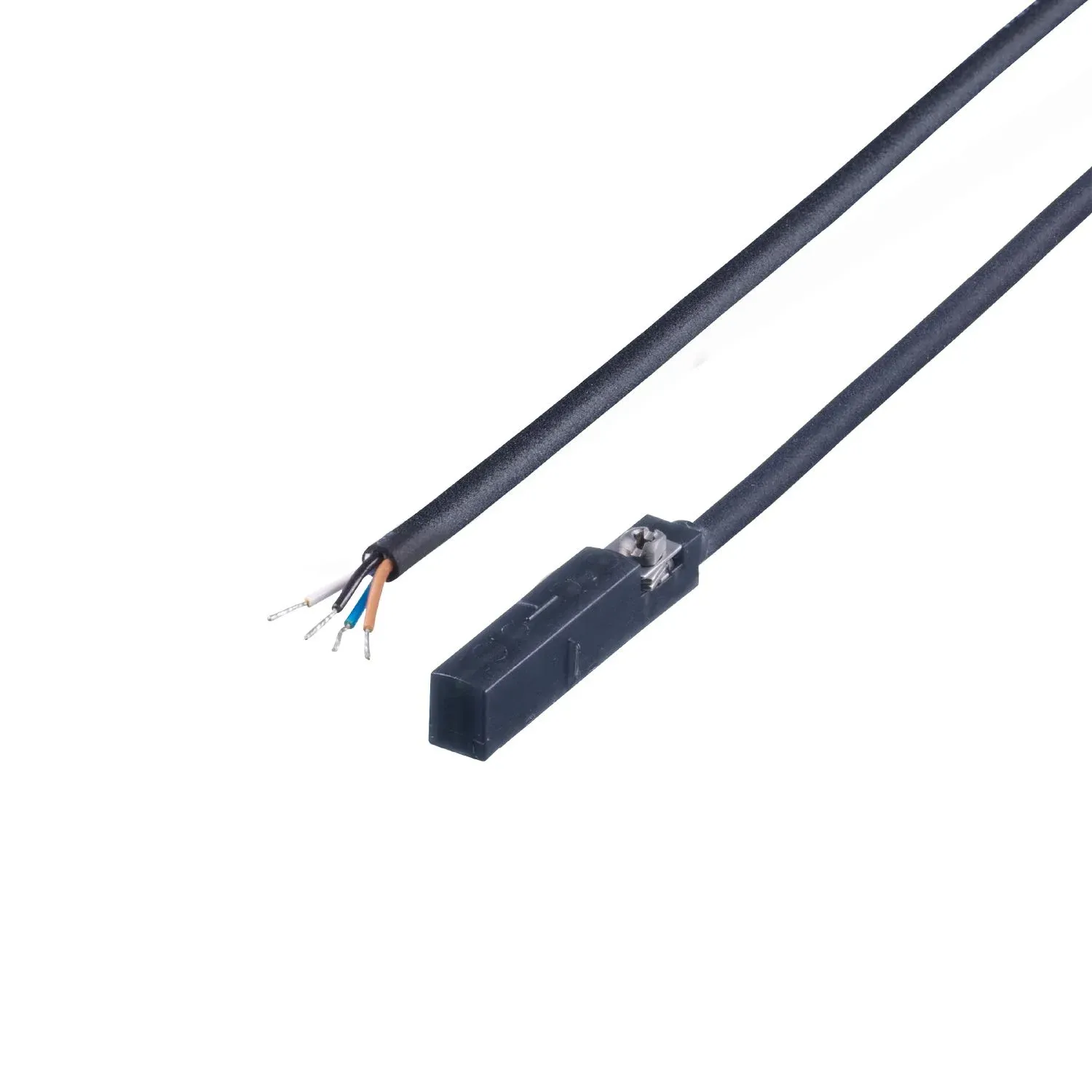

IFM MK5249
MK5249
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
End position setting aid with second LED
operation indication for simplified diagnostics
Self-locking fixture for quick mounting and easy adjustment
Easy fit ‘drop from the top’ into a slot
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions[mm] [mm] | 25 x 5 x 6.5 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 0.05 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Response sensitivity[mT] [mT] | 2.3 |
|---|---|
| Travel speed[m/s] [m/s] | > 10 |
Accuracy / deviations
| Hysteresis[mm] [mm] | < 1.5 |
|---|---|
| Repeatability[mm] [mm] | < 0.2 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 - 4 CD / 8 AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 | - 4 CD / 8 AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 10 V |
| EN 55011 | class B |
| Vibration resistance | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| Shock resistance | 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| MTTF[years] [years] | 1958 |
| UL approval | Ta -25...75 °C Enclosure type Type 1 UL approval no. C003 |
| Ta | -25...75 °C |
| Enclosure type | Type 1 |
| UL approval no. | C003 |
Mechanical data
| Weight[g] [g] | 73.35 |
|---|---|
| Mounting | flush mountable |
| Type of mounting | fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Cylinder type | T-slot cylinders |
| Dimensions[mm] [mm] | 25 x 5 x 6.5 |
| Materials | housing: PA; fastening clamp: stainless steel |
Displays / operating elements
| Display | switching status 1 x LED, yellow operation 1x LED, green setting aid 1x LED, yellow flashing |
|---|---|
| switching status | 1 x LED, yellow |
| operation | 1x LED, green |
| setting aid | 1x LED, yellow flashing |
Accessories
| Items supplied | rubber placeholder: 1 Cable clip: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 6 m; 3 x 0.14 mm² |
|---|
