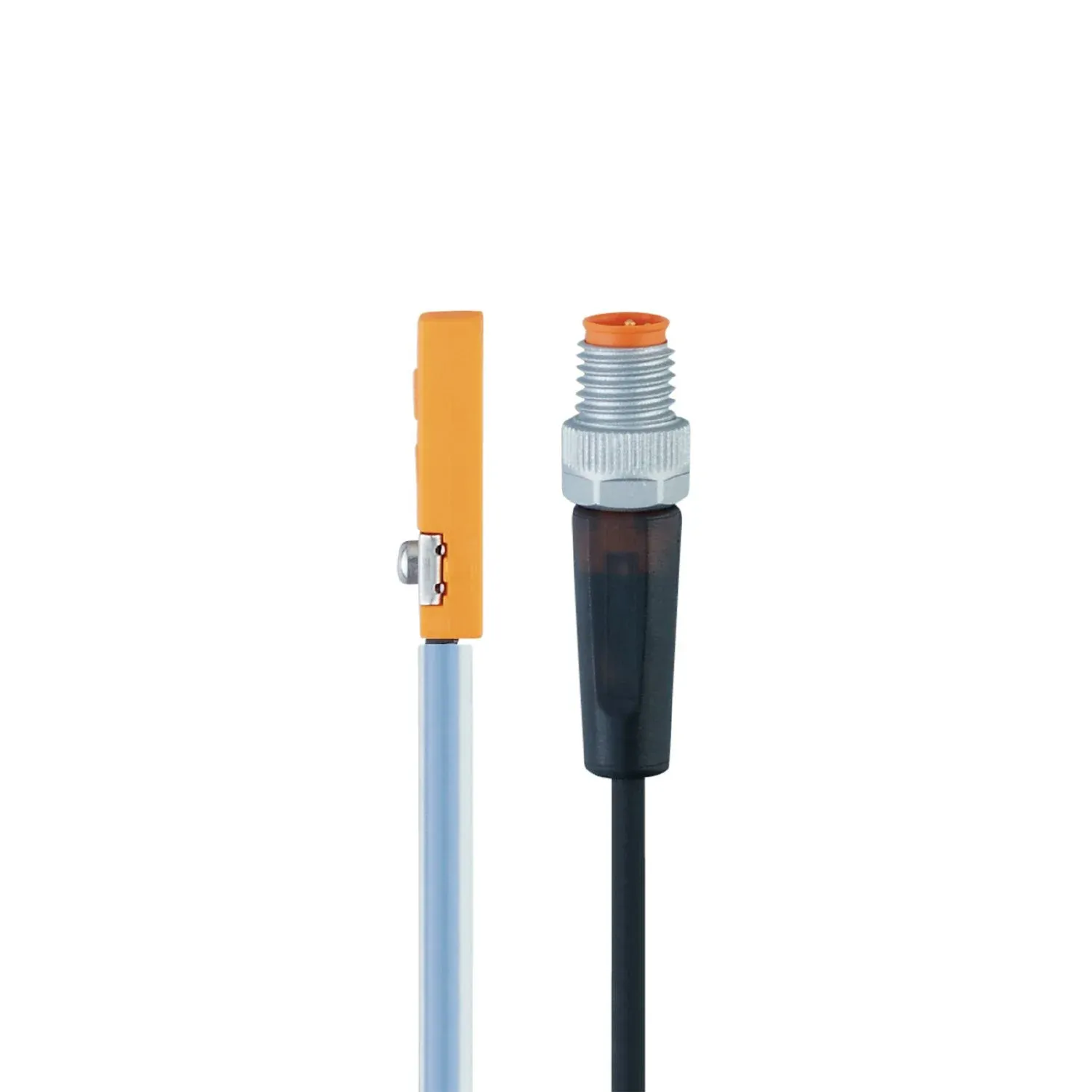

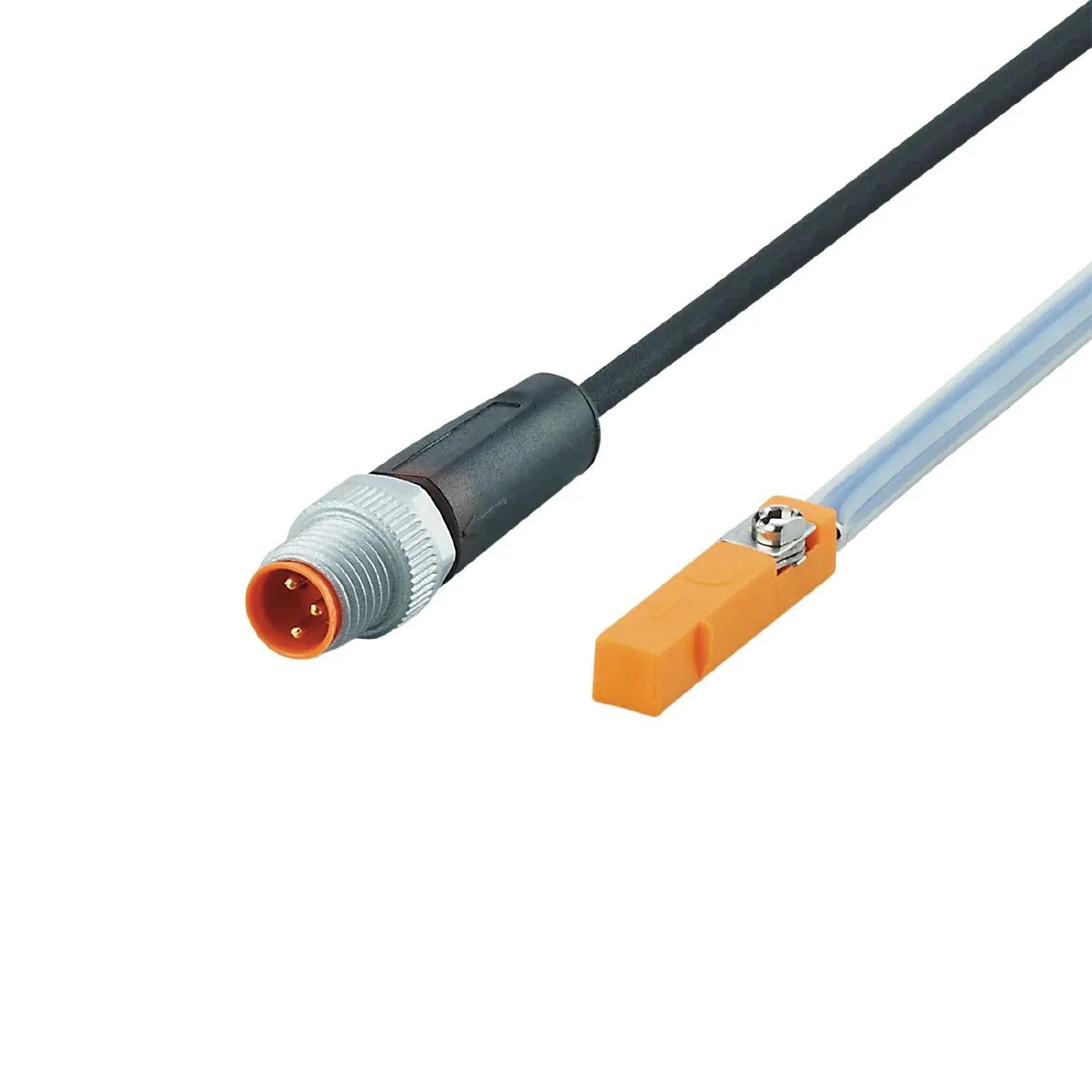

IFM MK5215
MK5215
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With suppression of extraneous fields for use in welding applications
Connector with non-stick coating
PTFE protective tube to prevent damage by weld splatter
Self-locking fixture for quick mounting and easy adjustment
Easy fit ‘drop from the top’ into a slot
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Dimensions[mm] [mm] | 25.3 x 5 x 6.5 |
Application
| Special feature | Magnetic-field immune |
|---|---|
| Operating principle | suppression of extraneous fields |
| Application | welding applications |
| Magnetic-field immune | yes |
| Max. magnetic field immunity[mT] [mT] | 200 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 300 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 9 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Response sensitivity[mT] [mT] | 2.8 |
|---|---|
| Travel speed[m/s] [m/s] | < 0.25 |
Accuracy / deviations
| Hysteresis[mm] [mm] | < 1.5 |
|---|---|
| Repeatability[mm] [mm] | < 0.2 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD - CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | - CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| EN 60068-2-27 Ea | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| UL approval | UL approval no. C003 |
| UL approval no. | C003 |
Mechanical data
| Weight[g] [g] | 17 |
|---|---|
| Mounting | flush mountable |
| Type of mounting | fastening clamp with combined slot / hexagon socket, width across flats 1.5 |
| Cylinder type | T-slot cylinders |
| Dimensions[mm] [mm] | 25.3 x 5 x 6.5 |
| Materials | housing: PA; fastening clamp: stainless steel; knurled nut: PTFE coated; protective tube: PTFE coated |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | rubber placeholder: 1 Cable clip: 1 |
|---|
Remarks
| Remarks | operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Cable | 0.3 m, PUR; protective tube |
|---|---|
| Connector | 1 x M8; coding: A; Locking: knurled nut, rotatable |
