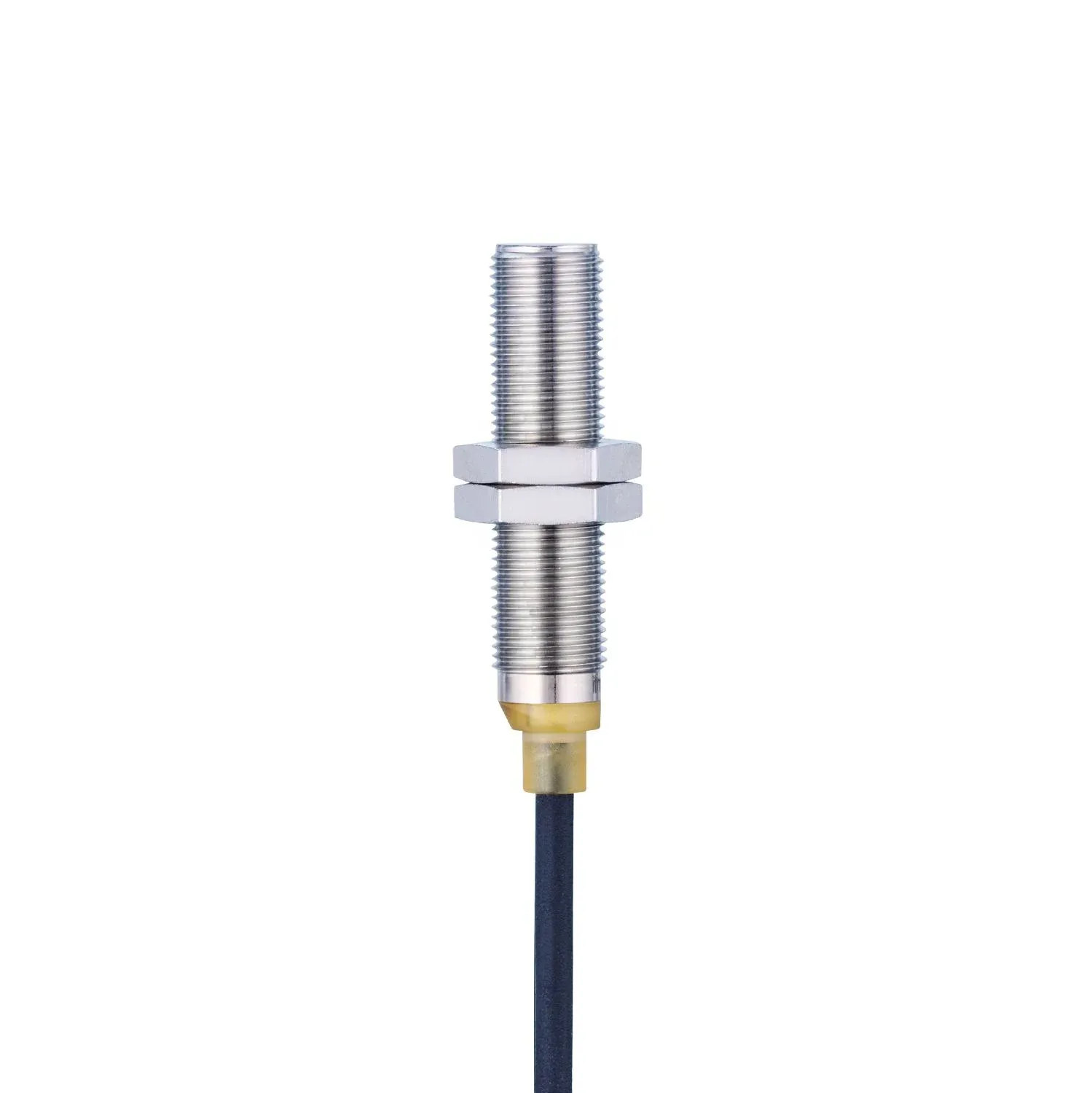

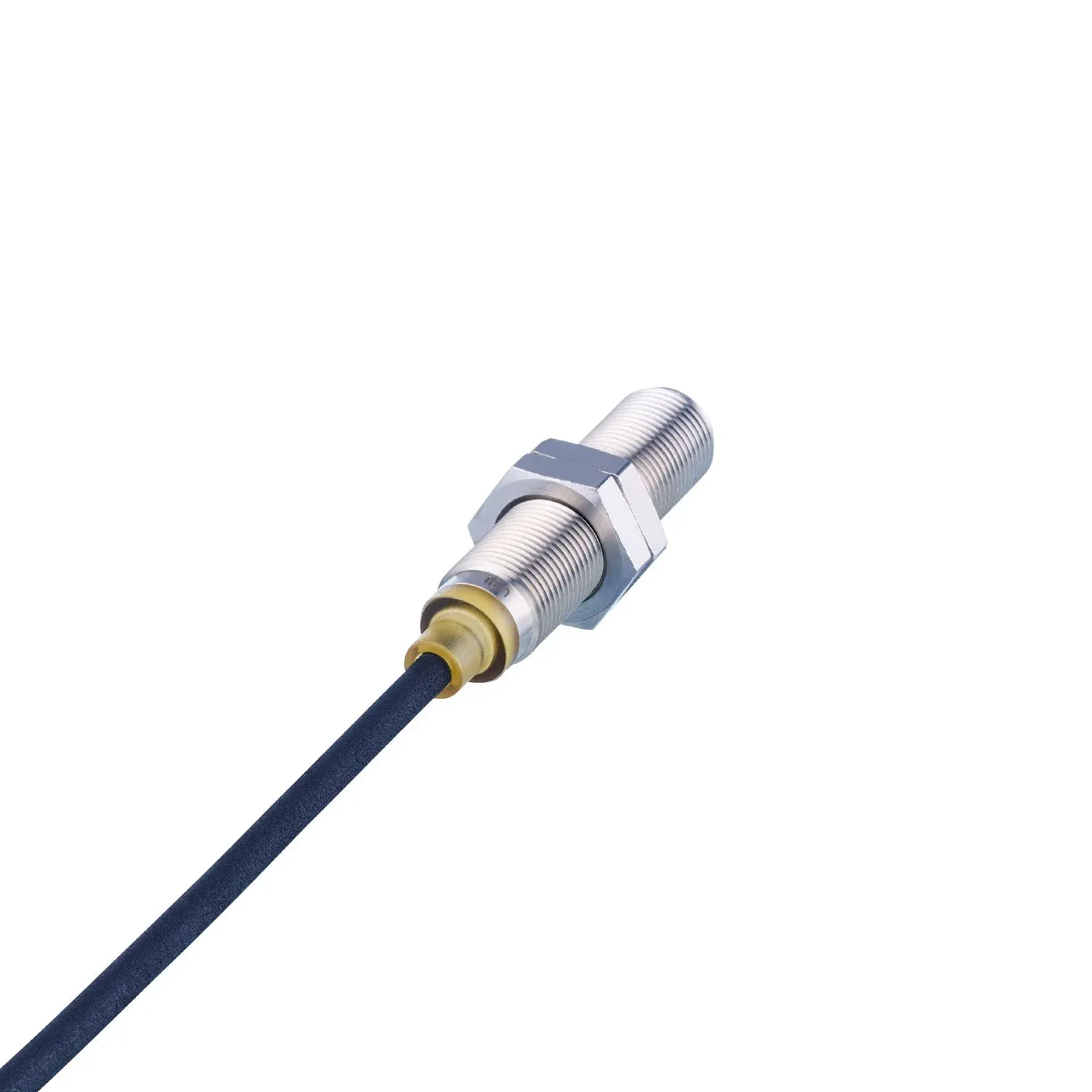

IFM MFS225
MFS225
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safe switch point also in case of mechanical tolerances
Long sensing range even through non-magnetisable metals
Temperature-stable and reproducible switch point
Clearly visible indication of the switching status
High impact, shock and vibration resistance
Specification
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 60; (referred to magnet M 4.0) |
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 50 |
Application
| Special feature | Full-metal housing |
|---|---|
| Pressure rating[bar] [bar] | 50 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Rated insulation voltage[V] [V] | 60 |
| Current consumption[mA] [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 50 |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 5000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 60; (referred to magnet M 4.0) |
|---|---|
| Response sensitivity[mT] [mT] | 1.2 |
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 1...10 |
|---|---|
| Switch point drift[% of Sr] [% of Sr] | < 10 |
| Repeatability[% of Sr] [% of Sr] | < 10 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...75 |
|---|---|
| Protection | IP 67 |
| Pollution degree | 3 |
Tests / approvals
| EMC | EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-5 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 10 V EN 55011 class B DIN ISO 11452-2 100 V/m |
|---|---|
| EN 61000-4-2 | 4 kV CD / 8 kV AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-5 | 0,5 kV line to line, Ri: 2 Ohm |
| EN 61000-4-6 | 10 V |
| EN 55011 | class B |
| DIN ISO 11452-2 | 100 V/m |
| Vibration resistance | EN 60068-2-6 Fc 20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz |
| EN 60068-2-6 Fc | 20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz |
| Shock resistance | EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes |
| Salt spray test | EN 60068-2-52 Kb severity level 5 (4 test cycles) |
| EN 60068-2-52 Kb | severity level 5 (4 test cycles) |
| MTTF[years] [years] | 1448 |
| UL approval | Ta -25...70 °C Enclosure type Type 1 UL approval no. C023 File number UL E174191 |
| Ta | -25...70 °C |
| Enclosure type | Type 1 |
| UL approval no. | C023 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 72.6 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 50 |
| Thread designation | M12 x 1 |
| Materials | housing: stainless steel (316L / 1.4404); cable plug: PEI; lock nuts: brass |
| Full-metal housing | yes |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | voltage supply to EN50178, SELV, PELV |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 2 m, PUR; 3 x 0.34 mm² |
|---|
