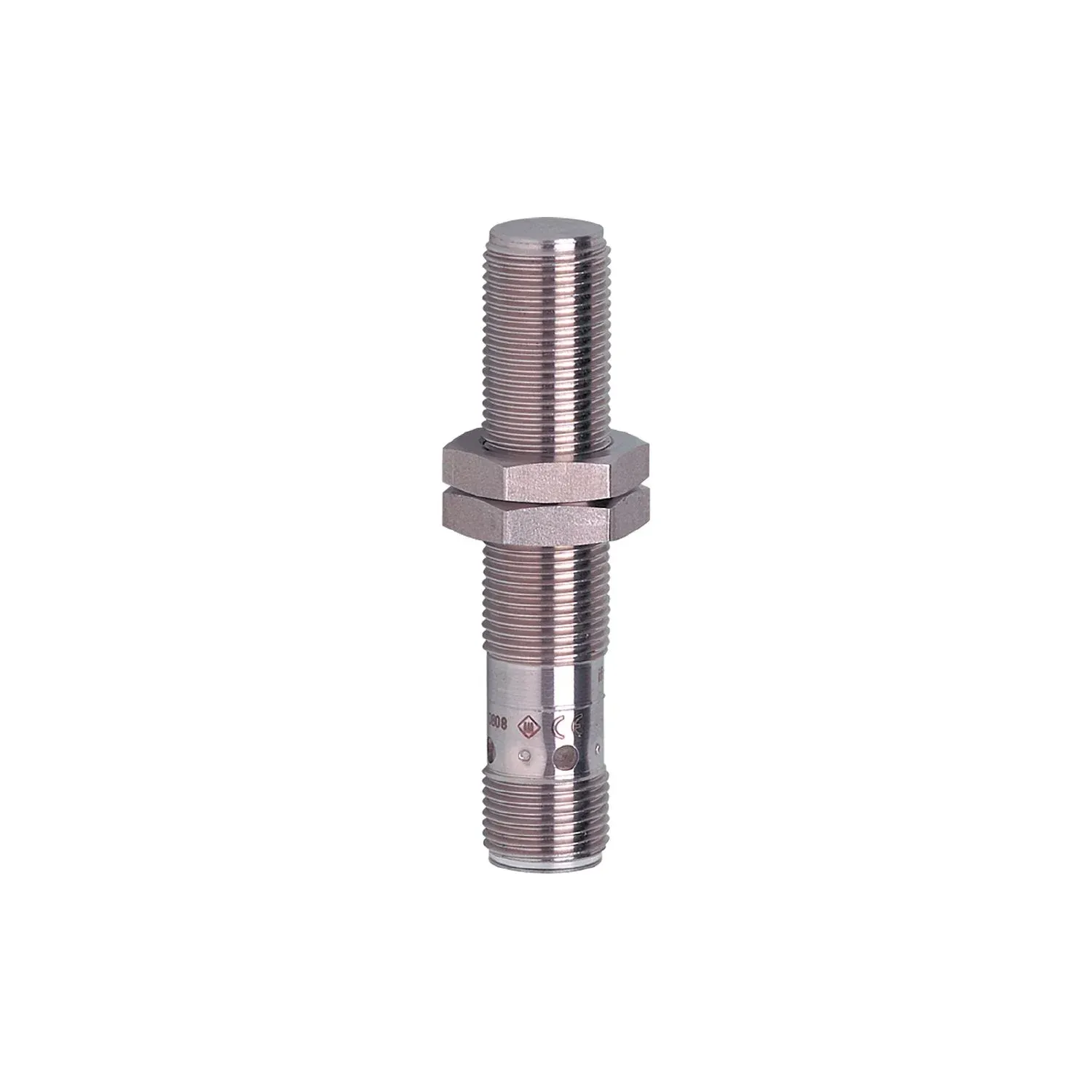

IFM MFS209
MFS209
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safe switch point also in case of mechanical tolerances
Long sensing range even through non-magnetisable metals
Temperature-stable and reproducible switch point
Clearly visible indication of the switching status
High impact, shock and vibration resistance
Specification
Product characteristics
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Sensing range[mm] [mm] | 60; (referred to magnet M 4.0) |
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 60 |
Application
| Special feature | Gold-plated contacts; Full-metal housing |
|---|
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 5000 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 60; (referred to magnet M 4.0) |
|---|---|
| Response sensitivity[mT] [mT] | 1.3 |
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 1...10 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...75 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-5 Surge 0,5 kV line to line, Ri: 2 Ohm EN 61000-4-6 HF conducted 10 V EN 55011 emission class B DIN ISO 11452-2 100 V/m |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm |
| EN 61000-4-6 HF conducted | 10 V |
| EN 55011 emission | class B |
| DIN ISO 11452-2 | 100 V/m |
| MTTF[years] [years] | 1400 |
Mechanical data
| Weight[g] [g] | 28.3 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M12 x 1 / L = 60 |
| Thread designation | M12 x 1 |
| Materials | housing: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); LED window: PA; lock nuts: brass |
| Full-metal housing | yes |
Displays / operating elements
| Display | switching status 4 x 90° LED, yellow |
|---|---|
| switching status | 4 x 90° LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
