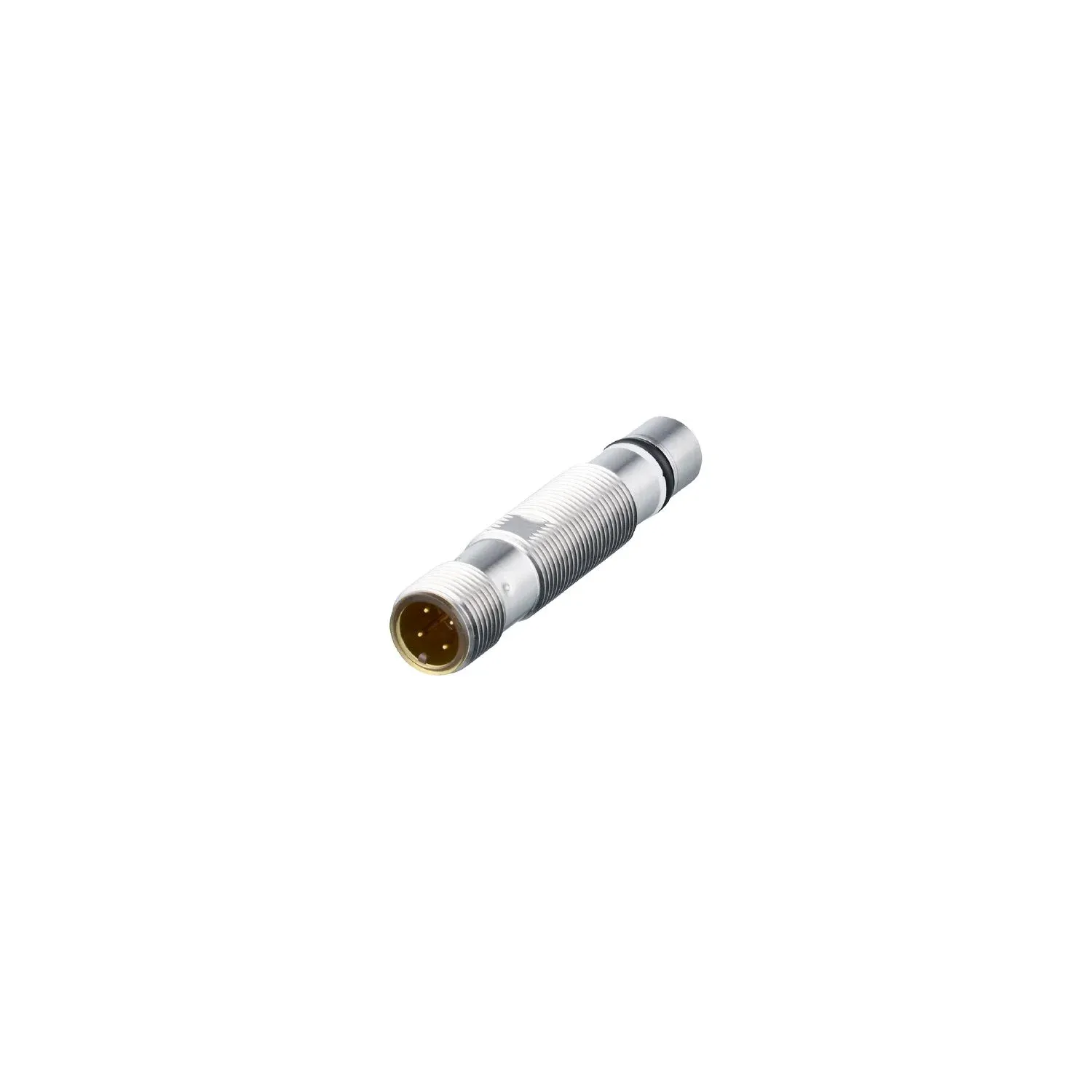

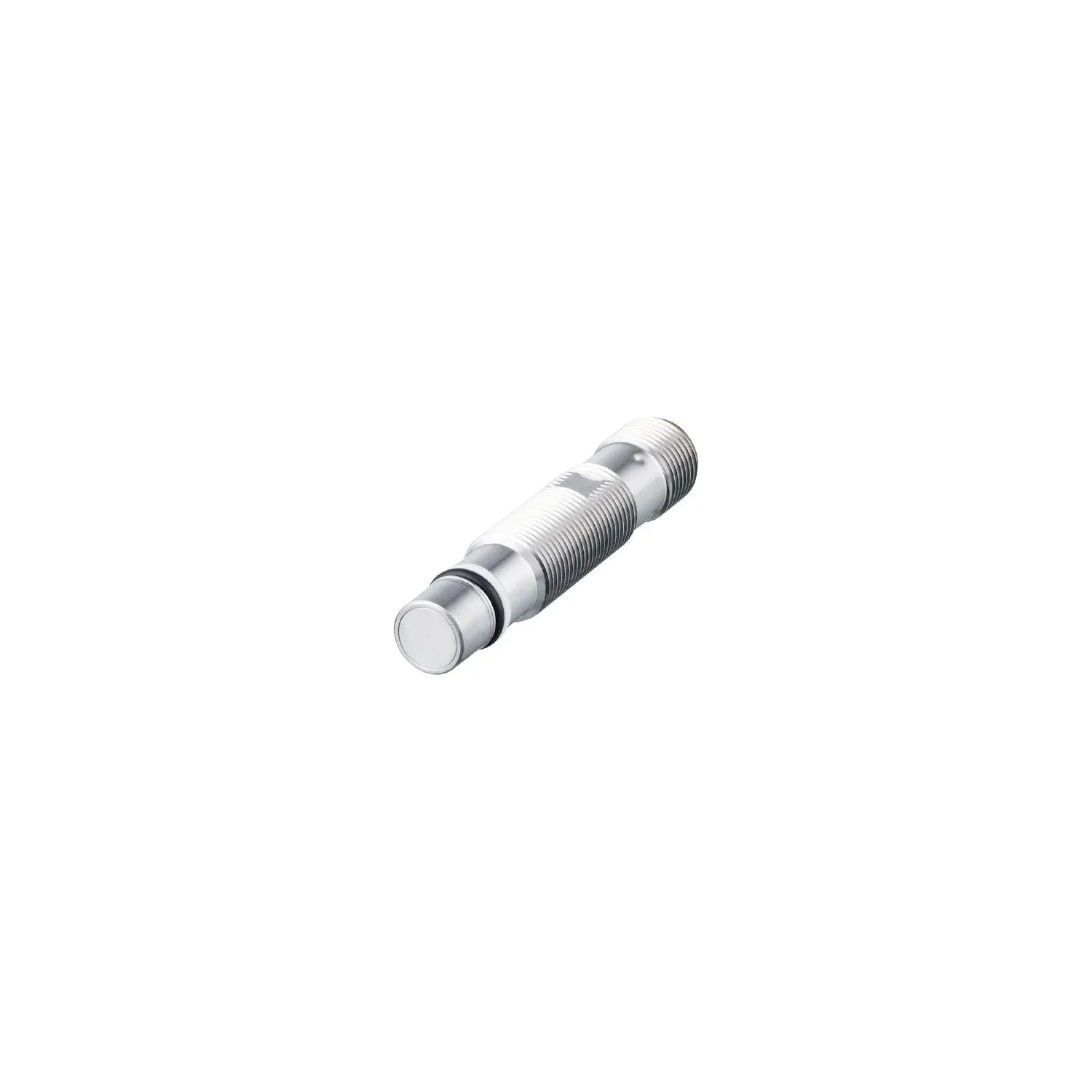

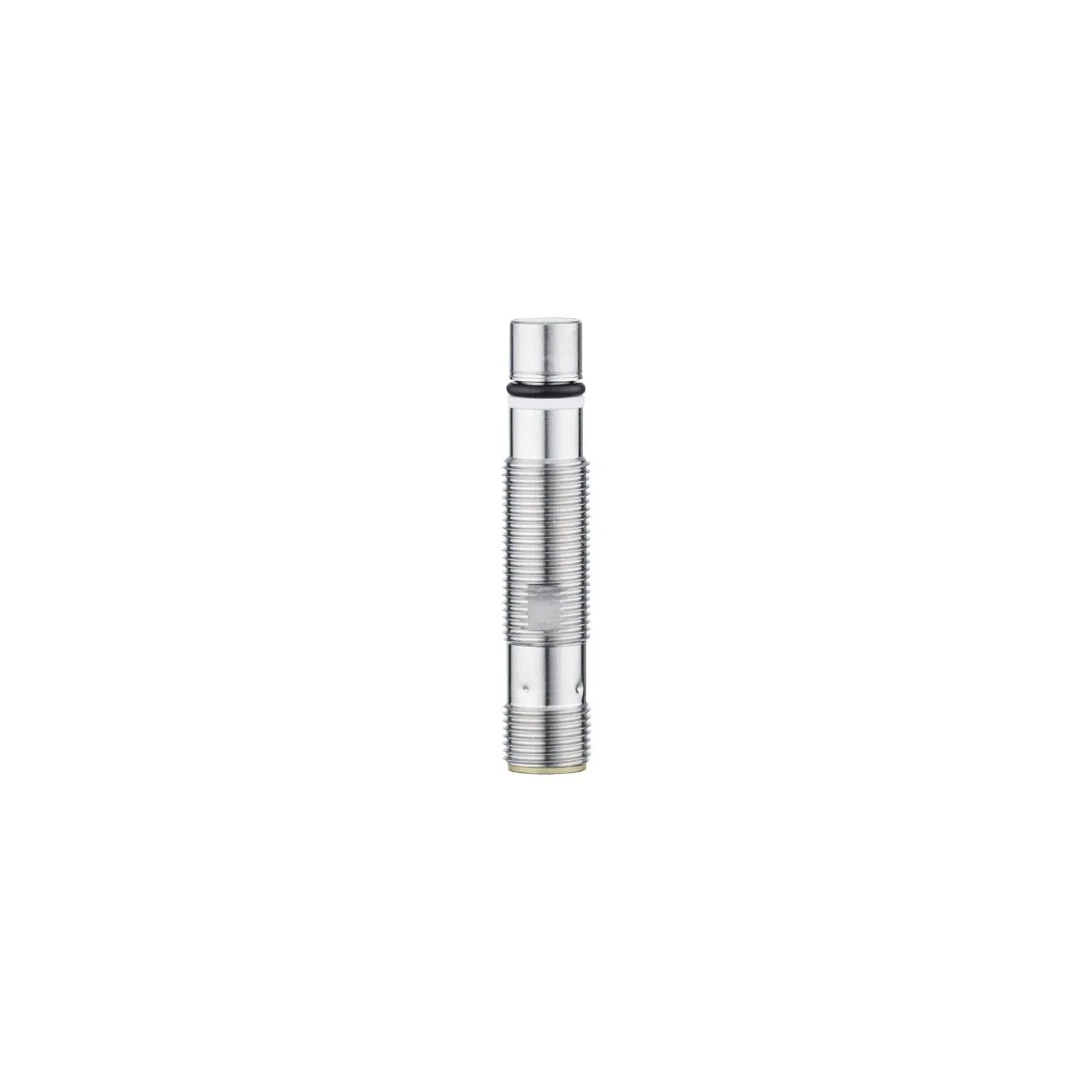

IFM MFH220

MFH220

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Adjustable end position monitoring in the hydraulic cylinder
Inline quality control checks to ensure correct assembly of parts
Monitoring of critical hydraulic cylinders via switching cycles counter
High-pressure resistant up to an operating pressure of 500 bar
User-friendly communication and parameterisation via IO-Link

Specification

Product characteristics

Electrical designPNP/NPN
Output functionnormally open / normally closed; (parameterisable)
Sensing range[mm] [mm]0...2; (Factory setting 1,65)
Communication interfaceIO-Link
Housingthreaded type
Dimensions[mm] [mm]M12 x 1 / L = 60

Application

Special featureFull-metal housing
Applicationhydraulic cylinders
Mediadetects ferrous metals
Min. burst pressure2000 bar
200 MPa
2000 bar200 MPa
Pressure rating500 bar
50 MPa
500 bar50 MPa

Electrical data

Operating voltage[V] [V]10...30 DC
Rated insulation voltage[V] [V]60
Current consumption[mA] [mA]< 20
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms] [ms]300

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 2

Outputs

Electrical designPNP/NPN
Number of digital outputs2
Output functionnormally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V] [V]1.6
Max. leakage current[mA] [mA]0.1
Permanent current rating of switching output DC[mA] [mA]100
Switching frequency DC[Hz] [Hz]200
Short-circuit protectionyes
Overload protectionyes

Detection zone

Sensing range[mm] [mm]0...2; (Factory setting 1,65)

Accuracy / deviations

Hysteresis[mm] [mm]0.05...0.5; (Factory setting 0,1)
Switch point drift[% of Sr] [% of Sr]10
Repeatability[% of Sr] [% of Sr]10

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1.4
SDCI standardIEC 61131-9 CDV
ProfilesSmart Sensor - SSP 4.1.1
Measuring and Switching Sensor, 1 channel
Common - I&D
Identification and Diagnosis
Extension
Object detection, switches when value falls below the setpoint
Function
ProductURI
Function
Teach single value
Smart Sensor - SSP 4.1.1Measuring and Switching Sensor, 1 channel
Common - I&DIdentification and Diagnosis
ExtensionObject detection, switches when value falls below the setpoint
FunctionTeach single value
SIO modeyes
Required master port typeA
Min. process cycle time[ms] [ms]4
Supported DeviceIDsdefault
1950
default1950

Operating conditions

Pressure peak1000 bar
100 MPa
1000 bar100 MPa
Ambient temperature[°C] [°C]-25...120
ProtectionIP 65; IP 66; IP 68; IP 69K

Tests / approvals

EMCEN 61000-4-2 ESD
4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
DIN ISO 11452-5
100 V/m
EN 61000-4-2 ESD4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated10 V/m
EN 61000-4-4 Burst2 kV
EN 61000-4-6 HF conducted10 V
EN 55011class B
DIN ISO 11452-5100 V/m
Vibration resistanceEN 60068-2-6 Fc
20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz -20...50 °C
EN 60068-2-6 Fc20 g 50 sweep cycles, 1 octave per minute, in 3 axes / 10...3000 Hz -20...50 °C
Shock resistanceEN 60068-2-27 Ea
100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes / -40...85 °C
EN 60068-2-27 Ea40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...50 °C
Continuous shock resistanceEN 60068-2-27 Ea
40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes / -20...50 °C
UL approvalTa
-25...65 °C
power supply
Limited Voltage/Current
UL approval no.
C025
File number UL
E174191
Ta-25...65 °C
power supplyLimited Voltage/Current
UL approval no.C025
File number ULE174191

Mechanical data

Weight[g] [g]30.64
Housingthreaded type
Mountingflush mountable
Dimensions[mm] [mm]M12 x 1 / L = 60
Thread designationM12 x 1
Materialshousing: stainless steel (316L / 1.4404); O-ring: FKM; supporting ring: PTFE; plug: PEI
Min. pressure cycles10 million
Tightening torque[Nm] [Nm]< 25
Full-metal housingyes

Accessories

Items suppliedlock nuts: 1 x M12

Remarks

Pack quantity1 pcs.

Electrical connection - plug

Connector1 x M12; coding: A
