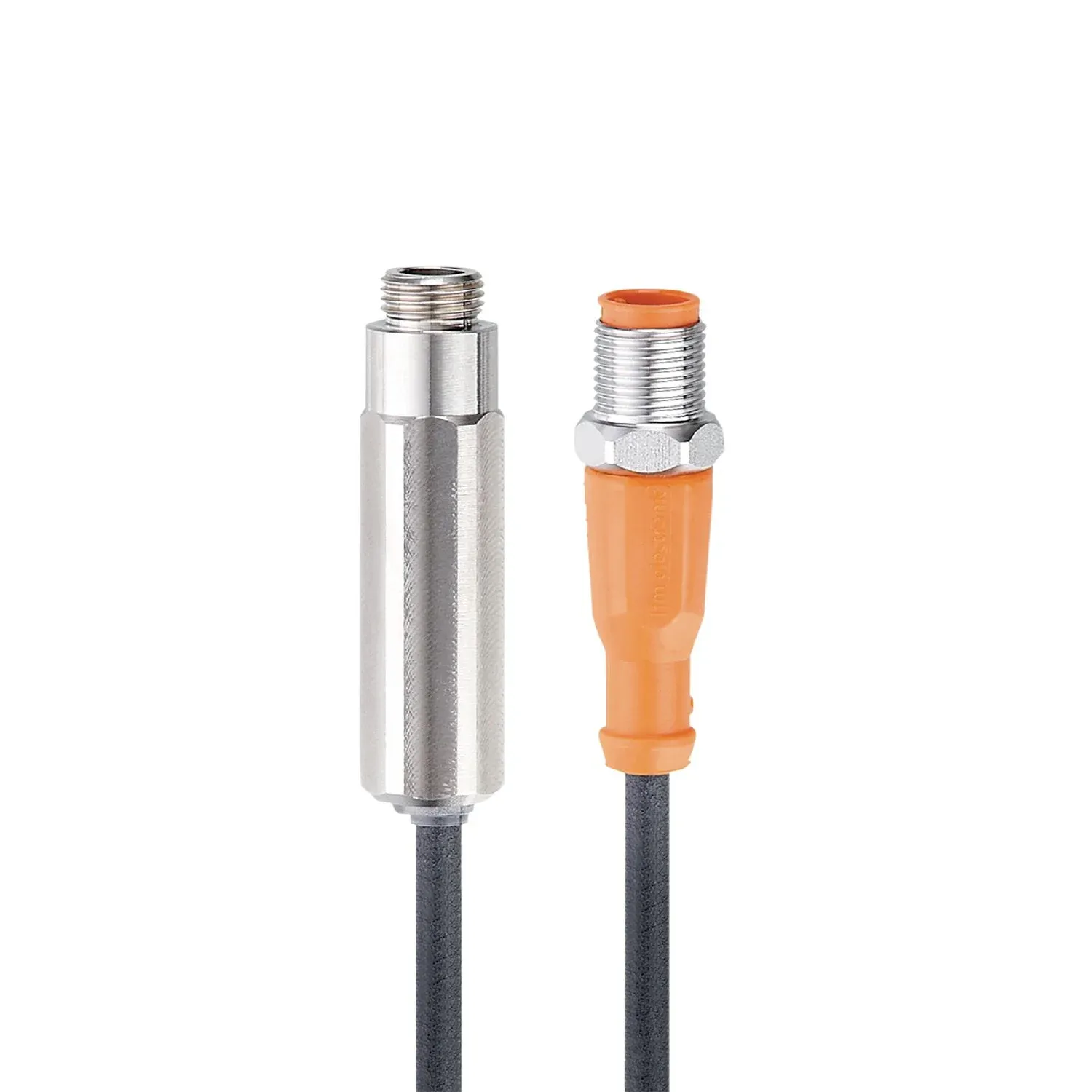

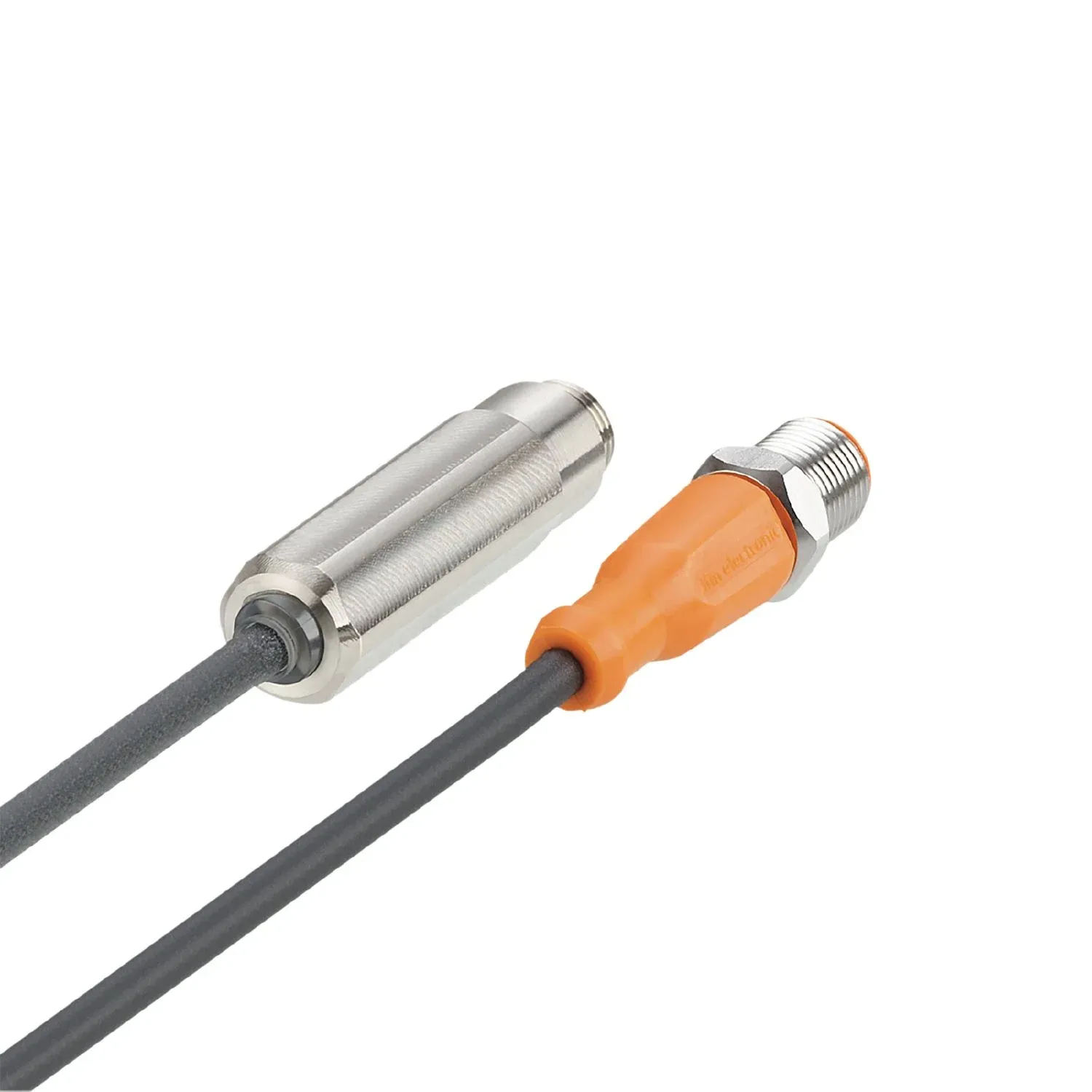

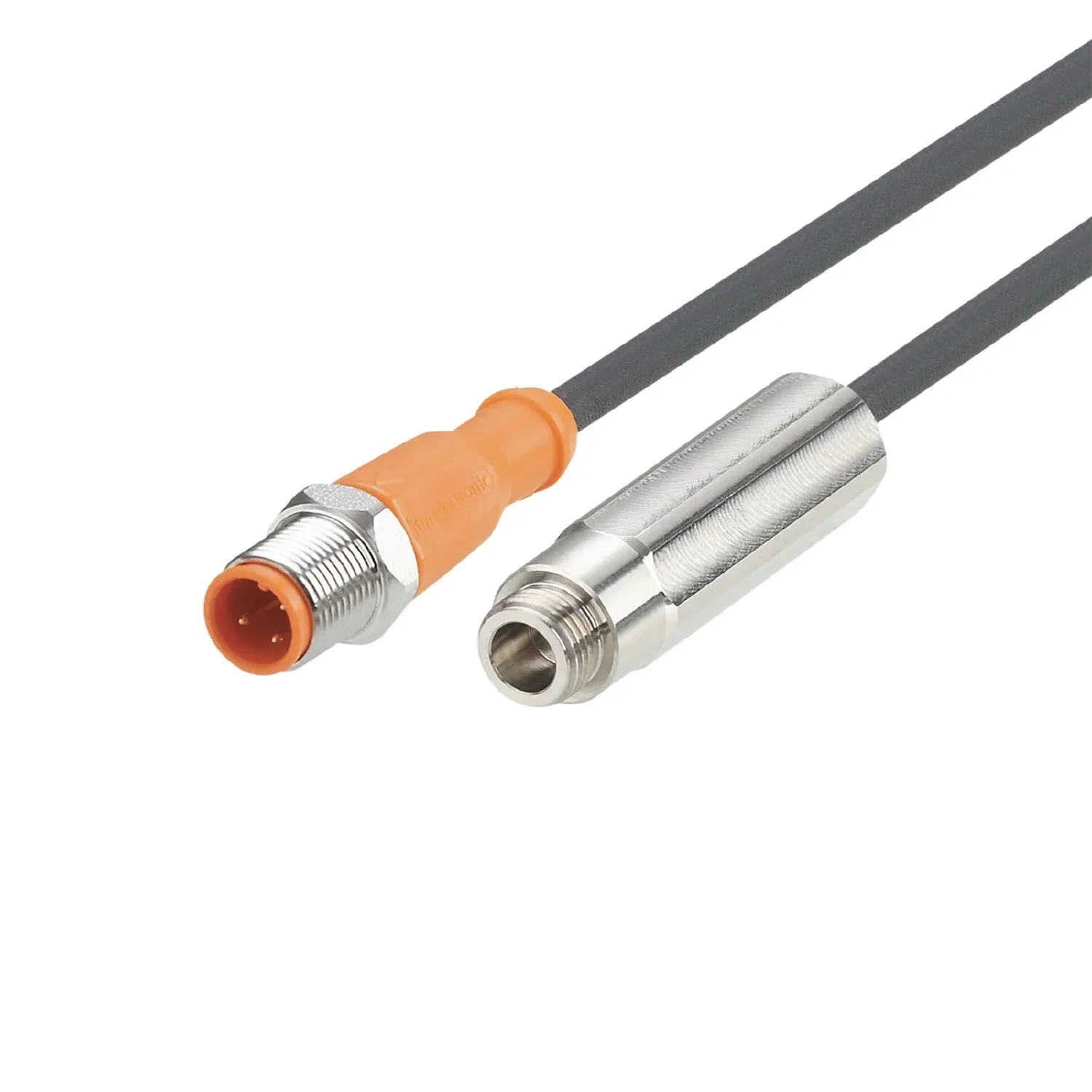

IFM M9H215
M9H215
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Pressure-resistant up to 350 bar
Designed for use in plunger detection
Compact and robust stainless steel housing
Spanner flat for easy mounting
High shock and vibration resistance for mobile applications
Specification
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Housing | cylindrical |
| Dimensions[mm] [mm] | Ø 13.8 / L = 56.5 |
Application
| Application | lubricant distributor with plunger |
|---|---|
| Media | detects ferrous metals |
| Min. burst pressure[MPa] [MPa] | 200 |
| Pressure rating | 350 bar 35 MPa |
| 350 bar | 35 MPa |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Rated insulation voltage[V] [V] | 60 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 300 |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC[V] [V] | 5.9 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 0.8 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Real sensing range Sr[mm] [mm] | 2 ± 10 % |
|---|---|
| Operating distance[mm] [mm] | 0...1.62 |
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 3...15 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Note on ambient temperature | for flexibly laid cable: -25 °C for firmly laid cable: -40 °C |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m 80...2000 MHz EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V 0,15...80 MHz EN 61000-4-8 30 A/m EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m 80...2000 MHz |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V 0,15...80 MHz |
| EN 61000-4-8 | 30 A/m |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc 50x 20 g / 10...3000 Hz -20 °C EN 60068-2-6 Fc 50x 20 g / 10...3000 Hz +50 °C |
| EN 60068-2-6 Fc | 50x 20 g / 10...3000 Hz +50 °C |
| Shock resistance | EN 60068-2-27 Ea 3 x 100 g 11 ms / -25 °C EN 60068-2-27 Ea 3 x 100 g 11 ms / +85 °C |
| EN 60068-2-27 Ea | 4000 x 40 g 6 ms / -20 °C / 50 °C |
| Continuous shock resistance | EN 60068-2-27 Ea 4000 x 40 g 6 ms / -20 °C / 50 °C |
| MTTF[years] [years] | 830 |
Mechanical data
| Weight[g] [g] | 78.9 |
|---|---|
| Housing | cylindrical |
| Mounting | flush mountable |
| Dimensions[mm] [mm] | Ø 13.8 / L = 56.5 |
| Materials | sensing face: stainless steel (316L/1.4404); housing: stainless steel (316L/1.4404); end cap: TPU |
| Tightening torque[Nm] [Nm] | < 18 |
| Process connection | threaded connection M11 x 1 external thread |
Displays / operating elements
| Display | switching status LED, yellow |
|---|---|
| switching status | LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.5 m, PUR |
|---|---|
| Connector | 1 x M12; coding: A |
