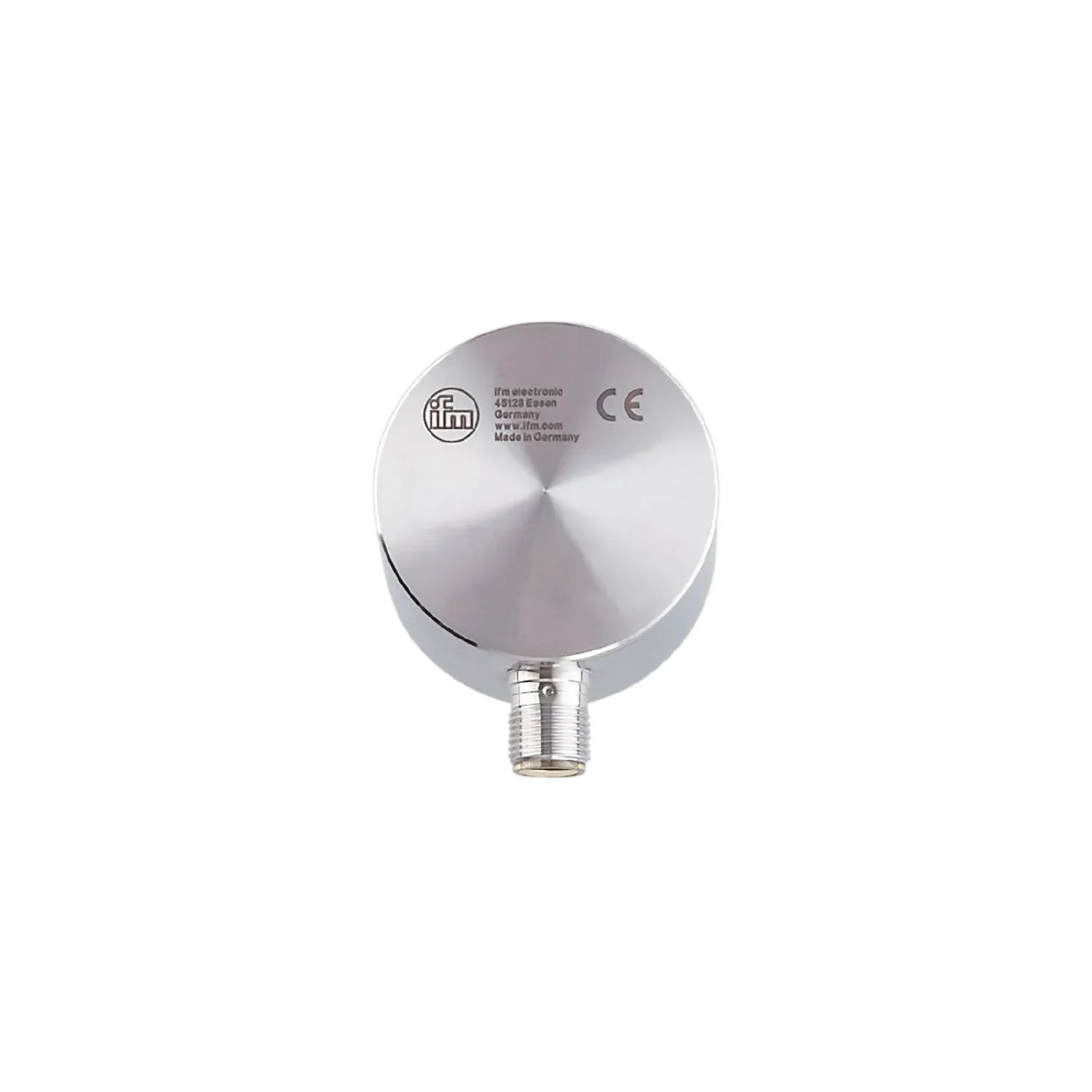

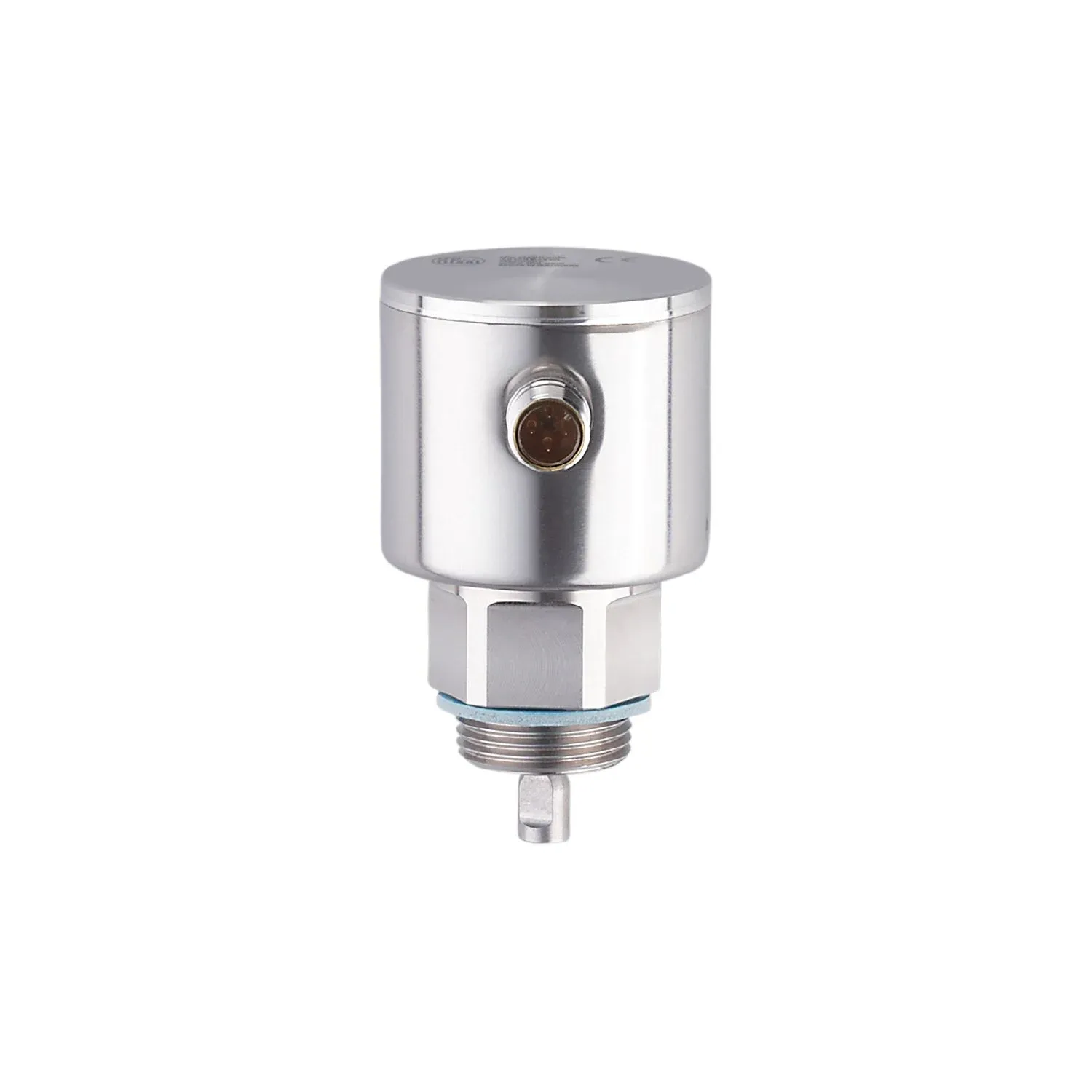

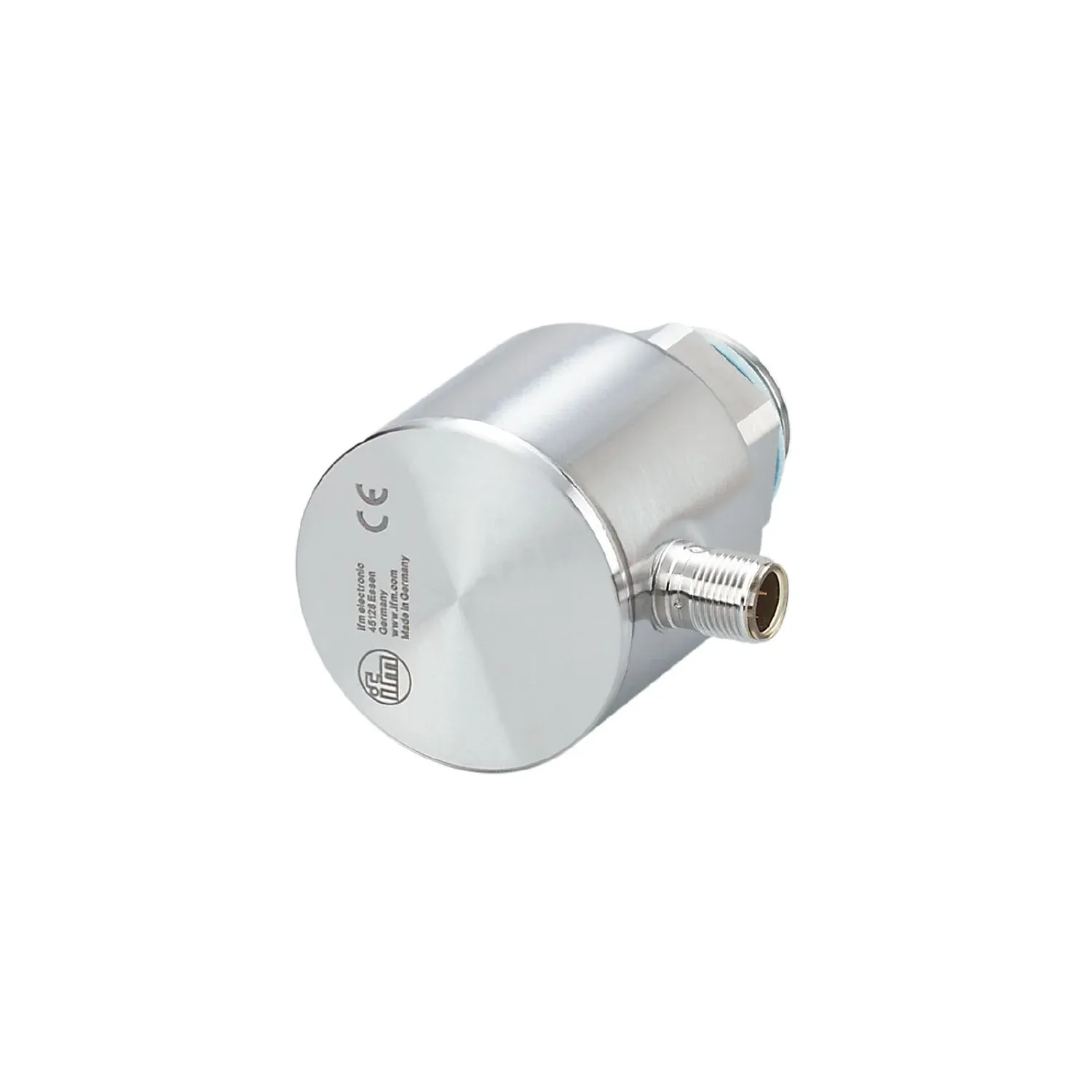

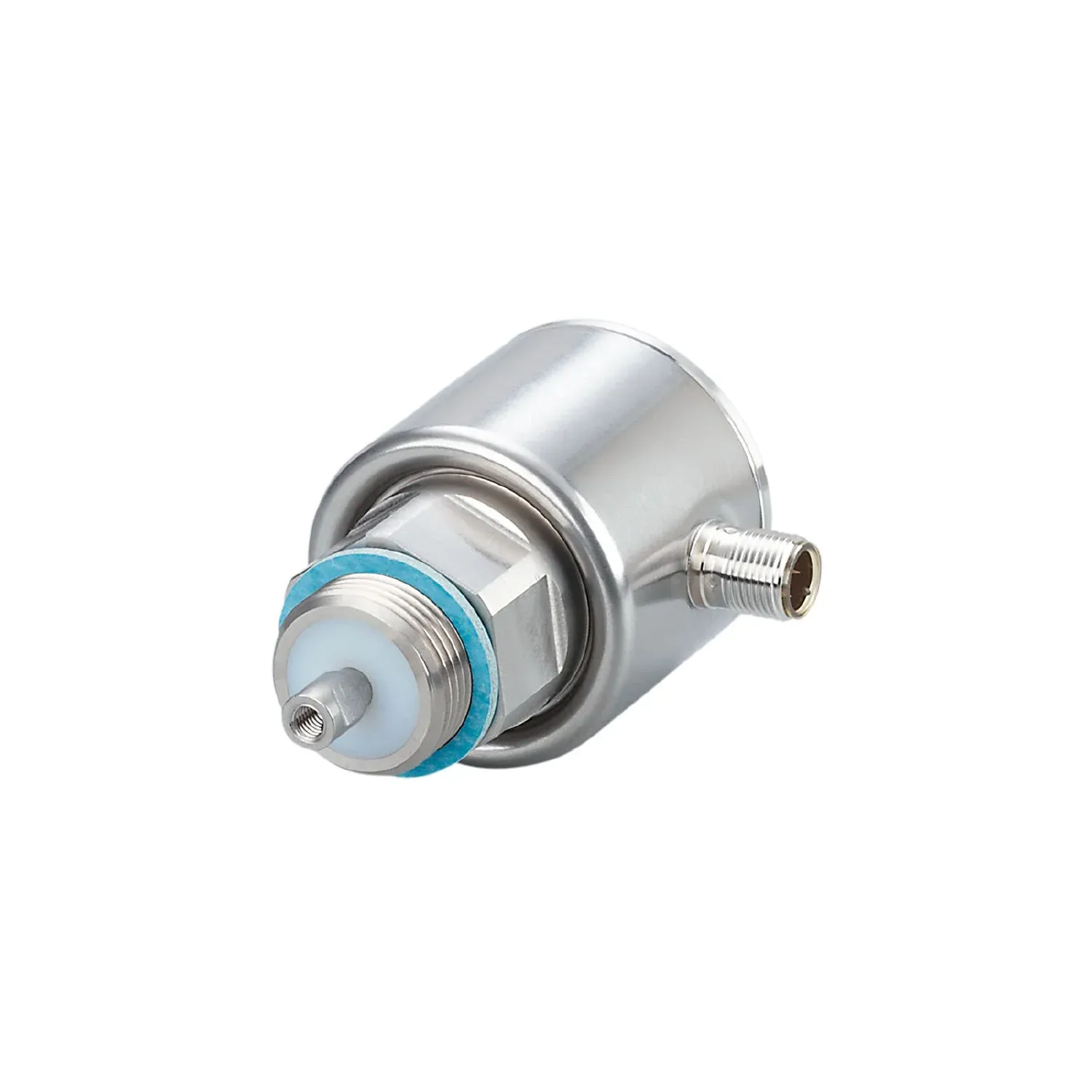

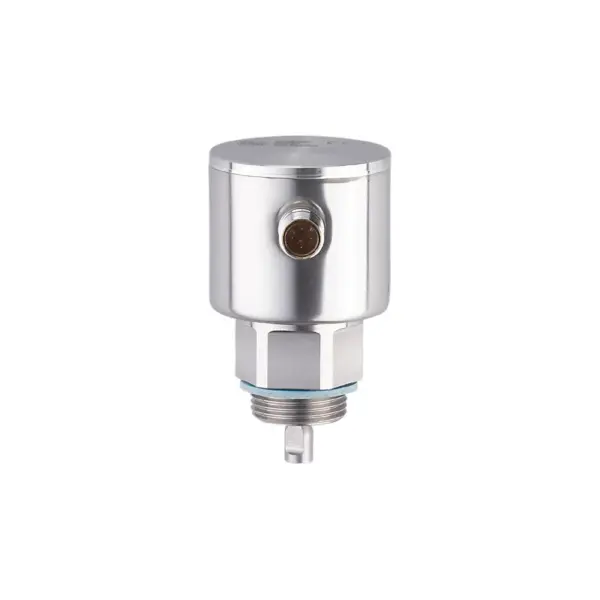

IFM LR9020
LR9020
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable level control in tanks and containers
Suitable for water, oils and coolants
Precise analogue output and user-friendly communication via IO-Link
Modular system consisting of evaluation unit and probe
Adaptation to different container heights through shortening of the probe
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|---|
| Probe length L[mm] [mm] | 100...1600 |
| Process connection | threaded connection G 3/4 external thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | Liquids |
| Dielectric constant of the medium | ≥ 1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation) |
| Recommended media | water; hydrous media; oils; oil-based media |
| Cannot be used for | See the operating instructions, chapter "Function and features". |
| Process temperature[°C] [°C] | -25...80; (90 < 1 h ; see note under remarks) |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
| Vacuum resistance | -1000 mbar -0.1 MPa |
| -1000 mbar | -0.1 MPa |
| MAWP for applications according to CRN[bar] [bar] | 16 |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 25 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 3 |
| Measuring principle | guided wave radar |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal; IO-Link |
| Electrical design | PNP |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20, invertible |
| Max. load[Ω] [Ω] | 500 |
| Analogue voltage output[V] [V] | 0...10, invertible |
| Min. load resistance[Ω] [Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | thermal, pulsed |
| Overload protection | yes |
Measuring/setting range
| Probe length L[mm] [mm] | 100...1600 |
|---|---|
| Active range A[mm] [mm] | L-40; (when set to oil and oil based media: L-60) |
| Inactive range I1 / I2[mm] [mm] | 30 / 10; (when set to oil and oil based media: 30 / 30) |
| Sampling rate[Hz] [Hz] | 4 |
Accuracy / deviations
| Repeatability[mm] [mm] | ± 5 |
|---|---|
| Measuring error[mm] [mm] | ± 7 |
| Offset error[mm] [mm] | 5 |
| Resolution[mm] [mm] | 1 |
| Zero signal (current)[mA] [mA] | 4 |
| Full signal (voltage)[V] [V] | 10 |
| Full signal (current)[mA] [mA] | 20 |
| Temperature drift per 10 K | ± 0.2 % |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| SIO mode | no |
| Required master port type | A |
| Process data analogue | 1 |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 578 |
| default | 578 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68) |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank DIN EN 61000-6-4 in plastic or open metal tanks |
|---|---|
| DIN EN 61000-6-3 | in a closed metal tank |
| DIN EN 61000-6-4 | in plastic or open metal tanks |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m |
| DIN EN 60068-2-27 | 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
| MTTF[years] [years] | 239 |
| UL approval | UL approval no. H009 File number UL E174191 |
| UL approval no. | H009 |
| File number UL | E174191 |
Mechanical data
| Weight[g] [g] | 470.9 |
|---|---|
| Dimensions[mm] [mm] | Ø 50 / L = 86 |
| Materials | stainless steel (304/1.4301); stainless steel (316L/1.4404); FKM; PEI |
| Materials (wetted parts) | stainless steel (303/1.4305); probe connection: stainless steel (316L/1.4435); PTFE; FKM; Sealing: NBR reinforced fibre |
| Process connection | threaded connection G 3/4 external thread |
Remarks
| Notes | Please see the technical note under "Downloads"; For high process temperatures: The temperature at the process connection is decisive. The actual medium temperature may be higher. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
