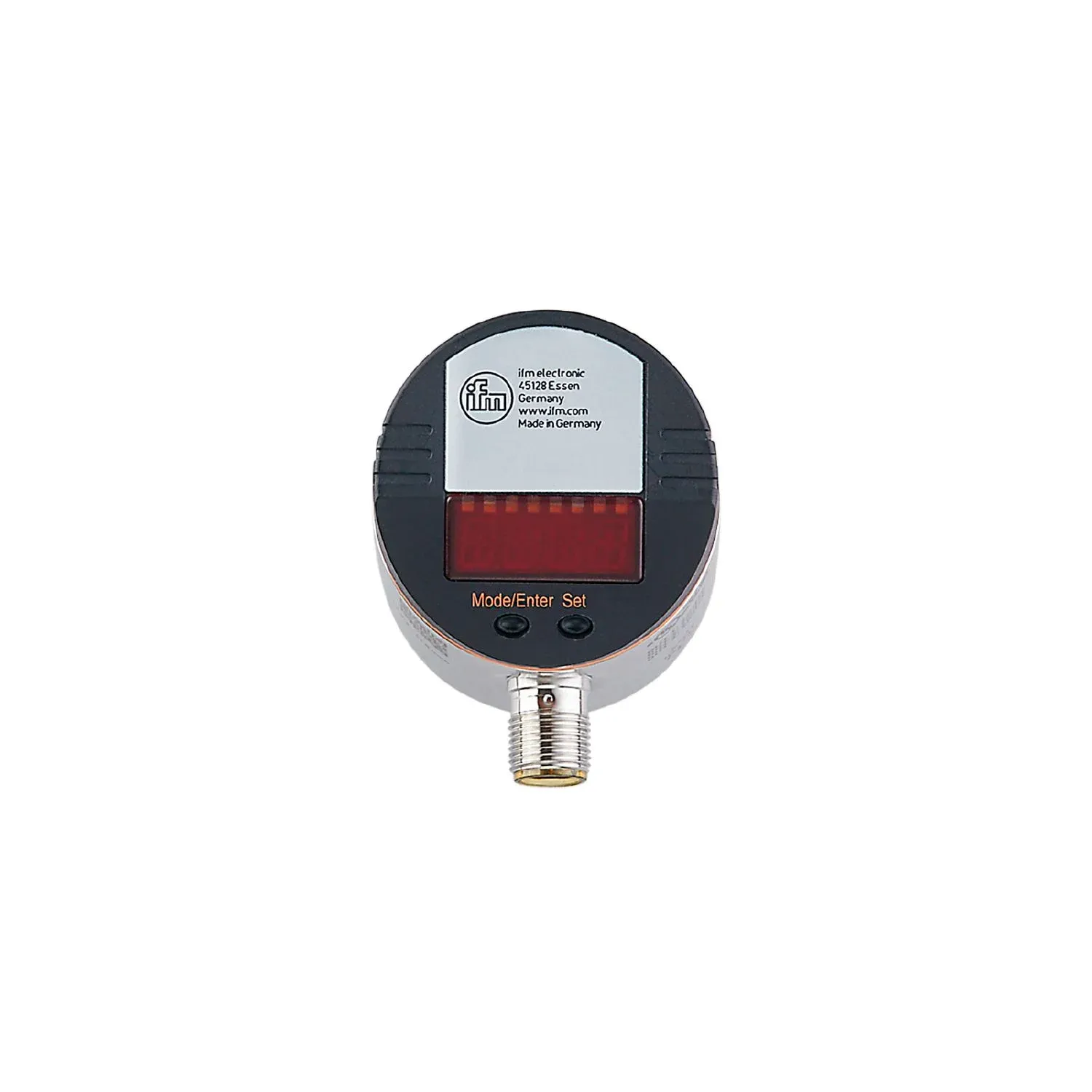

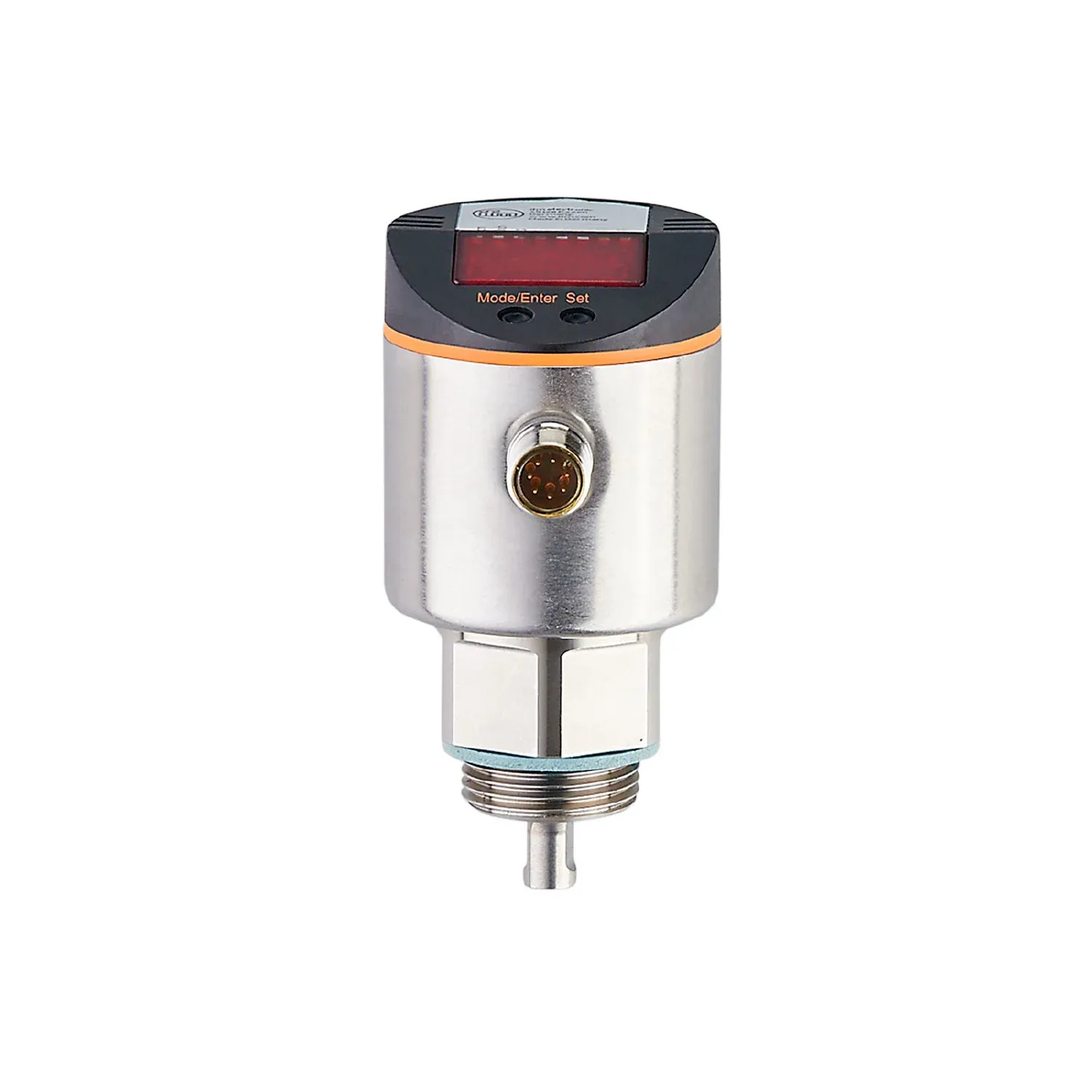

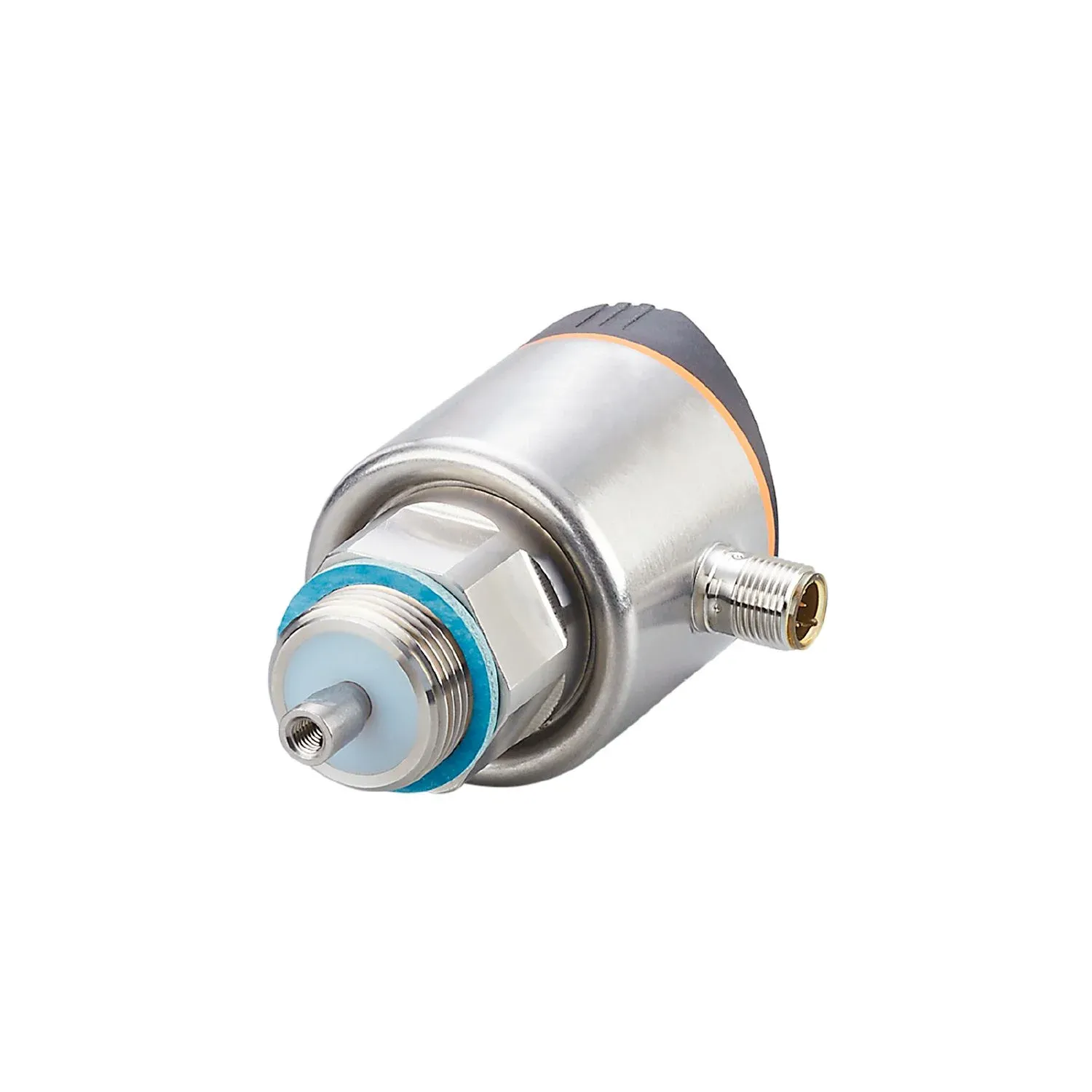

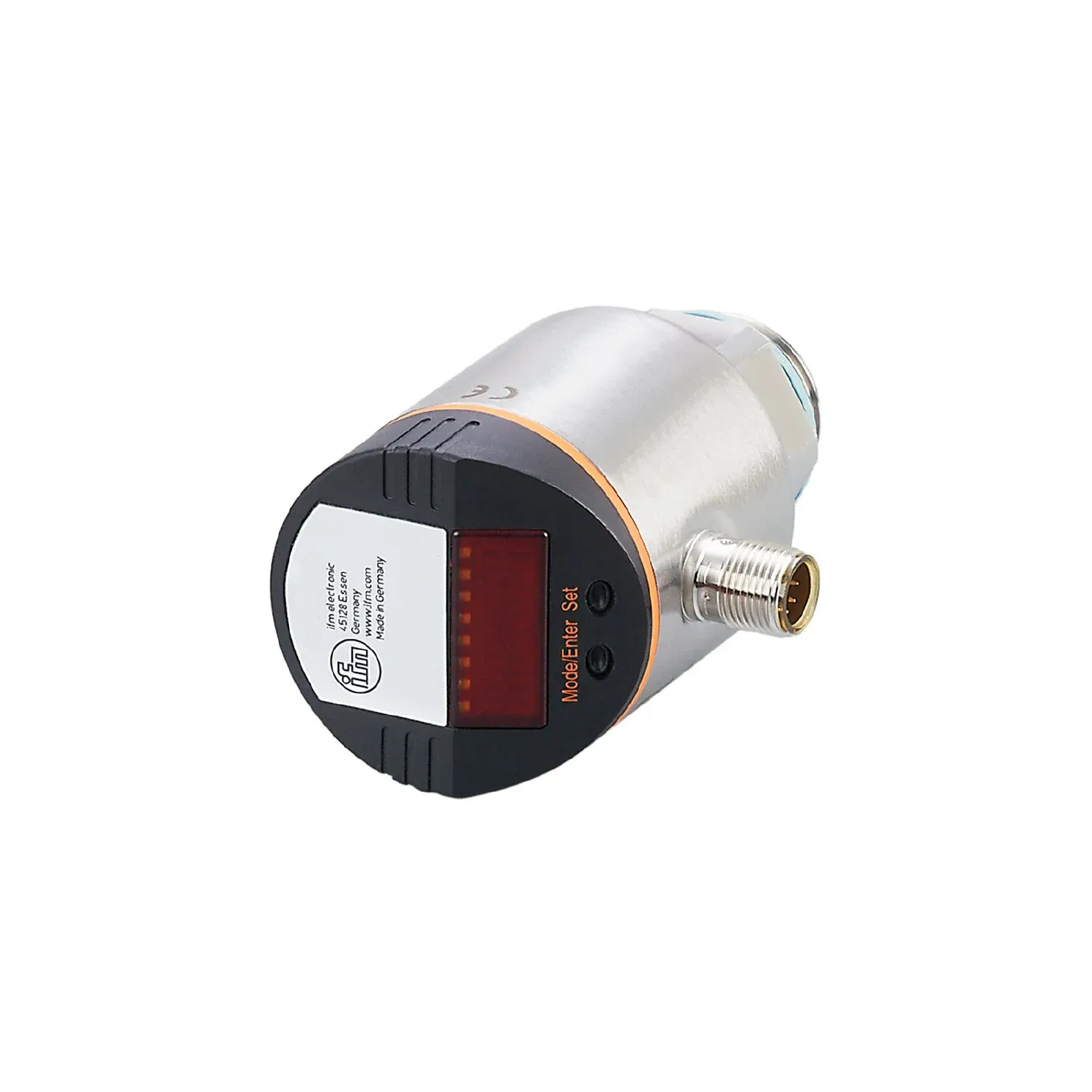

IFM LR8010
LR8010
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable level control in tanks and containers
Suitable for water, oils and coolants
When used as overflow prevention with approval according to the German Federal Water Act (WHG)
Modular system consisting of evaluation unit and probe
Adaptation to different container heights through shortening of the probe
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|---|
| Probe length L[mm] [mm] | 100...1600 |
| Process connection | threaded connection G 3/4 external thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Installation | Operation only in conjunction with rod and coaxial pipe. |
| Media | Liquids |
| Dielectric constant of the medium | ≥ 2 |
| Recommended media | water; hydrous media; hydrous coolants; oils; oil-based media |
| Cannot be used for | See the operating instructions, chapter "Function and features". |
| Process temperature[°C] [°C] | 0...80; (see note under remarks) |
| Pressure rating | 4 bar 0.4 MPa |
| 4 bar | 0.4 MPa |
| Vacuum resistance | -500 mbar -0.05 MPa |
| -500 mbar | -0.05 MPa |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 3 |
| Measuring principle | guided wave radar |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Total number of outputs | 4 |
|---|---|
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 4 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Short-circuit protection | yes |
| Type of short-circuit protection | thermal, pulsed |
| Overload protection | yes |
Measuring/setting range
| Probe length L[mm] [mm] | 100...1600 |
|---|---|
| Active range A[mm] [mm] | L-40; (when set to oil and oil based media: L-60) |
| Inactive range I1 / I2[mm] [mm] | 30 / 10; (when set to oil and oil based media: 30 / 30) |
| Sampling rate[Hz] [Hz] | 4 |
| Set point SP[mm] [mm] | 15...L-30 |
| Note on setpoint SP | when set to oil and oil based media: 35...L-30 |
| Reset point rP[mm] [mm] | 10... L-35 |
| Note on reset point rP | when set to oil and oil based media: 30...L-35 |
| In steps of[mm] [mm] | 5 |
| Hysteresis[mm] [mm] | > 5 |
| Overflow switch point OP[mm] [mm] | 70...L-30 |
| Hysteresis, OP[mm] [mm] | 10 |
Accuracy / deviations
| Repeatability[mm] [mm] | ± 5 |
|---|---|
| Measuring error[mm] [mm] | ± 7 |
| Offset error[mm] [mm] | 5 |
| Resolution[mm] [mm] | 1 |
| Temperature drift per 10 K | ± 0.2 % |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 4 |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 1250 |
| default | 1250 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Protection | IP 67 |
Tests / approvals
| Approval | WHG; General building authority approval; overflow prevention |
|---|---|
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 in a closed metal tank DIN EN 61000-6-4 in plastic or open metal tanks |
| DIN EN 61000-6-3 | in a closed metal tank |
| DIN EN 61000-6-4 | in plastic or open metal tanks |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m |
| DIN EN 60068-2-27 | 50 g (11 ms) / 25 g (6 ms) with reference rod 0.5 m |
| Vibration resistance | DIN EN 60068-2-6 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
| DIN EN 60068-2-6 | 5 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
| MTTF[years] [years] | 198 |
Mechanical data
| Weight[g] [g] | 402 |
|---|---|
| Dimensions[mm] [mm] | Ø 50 / L = 99 |
| Materials | stainless steel (316L/1.4404); stainless steel (304/1.4301); FKM; PBT; PC; PEI; TPE-V |
| Materials (wetted parts) | sensor:: stainless steel (303/1.4305); stainless steel (316L/1.4435); PTFE; FKM; NBR reinforced fibre; Probe:: stainless steel (316L/1.4404); Coaxial pipe:: stainless steel (304/1.4301); stainless steel (316L/1.4404); stainless steel (301/1.4310); PPS reinforced fibre |
| Process connection | threaded connection G 3/4 external thread |
Displays / operating elements
| Display | Display unit 3 x LED, green switching status 4 x LED, yellow level alphanumeric display, 4-digit parameter setting alphanumeric display, 4-digit |
|---|---|
| Display unit | 3 x LED, green |
| switching status | 4 x LED, yellow |
| level | alphanumeric display, 4-digit |
| parameter setting | alphanumeric display, 4-digit |
Remarks
| Notes | For high process temperatures: The temperature at the process connection is decisive. The actual medium temperature may be higher. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
