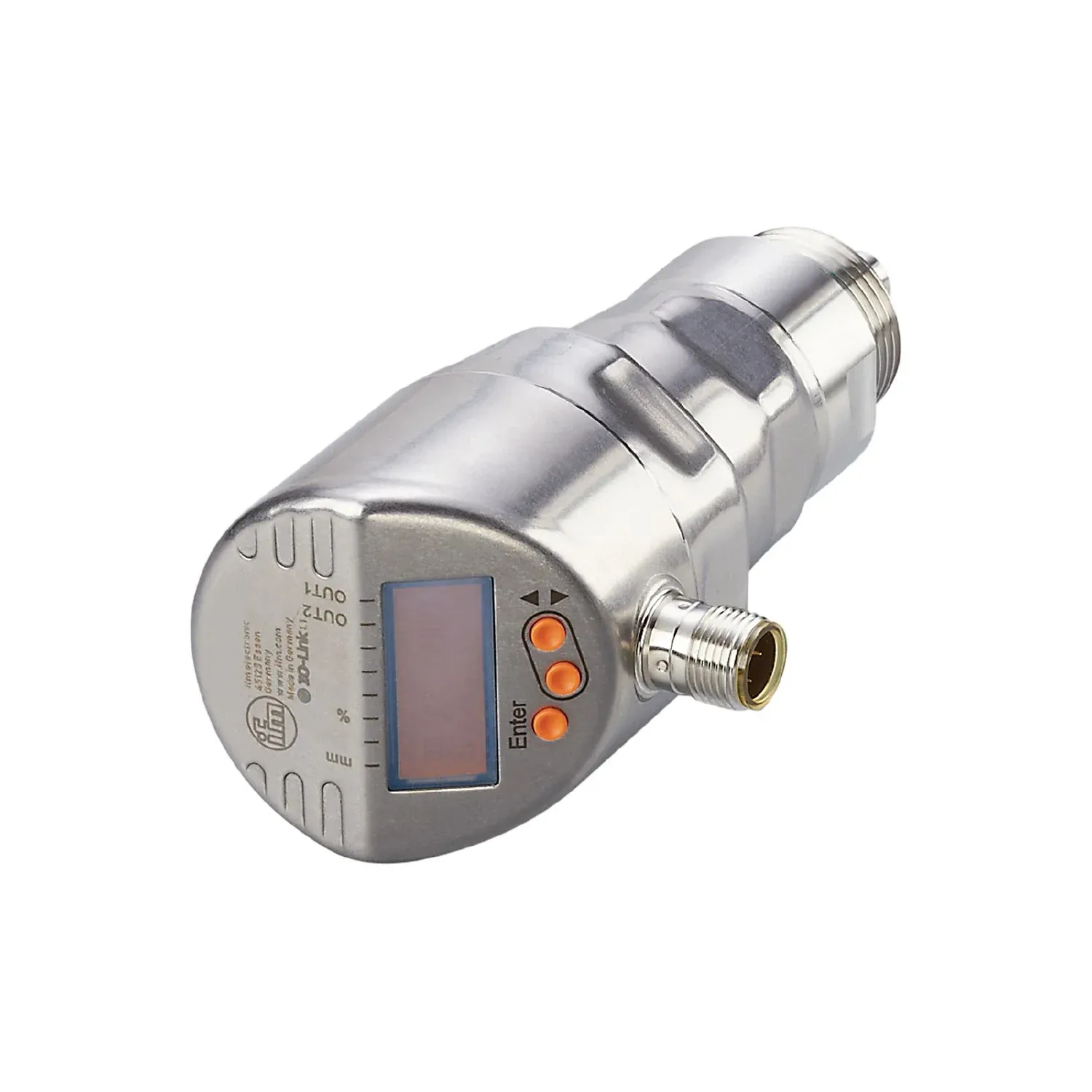

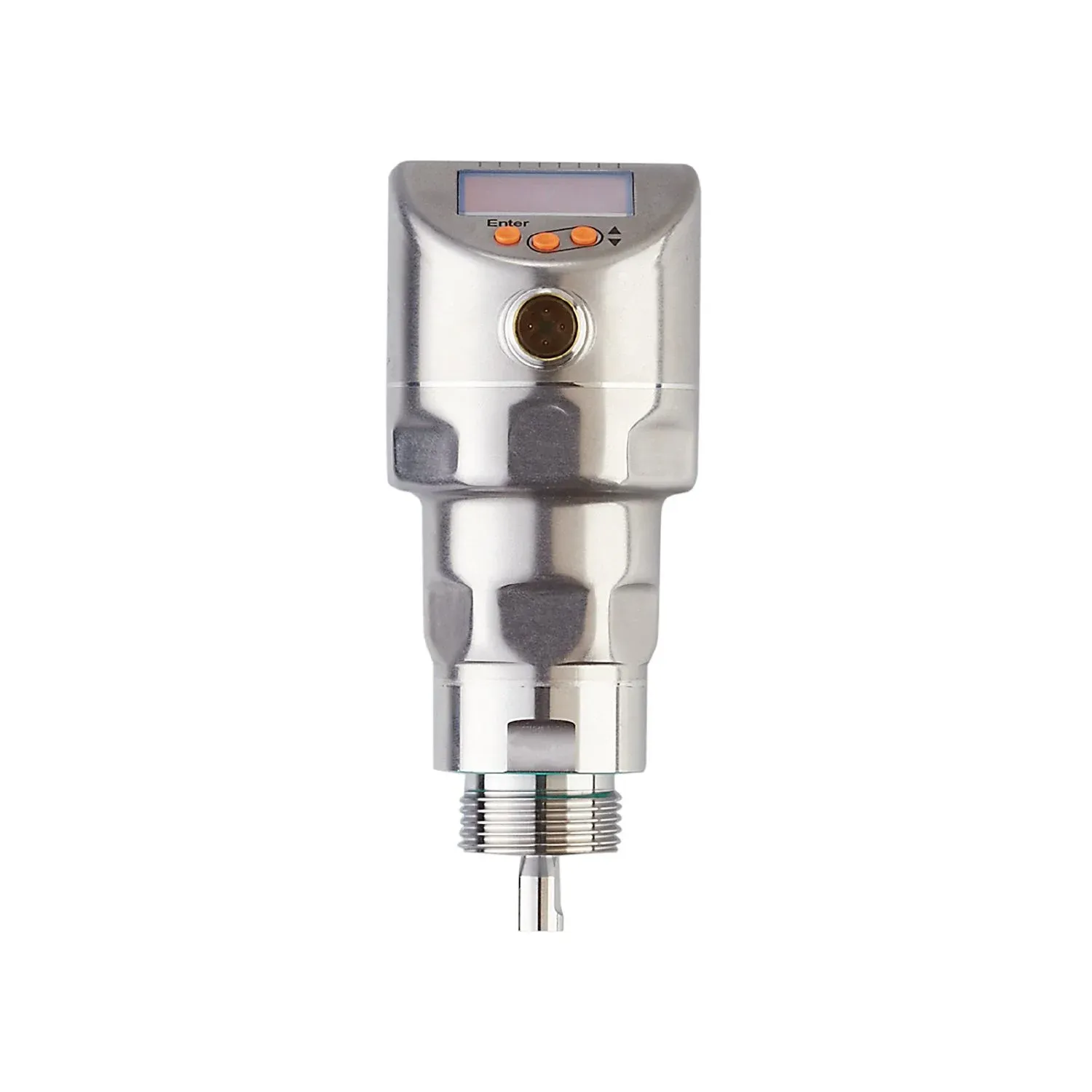

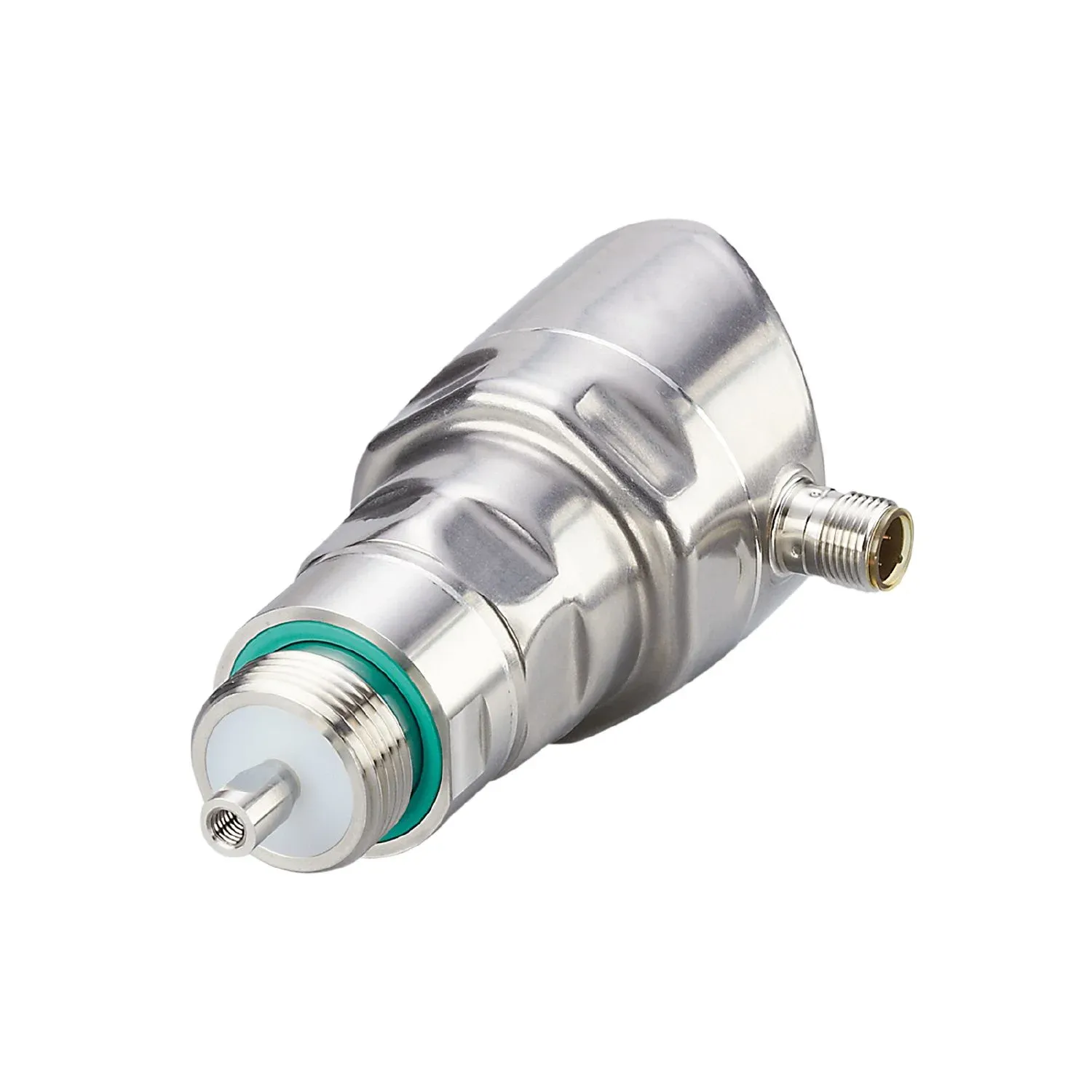

IFM LR2059
LR2059
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable level control in tanks and containers
Suitable for water, oils and coolants
Clearly visible 4-digit LED display
Modular system consisting of evaluation unit and probe
Adaptation to different container heights through shortening of the probe
Convenient operation via buttons or parameter setting via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Probe length L[mm] [mm] | 150...2000 |
| Process connection | threaded connection G 3/4 external thread |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Application | for industrial applications |
| Media | Liquids |
| Dielectric constant of the medium | ≥ 1,8; (for media with a dielectric constant of 1.8...5 (e.g. oils), a coaxial pipe is needed for operation) |
| Recommended media | water; hydrous media; oils; oil-based media |
| Process temperature[°C] [°C] | -20...100; (see note under remarks) |
| Pressure rating | 16 bar 1.6 MPa |
| 16 bar | 1.6 MPa |
| Vacuum resistance | -1000 mbar -0.1 MPa |
| -1000 mbar | -0.1 MPa |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | < 3 |
| Measuring principle | guided wave radar |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; analogue signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 150; (200 (...60 °C)) |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20, invertible; (scalable) |
| Max. load[Ω] [Ω] | 500 |
| Factory setting | Electrical design: NPN |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Probe length L[mm] [mm] | 150...2000 |
|---|---|
| Active range A[mm] [mm] | L-40 (L-60); (when set to oil and oil based media) |
| Inactive range I1 / I2[mm] [mm] | 30 / 10 (30); (when set to oil and oil based media) |
| Sampling rate[Hz] [Hz] | 4 |
| Set point SP[mm] [mm] | 15...L-30 |
| Note on setpoint SP | when set to oil and oil based media: 35...L-30 |
| Reset point rP[mm] [mm] | 10... L-35 |
| Note on reset point rP | when set to oil and oil based media: 30...L-35 |
| In steps of[mm] [mm] | 1 |
| Hysteresis[mm] [mm] | > 5 |
Accuracy / deviations
| Measuring error[mm] [mm] | ± 7 |
|---|---|
| Offset error[mm] [mm] | 5 |
| Resolution[mm] [mm] | 1 |
| Zero signal (current)[mA] [mA] | 4.0 |
| Full signal (current)[mA] [mA] | 20 |
| Temperature drift per 10 K | ± 0.2 % |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 2 |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 644 |
| default | 644 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Storage temperature[°C] [°C] | -40...100 |
| Protection | IP 68; IP 69K |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-3 : in a closed metal tank DIN EN 61000-6-4 : in plastic or open metal tanks |
|---|---|
| DIN EN 61000-6-3 | : in a closed metal tank |
| DIN EN 61000-6-4 | : in plastic or open metal tanks |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) / 20 g (6 ms) with reference rod 0.5 m |
| DIN EN 60068-2-27 | 50 g (11 ms) / 20 g (6 ms) with reference rod 0.5 m |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) / 1 g (5...200 Hz) with reference rod 0.5 m |
| MTTF[years] [years] | 216 |
Mechanical data
| Weight[g] [g] | 365.5 |
|---|---|
| Dimensions[mm] [mm] | Ø 50 / L = 119 |
| Materials | stainless steel (316L/1.4404); PEI; PFA; PBT; FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); stainless steel (316L/1.4435); PTFE; FKM |
| Process connection | threaded connection G 3/4 external thread |
Displays / operating elements
| Display | Display unit 3 x LED, green switching status 2 x LED, yellow level alphanumeric display, 4-digit parameter setting alphanumeric display, 4-digit |
|---|---|
| Display unit | 3 x LED, green |
| switching status | 2 x LED, yellow |
| level | alphanumeric display, 4-digit |
| parameter setting | alphanumeric display, 4-digit |
Remarks
| Notes | For high process temperatures: The temperature at the process connection is decisive. The actual medium temperature may be higher. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
