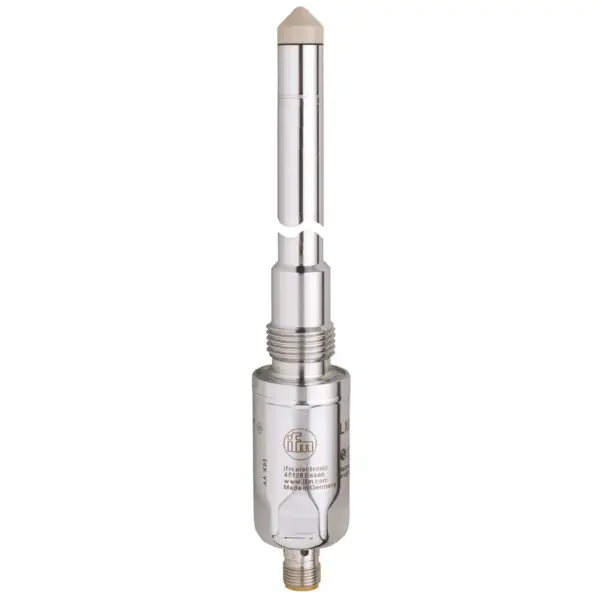

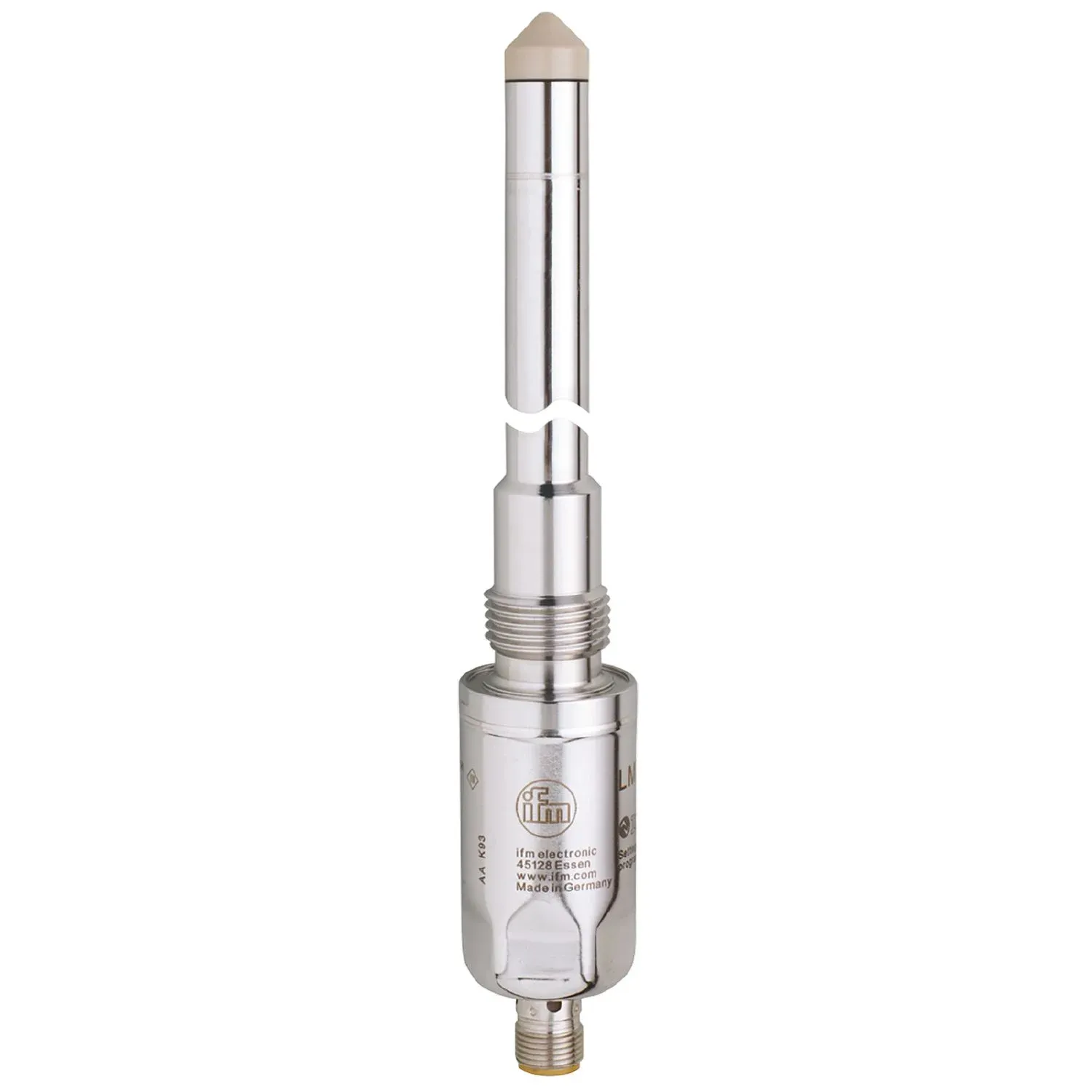

IFM LMT04A
LMT04A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For the reliable level control in tanks and containers
Hygienic design for the requirements of the food and beverage industry
Use in liquid and viscous media and bulk materials
Differentiation of media by parameterisation of the switching outputs
For applications in hazardous areas
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|---|
| Factory setting | oils; oil-based media; powder |
| Process connection | threaded connection G 1/2 sealing cone |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Media | Liquids; viscous media; powder |
| Cannot be used for | See the operating instructions, chapter "Function and features". |
| Medium temperature[°C] [°C] | -20...85 |
| Probe length[mm] [mm] | 253 |
| Tank pressure | -1...40 bar -0.1...4 MPa |
| -1...40 bar | -0.1...4 MPa |
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | switching signal; IO-Link |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Measuring/setting range
| Factory setting | oils; oil-based media; powder |
|---|
Response times
| Response time[s] [s] | < 0.5 |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| SIO mode | yes |
| Required master port type | A |
| Process data analogue | 1 |
| Process data binary | 2 |
| Min. process cycle time[ms] [ms] | 2.3 |
| Supported DeviceIDs | default 642 |
| default | 642 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Protection | IP 67; (when used outside the hazardous area: IP 68 / IP 69) |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T90°C Dc X |
|---|---|
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-4 closed tanks |
| DIN EN 61000-6-4 | closed tanks |
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 8 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 8 g (10...2000 Hz) |
| MTTF[years] [years] | 223 |
Mechanical data
| Weight[g] [g] | 362 |
|---|---|
| Dimensions[mm] [mm] | Ø 30 / L = 355 |
| Materials | stainless steel (316L/1.4404); stainless steel (316Ti/1.4571); PEEK; PEI; FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); stainless steel (316Ti/1.4571); PEEK surface characteristics: Ra < 0,8 µm / Rz = 4 µm; FKM |
| Process connection | threaded connection G 1/2 sealing cone |
Displays / operating elements
| Display | switching status LED, yellow operating status LED, green |
|---|---|
| switching status | LED, yellow |
| operating status | LED, green |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
