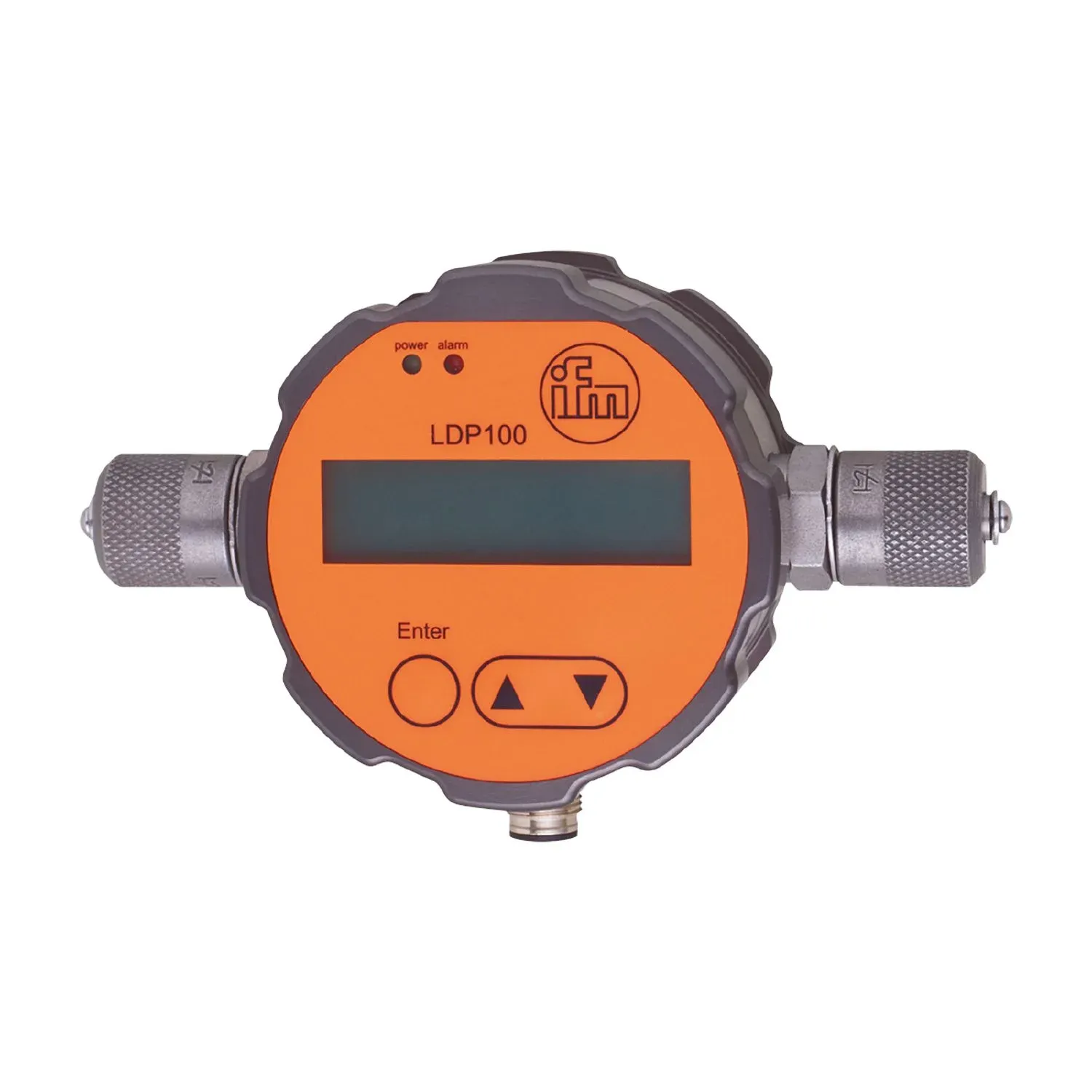

IFM LDP100
LDP100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Trend monitoring by analysis of the particle concentration
Indication of purity class on the LCD display
Applications up to 420 bar
CAN bus, analogue and switching outputs
displayed value corresponds to cleanliness level based on ISO 4406:21 and SAE AS4059F; NAS 1638
Specification
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|---|
| Process connection | threaded connection M16 x 2 external thread Minimess |
Application
| Media | mineral oils (e.g. HLP); ester oils (e.g. HEES); biodegradable oils (e.g. HETG) |
|---|---|
| Medium temperature[°C] [°C] | -10...80 |
Electrical data
| Operating voltage[V] [V] | 9...33 DC |
|---|---|
| Current consumption[mA] [mA] | < 300 |
| Protection class | III |
| Measuring principle | photoelectric |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Number of digital outputs | 1 |
| Permanent current rating of switching output DC[mA] [mA] | 500 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (Ub - 4 V) / 20 mA; Ub = 24 V: 1000 |
| Short-circuit proof | no |
| Overload protection | no |
Measuring/setting range
| Measuring range | 0...28; (range number) |
|---|
Accuracy / deviations
| Accuracy | ± 1; (range number) |
|---|
Software / programming
| Parameter setting options | via buttons, PC or digital I/O |
|---|
Interfaces
| Communication interface | CAN |
|---|---|
| Protocol | CANopen; SAE J1939 |
Operating conditions
| Operating pressure | 420; (dynamic: 0...420 bar; static: 0...600 bar) bar 42 MPa |
|---|---|
| 420; (dynamic: 0...420 bar; static: 0...600 bar) bar | 42 MPa |
| Ambient temperature[°C] [°C] | -10...60 |
| Storage temperature[°C] [°C] | -20...60 |
| Protection | IP 67 |
Tests / approvals
| MTTF[years] [years] | 97 |
|---|---|
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 816.6 |
|---|---|
| Materials (wetted parts) | housing: stainless steel (420/1.4028); sight glass: sapphire chromium-plated; Sealing: NBR |
| Process connection | threaded connection M16 x 2 external thread Minimess |
Displays / operating elements
| Display | 1 LED, green Power 1 LED, red Alarm LC display, displayed value corresponds to cleanliness level based on ISO 4406:21 and SAE AS4059F; NAS 1638 see operating instructions |
|---|
Data memories
| Memory size | 3000 data records |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
