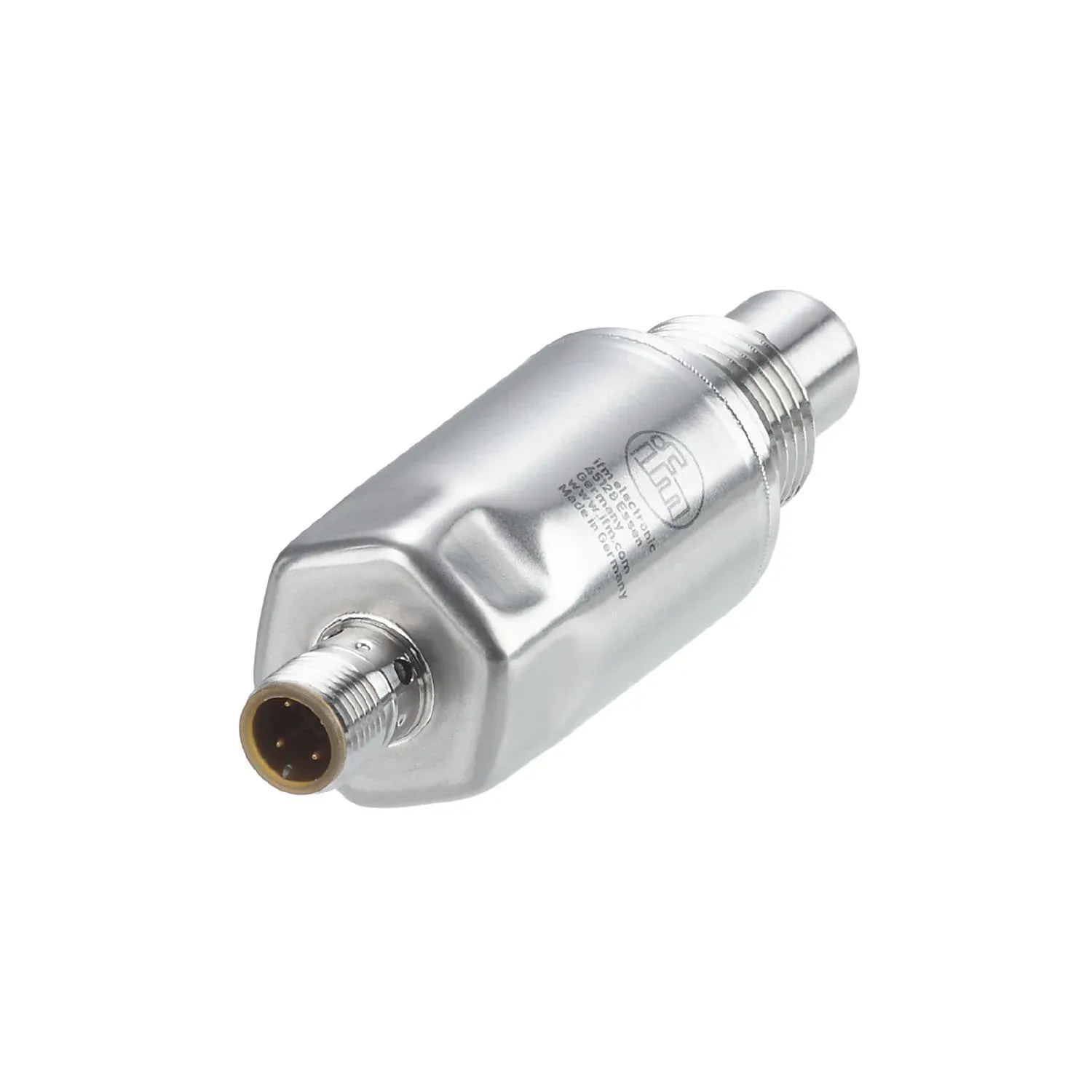

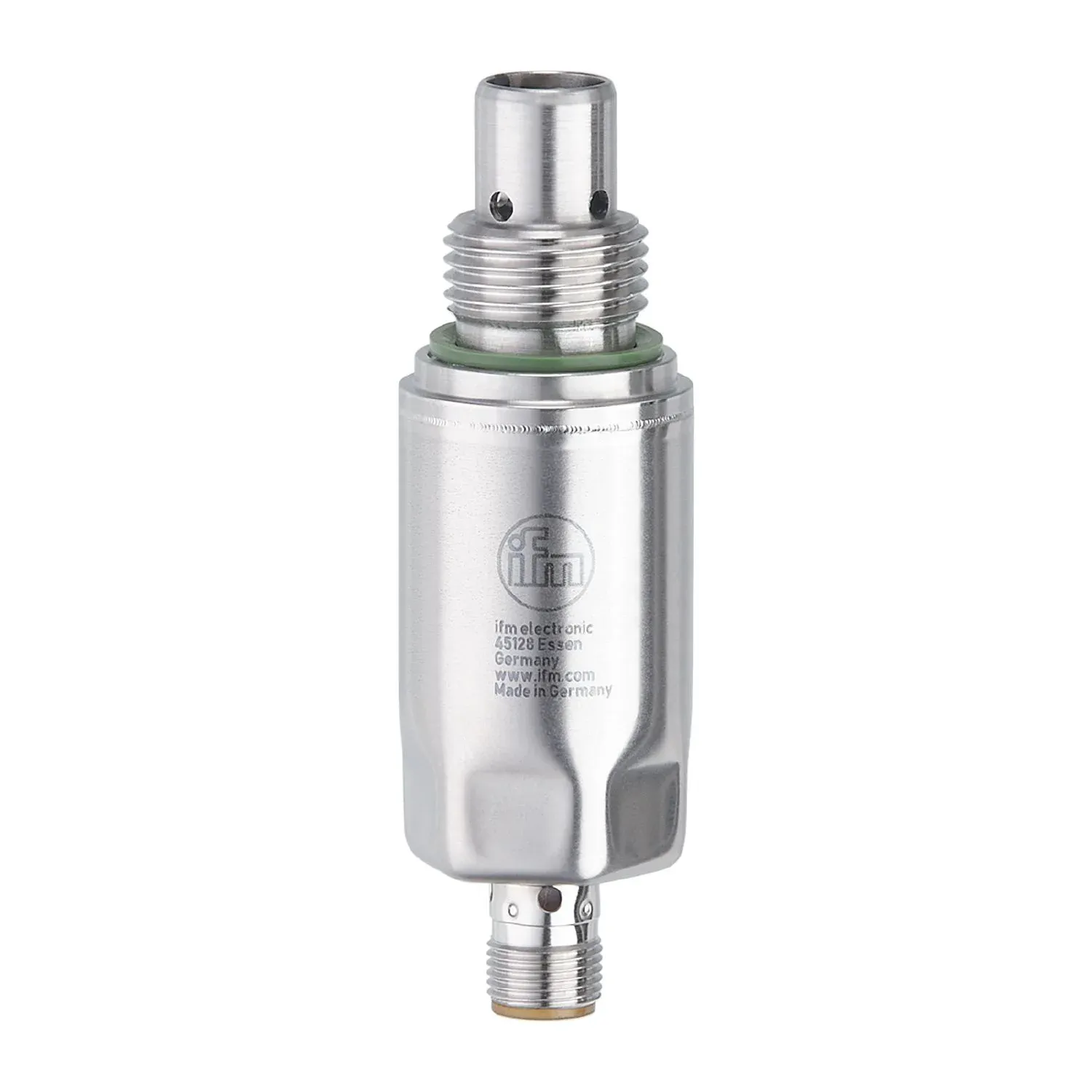

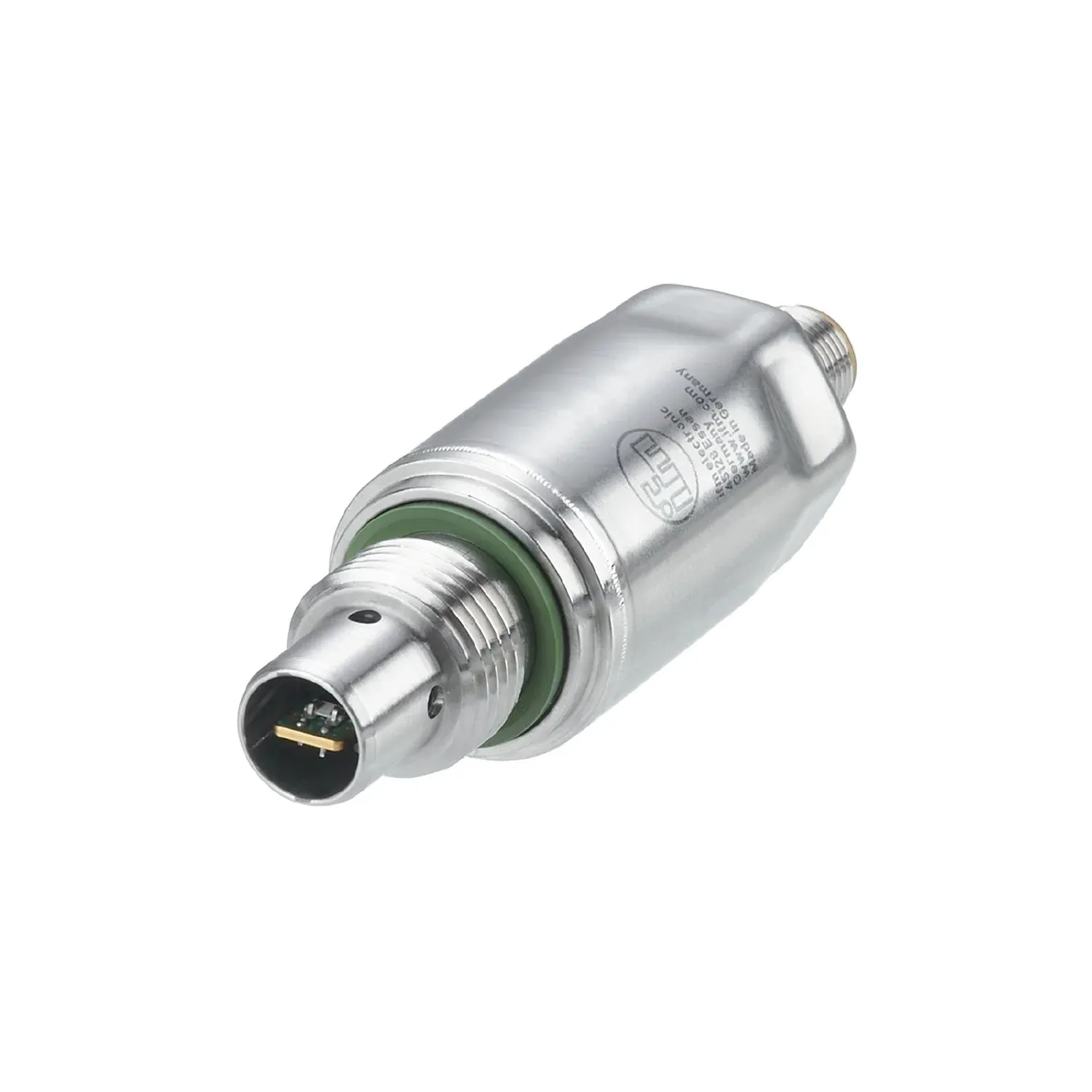

IFM LDH110
LDH110
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Continual condition monitoring of oils
Two analogue outputs for relative moisture and temperature
Wide input voltage range
High pressure rating
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|---|
| Process connection | threaded connection G 1/2 |
Application
| Special feature | Gold-plated contacts |
|---|---|
| Media | mineral oils; synthetic esters; biodegradable oils |
| Cannot be used for | See operating instructions, chapter "Intended use". |
| Medium temperature[°C] [°C] | -40...120 |
| Pressure rating | 50 bar 5 MPa |
| 50 bar | 5 MPa |
| Vacuum resistance[mbar] [mbar] | -1000 |
Electrical data
| Operating voltage[V] [V] | 9...33 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] [s] | 2 |
| Max. current load total[A] [A] | 0.085 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Output signal | analogue signal |
| Output function | analogue output humidity / temperature |
| Number of analogue outputs | 2 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (UB - 5V) * 50 |
Measuring/setting range
| Measuring range[% RH] [% RH] | 0...100 |
|---|---|
| Measuring range[°C] [°C] | -40...120 |
Accuracy / deviations
| Accuracy | ± 3%; ( ± 5 % in the range < 10 %, > 90 %) |
|---|---|
| Repeatability | ± 0,5 % |
| Resolution[%] [%] | 12 Bit process value |
| Accuracy[K] [K] | ± 1 |
| Repeatability[K] [K] | ± 0,5 |
Response times
| Response time[s] [s] | oil: T09 < 30 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 100 |
| Protection | IP 68; IP 69K; (7 days / 3 m water depth / 0.3 bar: IP 68) |
Tests / approvals
| EMC | DIN EN 61000-6-2 DIN EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 50 g (11 ms) |
| DIN EN 60068-2-27 | 50 g (11 ms) |
| Vibration resistance | DIN EN 60068-2-6 20 g (10...2000 Hz) |
| DIN EN 60068-2-6 | 20 g (10...2000 Hz) |
| MTTF[years] [years] | 284 |
| UL approval | File number UL E364788 |
| File number UL | E364788 |
| Pressure Equipment Directive | Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight[g] [g] | 118.5 |
|---|---|
| Materials | stainless steel (316L/1.4404); PEI; Sealing: FKM |
| Materials (wetted parts) | stainless steel (316L/1.4404); PA6 GF50; epoxy resin; Sealing: NBR |
| Process connection | threaded connection G 1/2 |
Remarks
| Remarks | accuracy values expressed in percent refer to the measuring span |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12 (EN 61067-2-101); coding: A; Contacts: gold-plated |
|---|
