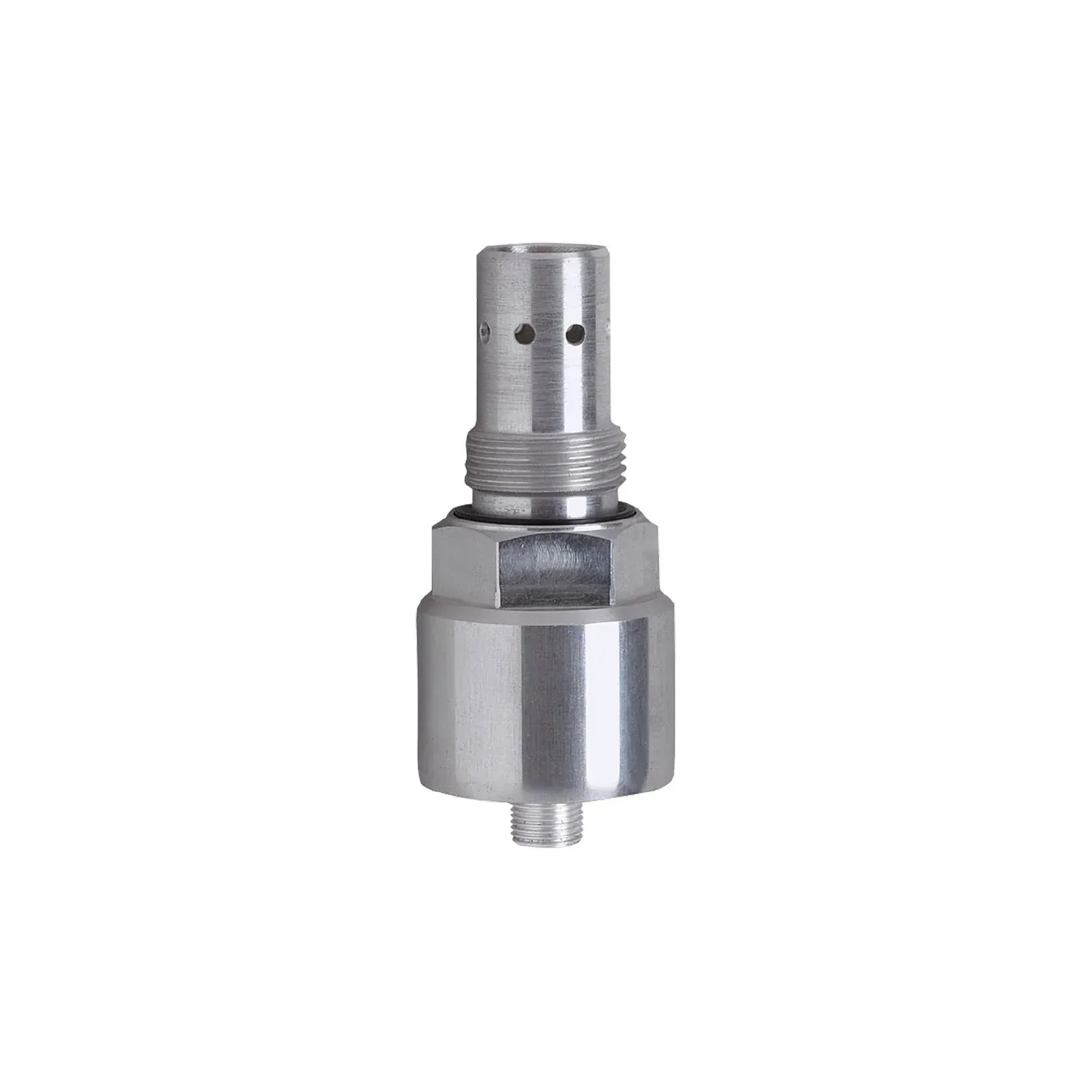

IFM LDH100
LDH100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Continual condition monitoring of oils
Two analogue outputs for relative moisture and temperature
High pressure rating
Quick installation via process connection
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|---|
| Process connection | G 3/4 |
Application
| Media | mineral oils; synthetic esters; biodegradable oils |
|---|---|
| Tank pressure | 50 bar 5 MPa |
| 50 bar | 5 MPa |
| Medium temperature[°C] [°C] | -40...105 |
Electrical data
| Operating voltage[V] [V] | 9...33 DC |
|---|---|
| Current consumption[mA] [mA] | < 25 |
| Protection class | III |
| Reverse polarity protection | no |
| Measuring principle | capacitive |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 2 |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Number of analogue outputs | 2 |
| Analogue current output[mA] [mA] | 4...20 |
| Max. load[Ω] [Ω] | (Ub - 8) x 25 |
| Resolution of analogue output | φ: 1% / T: 0.1 K |
Measuring/setting range
| Measuring range[°C] [°C] | -20...120 |
|---|
Accuracy / deviations
| Accuracy | φ: ± 3 % / T: ± 2 % |
|---|
Response times
| Response time[s] [s] | 1.3 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -40...85 |
|---|---|
| Storage temperature[°C] [°C] | -40...85 |
| Max. relative air humidity[%] [%] | 100 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 13309 IEC 61000-6-2 : 2005 IEC 61000-6-4 : 2006 + AMD1: 2010 |
|---|---|
| IEC 61000-6-2 | : 2005 |
| IEC 61000-6-4 | : 2006 + AMD1: 2010 |
| Vibration resistance | test following DIN EN 60068-2-6 |
| MTTF[years] [years] | 90 |
Mechanical data
| Weight[g] [g] | 169 |
|---|---|
| Materials (wetted parts) | aluminium; HNBR; polyurethane resin; epoxy resin |
| Process connection | G 3/4 |
Remarks
| Remarks | accuracy values expressed in percent refer to the measuring span |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
