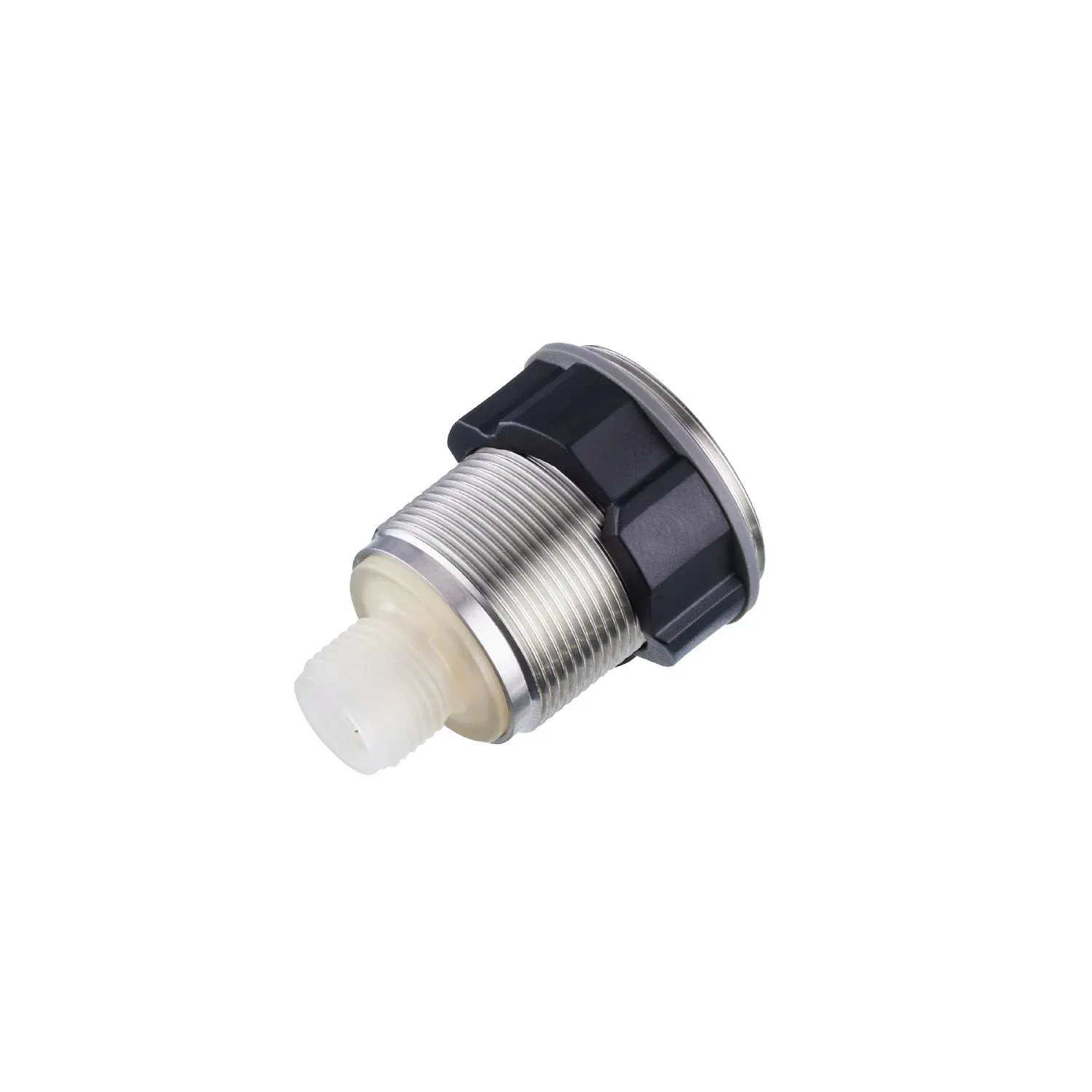

IFM KTE301
KTE301
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Function only in conjunction with symbol disc accessories
sensitivity setting and application-related setting against deposits and splashing water
one touch sensor for all switching functions
Wear-free actuation
RGB feedback with or without IO-Link
User-friendly communication and parameterisation via IO-Link
Specification
Product characteristics
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions[mm] [mm] | M22 x 1 / L = 40.4 |
Application
| Operating principle | dynamic; static; bistable; combination; (parameterisable) |
|---|
Electrical data
| Operating voltage[V] [V] | 8...32 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Current consumption | < 7,2 mA; (LED off: Ub = 24 V) < 125 mA; (LED white, max. brightness: Ub = 8 V) < 79 mA; (LED white, max. brightness: Ub = 12 V) < 43 mA; (LED white, max. brightness: Ub = 24 V) < 35 mA; (LED white, max. brightness : Ub = 32 V) |
Inputs
| Total number of inputs | 2 |
|---|---|
| Switching level high[V] [V] | > 19.2; (at 24 V safely on : Voltage >= Ub*0,8) |
| Switching level low[V] [V] | < 4.8; (at 24V safely off : Voltage <= Ub*0,2) |
| Inputs | according to the standard IEC 61131-2 (Typ 3) |
Outputs
| Electrical design | PNP/NPN; (parameterisable) |
|---|---|
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] [V] | 1.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Short-circuit protection | yes |
| Overload protection | yes |
Response times
| Response time[ms] [ms] | 64 |
|---|
Software / programming
| Parameter setting options | normally open / normally closed; PNP/NPN; static; dynamic; bistable; combination; Switch-on and switch-off delay; brightness; sensitivity; Operating conditions |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1.3 |
| Profiles | Smart Sensor - SSP 1.1 Fixed Switching Sensor Common - I&D Identification and Diagnosis Extension Sensor Control Wide Function Locator Function ProductURI |
| Smart Sensor - SSP 1.1 | Fixed Switching Sensor |
| Common - I&D | Identification and Diagnosis |
| Extension | Sensor Control Wide |
| Function | ProductURI |
| Min. process cycle time[ms] [ms] | 13.2 |
| Supported DeviceIDs | default 1559 |
| default | 1559 |
Operating conditions
| Ambient temperature[°C] [°C] | -30...65 |
|---|---|
| Protection | IP 65; IP 67; (IP 69K on the front) |
Tests / approvals
| EMC | EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m / 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V IEC 61000-6-3, EN 55011 (Class B) IEC 61000-4-5 Surge 1 kV (L+ to L- , 42 Ω, 0,5 µF) / 0,5 kV (all cables to L- , 42 Ω, 0,5 µF) |
|---|---|
| EN 61000-4-2 ESD | 4 kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m / 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 10 V |
| IEC 61000-6-3, EN 55011 | (Class B) |
| IEC 61000-4-5 Surge | 1 kV (L+ to L- , 42 Ω, 0,5 µF) / 0,5 kV (all cables to L- , 42 Ω, 0,5 µF) |
| Vibration resistance | EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| EN 60068-2-6 Fc | 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes |
| Shock resistance | EN 60068-2-27 Ea 50 g 11 ms half-sine; 20 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-27 Ea | 50 g 11 ms half-sine; 20 shocks each in every direction of the 3 coordinate axes |
| Continuous shock resistance | EN 60068-2-29 Eb 40 g 6 ms half-sine; 8000 shocks each in every direction of the 3 coordinate axes |
| EN 60068-2-29 Eb | 40 g 6 ms half-sine; 8000 shocks each in every direction of the 3 coordinate axes |
| MTTF[years] [years] | 218 |
Mechanical data
| Weight[g] [g] | 58.1 |
|---|---|
| Housing | threaded type |
| Dimensions[mm] [mm] | M22 x 1 / L = 40.4 |
| Thread designation | M22 x 1 |
| Materials | housing: stainless steel; lock nut: PBT; symbol disc: PA; Flat seal: NR |
Displays / operating elements
| Display | operation LED, RGB configurable |
|---|---|
| operation | LED, RGB configurable |
Accessories

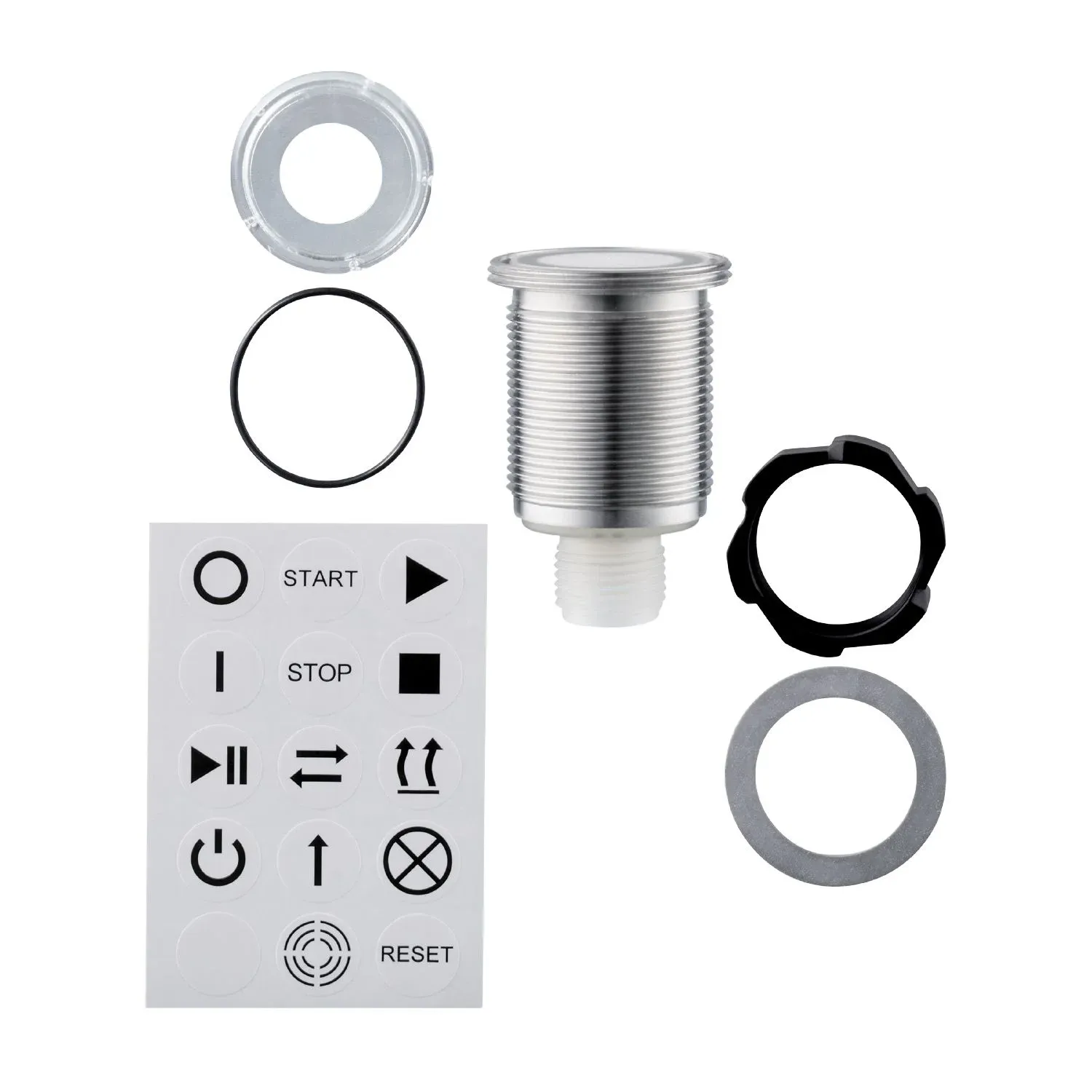

| Items supplied | lock nuts: 1 x M22 transparent symbol disc: 1 symbol sticker: 1 Flat seal: 1 O-ring: 1 |
|---|---|
| Accessories (optional) | symbol disc |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | 1 x M12; coding: A |
|---|
