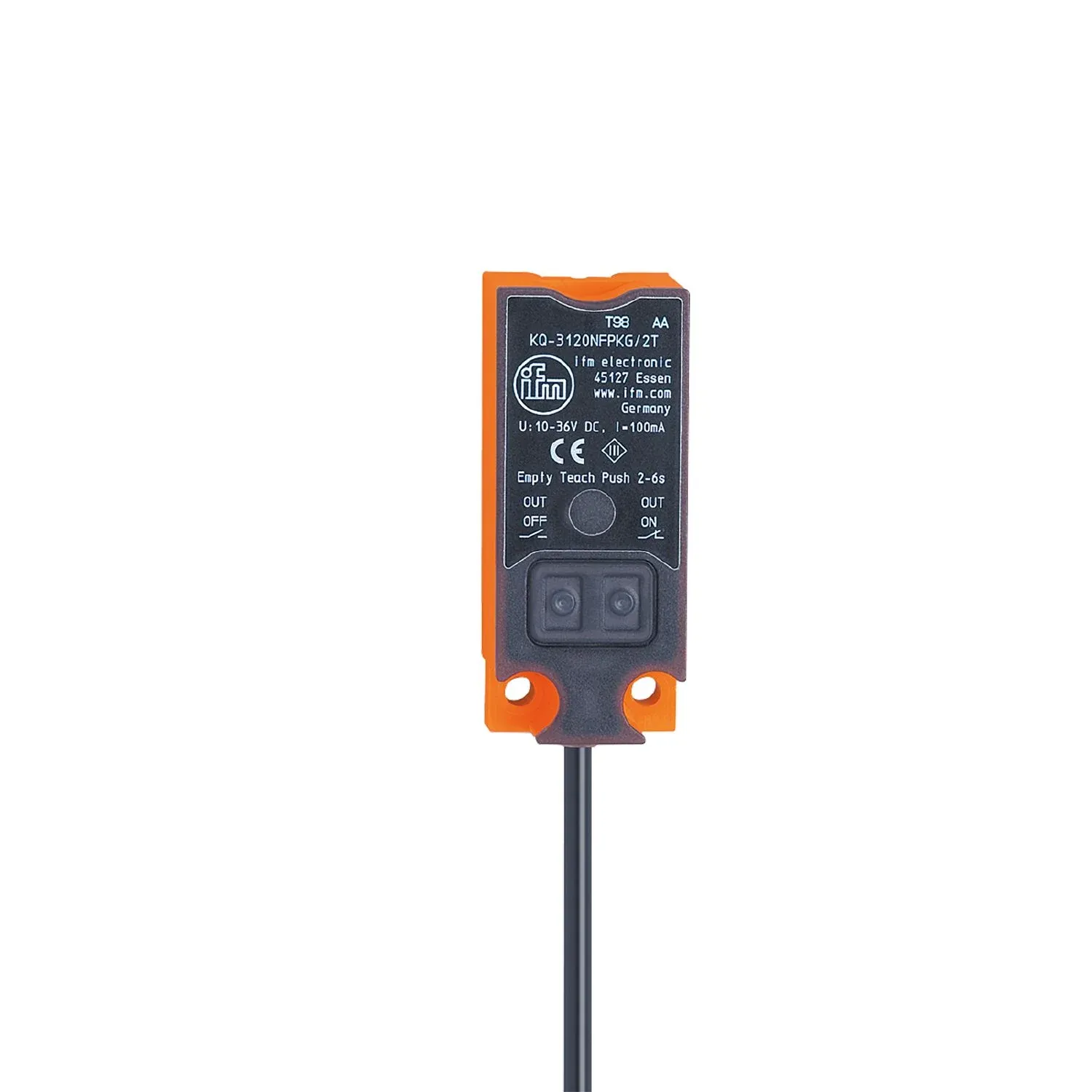

IFM KQ6001
KQ6001
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Output function normally open / normally closed programmable
Automatic detection of the output load PNP/NPN
Easy installation with mounting adapters and cable ties
For position detection or level monitoring
Easy parameter setting via IO-Link
Specification
Product characteristics
| Electrical design | PNP/NPN; (automatic load detection PNP/NPN) |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 12 |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions[mm] [mm] | 20 x 14 x 48 |
Application
| Installation | detection through non-metallic container wall or on bypass pipes |
|---|---|
| Media | dry bulk material; liquids |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 17 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP/NPN; (automatic load detection PNP/NPN) |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 12 |
|---|---|
| Real sensing range Sr[mm] [mm] | 12 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
|---|---|
| Switch point drift[% of Sr] [% of Sr] | -20...20 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM1 (4,8 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Multiple switching signal Function Process data variable Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Min. process cycle time[ms] [ms] | 100.8 |
| Supported DeviceIDs | default 371 |
| default | 371 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | class B |
| Shock resistance | EN 60068-2-27 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| EN 60068-2-27 | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| Vibration resistance | EN 60068-2-6 (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 | (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| MTTF[years] [years] | 623 |
| UL approval | Ta -25...80 °C Enclosure type Type 1 power supply Limited Voltage/Current |
| Ta | -25...80 °C |
| Enclosure type | Type 1 |
| power supply | Limited Voltage/Current |
Mechanical data
| Weight[g] [g] | 46.6 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 20 x 14 x 48 |
| Materials | housing: PBT glass fibre reinforced; pushbuttons: TPE-U; cover: PC glass fibre reinforced |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
| Teach function | yes |
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC; 3 x 0.14 mm² |
|---|
