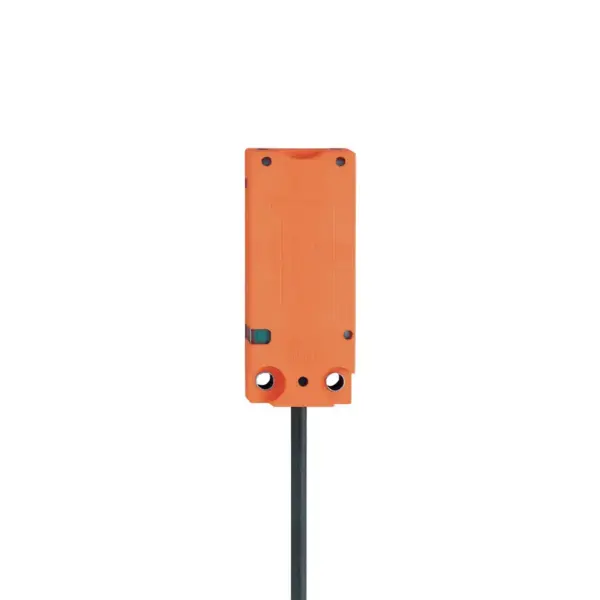

IFM KQ5100
KQ5100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Output function normally open / normally closed programmable
Clearly visible indication of the switching status by LED
Easy installation with mounting adapters and cable ties
For position detection or level monitoring
Easy parameter setting via IO-Link
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 12 |
| Communication interface | IO-Link |
| Housing | rectangular |
| Dimensions[mm] [mm] | 20 x 7 x 48 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 17 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit protection | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 12 |
|---|---|
| Real sensing range Sr[mm] [mm] | 12 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
|---|---|
| Switch point drift[% of Sr] [% of Sr] | -20...20 |
Software / programming
| Parameter setting options | only via IO-Link |
|---|
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM1 (4,8 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Multiple switching signal Function Process data variable Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Min. process cycle time[ms] [ms] | 100.8 |
| Supported DeviceIDs | default 371 |
| default | 371 |
Operating conditions
| Ambient temperature[°C] [°C] | -40...80 |
|---|---|
| Protection | IP 65; IP 67; IP 69K |
Tests / approvals
| EMC | EN 61000-4-2 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 3 V EN 55011 class B |
|---|---|
| EN 61000-4-2 | 8 kV AD |
| EN 61000-4-3 | 10 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 3 V |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| EN 60068-2-27 Ea | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| MTTF[years] [years] | 771 |
| UL approval | Ta -25...80 °C Enclosure type Type 1 power supply Class 2 |
| Ta | -25...80 °C |
| Enclosure type | Type 1 |
| power supply | Class 2 |
Mechanical data
| Weight[g] [g] | 36.7 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 20 x 7 x 48 |
| Materials | PBT; TPE-U; stainless steel |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PUR; 3 x 0.14 mm² |
|---|
