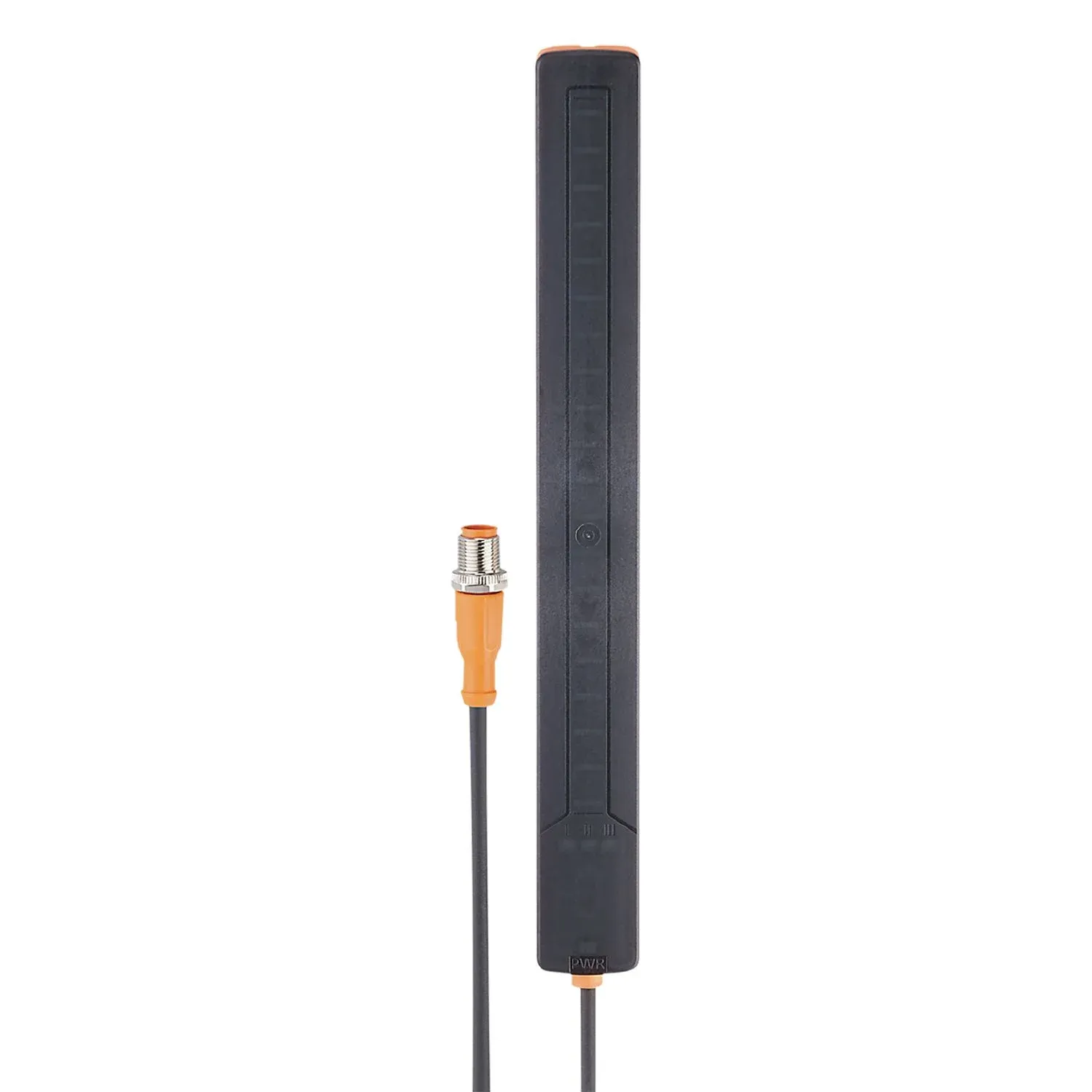

IFM KQ1001 - Image 1
IFM KQ1001 - Image 2
IFM KQ1001 - Image 3
IFM KQ1001 - Image 4
IFM KQ1001 - Image 5
IFM KQ1001 - Image 6
IFM KQ1001
IFM KQ1001 - Image 2
IFM KQ1001 - Image 3
IFM KQ1001 - Image 4
IFM KQ1001 - Image 5
IFM KQ1001 - Image 6

Fast delivery within 72 Hours

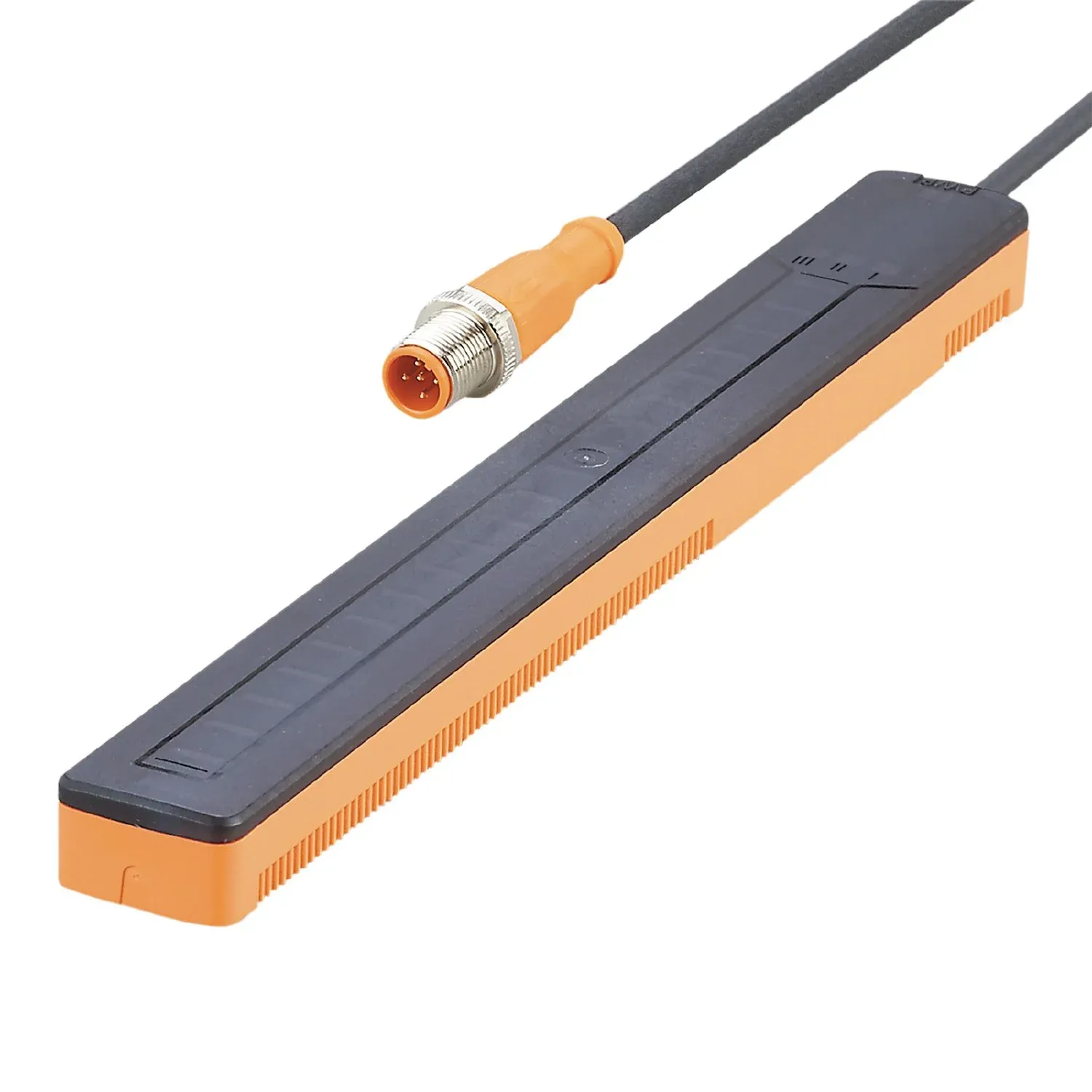

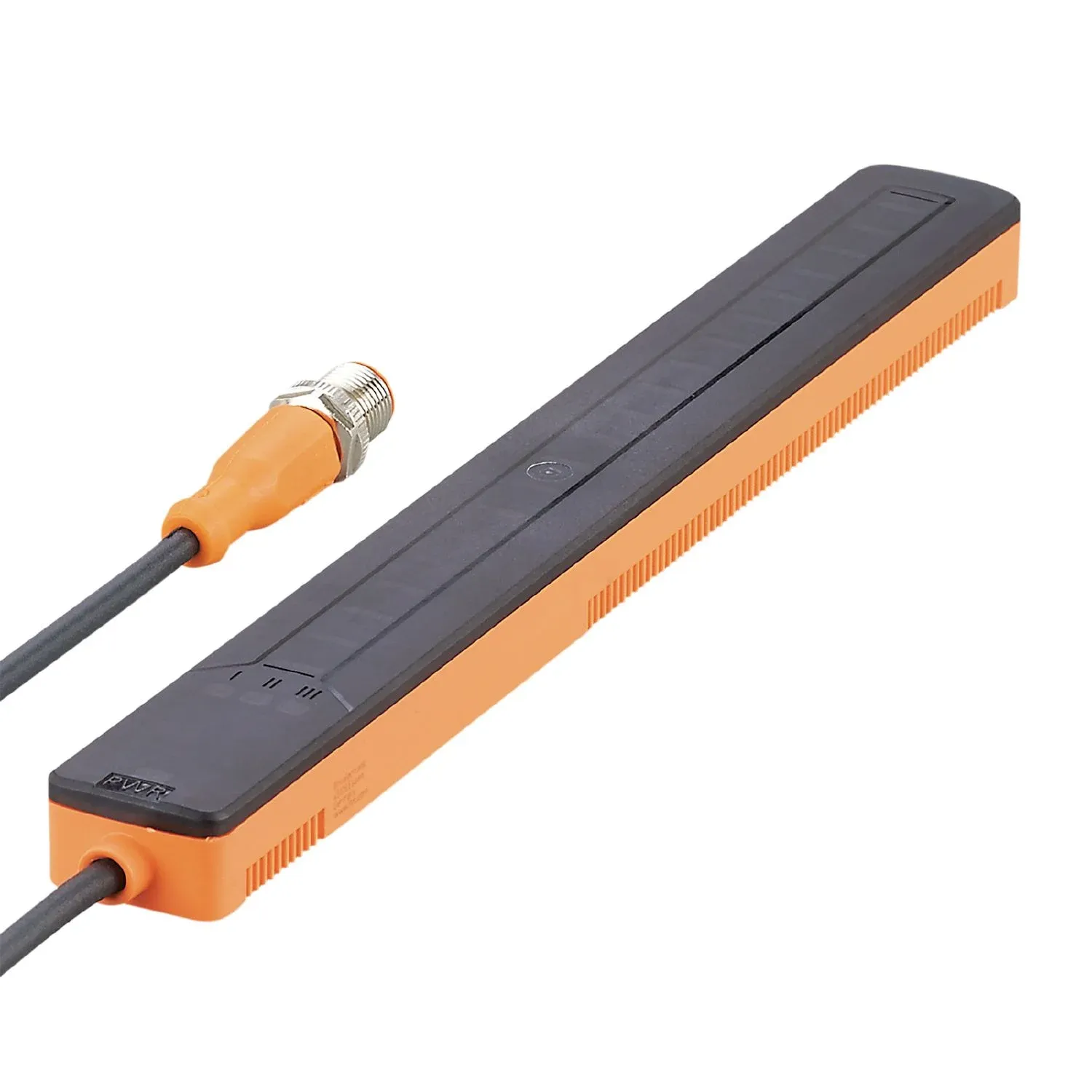

IFM KQ1001

KQ1001

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Continuous level measurement behind non-metallic and non-conductive surfaces
No stress caused by the medium thanks to non-contact detection
Three point level sensors in one unit
Deposits can be detected and signalled to improve quality of the process
Linking several KQ10 via IO-Link

Specification

Product characteristics

Electrical designPNP/NPN; (parameterisable)
Communication interfaceIO-Link
Housingrectangular
Dimensions[mm] [mm]255 x 28 x 16.7

Application

ApplicationContinuous level measurement behind non-metallic and non-conductive surfaces
Mediadry bulk material; aqueous solutions; oils
Cannot be used forhighly adhesive media

Electrical data

Operating voltage[V] [V]10...30 DC; (IO-Link: 18...30 DC)
Current consumption[mA] [mA]< 50
Protection classIII
Reverse polarity protectionyes
Max. power-on delay time[ms] [ms]1300
Measuring principlecapacitive

Inputs / outputs

Number of inputs and outputsNumber of digital outputs: 3

Outputs

Electrical designPNP/NPN; (parameterisable)
Number of digital outputs3
Permanent current rating of switching output DC[mA] [mA]200
Max. resistance switching output[Ω] [Ω]8
Short-circuit protectionyes
Type of short-circuit protectionpulsed
Overload protectionyes

Detection zone

Measuring range[mm] [mm]< 200

Measuring/setting range

Detection range[mm] [mm]228
Set point SP[%] [%]5...95
Reset point rP[%] [%]4...94
In steps of[%] [%]1

Accuracy / deviations

Repeatability[% of the final value] [% of the final value]2
Offset deviation[% of the final value] [% of the final value]4
Resolution[% of the final value] [% of the final value]1
Linearity deviation[% of the final value] [% of the final value]1

Response times

Response time[ms] [ms]1300

Software / programming

Parameter setting optionsDamping; hysteresis / window; fault indication; diagnostic function; sensitivity; internal temperature; limitation of measuring range; Adjustable switching delay; zero-point calibration; direction of installation; LEDs can be deactivated

Interfaces

Communication interfaceIO-Link
Transmission typeCOM2 (38,4 kBaud)
IO-Link revision1.1
SDCI standardIEC 61131-9
ProfilesSmart Sensor - SSP 3.1
Measuring Sensor
Common - I&D
Identification and Diagnosis
Smart Sensor - SSP 3.1Measuring Sensor
Common - I&DIdentification and Diagnosis
SIO modeyes
Required master port typeA
Process data analogue1
Process data binary3
Min. process cycle time[ms] [ms]7.2
IO-Link process data (cyclical)process value
16
exponent
8
device status
4
binary switching information
3
process value16
exponent8
device status4
binary switching information3
IO-Link functions (acyclical)direction of installation; limitation of sensor elements; sensitivity; minimum recognition threshold; Performance in case of a fault; error delay; Damping; LED mode; switch-on cycle counter; operating hours counter; switching cycles counter; min./max. process value; internal temperature; min./max. internal temperature; diagnostic data for level
Supported DeviceIDsdefault
924
default924
NoteFor further information please see the IODD PDF file under "Downloads"

Operating conditions

ApplicationsDIN EN 60654-1 application class B2
Ambient temperature[°C] [°C]-20...80
Storage temperature[°C] [°C]-25...85
ProtectionIP 65

Tests / approvals

EMCDIN EN 61000-6-4 30 - 230 MHz
40 dBµV/m QP / 10 m distance
230 - 1 GHz
47 dBµV/m QP / 10 m distance
DIN EN 61000-4-2
± 25 kV AD / ± 25 kV CD
DIN EN 61000-4-3
80 MHz - / 1 GHz 10 V/m
DIN EN 61000-4-4
± 2.5 kV / 5 kHz
± 2.5 kV / 100 kHz
DIN EN 61000-4-6
10 V
DIN EN 61000-6-4 30 - 230 MHz40 dBµV/m QP / 10 m distance
230 - 1 GHz47 dBµV/m QP / 10 m distance
DIN EN 61000-4-2± 25 kV AD / ± 25 kV CD
DIN EN 61000-4-380 MHz - / 1 GHz 10 V/m
DIN EN 61000-4-4± 2.5 kV / 5 kHz
DIN EN 61000-4-610 V
Shock resistanceEN 60068-2-27
15 g 11 ms
EN 60068-2-2715 g 11 ms
Vibration resistanceEN 60068-2-6
5 g (10...2000 Hz)
EN 60068-2-65 g (10...2000 Hz)
MTTF[years] [years]290.43
UL approvalTa
-25...60 °C
Enclosure type
Type 1
power supply
Limited Voltage/Current
UL approval no.
D006
File number UL
E174191
Ta-25...60 °C
Enclosure typeType 1
power supplyLimited Voltage/Current
UL approval no.D006
File number ULE174191

Mechanical data

Weight[g] [g]377.5
Housingrectangular
Dimensions[mm] [mm]255 x 28 x 16.7
MaterialsPBT; PC;

Displays / operating elements

Displayoperation
1 x LED, green
switching status
3 x LED, yellow
function
20 x LED, green
operation1 x LED, green
switching status3 x LED, yellow
function20 x LED, green

Accessories

Items suppliedadhesive tape: 1 x (1,2 x 23 x 240 mm)
Accessories (optional)Mounting adapter: 2, E12675
Mounting adapter: 2, E12676
Fixing strap: 5, E10880
adhesive tape: 10, E12677

Remarks

Remarkswhen used on IO-Link class B masters switching outputs OUT2, OUT3 have to be switched off
Pack quantity1 pcs.

Electrical connection

Connector1 x M12; coding: A

Electrical connection - plug

Cable0.1 m, PUR
