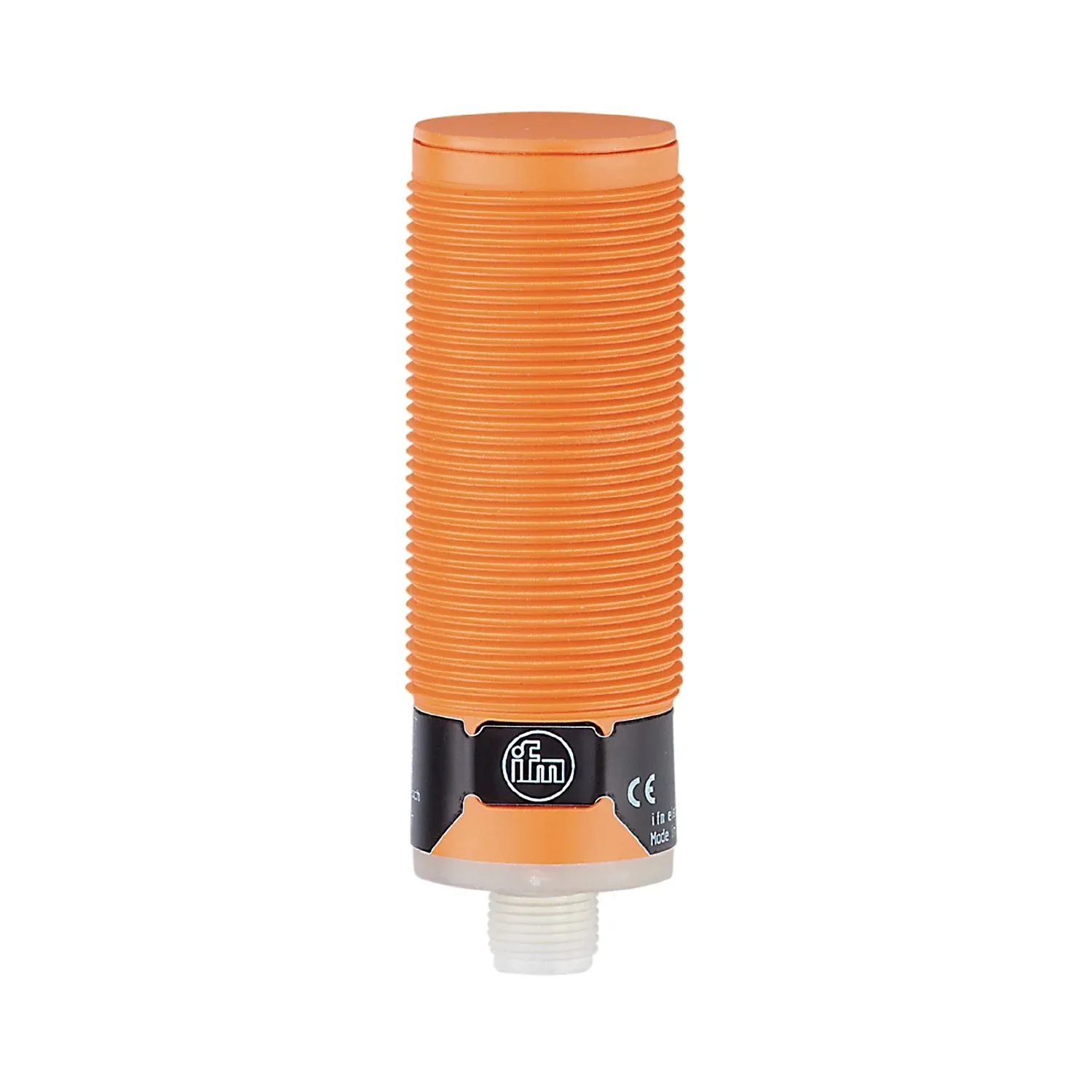

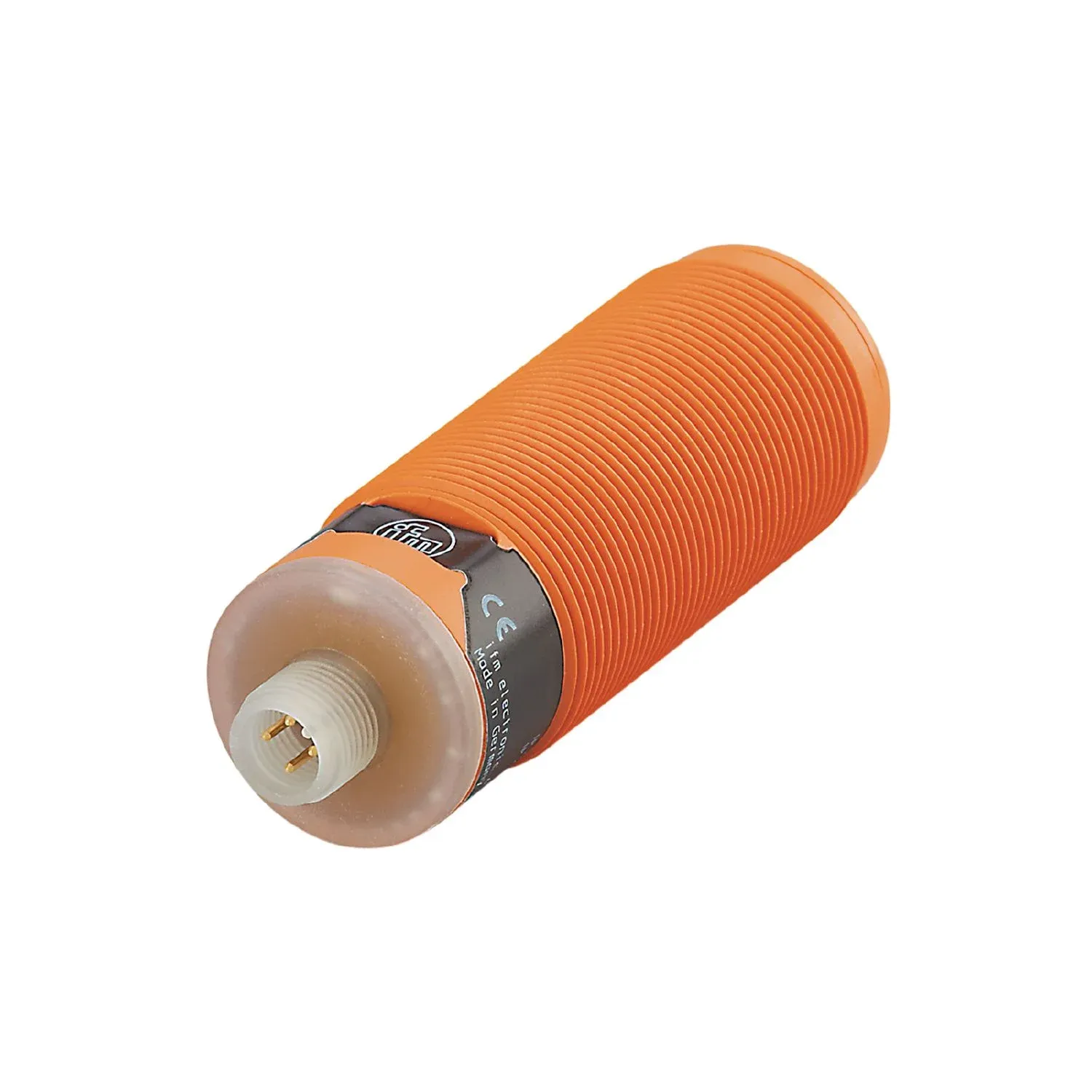

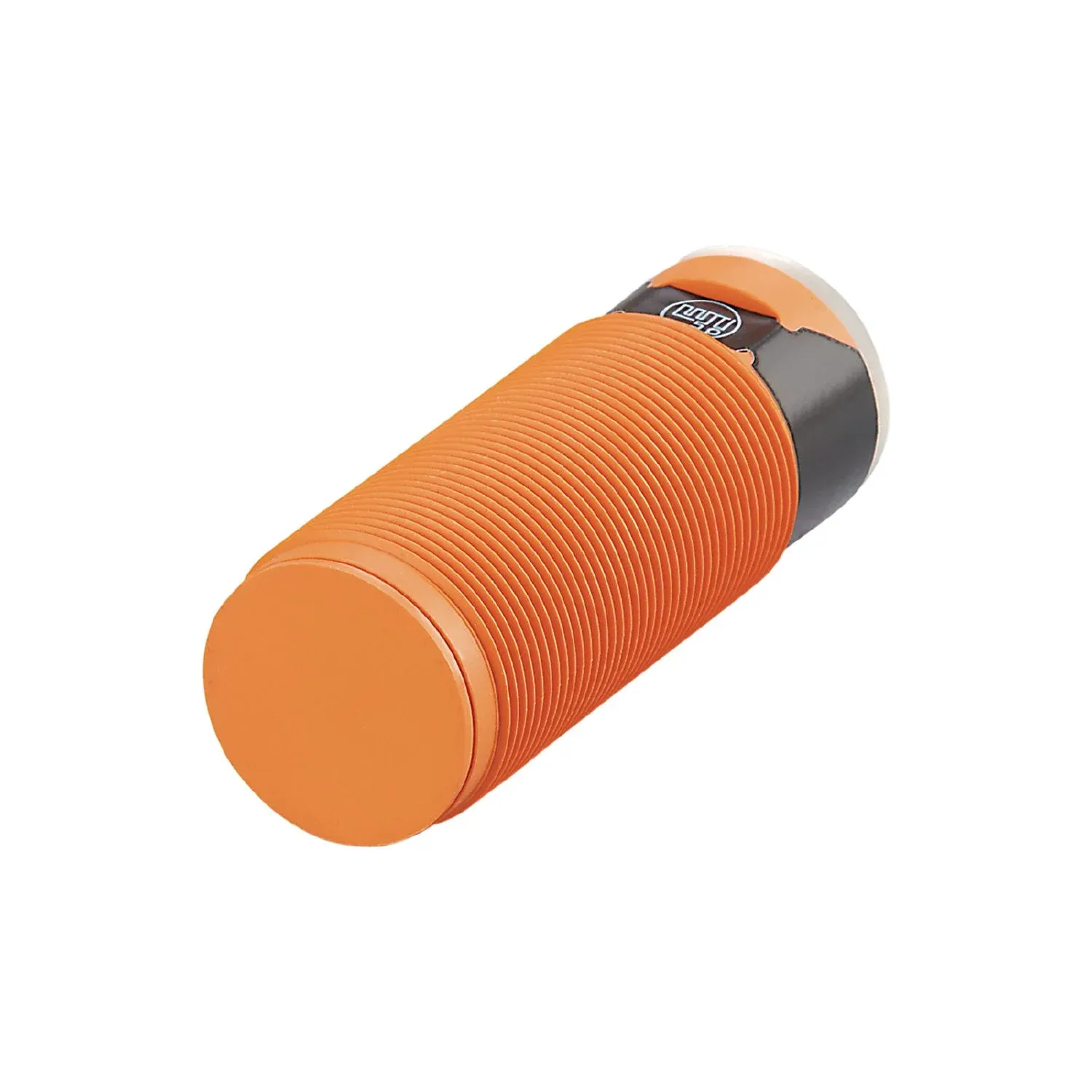

IFM KI5096
KI5096
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy adjustment of the device function via teach
Output function normally open / normally closed programmable
Easy adjustment to the empty and full state via pushbutton
Resistant to electrostatic discharge
High noise immunity
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 20 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 90 |
Application
| Special feature | Gold-plated contacts |
|---|
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Rated insulation voltage[V] [V] | 60 |
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time[ms] [ms] | 300 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Max. leakage current[mA] [mA] | 0.1 |
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-time current rating of switching output[mA] [mA] | 100 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 20 |
|---|---|
| Real sensing range Sr[mm] [mm] | 20 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -20...20 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 3 V/m EN 61000-4-4 2 kV EN 61000-4-6 3 V EN 55011 class B |
|---|---|
| EN 61000-4-2 | 4 kV CD / 8 kV AD |
| EN 61000-4-3 | 3 V/m |
| EN 61000-4-4 | 2 kV |
| EN 61000-4-6 | 3 V |
| EN 55011 | class B |
| Shock/vibration resistance | EN 60947-5-2 |
| MTTF[years] [years] | 685 |
Mechanical data
| Weight[g] [g] | 88 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 90 |
| Thread designation | M30 x 1.5 |
| Materials | housing: PBT-GF20; LED window: PC |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Contacts: gold-plated |
|---|
