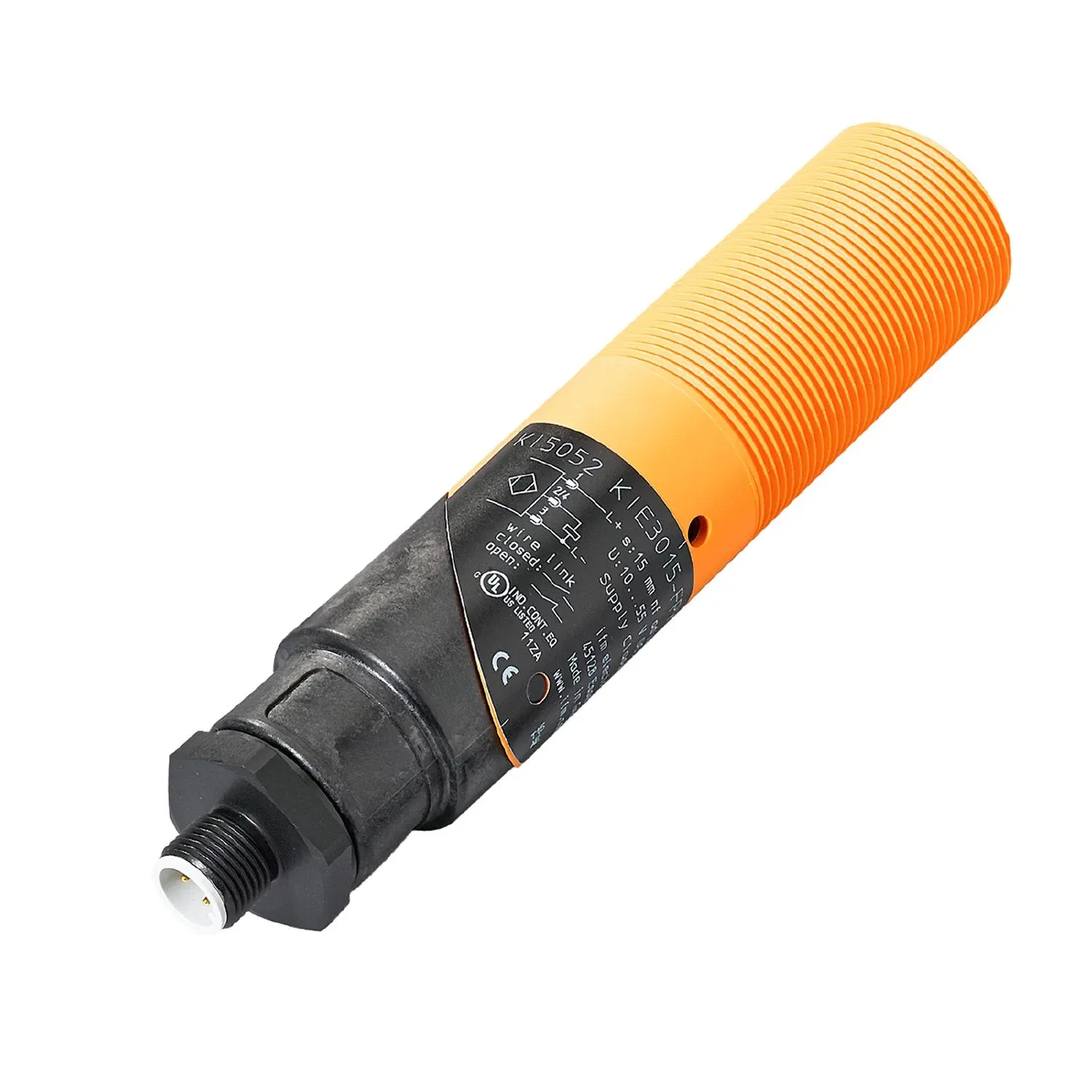

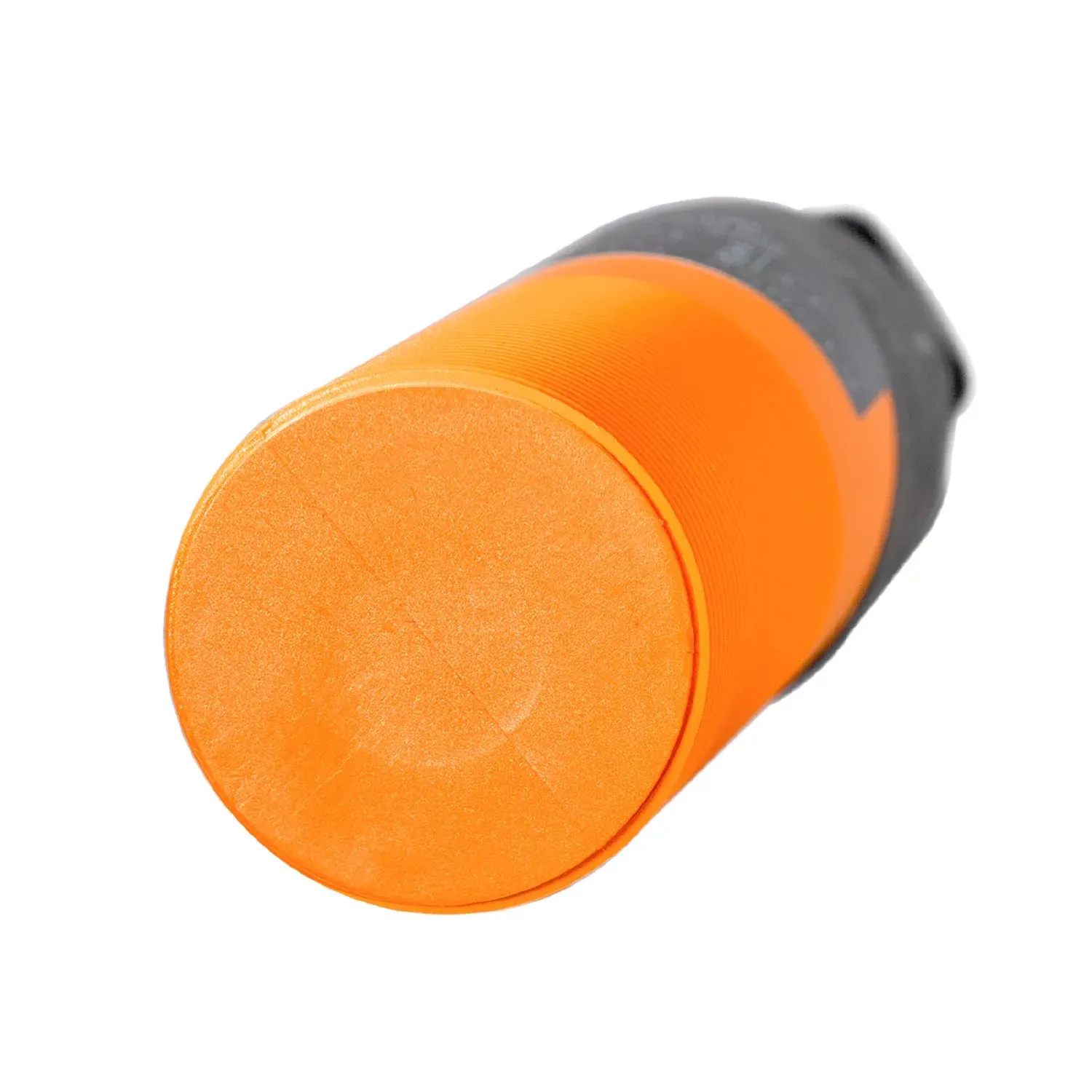

IFM KI5052
KI5052
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High noise immunity
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
Output function normally open / normally closed programmable
With connector that can be rotated by 90°
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 15 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 143 |
Electrical data
| Operating voltage[V] [V] | 10...55 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 14; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 250 |
| Switching frequency DC[Hz] [Hz] | 40 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 15 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 65 |
| Increased immunity | yes; (increased immunity to conducted radio frequency interference) |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 743 |
Mechanical data
| Weight[g] [g] | 146 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 143 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; bevelled housing part: PC |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories

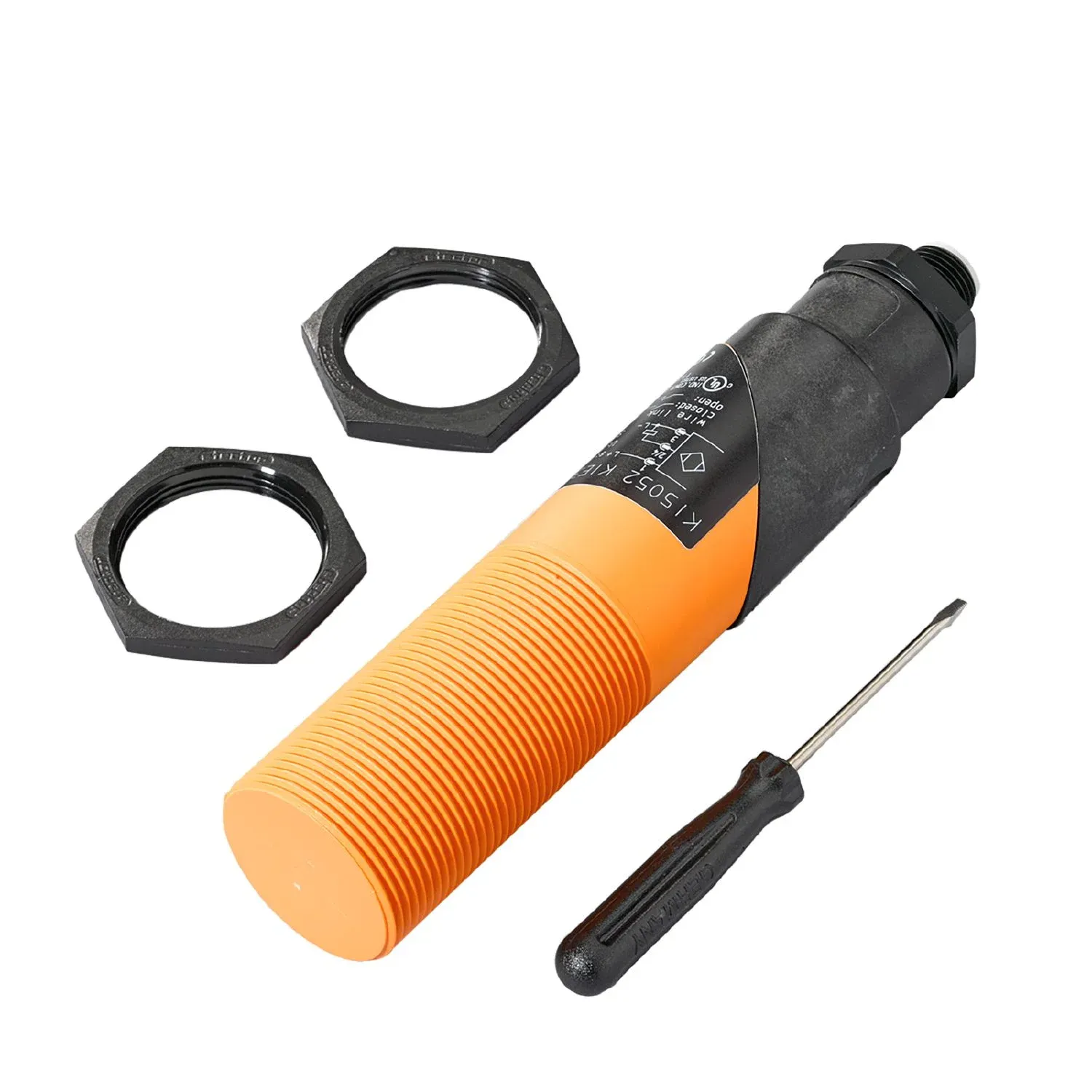

| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug

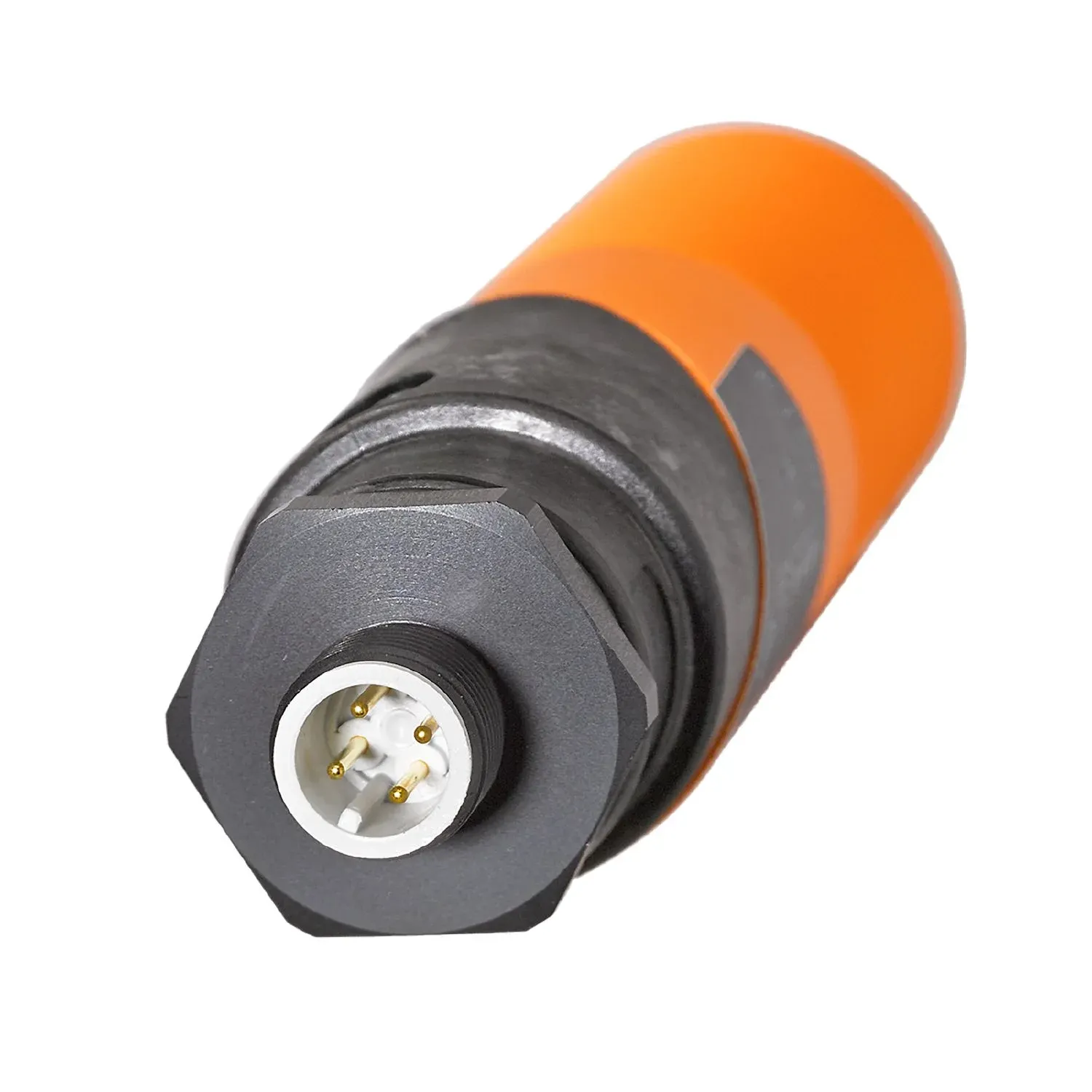

| Connector | 1 x M12; coding: A |
|---|
