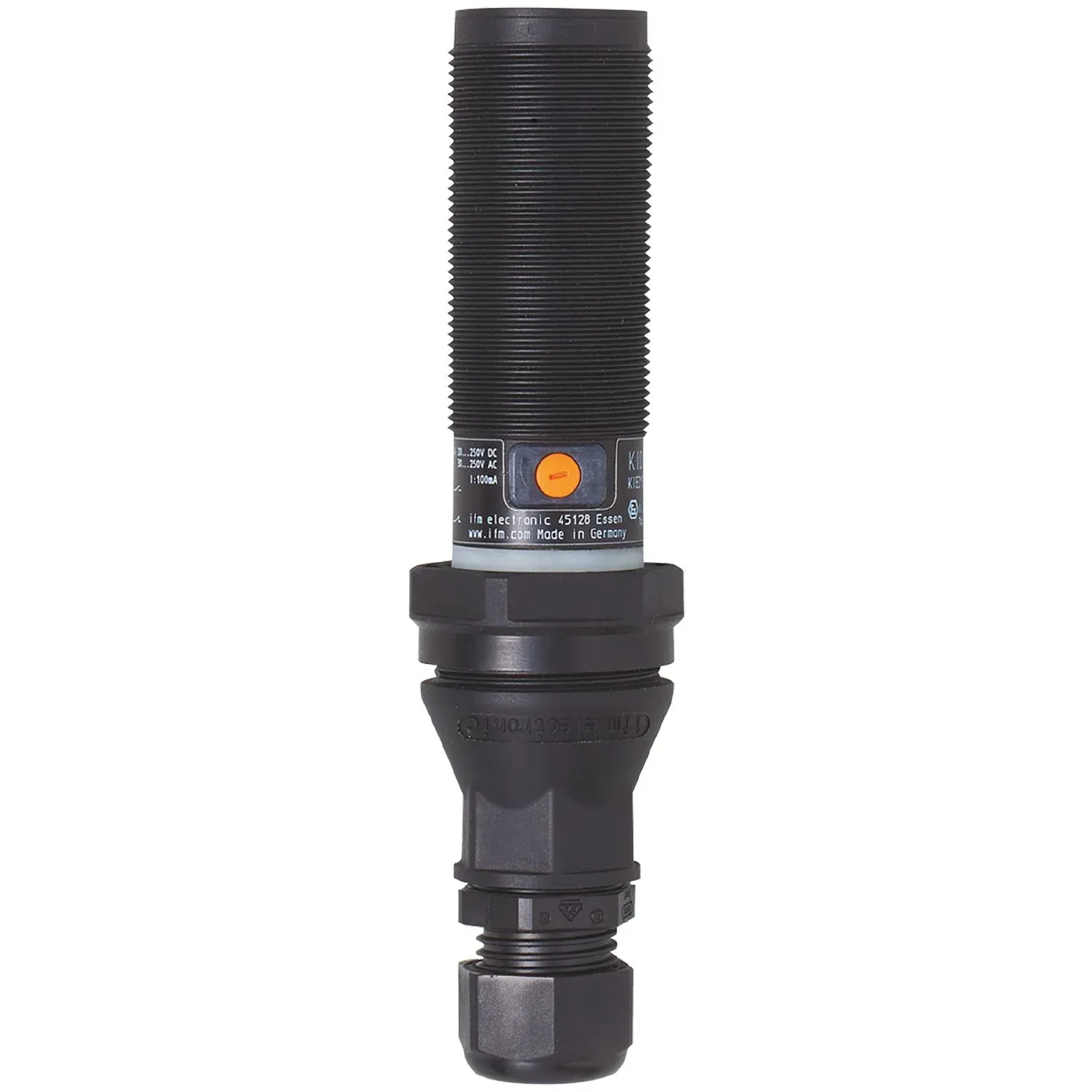

IFM KI503A
KI503A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
Direct connection to plant control without switching amplifier
Complementary output function NO/NC
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range[mm] [mm] | 15 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 150 |
Electrical data
| Operating voltage[V] [V] | 10...30 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Max. leakage current[mA] [mA] | 0.1 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 15 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] [mm] | 15 |
| Real sensing range Sr[mm] [mm] | 15 ± 10 % |
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
|---|---|
| Switch point drift[% of Sr] [% of Sr] | -20...20 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T90°C Dc |
|---|---|
| EMC | EN 61000-4-2 ESD kV / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B IEC 60255-5 1 kV line to line, Ri: 500 Ohm |
| EN 61000-4-2 ESD | kV / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | class B |
| IEC 60255-5 | 1 kV line to line, Ri: 500 Ohm |
| MTTF[years] [years] | 463 |
Mechanical data
| Weight[g] [g] | 149 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M30 x 1.5 / L = 150 |
| Thread designation | M30 x 1.5 |
| Materials | PBT; PA |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| terminals | 0.34...1.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
|---|
