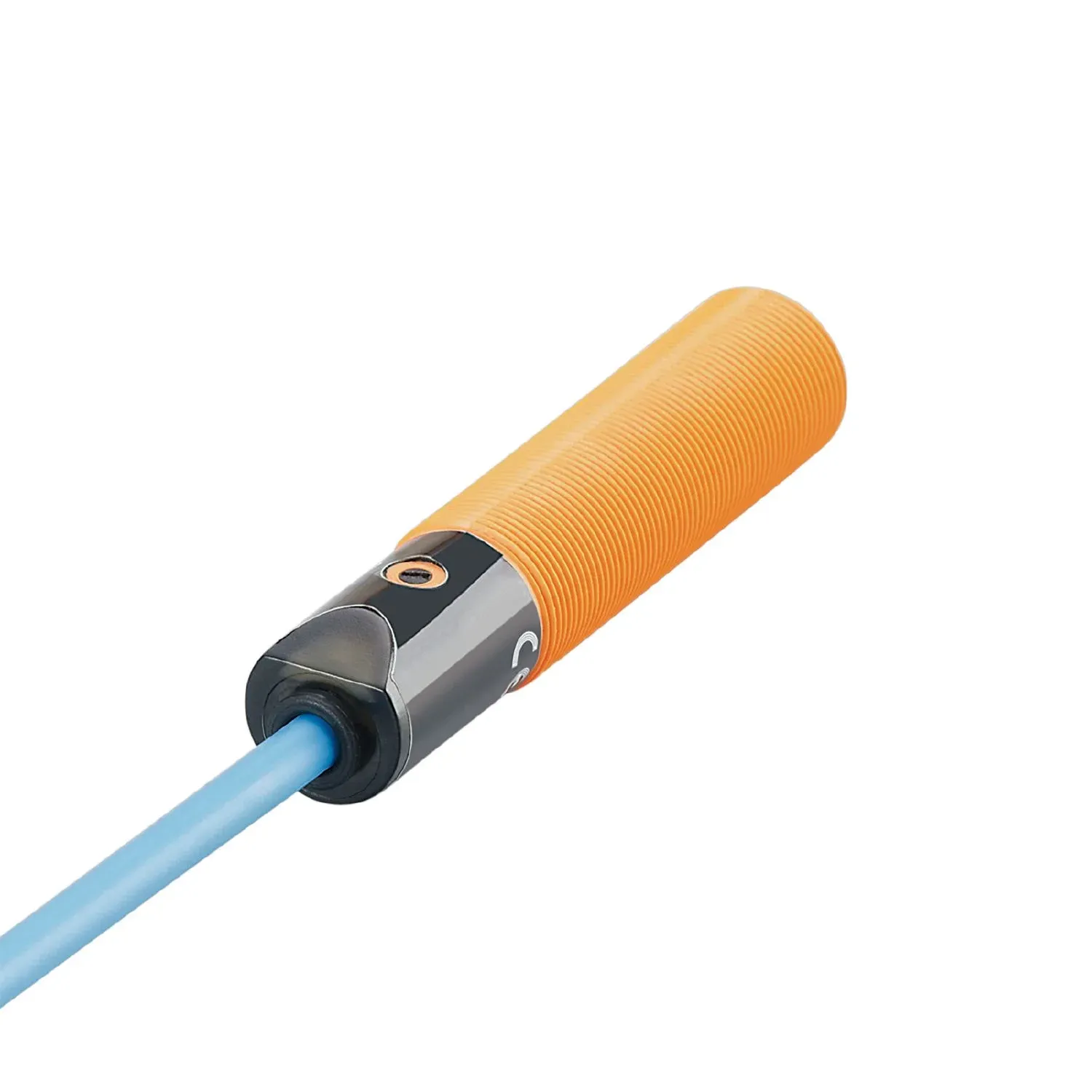

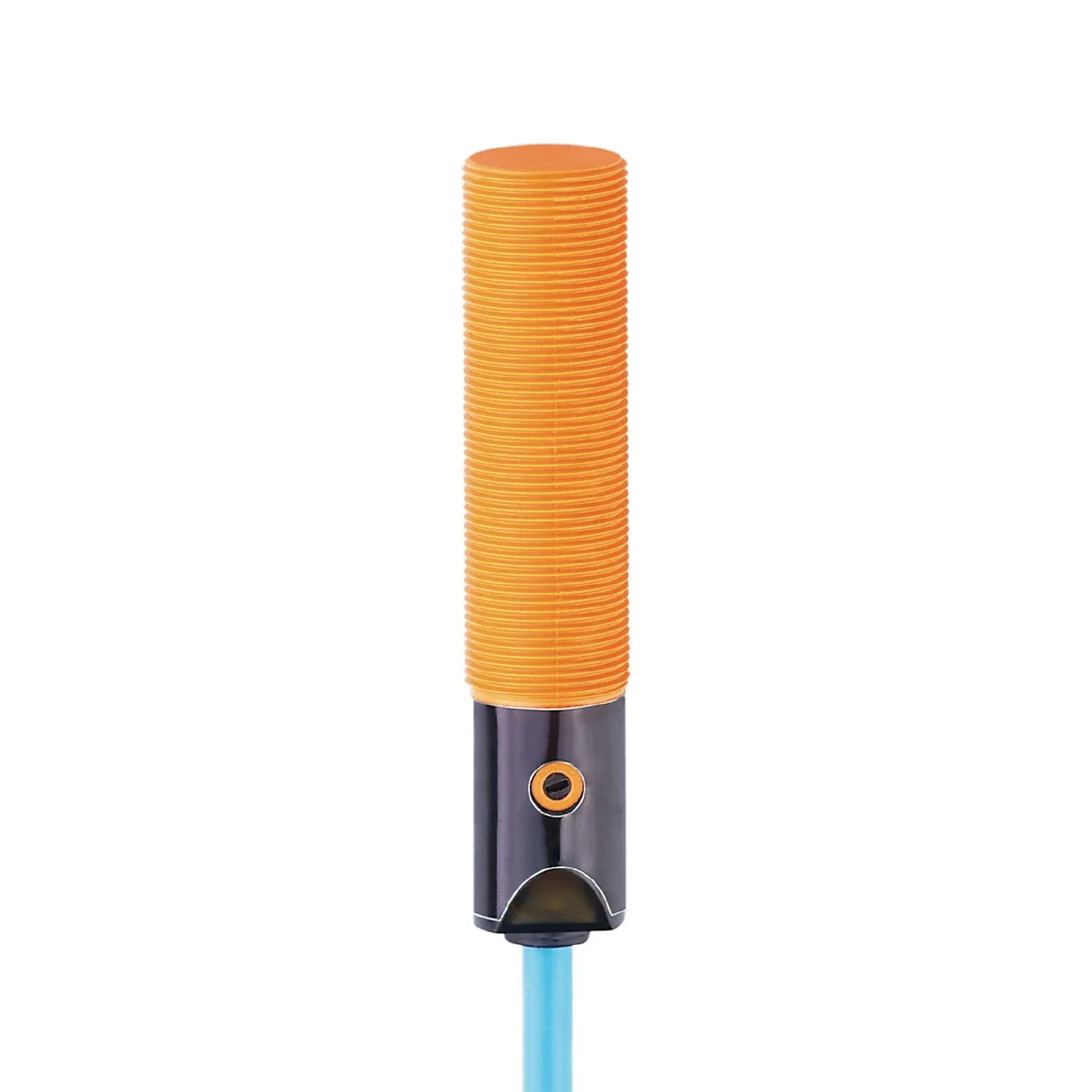

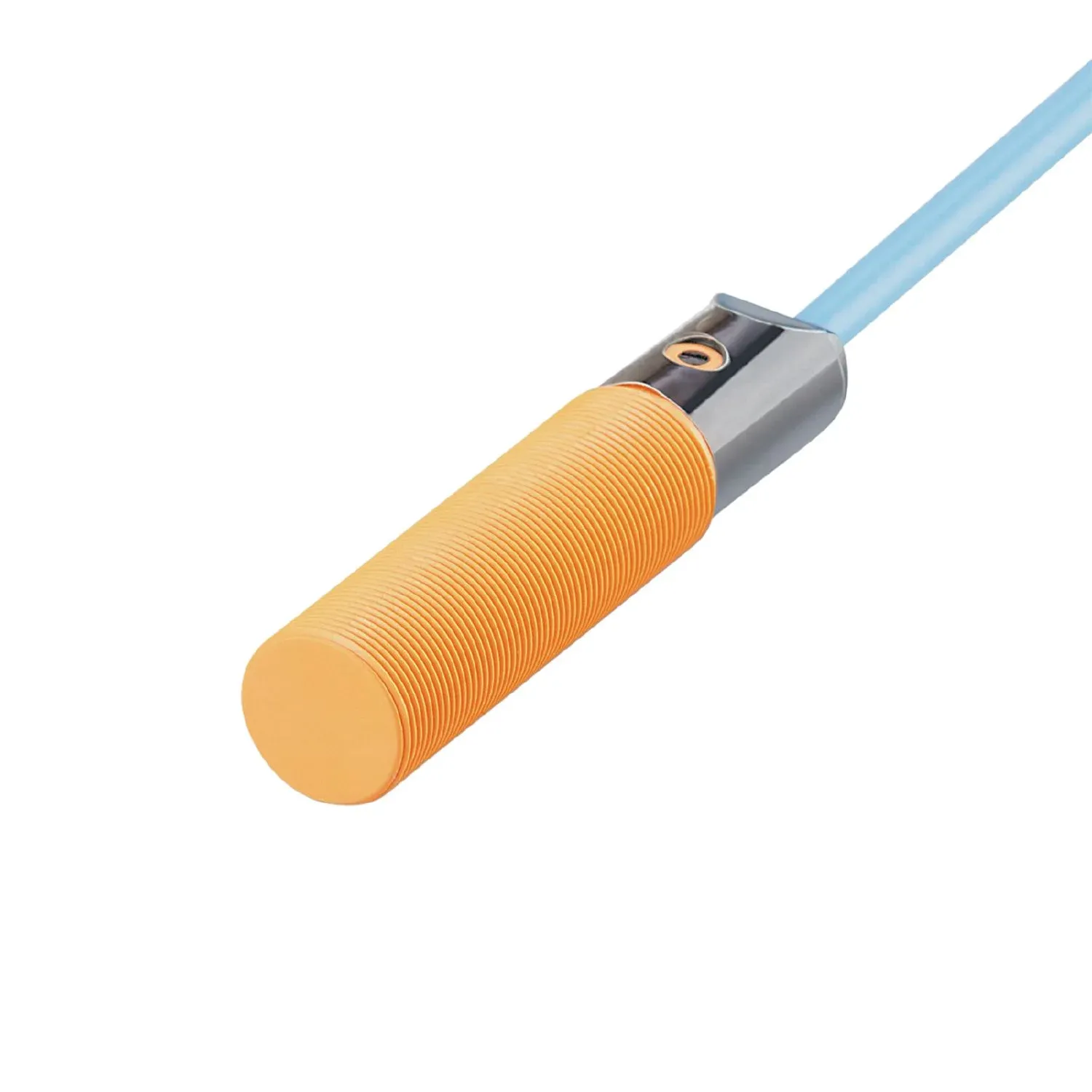

IFM KG5079
KG5079
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For applications in hazardous areas
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status
For position detection or level monitoring
Specification
Product characteristics
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Sensing range[mm] [mm] | 8 |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 84 |
Electrical data
| Connection to switching amplifiers | yes |
|---|---|
| Switching amplifiers | connection to certified intrinsically safe circuits with the max. values: U = 15 V / I = 50 mA / P = 120 mW |
| Nominal voltage DC[V] [V] | 8.2; (1kΩ) |
| Supply voltage DC[V] [V] | 7.5...15 |
| Current consumption[mA] [mA] | < 1; (disabled; conductive: > 2,2) |
| Protection class | II |
Outputs
| Electrical design | NAMUR |
|---|---|
| Output function | normally closed |
| Switching frequency DC[Hz] [Hz] | 4 |
Detection zone
| Sensing range[mm] [mm] | 8 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] [mm] | 8 |
| Real sensing range Sr[mm] [mm] | 8 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| Approval | BVS 13 ATEX E009 X; IECEx BVS 13.0015 X |
|---|---|
| ATEX marking | II 1G Ex ia IIB T4 Ga |
| EMC | EN 61000-4-2 ESD - kV CD / 8 kV AD EN 61000-4-3 HF radiated 3 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 emission class B |
| EN 61000-4-2 ESD | - kV CD / 8 kV AD |
| EN 61000-4-3 HF radiated | 3 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 emission | class B |
| Shock resistance | EN 60947-5-2 |
| MTTF[years] [years] | 503 |
Safety classification
| Max. internal capacitance[nF] [nF] | 11.5 |
|---|---|
| Max. internal inductance[µH] [µH] | 3 |
Mechanical data
| Weight[g] [g] | 320 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 84 |
| Thread designation | M18 x 1 |
| Materials | PBT |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 6 m, PVC; 2 x 0.5 mm² |
|---|
