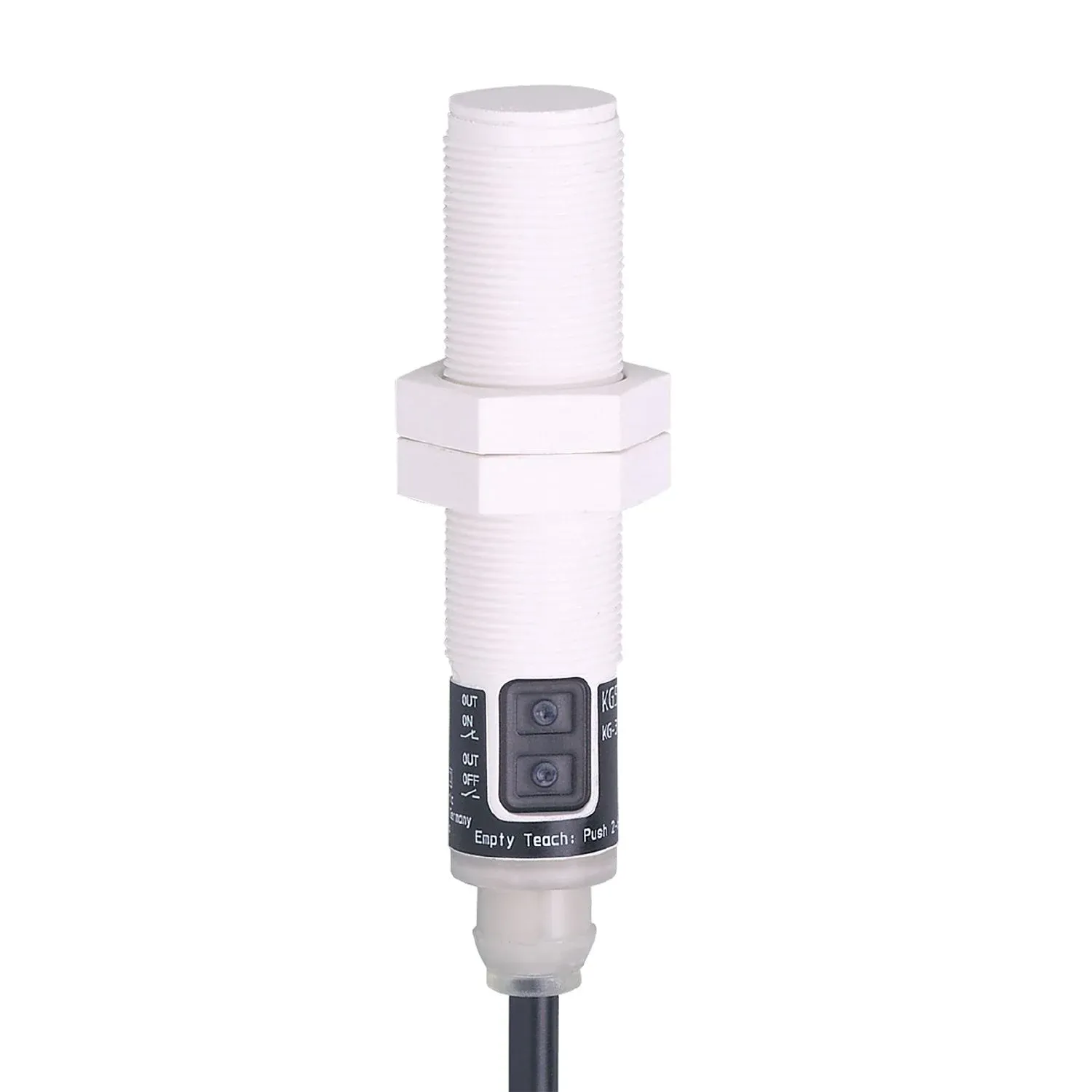

IFM KG5069
KG5069
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High noise immunity
Reliable level detection of conductive media
Output function normally open / normally closed programmable
Clearly visible indication of the switching status via LED ring
Easy parameter setting via IO-Link
Specification
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Sensing range[mm] [mm] | 8 |
| Communication interface | IO-Link |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 77 |
Electrical data
| Operating voltage[V] [V] | 10...36 DC |
|---|---|
| Current consumption[mA] [mA] | < 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Measuring principle | capacitive |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open / normally closed; (selectable) |
| Max. voltage drop switching output DC[V] [V] | 2.5 |
| Permanent current rating of switching output DC[mA] [mA] | 200 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit proof | yes |
| Overload protection | yes |
Detection zone
| Sensing range[mm] [mm] | 8 |
|---|
Accuracy / deviations
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
|---|---|
| Switch point drift[% of Sr] [% of Sr] | -20...20 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM1 (4,8 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 CDV |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Multiple switching signal Function Process data variable Function Teach channel |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Teach channel |
| SIO mode | yes |
| Min. process cycle time[ms] [ms] | 100.8 |
| Supported DeviceIDs | default 387 |
| default | 387 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B |
|---|---|
| EN 61000-4-2 ESD | 8 kV AD |
| EN 61000-4-3 HF radiated | 10 V/m |
| EN 61000-4-4 Burst | 2 kV |
| EN 61000-4-6 HF conducted | 3 V |
| EN 55011 | class B |
| Vibration resistance | EN 60068-2-6 Fc (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| EN 60068-2-6 Fc | (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz |
| Shock resistance | EN 60068-2-27 Ea 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| EN 60068-2-27 Ea | 30 g 6 shocks / 11 ms half-sine (x, y, z) |
| MTTF[years] [years] | 653 |
Mechanical data
| Weight[g] [g] | 97.3 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 77 |
| Thread designation | M18 x 1 |
| Materials | housing: PP white; Sealing: TPE-U; pushbuttons: TPE-U |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
| Teach function | yes |
| Electronic lock | yes |
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm² |
|---|
