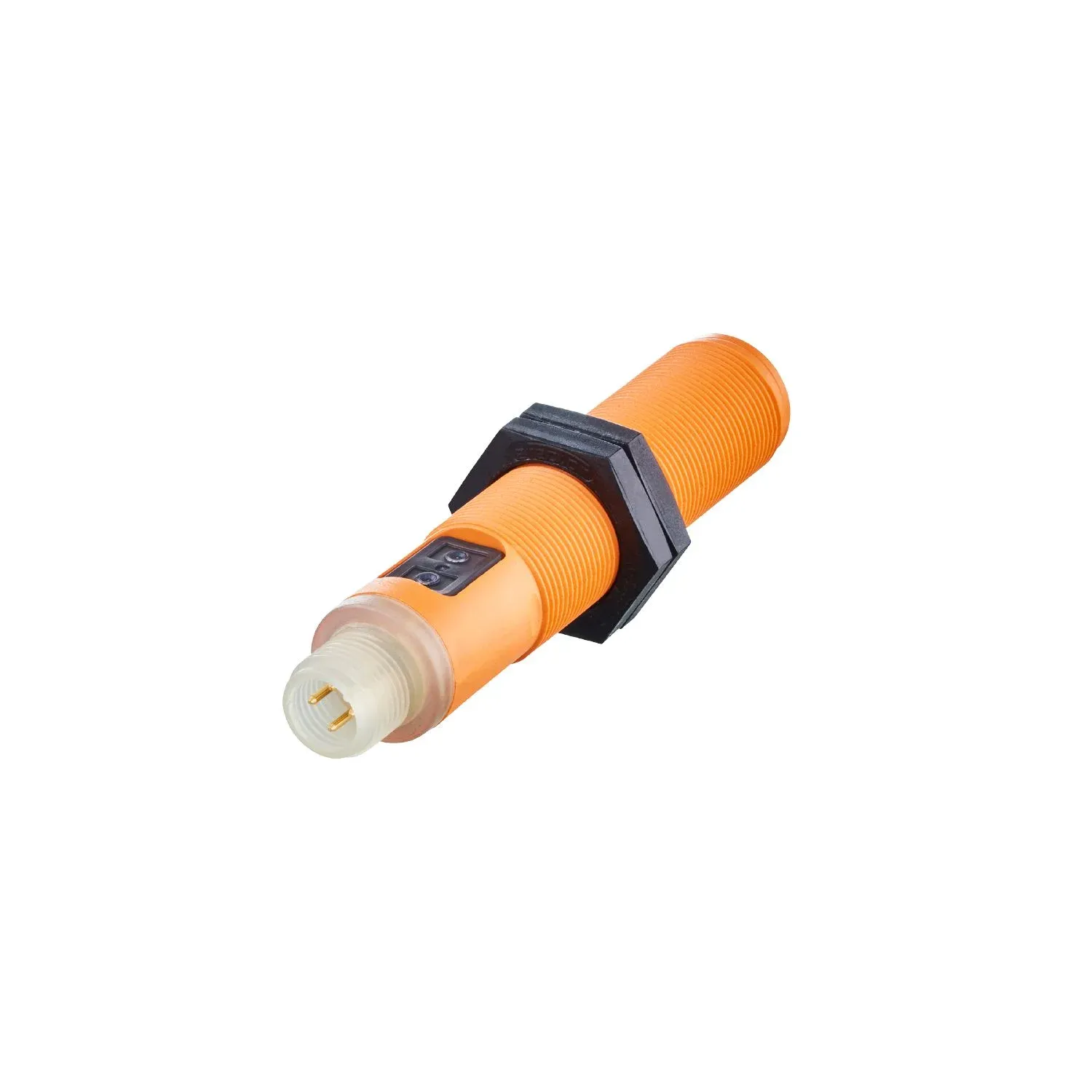

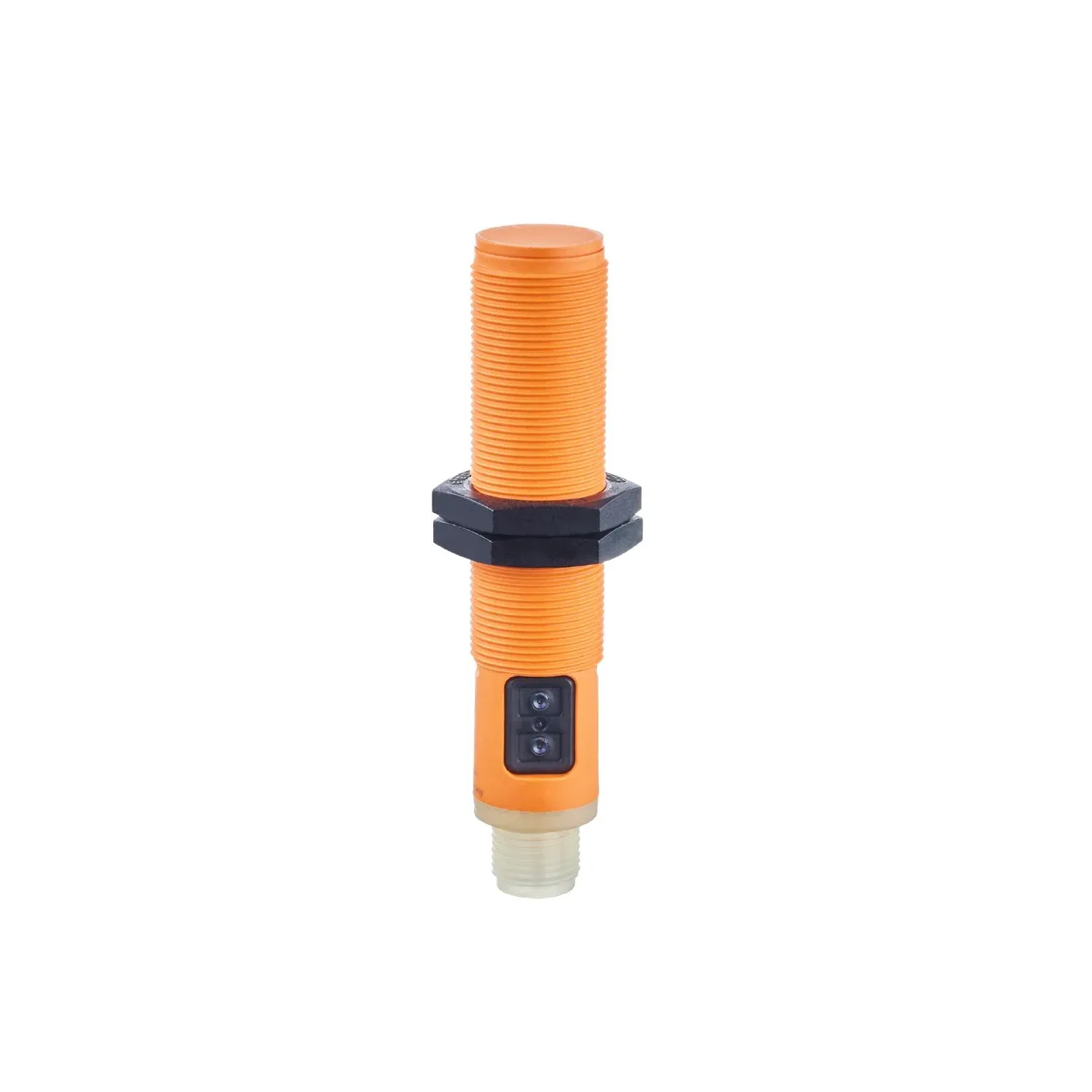

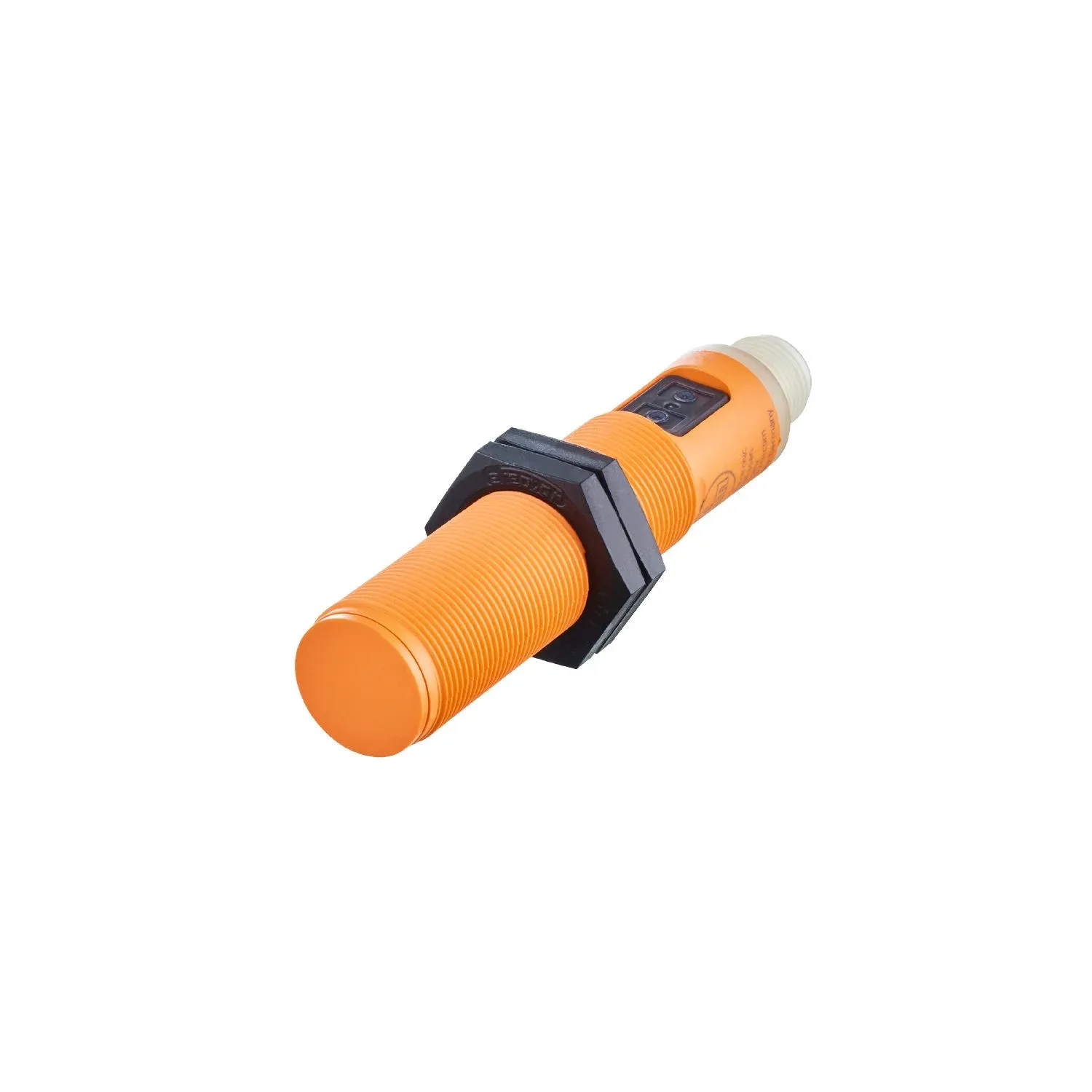

IFM KG0016
KG0016
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy setting of the sensing range via potentiometer
With combined AC/DC output stage
Output function normally open / normally closed programmable
Two-wire technology
Clearly visible indication of the switching status
Specification
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range[mm] [mm] | 4...24; (programming buttons) |
| Housing | threaded type |
| Dimensions[mm] [mm] | M18 x 1 / L = 87 |
Application
| Installation | detection through non-metallic container wall or on bypass pipes |
|---|---|
| Media | dry bulk material; liquids |
| Recommended media | media with a dielectric constant < 20; oils |
Electrical data
| Frequency AC[Hz] [Hz] | 47...63 |
|---|---|
| Operating voltage[V] [V] | 30...250 AC / 20...250 DC |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 8 |
| Max. voltage drop switching output AC[V] [V] | 10 |
| Max. leakage current[mA] [mA] | 2.5 (250 V AC) / 1.7 (110 V AC) / 1.5 (24 V DC) |
| Permanent current rating of switching output AC[mA] [mA] | 100; (150 (...40 °C)) |
| Permanent current rating of switching output DC[mA] [mA] | 100; (150 (...40 °C)) |
| Short-time current rating of switching output[mA] [mA] | 1000; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 10 |
| Switching frequency DC[Hz] [Hz] | 10 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 4...24; (programming buttons) |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] [mm] | 12 |
| Real sensing range Sr[mm] [mm] | 12 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.1 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -20...20 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Note on ambient temperature | temperature of the sensing face: -25...110 °C |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC | EN 60947-5-2 |
|---|---|
| MTTF[years] [years] | 321 |
Mechanical data
| Weight[g] [g] | 60 |
|---|---|
| Housing | threaded type |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | M18 x 1 / L = 87 |
| Thread designation | M18 x 1 |
| Materials | housing: PBT; pushbuttons: TPE-U; LED window: PC |
Displays / operating elements
| Display | switching status 1 x LED ring, yellow plug lights translucently |
|---|---|
| switching status | 1 x LED ring, yellow plug lights translucently |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting |
|---|
Accessories
| Items supplied | lock nuts: 2 |
|---|
Remarks
| Remarks | Note: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x 1/2"; coding: C |
|---|
