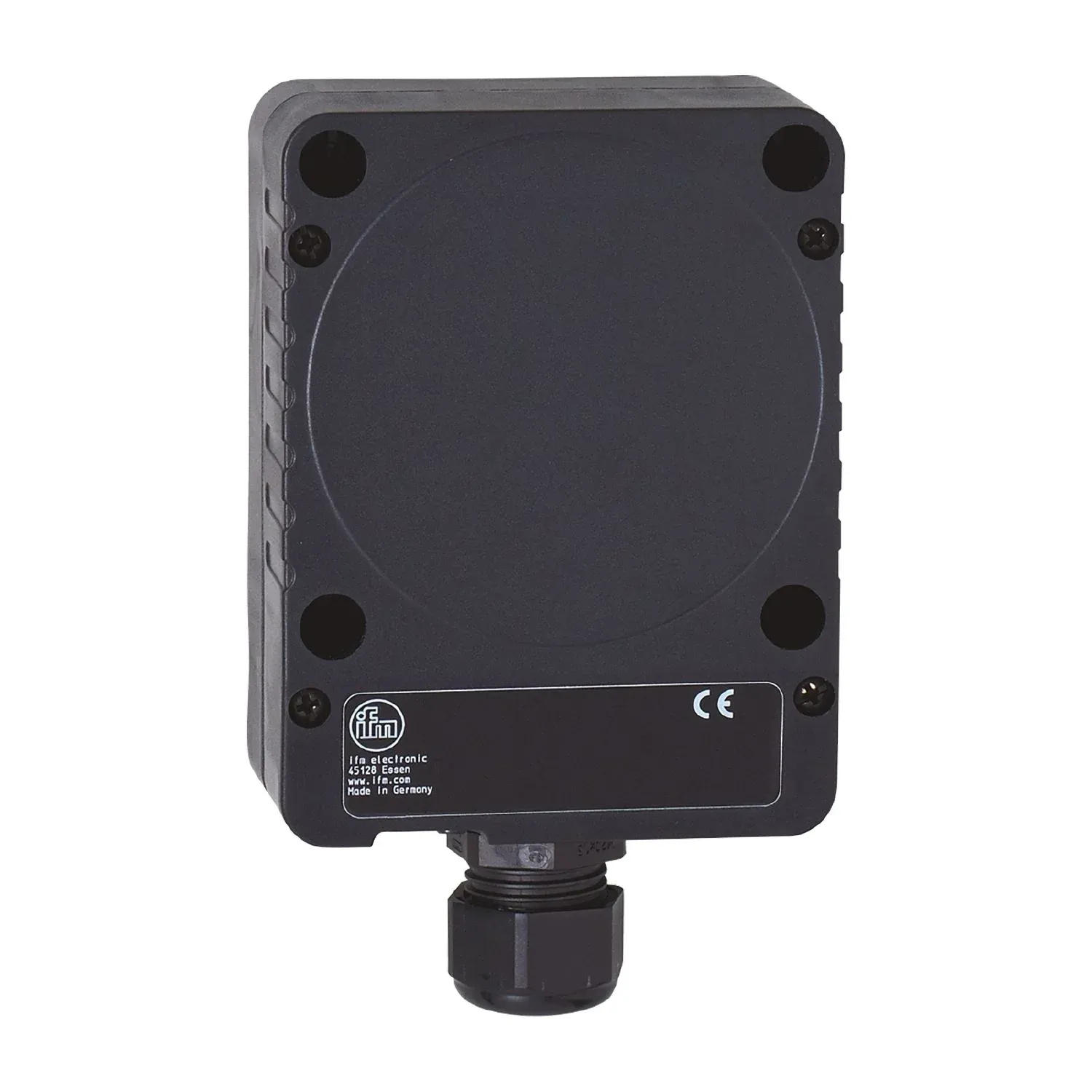

IFM KD001A
KD001A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With combined AC/DC output and two-wire technology
Long sensing range of 60 mm
Easy setting of the sensing range via potentiometer
For applications in hazardous areas
Robust housing for use in harsh industrial environments
Specification
Product characteristics
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Sensing range[mm] [mm] | 60 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 105 x 80 x 42 |
Electrical data
| Operating voltage[V] [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
| Measuring principle | capacitive |
Outputs
| Output function | normally open / normally closed; (selectable) |
|---|---|
| Max. voltage drop switching output DC[V] [V] | 8 |
| Max. voltage drop switching output AC[V] [V] | 10 |
| Minimum load current[mA] [mA] | 5 |
| Max. leakage current[mA] [mA] | 2.5 (250 V AC) / 1.7 (110 V AC) / 1.3 (24 V DC) |
| Permanent current rating of switching output AC[mA] [mA] | 130; (250 (...40 °C)) |
| Permanent current rating of switching output DC[mA] [mA] | 130; (250 (...40 °C)) |
| Short-time current rating of switching output[mA] [mA] | 1500; (20 ms / 0,5 Hz) |
| Switching frequency AC[Hz] [Hz] | 4 |
| Switching frequency DC[Hz] [Hz] | 4 |
| Notes on switching frequency[Hz] [Hz] | only for resistive loads; 2 Hz for utilisation category AC-140 |
| Short-circuit proof | no |
| Overload protection | no |
Detection zone
| Sensing range[mm] [mm] | 60 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range[mm] [mm] | 60 |
| Real sensing range Sr[mm] [mm] | 60 ± 10 % |
Accuracy / deviations
| Correction factor | glass: 0.4 / water: 1 / ceramics: 0.2 / PVC: 0.2 |
|---|---|
| Hysteresis[% of Sr] [% of Sr] | 1...15 |
| Switch point drift[% of Sr] [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature[°C] [°C] | -20...60 |
|---|---|
| Protection | IP 65 |
| Increased immunity | yes |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIC T90°C Dc X IP65 |
|---|---|
| EMC | EN 60947-5-2 |
| MTTF[years] [years] | 270 |
Mechanical data
| Weight[g] [g] | 281.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 105 x 80 x 42 |
| Materials | PPE modified; PA |
| Tightening torque[Nm] [Nm] | housing screws: 0,9 Nm; screws: 4 Nm |
Displays / operating elements
| Display | switching status 1 x LED, yellow |
|---|---|
| switching status | 1 x LED, yellow |
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Place the fuse outside the hazardous area. |
|---|
Remarks
| Remarks | Recommendation: Check the safe functioning of the unit after a short circuit. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| terminals | 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm; Cable gland: M20 X 1.5 |
|---|
